Rinnai Enviroflo 315L Heat Pump Installation Brisbane & Gold Coast

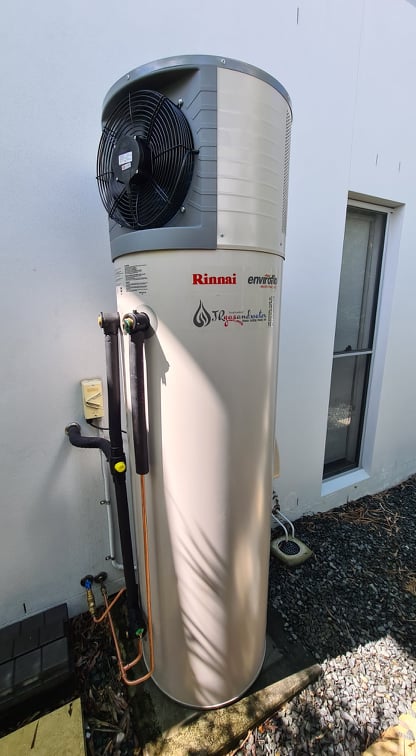

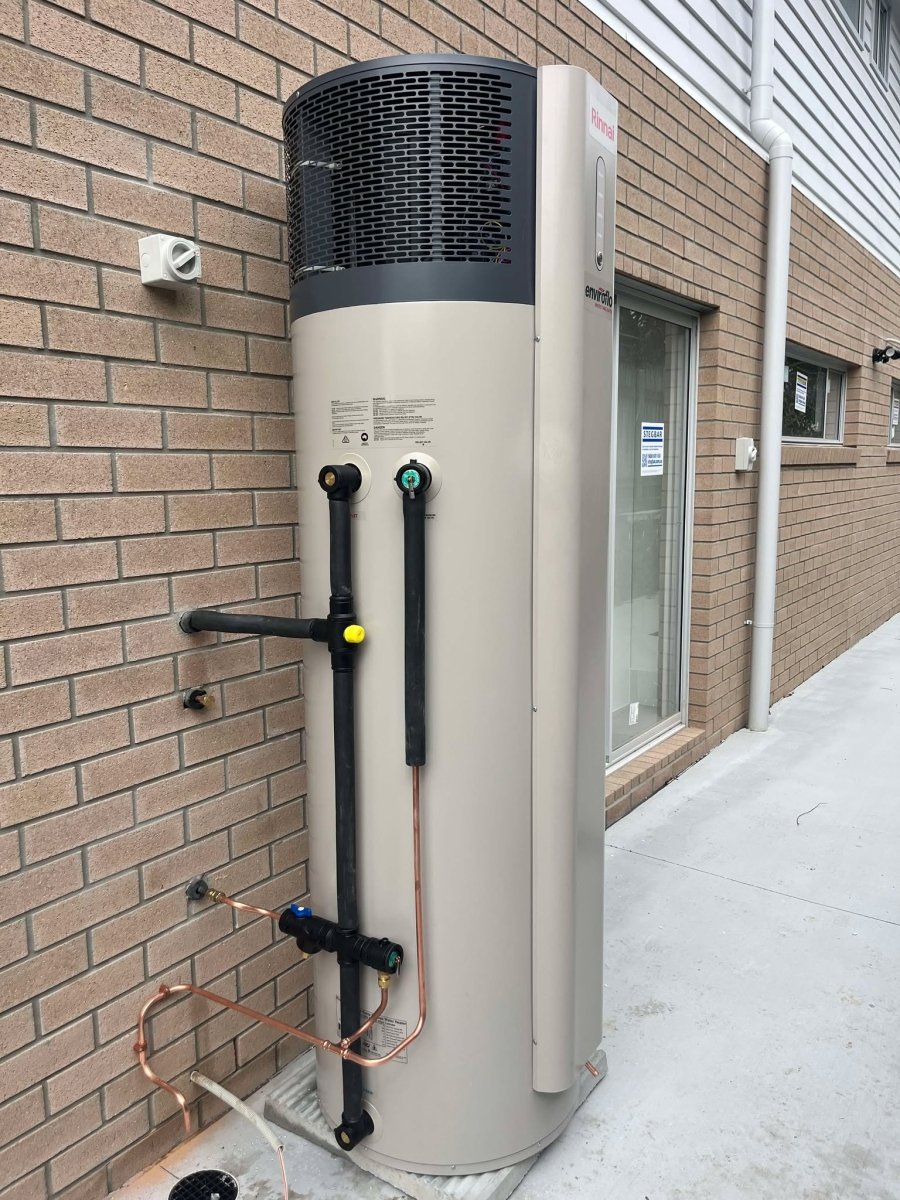

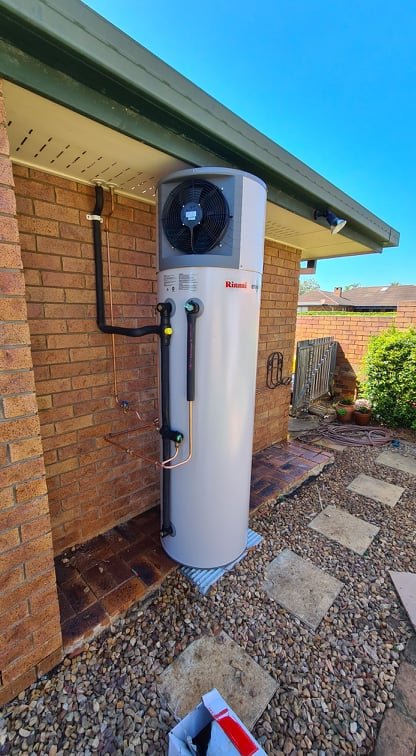

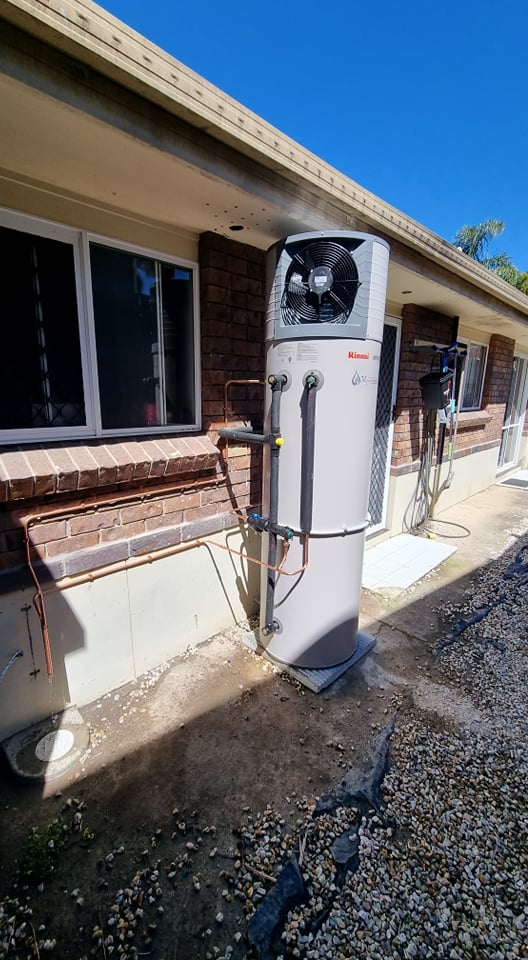

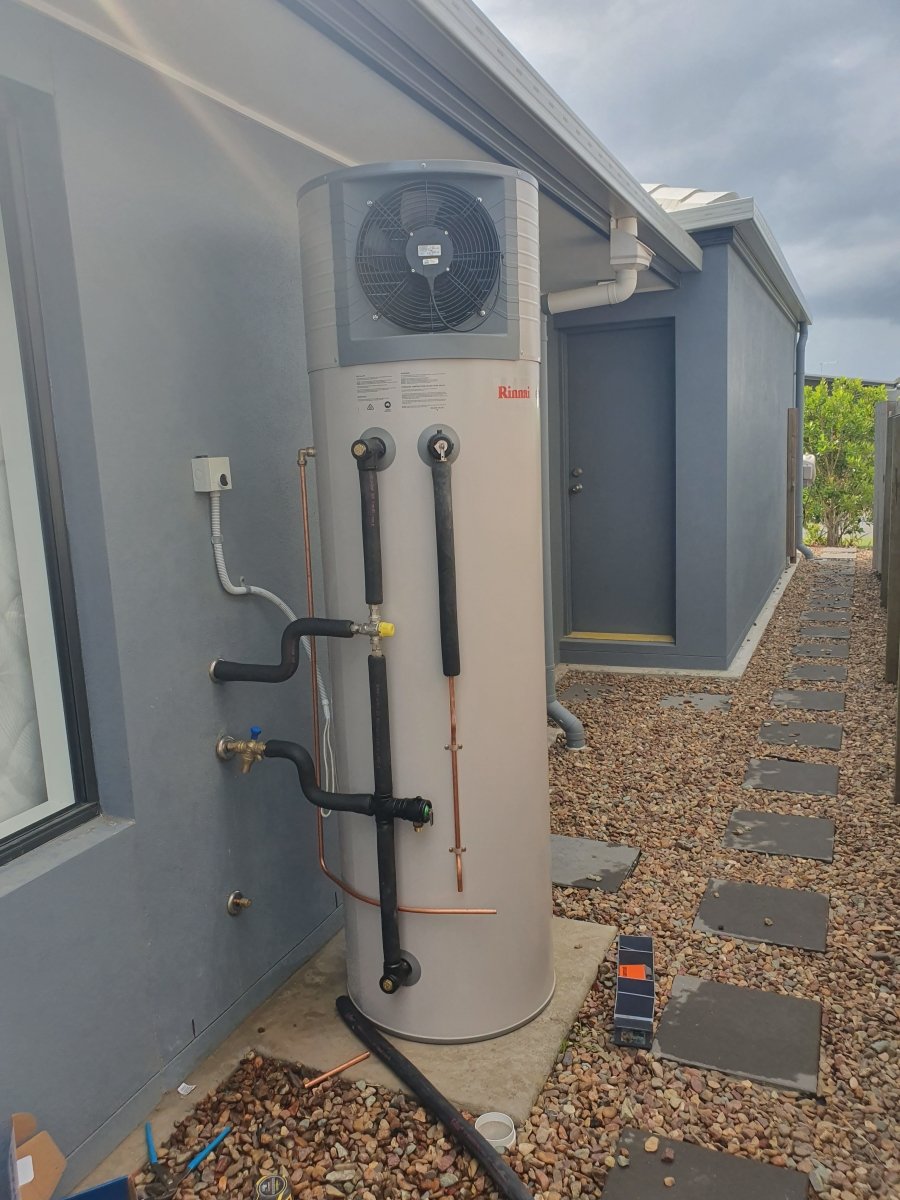

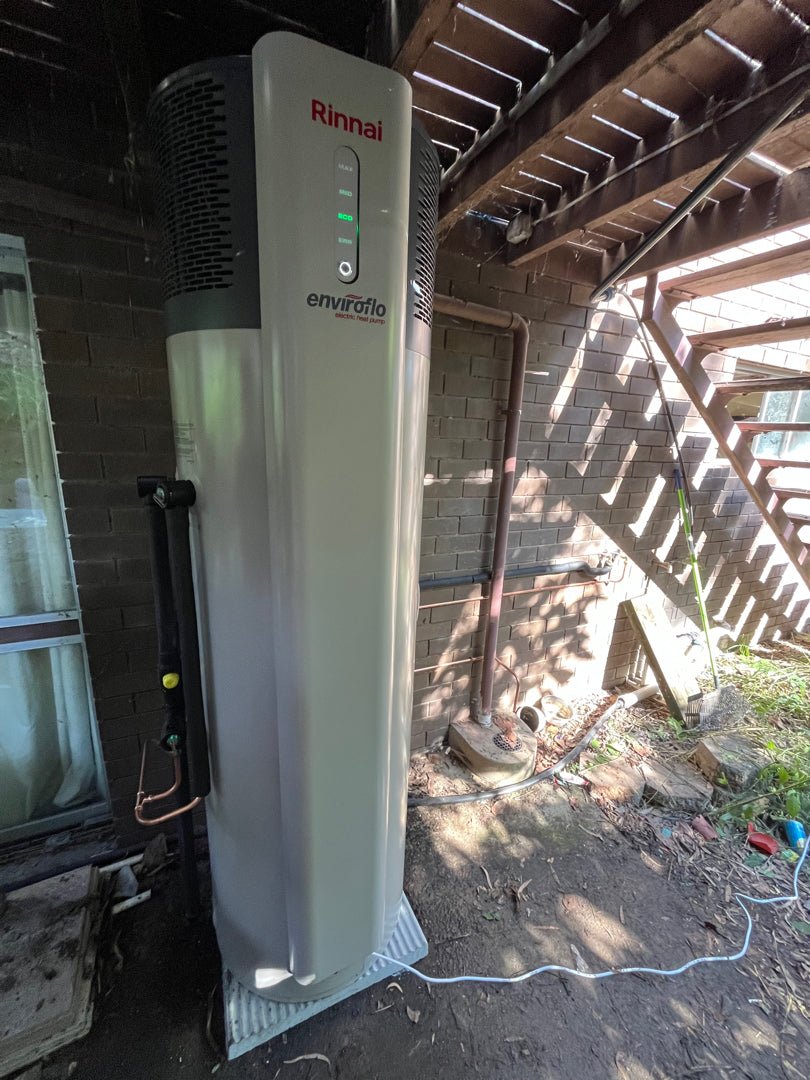

JR Gas & Water has supplied and installed the Rinnai Enviroflo 315L Heat Pump across Brisbane, the Gold Coast and surrounding South East Queensland service areas.
The product represented on this JR page is the older Rinnai EHPA315VMA, an integrated 315 litre air-source heat pump hot water system combining the refrigeration module, storage tank, controls and electric backup element into a single outdoor appliance.
Rinnai designed the EHPA315VMA for larger family households of up to approximately six people. It uses R290 refrigerant, includes Wi-Fi timer connectivity on compatible Series 2 units, has three selectable operating modes and uses a 2.4kW electric element to support hot-water recovery when required.
Rinnai Enviroflo 315L at a glance: model EHPA315VMA, 315L storage, up to six people, 2134mm high × 627mm diameter, 138kg empty weight, R290 refrigerant, 48dB(A) published noise, COP 7.22 and 5.2kW published heat-pump output under Rinnai's nominated test condition. This older integrated model is now discontinued and JR currently lists it as sold out.
Rinnai Enviroflo 315L Supply & Installation at a Glance
Storage Capacity
315 litres of stored hot water in an integrated heat-pump appliance.
Household Guide
Rinnai positions the EHPA315VMA for up to approximately 6 people.
Published COP
7.22 at Rinnai's stated 32.6°C ambient and 21.1°C incoming-water test condition.
Published Noise
Approximately 48dB(A).
Important: This Rinnai Enviroflo 315L Is Discontinued
Rinnai now classifies the integrated EHPA315VMA Enviroflo 315L as discontinued.
JR's existing product page is also currently marked sold out and appears in JR's discontinued hot-water system range.
This matters because Rinnai now offers newer Enviroflo S 315L split heat pumps using separate storage tanks and 5.0kW or 7.0kW outdoor heat-pump modules.
Those newer split systems are not simply updated versions of the EHPA315VMA. They have different heat-pump modules, physical layouts, operating ranges, noise figures, refrigerants and performance specifications.
This page should therefore remain specifically about the older integrated EHPA315VMA.

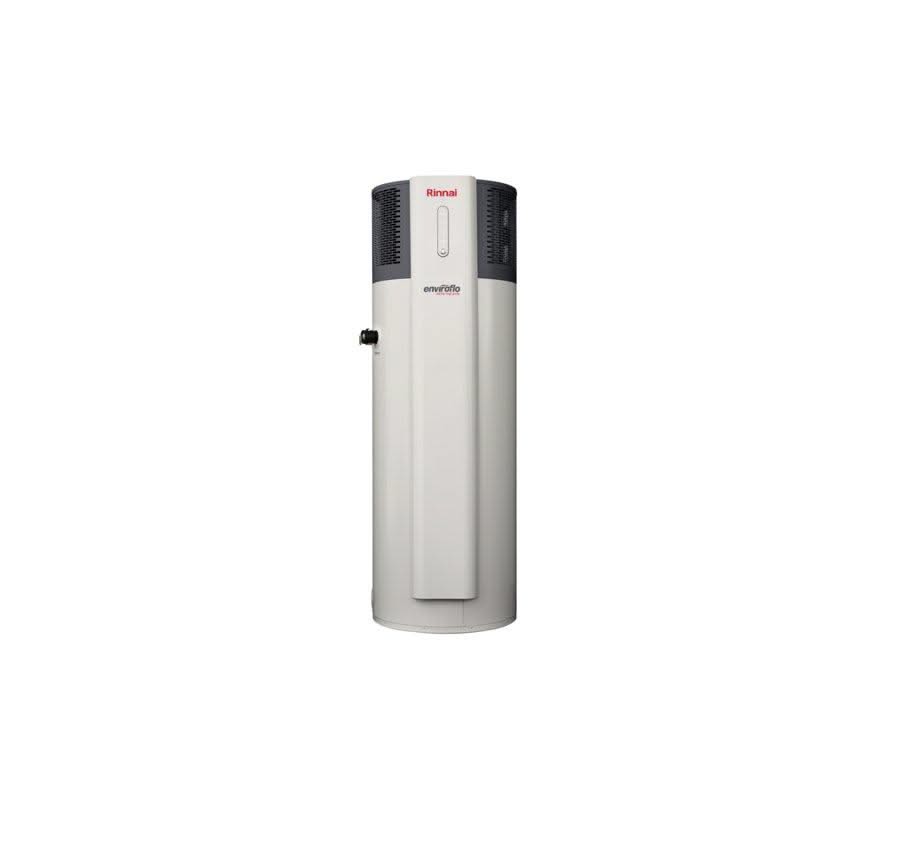

What Is the Rinnai Enviroflo 315L?
The Rinnai Enviroflo EHPA315VMA is an integrated air-source heat-pump water heater.
It heats stored water by using a refrigeration circuit to absorb thermal energy from the surrounding outdoor air and transfer that heat into the water.
The storage tank and heat-pump module are built together as one tall outdoor appliance rather than using a separate tank and compressor.
The system also includes a 2.4kW electric element. This allows electric resistance heating to support the system when required by its operating mode or when ambient temperatures fall outside normal heat-pump operation.
Who Is the Rinnai Enviroflo 315L Best For?
Larger Family Homes
Rinnai originally positioned the 315L system for up to six people, around three bathrooms and five bedrooms.
Replacing Large Electric Storage
The integrated format can suit homes upgrading from a conventional large electric storage cylinder where enough outdoor space, airflow and drainage are available.
Homes Wanting Integrated Heat Pump Technology
The tank and refrigeration section are combined into one appliance, avoiding the separate tank and outdoor-unit layout of a split heat pump.
PRODUCT SUITABILITY
Is the Rinnai Enviroflo 315L Right for My Home?
A Good Choice If...
You already own an EHPA315VMA, are assessing an existing installation or have access to legitimate remaining stock and the property suits a large integrated heat pump.
Consider a Current Model If...
You are purchasing a completely new heat pump today. Rinnai's current 315L split range and other current-generation systems should be compared before relying on a discontinued integrated model.
JR Should Check First If...
You need to replace an existing EHPA315VMA, are converting from another hot-water technology or want to know whether the current Rinnai split range is a practical replacement.
How Many People Does the Rinnai Enviroflo 315L Suit?
Rinnai's published sizing guide places the EHPA315VMA at up to approximately six people, around three bathrooms and five bedrooms.
That should still be treated as a guide rather than a guaranteed household capacity.
Long showers, baths, high-flow fixtures and several bathrooms being used at once can substantially increase hot-water demand.
A 315L storage tank provides a substantial hot-water buffer, while the heat pump reheats the stored water as required.
How Does the Rinnai Enviroflo 315L Work?
The refrigeration circuit draws heat energy from the surrounding air and transfers it into the stored water.
The EHPA315VMA uses approximately 270g of R290 refrigerant.
Rinnai publishes a heat-pump heating capacity of approximately 5.2kW at its nominated 32.6°C ambient and 21.1°C incoming-water test condition.
At the same test point, Rinnai publishes a COP of 7.22.
The refrigeration module is rated at approximately 1.0kW electrical input, while the integrated electric element is rated at 2.4kW.
Rinnai Enviroflo 315L Operating Modes
Compatible Series 2 EHPA models use three main operating modes available through the front LED control panel.
Eco
Prioritises heat-pump operation to reduce reliance on direct electric-element heating where conditions permit.
Mid
Provides a balance between efficiency and hot-water recovery according to the system's control strategy.
Max
Prioritises stronger hot-water recovery and can make greater use of the electric element when additional heating is required.
Wi-Fi Timer Control
Compatible EHPA315VMA Series 2 units include built-in Wi-Fi connectivity.
Rinnai's documentation identifies the Smart Life – Smart Living mobile app as the supported control platform for Wi-Fi-enabled Series 2 systems.
The Wi-Fi function allows compatible timer operation to be managed remotely where the heat pump has suitable 2.4GHz Wi-Fi coverage.
The appliance can still be operated manually from its front control panel if Wi-Fi is not configured.
Can the Rinnai Enviroflo 315L Work With Rooftop Solar?
Yes. Timer control can be used to concentrate heat-pump operation into suitable daytime periods when a rooftop-solar system is generating electricity.
The PV system does not directly heat the water. Instead, rooftop solar produces electricity that can help supply the heat pump while it is running.
The potential financial benefit depends on solar-array size, normal daytime household loads, feed-in tariff and hot-water consumption.
Any external electrical control strategy should remain compatible with Rinnai's installation and operating requirements.
Key Features of the Rinnai Enviroflo 315L
315L Integrated Storage
The storage cylinder and heat-pump refrigeration system are combined into one large outdoor appliance.
R290 Refrigerant
The EHPA315VMA uses approximately 270g of R290 refrigerant.
2.4kW Electric Element
The electric element provides an additional hot-water heating pathway when required.
Wi-Fi Timer Compatibility
Compatible Series 2 systems can use Rinnai's documented Smart Life timer connectivity.
Hard-Water Variant
Rinnai also produced the EHPA315VMAH, which uses a hard-water anode configuration.
Australian Made
Rinnai identifies the integrated Enviroflo 315L as Australian made.
Rinnai Enviroflo EHPA315VMA Specifications
| Brand | Rinnai |
|---|---|
| Range | Enviroflo |
| Standard Model | EHPA315VMA |
| Hard Water Model | EHPA315VMAH |
| Manufacturer Status | Discontinued |
| Product Type | Integrated air-source heat-pump hot water system |
| Storage Capacity | 315L |
| Rinnai Household Guide | Up to 6 people |
| Suggested Home Guide | Approx. 3 bathrooms / 5 bedrooms |
| Overall Height | 2134mm |
| Diameter | 627mm |
| Hot Water Outlet Height | 1430mm |
| Cold Water Inlet Height | 90mm |
| Empty Weight | Approx. 138kg |
| Published Sound Level | 48dB(A) |
| Heat Pump Ambient Range | -1°C to +45°C |
| Ingress Protection | IP24 |
| Hot / Cold Connections | ISO 7.1 ¾" RP |
| PTR Connection | ISO 7.1 ¾" RP |
| PTR Valve Setting | 1000kPa / 10kW |
| PLV Required With ECV | Where mains pressure exceeds 680kPa |
| Recommended PLV With ECV | 500kPa |
| PLV Required Without ECV | Where mains pressure exceeds 800kPa |
| Recommended PLV Without ECV | 500kPa |
| Refrigerant | R290 |
| Refrigerant Charge | Approx. 270g |
| Electric Element | 2.4kW |
| Refrigeration Module Input | 1.0kW |
| Total Rated Input | 3.4kW |
| Maximum Rated Current | Approx. 14–15A |
| Electrical Supply | 240V AC / 50Hz |
| Published Maximum Energy Output | 4.29kW |
| Published Heat-Pump Output | 5.2kW at stated test condition |
| Published COP | 7.22 at stated test condition |
The COP 7.22 and 5.2kW heat-output figures are measured at approximately 32.6°C ambient air and 21.1°C incoming water. They should not be represented as fixed performance under all operating conditions.
How Efficient Is the Rinnai Enviroflo 315L?
The EHPA315VMA was designed to use substantially less direct electrical energy for normal hot-water production than a conventional electric resistance storage cylinder.
The published COP 7.22 demonstrates strong performance under Rinnai's nominated warm-ambient test condition, but COP varies with ambient temperature, incoming-water temperature and operating mode.
It should therefore not be used as a fixed annual efficiency figure.
Likewise, broad claims about a particular percentage reduction in household electricity bills should be treated carefully. Actual savings depend on the previous water heater, household hot-water use, electricity tariff and operating schedule.
Hard Water Model
Rinnai produced both the standard EHPA315VMA and the hard-water EHPA315VMAH.
The hard-water version uses an alternative anode configuration intended for water supplies where the standard tank protection setup may not be appropriate.
Water chemistry should be considered when replacing an existing unit or sourcing service parts.
Where a property uses bore water or another non-standard supply, manufacturer water-quality requirements should be checked rather than assuming the standard tank configuration is suitable.
INSTALLATION REQUIREMENTS
What Is Required to Install the Rinnai Enviroflo 315L?
Suitable outdoor position for the integrated heat pump
Adequate airflow around the upper refrigeration section
Stable and level supporting base
Delivery access for a 627mm-wide, 138kg empty appliance
Suitable electrical supply for the 3.4kW total rated input
Hot-water and cold-water plumbing connections
Correct pressure-limiting arrangement
Expansion-control valve where applicable
PTR relief discharge
Heat-pump condensate drainage
Future service access
Installation position considered for noise
Airflow, Clearance and Installation Position
The EHPA315VMA is an integrated heat pump, meaning the refrigeration module sits on the same appliance as the 315L storage cylinder.
The heat-pump section therefore cannot be independently positioned away from the tank.
The entire unit needs a suitable outdoor location with enough surrounding airflow for the evaporator and fan to operate correctly.
The unit is over two metres tall and weighs approximately 138kg before filling, so access, handling and the final supporting base are important installation considerations.
The published sound level is approximately 48dB(A), so bedrooms, neighbouring boundaries and outdoor entertaining areas should also be considered.
What's Included With Rinnai Enviroflo 315L Installation?
Replacement Assessment
Where an EHPA315VMA is being replaced, JR can assess whether another integrated heat pump or a current split system provides the better replacement pathway.
Installation & Commissioning
Where suitable product is available, installation includes positioning, plumbing and electrical connection, valve and drainage checks, testing and commissioning according to the agreed package.
Possible Additional Work
Electrical upgrades, new pressure-control valves, drainage alterations, pipework changes, base work, difficult access or relocation can increase installation scope.
How Much Does Rinnai Enviroflo 315L Installation Cost?
The original JR product is now sold out, so historical pricing should not be treated as a current supplied-and-installed price.
If an existing EHPA315VMA needs replacement, the final cost depends on the replacement heat pump selected, existing electrical supply, plumbing, valves, drainage, access and whether the existing installation position can be reused.
Moving from the discontinued integrated system to one of Rinnai's current split 315L models can also change the installation layout because the storage tank and heat-pump module become separate components.
Current pricing should therefore be taken from JR's live heat-pump range rather than the old EHPA315VMA product price.
BRISBANE REPLACEMENT
Rinnai Enviroflo 315L Replacement Brisbane
JR Gas & Water can assess replacement options for existing Rinnai Enviroflo EHPA315VMA systems in Brisbane.
An existing installation can provide useful plumbing, electrical and drainage infrastructure, but the replacement system should still be checked for physical dimensions, airflow requirements and electrical compatibility.
If the current Rinnai split range is selected, the site also needs a suitable location for the separate outdoor heat-pump module.
Eligible service coverage extends across Greater Brisbane and surrounding areas including Logan, Ipswich, Redlands and Moreton Bay.
GOLD COAST REPLACEMENT
Rinnai Enviroflo 315L Replacement Gold Coast
JR Gas & Water can also assess replacement options for existing Rinnai Enviroflo 315L heat pumps on the Gold Coast.
Because the old EHPA315VMA is discontinued, the best replacement may be a current Rinnai split heat pump or another current high-capacity heat-pump system.
JR can assess household demand, access, electrical supply, drainage and available outdoor-unit locations before recommending the replacement path.
Can the Rinnai Enviroflo 315L Replace My Existing Hot Water System?
Replacing Electric Storage
The EHPA315VMA was originally suited to large electric-storage upgrades, although a current heat pump should now normally be considered because this model is discontinued.
Replacing Another EHPA315VMA
A current-generation system can often reuse parts of the existing plumbing and electrical infrastructure, subject to assessment.
Replacing Gas Hot Water
Gas-to-heat-pump conversion requires suitable electrical infrastructure and licensed treatment of redundant gas services.
Replacing Solar Hot Water
Solar-to-heat-pump conversion may require roof-system isolation or removal together with plumbing changes.
Moving to a Current Split Rinnai
The separate tank and outdoor module create more positioning flexibility but also require an interconnecting pipe route.
Relocating the System
Relocation can require new pipework, electrical cabling, condensate drainage, relief drainage and supporting-base work.
Old Integrated 315L vs Current Rinnai Split 315L
| Specification | EHPA315VMA Integrated | Current S5 315L Split | Current S7 315L Split |
|---|---|---|---|
| Status | Discontinued | Current | Current |
| Configuration | Integrated tank + heat pump | Separate tank + heat pump | Separate tank + heat pump |
| Storage | 315L | 315L | 315L |
| Household Guide | Up to 6 people | Up to 6 people | Up to 6 people |
| Heat-Pump Output | 5.2kW at stated test condition | 5.0kW | 7.0kW |
| Published COP | 7.22 | 5.5 | 9.2 |
| Refrigerant | R290 | R32 | R290 |
| Published Heat-Pump Noise | 48dB(A) | Approx. 45–48dB(A) | Approx. 45–52dB(A) |
| Ambient Range | -1°C to 45°C | -10°C to 45°C | -10°C to 45°C |
The current Rinnai split systems should therefore be treated as separate products rather than silently replacing the specification set on the discontinued integrated page.
COMMON QUESTIONS
Rinnai Enviroflo 315L Installation FAQs
Is the Rinnai Enviroflo EHPA315VMA still a current model?
No. Rinnai now marks the integrated EHPA315VMA as discontinued, and JR currently lists the product as sold out.
What is the model number?
The standard integrated 315L model is EHPA315VMA. The hard-water version is EHPA315VMAH.
How many people does the Rinnai Enviroflo 315L suit?
Rinnai originally positioned the system for up to approximately six people, around three bathrooms and five bedrooms.
What are the dimensions?
The EHPA315VMA is approximately 2134mm high × 627mm diameter.
How heavy is the Rinnai Enviroflo 315L?
Rinnai publishes approximately 138kg empty weight.
How loud is the system?
Rinnai publishes approximately 48dB(A).
What refrigerant does the EHPA315VMA use?
It uses approximately 270g of R290 refrigerant.
What is the published COP?
Rinnai publishes COP 7.22 at approximately 32.6°C ambient and 21.1°C incoming water.
What is the heat-pump output?
Rinnai publishes approximately 5.2kW heat-pump heating capacity at its stated test condition.
Does it have an electric backup element?
Yes. The integrated system includes a 2.4kW electric element.
What is its electrical input?
Rinnai publishes approximately 1.0kW refrigeration-module input and 3.4kW total rated input when the electric element is considered.
What temperature range can the heat pump operate in?
Rinnai publishes approximately -1°C to +45°C for normal heat-pump operation. The electric element can operate outside that refrigeration range.
Does the EHPA315VMA have Wi-Fi?
Compatible Series 2 EHPA315VMA systems have built-in Wi-Fi connectivity for timer control through Rinnai's documented Smart Life platform.
Can it work with rooftop solar?
Yes. Timer scheduling can be used to shift hot-water heating toward daytime solar-generation periods where appropriate.
Is there a hard-water version?
Yes. Rinnai produced the EHPA315VMAH with an alternative hard-water anode configuration.
What warranty did the EHPA315VMA have?
Rinnai's EHPA domestic warranty provides 7 years cylinder parts / 3 years cylinder labour, 3 years parts and labour on refrigeration components, and 1 year parts and labour on other components, subject to the complete warranty terms.
What should I replace an old EHPA315VMA with?
The best replacement depends on household demand, existing services, outdoor space and budget. Rinnai now offers current 315L split systems, while JR also carries other current high-capacity heat-pump options.
Rinnai Enviroflo EHPA315VMA Warranty
Inner Storage Cylinder
Rinnai's EHPA domestic warranty schedule provides 7 years parts coverage and 3 years labour on the inner storage cylinder.
Refrigeration Components
Refrigeration components including the compressor, condenser, expansion valve, heat exchanger, evaporator and associated pipework receive 3 years parts and labour.
Other Components
Other components including sensors, thermostats, valves, heating elements and anodes receive 1 year parts and labour.
These warranty periods apply to the EHPA product generation. Current Rinnai heat pumps may carry different warranty terms and should be assessed separately.
Claims Cleaned Up From the Existing 315L Copy
Identified the actual JR product as EHPA315VMA
Added discontinued and sold-out status
Removed ambiguous mixing of integrated and split systems
Added exact 2134 × 627mm dimensions
Added verified 138kg empty weight
Added R290 / 270g refrigerant specification
Added manufacturer COP 7.22 and test conditions
Added 5.2kW heat-pump heating capacity
Added 2.4kW electric backup element
Added -1°C to 45°C heat-pump operating range
Added EHPA-specific warranty structure
Separated current 5.0kW and 7.0kW Rinnai split replacements
COMPARE CURRENT OPTIONS
Compare Current Hot Water Systems
Hot Water Systems
Compare JR's current electric, heat-pump, gas and solar hot-water systems.
Heat Pump Hot Water Systems
Compare current heat-pump brands, capacities, efficiency, noise and installation options.
Rinnai Hot Water Systems
Compare JR's current Rinnai hot-water products rather than relying on discontinued EHPA315VMA availability.
DISCONTINUED MODEL
Replacing a Rinnai Enviroflo 315L With JR Gas & Water
The Rinnai EHPA315VMA was a high-capacity integrated heat pump combining 315L storage, R290 refrigeration, a 2.4kW backup element, Wi-Fi timer capability and up-to-six-person household sizing in one appliance.
The model is now discontinued and JR's existing product page is sold out.
If you already have an EHPA315VMA that needs replacement, JR Gas & Water can assess current heat-pump options across eligible Brisbane and Gold Coast service areas. The best replacement may be one of Rinnai's current split systems or another current high-capacity heat pump depending on the property, household demand and existing services.
ZipPay – 6-Month Interest-Free on All Products
ZipPay allows you to buy now and pay later, offering flexible, interest-free payments for up to 6 months on all JR products. It’s easy to set up, and you can customize your repayment schedule to suit your budget. Payments can be made weekly, fortnightly, or monthly, with a $6 fee if the balance isn’t paid off by the due date​.
Humm – Up to 12 Months Interest-Free
Humm provides interest-free payment plans on purchases up to $30,000, perfect for both small and large buys. For items over $2,000, you can spread payments over 12 months. Humm also offers flexibility in scheduling payments based on when you get paid​
Afterpay – 8 Weeks, No Interest
With Afterpay, spread the cost of purchases across four equal installments, due every two weeks, over an 8-week period. There’s no interest, and as long as payments are made on time, there are no fees. Perfect for purchases between $100 and $1,500​
Plenti Finance – For Reclaim Systems Only
Plenti Finance is available exclusively for Reclaim Energy systems. This option offers tailored repayment terms with competitive interest rates, helping make eco-friendly choices more affordable. For more detailed information on Plenti’s terms and eligibility for Reclaim systems, visit the Reclaim Energy finance page​
Brand - Rinnai
Model Number - EHPA315VMA
Volume - 315L
Width - 627mm
Height - 2134mm
Manufactured In - China
Cylinder/ Heat Exchange Material - Steel
Cylinder/Heat-Exchange Warranty - 5 Years
Noise Level - 48dBa
Dry Weight - 132kg
Energy Source - Solar
Wifi Controller Built in or Compatible - No
Built In Timer - No
LED/LCD Status Indicator - No
Coefficient of Performance (COP) - 7.22
If you're in Queensland and considering a new electric hot water system, JR Gas & Water is the company to choose. Here's why:
Experience and Expertise: JR Gas & Water has over 10 years of experience in the gas and plumbing industry. Their team of licensed and insured professionals is highly skilled and knowledgeable about all aspects of electric hot water system installation, maintenance, and repair. They can provide expert advice on the best system for your needs and ensure a smooth installation process.
Quality Products: JR Gas & Water uses only high-quality products from trusted brands to ensure your electric hot water system is reliable and efficient. They also offer a range of options to suit different budgets and requirements.
Competitive Pricing: JR Gas & Water offers competitive pricing for their electric hot water systems, ensuring that you get a great value for your investment. They also provide a detailed quote upfront, so there are no surprises or hidden costs.
Customer Service: JR Gas & Water is committed to providing excellent customer service. They are always available to answer any questions or concerns you may have and are committed to ensuring your satisfaction.
Local Business: JR Gas & Water is a locally owned and operated business in Queensland. By choosing them for your electric hot water installation, you are supporting a local business and contributing to the local economy.
Warranty and Guarantee: JR Gas & Water provides a warranty and guarantee on all their products and services, giving you peace of mind knowing that your system is covered in case of any issues.
Energy Efficiency: Electric hot water systems can be energy efficient, and JR Gas & Water can help you choose the right system for your needs. They can provide advice on energy-saving features and options, such as timers and thermostats, to help you save on your energy bills.
Safety: JR Gas & Water is committed to safety and ensuring that all installations are done to the highest safety standards. They are also familiar with local safety regulations and requirements, ensuring that your electric hot water system is installed safely and in compliance with all relevant codes.
JR Gas & Water is a reliable and experienced choice for your electric hot water system installation in Queensland. With a commitment to quality products, competitive pricing, excellent customer service, and safety, they can help you make the switch to a more efficient and cost-effective solution for your hot water needs. Contact them today to learn more about their services and how they can help you.
JR GAS & WATER INSTALLER ASSESSMENT
Our Installer Verdict
This is the part of the product page we consider most important. It is not based on manufacturer marketing or homeowner-facing specifications. This is our own assessment of what the product is actually like for our team to install, commission, service and support.
--/100
Recently viewed
