PURETEC WHOLE-HOME MAINS WATER FILTRATION
Puretec FILTERWALL F3 Installation Brisbane & Gold Coast
JR Gas & Water supplies and installs the Puretec FILTERWALL F3 across eligible Brisbane and Gold Coast properties for homeowners wanting premium whole-house mains-water filtration in a neat weather-protected enclosure.
The FILTERWALL F3 is a 3-stage point-of-entry filtration system designed for small to medium homes on mains water. Puretec currently specifies a 30 L/min nominal flow rate, 10-inch MaxiPlus™ cartridges, ¾" BSP connections and nominal 5-micron system filtration.
Its cartridge configuration combines two sediment stages with carbon treatment, giving the F3 additional particulate protection before the final carbon block while also providing Puretec's documented treatment for chlorine, PFAS, chemicals, unwanted taste and odour.
Quick answer: the Puretec FILTERWALL F3 is a 30 L/min whole-house mains-water filter for small to medium homes. It uses PL20MP1 20-micron pleated sediment filtration, PX05MP1 5-micron polyspun filtration and CB10MP1 10-micron carbon filtration. Puretec currently markets the F3 for chlorine, PFAS and sediment reduction, with a 10-year manufacturer warranty and cartridge servicing every 6–12 months.
Puretec FILTERWALL F3 at a Glance
Nominal Flow
30 L/min
Filtration
3 Stages
Cartridge Size
10" × 4.5"
Water Source
Mains Water
FILTERWALL F3 Colour Options
Puretec's current F3 range is available in four standard external cover finishes, allowing the enclosure to better suit different exterior colour schemes.

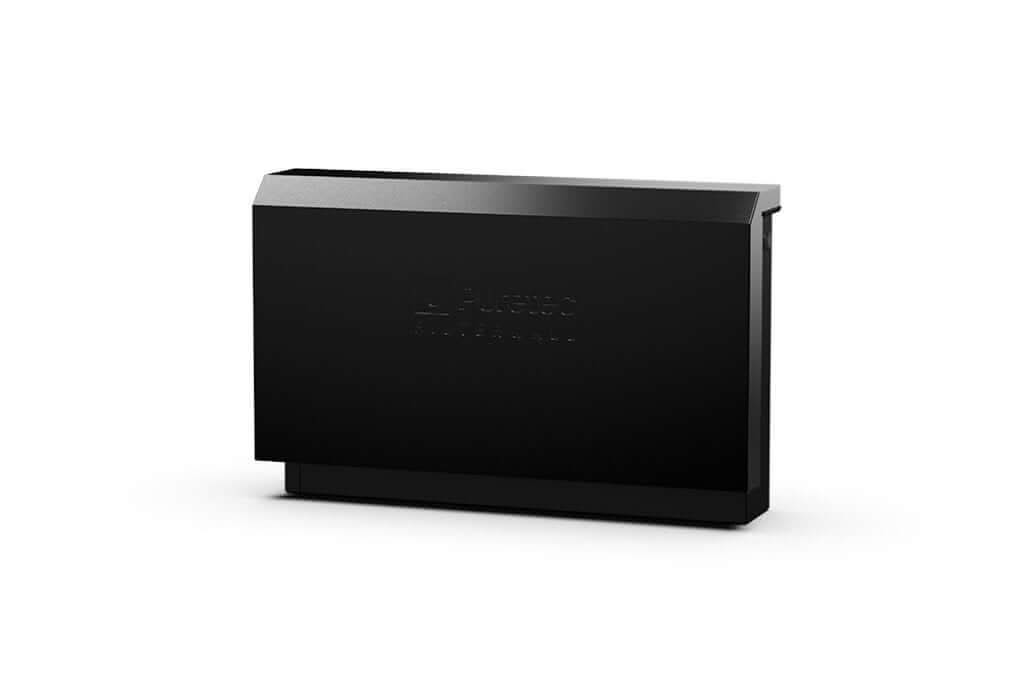

Midnight Black
Standard F3 finish

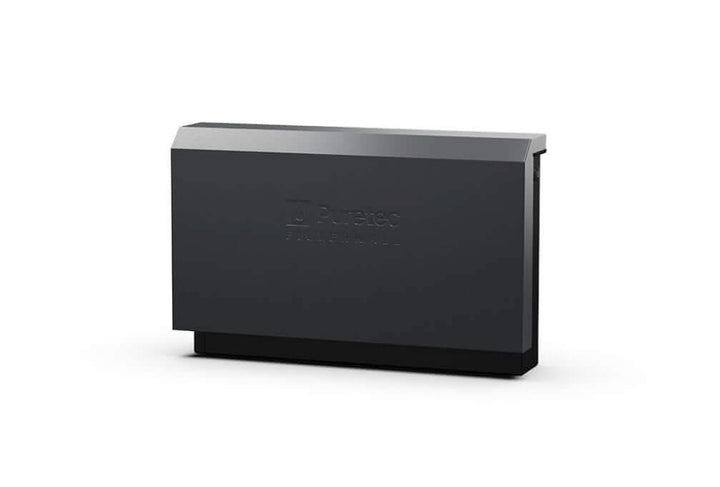

Charcoal
Standard F3 finish

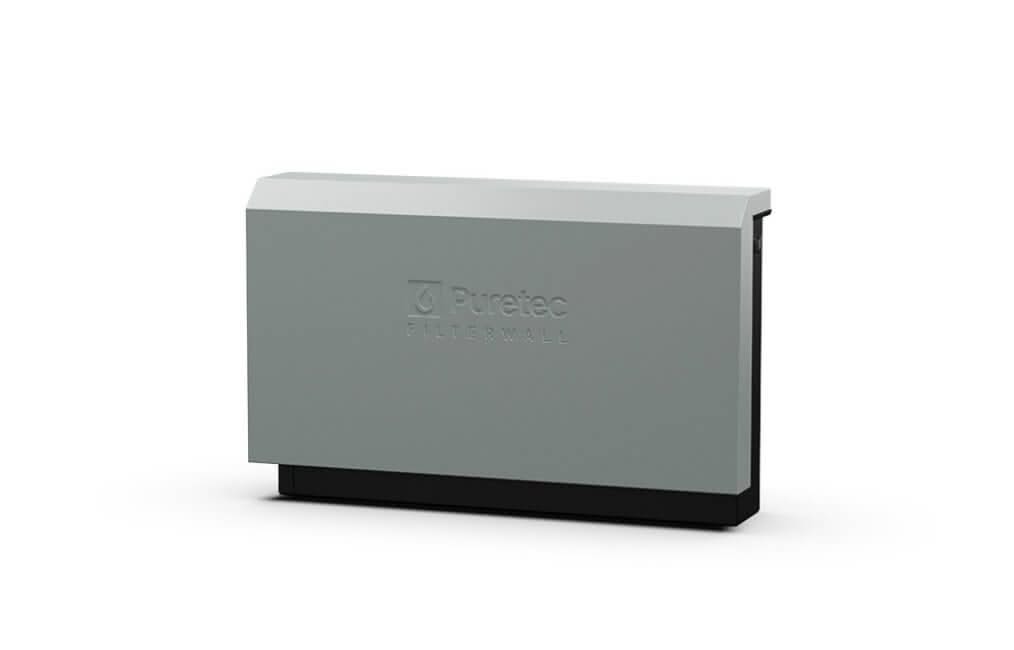

Mineral Grey
Standard F3 finish

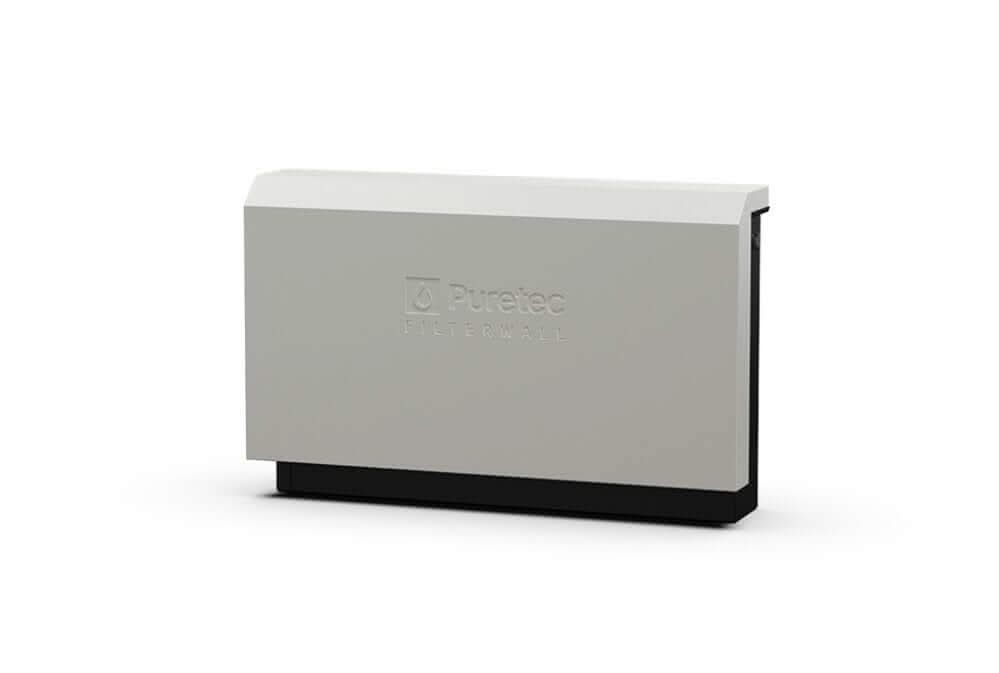

Stone White
Standard F3 finish
Use the live product options above for current availability. Colour selection changes the external presentation rather than the underlying F3 cartridge configuration.
How the Puretec FILTERWALL F3 Works
The F3 is installed where mains water enters the home. Water passes through three separate treatment stages before continuing to household taps, showers, baths, laundries and connected appliances.
1
PL20MP1
20-micron washable pleated sediment cartridge. This first stage provides a large filtration surface for coarser suspended sediment and helps reduce loading on the finer downstream stages.
2
PX05MP1
5-micron graded polyspun sediment cartridge. This stage targets finer dirt, rust, sand, silt, algae and suspended particles that pass through the first cartridge.
3
CB10MP1
10-micron bonded carbon block. This final stage provides the F3's carbon treatment for chlorine, unwanted taste, odour and Puretec's documented whole-system PFAS treatment claim.
The F3 uses two sediment stages before carbon. Puretec specifically positions the F3 and F5 configurations where enhanced sediment filtration is desirable.
What Does the FILTERWALL F3 Target?
Sediment
The PL20MP1 and PX05MP1 stages provide progressive sediment filtration to help capture dirt, rust, sand, silt and other suspended particulate before the water reaches the carbon stage.
Chlorine, Taste & Odour
Puretec documents chlorine, chemicals, unwanted taste and odour reduction through the FilterWall filtration platform and final carbon block stage.
PFAS
Puretec currently markets the exact FILTERWALL F3 as helping reduce PFAS across the household mains-water supply.
Keep treatment claims technology-specific. The F3 is not reverse osmosis, UV disinfection or a conventional water softener. It should not be represented as removing fluoride, dissolved salts, hardness or microbiological hazards unless separate treatment equipment is installed.
Who Is the Puretec FILTERWALL F3 Best For?
Small to Medium Homes
Puretec currently positions the 30 L/min F3 for small to medium residential properties where the larger 55 L/min F5 platform is not required.
Mains-Water Properties
The current FilterWall F Series maintenance guidance specifies mains-water use on the home's cold-water supply.
Homes Wanting Extra Sediment Protection
The F3 uses two separate sediment stages before its carbon cartridge, unlike the F4 configuration which uses a ScaleProtect™ stage instead.
Is the FILTERWALL F3 Right for Your Home?
Good Choice
- Home is supplied by treated mains water
- Whole-house filtration is required
- 30 L/min nominal flow suits household demand
- Extra sediment filtration is useful
- Chlorine and PFAS treatment are priorities
- Outdoor installation space is available
- 6–12 month servicing is acceptable
Consider Another System
- Household needs materially more than the F3 flow platform
- Scale management is a main objective
- Water is untreated rainwater or bore water
- UV disinfection is required
- Fluoride reduction is a priority
- Actual hardness removal is required
JR Should Check
- Incoming mains-water location
- Household peak water demand
- Available installation space
- Existing pipe size and routing
- Incoming water pressure
- Wall-mounted or freestanding arrangement
- Future cartridge-service access
Puretec FILTERWALL F3 Specifications
| Specification | FILTERWALL F3 |
|---|---|
| System Type | 3-stage whole-house point-of-entry filtration system |
| Water Source | Mains water |
| Stage 1 | PL20MP1 — 20-micron washable pleated sediment cartridge |
| Stage 2 | PX05MP1 — 5-micron graded polyspun sediment cartridge |
| Stage 3 | CB10MP1 — 10-micron carbon block cartridge |
| Published System Micron Rating | 5 micron nominal |
| Nominal Flow Rate | 30 L/min |
| Operating Pressure | 200–875 kPa |
| Pressure Limiting Requirement | Approved pressure-limiting device required where line pressure exceeds 500 kPa |
| Operating Temperature | 0–52°C; protect from freezing |
| Published pH Range | 6.5–8.5 |
| Published Maximum Iron | 0.3 mg/L |
| Connection | ¾" BSP female inlet and outlet |
| Cartridge Size | MaxiPlus™ 4.5" × 10" |
| Bypass | Included on standard F3 models |
| Overall Dimensions | Approximately 916 W × 580 H × 227 D mm |
| Electrical Power | Not required |
| WaterMark | AS 3497 — Licence No. WM 74617 |
| Manufacturer Warranty | 10 years — 1 year parts and labour plus 9 years parts only; cartridges excluded |
System flow is the figure that matters for the home. Individual replacement cartridges can have different standalone flow ratings, but Puretec publishes the complete FILTERWALL F3 at a nominal 30 L/min.
Where Should the FILTERWALL F3 Be Installed?
The F3 is installed on the cold mains-water line at the point where water enters the property, before the supply branches to the home's internal outlets.
The location should allow suitable plumbing access while preserving enough room to remove the external cover and service all three 10-inch filter bowls.

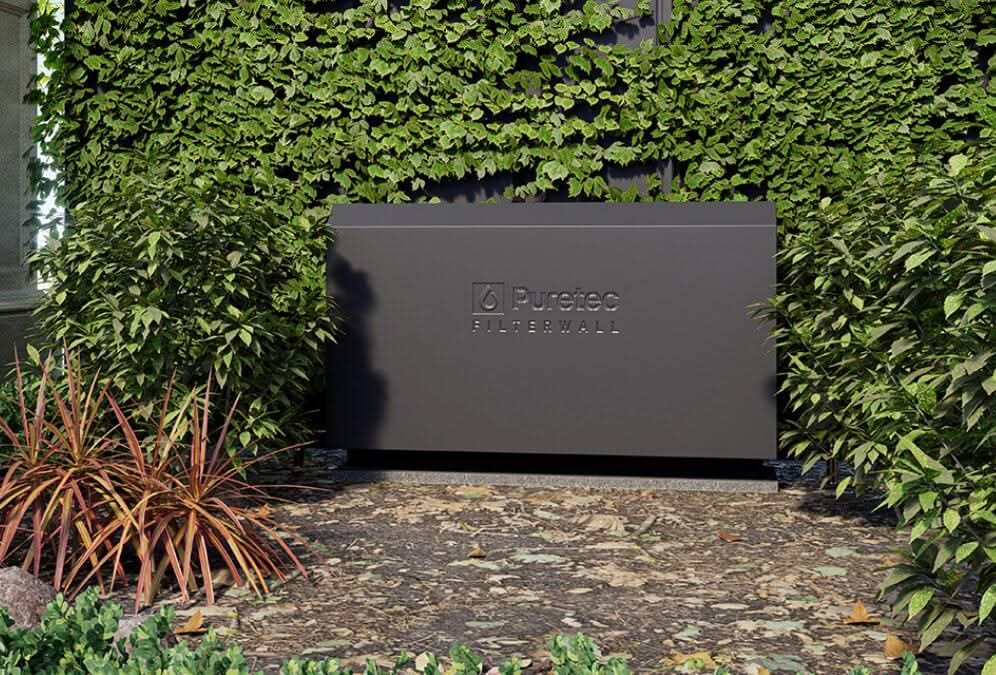

External Wall
A suitable outside wall can provide a clean installation where the water main is exposed and accessible.
Freestanding Position
The FilterWall format can also suit a properly supported freestanding installation where the pipework and selected JR package allow it.
Service Access
The installation should leave enough room to operate isolation valves, remove filter bowls and complete future cartridge servicing.
FILTERWALL F3 Installation Requirements
- Licensed plumber installation
- Mains-water cold line identified
- Suitable point-of-entry location
- 200–875 kPa operating pressure
- Pressure limiting where line pressure exceeds 500 kPa
- Suitable isolation arrangement
- Appropriate pipework routing
- Stable wall or freestanding support
- Access to the bypass arrangement
- Room for cartridge servicing
- Protection from freezing conditions
- Commissioning and leak checks
Mains water only. Puretec warns not to use microbiologically unsafe or unknown-quality water without adequate disinfection before the FilterWall system.
Built-In Bypass & Isolation
The standard FILTERWALL F3 includes a bypass arrangement together with inlet and outlet isolation controls.
This allows the filtration assembly to be isolated during servicing or certain fault conditions while providing a temporary pathway for incoming water where the property supply cannot be interrupted.
Bypass water is unfiltered. Puretec specifies the bypass for servicing, system failure or situations where supply cannot be disrupted rather than as the normal operating configuration.
What's Included With JR FILTERWALL F3 Installation?
System & Cartridges
- Genuine FILTERWALL F3
- Selected current colour
- PL20MP1 cartridge
- PX05MP1 cartridge
- CB10MP1 cartridge
- Factory enclosure and filtration assembly
Installation & Commissioning
- Placement within selected package scope
- Applicable mains-water plumbing connections
- Pressure conditions assessed
- Isolation and bypass checked
- Leak testing after connection
- System flushed and commissioned
Possible Additional Work
- Locating a concealed water main
- Additional pipework
- Pressure-limiting equipment
- Freestanding support or base work
- Relocation of the installation position
- Unusual access conditions
The live JR selector above is the source of truth. Exact installation inclusions, current pricing, mounting arrangement, plumbing allowances and appointment availability depend on the package selected above.
How Much Does Puretec FILTERWALL F3 Installation Cost?
Use JR's live package selector above for current supplied-and-installed pricing.
The final installation scope changes depending on whether the incoming main is already exposed, whether the system is wall mounted or freestanding, existing water pressure and the amount of pipework required.
Because those variables can change, this page deliberately leaves the live JR product configuration as the pricing source rather than hard-coding a fixed historical installation figure.
BRISBANE WHOLE-HOME WATER FILTRATION
Puretec FILTERWALL F3 Installation Brisbane
JR Gas & Water supplies and installs the FILTERWALL F3 across eligible Brisbane mains-water properties where the 30 L/min platform suits household demand.
For Brisbane installations, JR considers the position of the incoming water main, available pressure, external access and whether the preferred location allows the FilterWall cover and cartridges to remain serviceable.
The F3 can be a practical whole-home option for small to medium properties wanting chlorine, PFAS and sediment treatment without moving to the physically larger 20-inch F5 platform.
GOLD COAST WHOLE-HOME WATER FILTRATION
Puretec FILTERWALL F3 Installation Gold Coast
JR Gas & Water also installs the Puretec FILTERWALL F3 across eligible Gold Coast mains-water properties.
Gold Coast homes vary considerably in side access, water-main position and available exterior space, so the best F3 installation position is chosen around both the plumbing layout and future service access.
Where household demand is higher or the property has multiple bathrooms operating simultaneously, JR can also assess whether the larger 55 L/min F5 platform is more appropriate.
How Often Does the Puretec FILTERWALL F3 Need Servicing?
Puretec specifies cartridge replacement every 6–12 months, depending on water quality and household usage.
Filters may need replacement earlier if household flow decreases or unwanted taste and odour begin to return.
6–12 Month Cartridge Cycle
All three F3 cartridges are normally renewed together during scheduled servicing.
O-Ring Maintenance
Puretec recommends inspecting and lubricating the bowl O-rings during cartridge changes and replacing them approximately every 3–5 years.
Post-Service Flush
After leak checks, Puretec instructs that water be flushed through a downstream tap for approximately two minutes before normal use.
Puretec FR-F3 Premium Care Kit
Puretec specifies the FR-F3 Premium Care Kit for FILTERWALL F3 and F3E servicing.
PL20MP1
20-micron washable pleated sediment cartridge for the first stage.
PX05MP1
5-micron graded polyspun sediment cartridge for finer particulate treatment.
CB10MP1
10-micron carbon block cartridge for chlorine, unwanted taste and odour treatment.
The genuine FR-F3 kit also includes routine service components. Puretec currently supplies the kit with genuine cartridges, replacement O-rings and food-grade lubricant.
What Happens During a FILTERWALL F3 Service?
- Isolate the FilterWall water supply.
- Open a downstream tap to relieve pressure.
- Remove the three filter bowls carefully.
- Remove the used PL20MP1, PX05MP1 and CB10MP1 cartridges.
- Clean the accessible filter bowls.
- Inspect the bowl O-rings and lubrication.
- Fit the genuine replacement cartridges in the correct stage order.
- Reassemble the filter bowls.
- Restore water and check for leakage.
- Flush through a downstream tap before returning the system to service.
Routine cartridge service does not automatically include repairs. Damaged housings, valves, O-rings, pipework or other installation faults can require additional parts or plumbing work.
FILTERWALL F3 vs F4 vs F5
| Feature | FILTERWALL F3 | FILTERWALL F4 | FILTERWALL F5 |
|---|---|---|---|
| Puretec Home Size Positioning | Small to medium | Small to medium | Medium to large |
| Published Flow | 30 L/min | 30 L/min | 55 L/min |
| Cartridge Size | 10" × 4.5" | 10" × 4.5" | 20" × 4.5" |
| Stage 1 | PL20MP1 sediment | PX05MP1 sediment | PL20MP2 sediment |
| Stage 2 | PX05MP1 sediment | CB10MP1 carbon | PX05MP2 sediment |
| Stage 3 | CB10MP1 carbon | ScaleProtect™ | CB10MP2 carbon |
| Primary Difference | Extra sediment stage | Scale-management stage | Higher-flow F3-style treatment platform |
| Typical Reason to Compare | Small/medium home wanting sediment + carbon treatment | Small/medium home where scale management is important | Larger household requiring greater flow |
The larger or more complex model is not automatically the better choice. Select between F3, F4 and F5 based on household flow demand and the actual treatment priority.
Does the FILTERWALL F3 Soften Water?
No. The FILTERWALL F3 is a sediment and carbon filtration system rather than a conventional ion-exchange water softener.
Puretec directs customers concerned about scale toward the F4 or F6 configurations containing ScaleProtect™. Where true hardness removal is required, a dedicated water-softening system should be considered separately.
Puretec FILTERWALL F3 Warranty
Puretec currently specifies a 10-year manufacturer warranty for the FILTERWALL F3, structured as 1 year parts and labour followed by 9 years parts only, subject to current warranty conditions.
Replacement cartridges are consumables and are excluded from the 10-year system warranty.
Puretec also requires genuine replacement cartridges to maintain the intended system performance and warranty pathway.
JR Lifetime Warranty is separate from Puretec's manufacturer warranty. Any JR Lifetime Warranty eligibility shown on the live product page is subject to JR's current eligibility, workmanship and servicing terms.
COMMON QUESTIONS
Puretec FILTERWALL F3 Installation FAQs
What is the Puretec FILTERWALL F3?
It is a 3-stage whole-house point-of-entry filtration system designed for small to medium mains-water homes.
What is the FILTERWALL F3 flow rate?
Puretec publishes a nominal complete-system flow rate of 30 litres per minute.
What cartridges are inside the FILTERWALL F3?
The current cartridge sequence is PL20MP1, PX05MP1 and CB10MP1.
What micron ratings does the F3 use?
PL20MP1 is nominally 20 micron, PX05MP1 is nominally 5 micron and CB10MP1 is nominally 10 micron. Puretec publishes the complete system as a nominal 5-micron filtration platform.
Does the FILTERWALL F3 reduce PFAS?
Yes. Puretec currently markets the exact FILTERWALL F3 as helping reduce PFAS, chlorine and sediment. This page does not add an unsupported percentage-removal claim.
Does the F3 reduce chlorine?
Yes. Chlorine reduction is one of Puretec's documented treatment functions for the current FILTERWALL F3.
Does the F3 improve taste and odour?
Yes. The final CB10MP1 carbon stage is designed for unwanted taste and odour treatment as well as chlorine and sediment reduction.
Does the FILTERWALL F3 remove fluoride?
The current F3 documentation does not specify fluoride removal. A treatment system specifically designed and documented for fluoride reduction should be used where that is the objective.
Does the F3 disinfect water?
No. The standard F3 has no UV-disinfection stage. Puretec specifies it for mains water and warns against using microbiologically unsafe or unknown-quality water without adequate disinfection.
Is the FILTERWALL F3 a water softener?
No. It does not provide conventional hardness removal. Puretec's F4 and F6 configurations use ScaleProtect™ where scale management is the treatment priority.
What pressure does the FILTERWALL F3 require?
Puretec specifies 200–875 kPa. An approved pressure-limiting device is required where incoming line pressure exceeds 500 kPa.
Does the F3 need electricity?
No. The standard FilterWall F3 is a passive pressure-driven filtration system and does not require electrical power.
How big is the FILTERWALL F3?
Puretec's current F3 documentation lists approximately 916 mm wide × 580 mm high × 227 mm deep.
What colours does the F3 come in?
Puretec's current standard F3 specification lists Midnight Black, Charcoal, Mineral Grey and Stone White.
Does the FILTERWALL F3 include a bypass?
Yes. Puretec's standard F3 specification lists a bypass as included. The lower-cost F3E configuration is different and excludes the bypass.
Is the FILTERWALL F3 suitable for rainwater?
The current FilterWall F Series maintenance instructions specify mains-water supply. Rainwater should use a treatment system designed for the source-water conditions and may require UV disinfection.
How often should FILTERWALL F3 cartridges be replaced?
Puretec specifies replacement every 6–12 months depending on water quality and usage, or earlier if household flow falls or unwanted taste and odour return.
What is the Puretec FR-F3 kit?
FR-F3 is Puretec's genuine F3 Premium Care Kit containing the correct PL20MP1, PX05MP1 and CB10MP1 cartridge set together with routine service components.
Is the PL20MP1 cartridge washable?
Yes. PL20MP1 is Puretec's washable 20-micron pleated sediment cartridge. PX05MP1 and CB10MP1 are replacement cartridges rather than washable equivalents.
How often should the F3 O-rings be replaced?
Puretec recommends O-ring replacement approximately every 3–5 years, with condition and lubrication checked during regular cartridge servicing.
What is the difference between FILTERWALL F3 and F4?
Both use the 30 L/min 10-inch platform. F3 uses two sediment stages plus carbon, while F4 uses sediment, carbon and ScaleProtect™ for a different scale-management treatment configuration.
What is the difference between FILTERWALL F3 and F5?
Both use a similar sediment-sediment-carbon treatment concept. F3 uses 10-inch cartridges and is rated at 30 L/min, while F5 uses 20-inch cartridges and is rated at 55 L/min for higher household demand.
What warranty does the FILTERWALL F3 have?
Puretec currently specifies 10 years — 1 year parts and labour plus 9 years parts only. Replacement cartridges are excluded.
Can JR install the FILTERWALL F3 in Brisbane?
Yes. JR provides whole-home mains-water filtration installation across eligible Brisbane and surrounding South East Queensland service areas.
Can JR install the FILTERWALL F3 on the Gold Coast?
Yes. FILTERWALL F3 installation is available across eligible Gold Coast mains-water properties where the plumbing and installation location suit the system.
How much does FILTERWALL F3 installation cost?
Use JR's live selector above for current supplied-and-installed pricing, package options and appointment availability.
Why Choose JR Gas & Water for FILTERWALL F3 Installation?
Installation-Led Sizing
JR considers household flow demand, water-main location, available pressure and installation space before confirming that the F3 is the right FilterWall platform.
Ongoing Service Pathway
The F3 uses a defined Puretec FR-F3 maintenance kit, making future genuine cartridge replacement and routine servicing straightforward.
Brisbane & Gold Coast Coverage
Professional whole-home mains-water filtration installation is available across eligible Brisbane, Gold Coast and surrounding South East Queensland service areas.
RELATED WATER FILTRATION
Related Puretec Water Filtration Options
Compare JR's current whole-home mains-water systems, genuine cartridges and wider Puretec filtration range before choosing the final installation and servicing pathway.
SUPPLY + INSTALL
Install the Puretec FILTERWALL F3 With JR Gas & Water
The FILTERWALL F3 combines progressive sediment filtration and carbon treatment in Puretec's compact 30 L/min FilterWall platform for small to medium mains-water homes wanting whole-house chlorine, PFAS and sediment treatment.
JR Gas & Water supplies and installs the Puretec FILTERWALL F3 across eligible Brisbane and Gold Coast properties. Choose the current colour, installation package and preferred timeframe using the live options above.
Choose Your FILTERWALL F3 Installation Package Above
Use JR's live selector for current pricing, package inclusions and availability. Where the property requires concealed-main investigation, additional pipework, pressure control, freestanding supports or another non-standard installation requirement, select the applicable package or request a site-specific quote.
