PURETEC WHOLE HOME FILTRATION INSTALLATION
Puretec WU20-25M Installation Brisbane & Gold Coast
JR Gas & Water supplies and professionally installs the Puretec WU20-25M whole-house mains water filtration system across Brisbane, the Gold Coast and surrounding eligible South East Queensland service areas.
The WU20-25M is a twin-stage whole-home filter designed specifically for mains water. Rather than treating one drinking-water outlet, it is installed on the household water supply so filtered water can feed multiple downstream taps, showers, bathrooms, laundries and appliances where the plumbing layout allows.
Puretec specifies a maximum published flow of 60 litres per minute, 1-inch BSP connections and large-diameter 20-inch housings. The supplied cartridge arrangement combines 5-micron sediment filtration with carbon treatment for chlorine, taste and odour reduction.
It is a practical option for mains-water homes wanting straightforward whole-house filtration without moving immediately to UV disinfection, water-softening, reverse-osmosis or a more complex premium filtration system.
Puretec WU20-25M quick answer:
the WU20-25M is a twin-stage mains-water whole-house filter using large
20-inch housings, a 5-micron MB05LD2 sediment cartridge and EC10LD2 carbon
cartridge. Puretec publishes up to 60L/min flow, 25mm / 1-inch BSP
connections, 520kPa maximum pressure and 52°C maximum water temperature.
It requires no electrical supply and is intended for general-purpose sediment,
chlorine, taste and odour reduction throughout the home.
Puretec WU20-25M at a Glance
Maximum Flow
60 L/MIN
Puretec's published maximum flow rate for the WU20-25M.
Filtration
2 STAGE
Sediment filtration followed by carbon treatment for mains water.
Nominal Rating
5 MICRON
The first-stage sediment cartridge has a nominal 5-micron rating.
Connection
25 MM
1-inch BSP inlet and outlet connections.
Who Is the Puretec WU20-25M For?
Mains-Water Homes
Puretec specifically designs the WU20-25M for treated mains or town water rather than rainwater treatment.
Whole-House Filtration
Suitable where filtered water is wanted across multiple household fixtures rather than only through a dedicated drinking-water tap.
Practical General Filtration
A straightforward option for homes primarily concerned with sediment, chlorine, taste and odour rather than specialist water treatment.
PRODUCT SUITABILITY
Is the Puretec WU20-25M Right for My Home?
A Good Choice If...
Your property uses mains water, has a suitable 25mm connection arrangement and needs general whole-house sediment and carbon filtration at up to 60L/min published flow.
Consider Another System If...
You use rainwater, need UV disinfection, need dedicated hardness or scale treatment, require reverse osmosis, or your household flow requirement exceeds what this system can comfortably support.
JR Should Check First If...
Incoming pressure is high, the water-main size differs from the system connection, mounting space is limited or the home has several high-flow fixtures likely to operate together.
How Does the Puretec WU20-25M Work?
Incoming mains water reaches the filter: the WU20-25M is installed at a suitable point on the household water supply so downstream water passes through the filtration system.
Stage 1 captures sediment: Puretec's MB05LD2 melt-blown sediment cartridge provides nominal 5-micron filtration to help reduce dirt and suspended particles.
Stage 2 uses carbon filtration: the EC10LD2 extruded carbon cartridge provides treatment for chlorine, taste, odour and general mains-water chemical concerns.
Filtered water continues into the home: after treatment, water returns to the household plumbing and can supply connected downstream fixtures.
No electrical supply is required: the system operates from household water pressure with no powered pump, UV lamp or electrical control system.
What Does the Puretec WU20-25M Reduce?
Sediment & Dirt
The first-stage melt-blown cartridge helps reduce dirt and suspended sediment before the water reaches the carbon stage.
Chlorine
Puretec lists chlorine reduction as one of the principal treatment functions of the WU Series mains-water systems.
Taste & Odour
The carbon stage is designed to improve common taste and odour concerns associated with treated mains water.
The WU20-25M is not a water softener, reverse osmosis system or UV
disinfection system.
It should be selected for the treatment functions of its installed sediment and
carbon cartridges rather than being expected to perform specialist water
treatment outside that scope.
Whole-House Filtration vs a Drinking-Water Filter
A normal under-sink filter treats water at one dedicated outlet, typically for drinking and cooking.
The WU20-25M is installed on a main household supply so filtration can apply to multiple downstream fixtures.
This makes it relevant where the household wants sediment and carbon treatment for showers, bathrooms, laundries and appliances as well as kitchen water.
Some homes use both approaches: whole-house filtration for broad household treatment plus a separate point-of-use filter where more specialised drinking water treatment is wanted.
Key Puretec WU20-25M Features

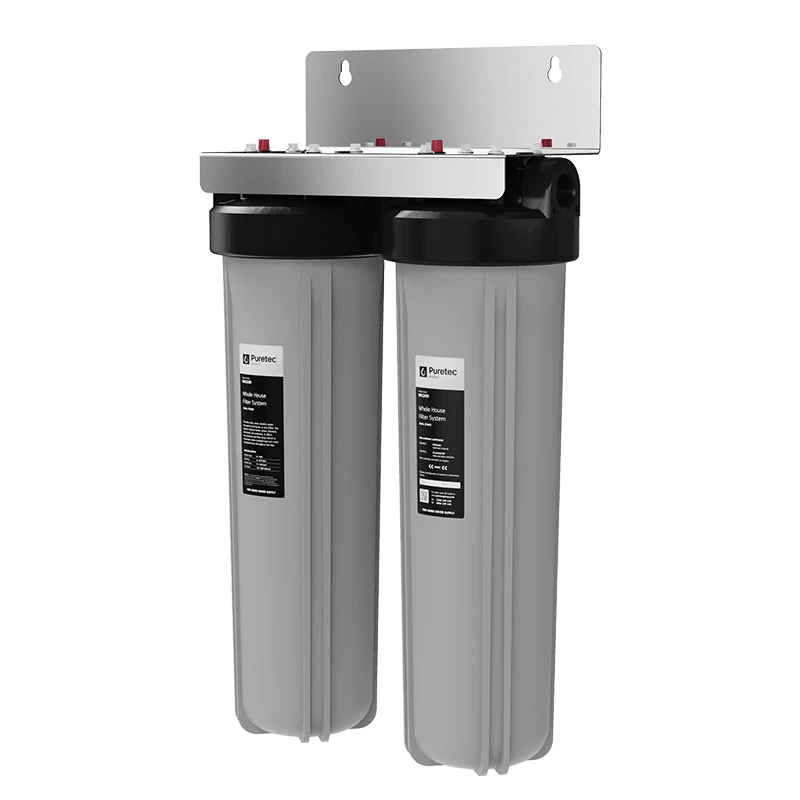

20-Inch Large-Diameter Housings
Twin large-format housings provide more cartridge volume than compact point-of-use filtration systems.
60L/min Published Flow
Designed around whole-home water demand rather than the low flow required at a single drinking-water tap.
5-Micron Sediment Stage
Uses Puretec's MB05LD2 melt-blown sediment cartridge.
Carbon Treatment
Uses Puretec's EC10LD2 extruded carbon cartridge as the second filtration stage.
Stainless Steel Bracket
The system is supplied with a stainless steel mounting bracket and housing wrench.
No Power Required
The standard WU20-25M operates entirely from water pressure and requires no electrical supply.
Puretec WU20-25M Specifications
| Specification | Puretec WU20-25M |
|---|---|
| Brand | Puretec |
| Model | WU20-25M |
| Product Type | Twin-stage whole-house mains water filtration system |
| Water Supply | Mains / town water |
| Housing Configuration | Twin large-diameter 20-inch housings |
| Stage 1 Cartridge | MB05LD2 melt-blown sediment cartridge |
| Stage 2 Cartridge | EC10LD2 extruded carbon cartridge |
| Nominal Micron Rating | 5 micron |
| Maximum Published Flow | 60L/min |
| Connection Size | 1" BSP / 25mm |
| Maximum Pressure | 520kPa |
| Pressure Limiting Requirement | Approved pressure-limiting device required where supply pressure exceeds 500kPa |
| Maximum Water Temperature | 52°C |
| Electrical Supply | Not required |
| Mounting Bracket | Stainless steel |
| Housing Wrench | Included |
| Manufacturer Warranty | 1 year parts and labour, cartridges excluded, subject to current Puretec terms |
Puretec's current product page is the primary reference used for the technical values above. The exact supplied equipment and current manufacturer instructions remain the final installation reference.
INSTALLATION REQUIREMENTS
What Is Required to Install a Puretec WU20-25M?
Suitable mains-water supply
Appropriate point-of-entry installation position
Household flow suited to the selected system
Suitable incoming pipe size and plumbing arrangement
Water pressure within Puretec requirements
Pressure limiting where supply exceeds 500kPa
Suitable upstream and downstream isolation arrangement
Strong wall or appropriate freestanding support
Clearance below housings for cartridge removal
Future access for servicing
Suitable protection for the selected installation position
Flushing and leak testing after installation
Water Pressure & Pressure Limiting
Whole-house filtration is installed on the incoming water supply, so pressure affects both system protection and household performance.
Puretec publishes a maximum pressure of 520kPa for the WU20-25M and states that an approved pressure-limiting device must be fitted where line pressure exceeds 500kPa.
Incoming pressure should therefore be checked as part of the installation rather than assuming the existing property pressure is suitable.
Where pressure control is required, the final valve and pipework arrangement should be matched to the property and selected JR installation package.
Whole-House Flow & Pipe Size
Puretec publishes a maximum flow of 60L/min for the WU20-25M, but practical household performance depends on more than the filter rating alone.
Existing mains size, incoming pressure, pipe length, fittings and simultaneous household demand all influence the flow available at taps and showers.
The WU20-25M uses 25mm / 1-inch BSP filter connections, making the existing plumbing arrangement an important part of installation planning.
Whole-house filtration needs to be sized around real household
demand.
Multiple showers, bath filling, washing machines and outdoor taps can create
simultaneous flow demand that a single fixture does not reveal.
Installation Position & Cartridge Access
The WU20-25M uses large 20-inch housings, so sufficient installation space is important.
The filter should be positioned where isolation valves, housing removal and future cartridge servicing remain practical.
Clearance underneath the housings is particularly important because the bowls need to be removed when cartridges are changed.
Where wall mounting is not practical, JR's current product selector also provides freestanding package pathways with supports according to site conditions.
JR Puretec WU20-25M Installation Packages
JR's current live WU20-25M page uses six installation pathways so the scope can reflect whether the system is an exact replacement, wall mounted or freestanding, and whether the existing incoming water main is already exposed.
Base — Exact Replacement
For exact replacement of an existing Puretec WU20-25M where the existing installation position, valves, pipework and mounting arrangement remain suitable.
Silver — Wall Mounted, Exposed Main
For a new wall-mounted installation where the incoming water main is already exposed, including valves and pipework within the current package scope.
Gold — Freestanding, Exposed Main
For a new freestanding installation where the incoming main is exposed, including valves, pipework and concreted supports within current package conditions.
Sapphire — Wall Mounted, Main Not Exposed
For a wall-mounted installation where additional work is needed because the incoming water pipework is not already exposed.
Diamond — Freestanding, Main Not Exposed
For a new freestanding installation requiring additional access to the incoming main, with valves, pipework and concreted supports within current package allowances.
Platinum — Installation Requiring Power
JR's current broader package includes valves, pipework, a double power point and concreted supports where required. The standard WU20-25M itself does not need electrical power; this package applies where the wider installation requires a powered arrangement.
Use JR's live selector above as the final reference for current package inclusions, allowances, booking windows and pricing.
What Can a JR WU20-25M Installation Include?
Supply of the genuine Puretec WU20-25M
MB05LD2 sediment cartridge
EC10LD2 carbon cartridge
Stainless steel bracket
Housing wrench
Professional system positioning
Valves according to selected package
Pipework according to selected package
Wall mounting where selected
Freestanding supports where selected
System flushing and leak checks
Basic cartridge servicing guidance
Exact inclusions depend on the live JR package selected and actual site conditions.
What May Require Additional Work?
Pressure-control work beyond selected package scope
Major incoming-main relocation
Substantial pipe-size changes
Structural wall or mounting work
Difficult excavation or concealed pipe access outside package allowances
Protective enclosure unless expressly included
UV disinfection equipment
Water softening or dedicated scale treatment
Conversion to rainwater filtration
Rectification of unrelated plumbing defects
Puretec WU20-25M Installation Pricing
Current supplied-and-installed pricing is controlled through JR's live product and package selector above rather than being hardcoded into this description.
Final scope depends on whether the job is an exact replacement, wall mounted or freestanding, whether the incoming water main is exposed, the pressure-control requirements and the amount of pipework needed.
JR's current live selector also provides Priority Saver and Express installation options, with availability and current booking windows controlled by the live product page.
BRISBANE INSTALLATION
Puretec WU20-25M Installation Brisbane
JR Gas & Water installs suitable Puretec WU20-25M whole-house filtration systems throughout Greater Brisbane for mains-water homes wanting filtration beyond a single kitchen outlet.
Brisbane installations are assessed around incoming water pressure, household flow, pipe sizing, the location of the incoming water main and future cartridge service access.
A straightforward wall-mounted installation on an exposed main can have a very different scope from a property where the main is concealed or a freestanding support arrangement is required.
JR also services Logan, Ipswich, Redlands, Moreton Bay and surrounding eligible South East Queensland areas, subject to current booking availability.
GOLD COAST INSTALLATION
Puretec WU20-25M Installation Gold Coast
JR Gas & Water provides suitable WU20-25M supply and installation across eligible Gold Coast service areas.
The 60L/min twin-stage system can suit family homes wanting sediment and carbon treatment across multiple outlets while retaining a straightforward non-powered filtration setup.
Household water demand, incoming pressure, pipe size, mounting position and cartridge-service clearance should still be checked before the installation is treated as straightforward.
Can the WU20-25M Replace My Existing Whole-House Filter?
Replacing Another WU20-25M
Usually the simplest pathway where the existing pipework, isolation, pressure, mounting position and service access remain suitable.
Replacing Another Twin Filter
Often possible, but housing size, connections, cartridge clearance, flow rating and pressure requirements should be checked before treating the job as like-for-like.
Changing From a Smaller Filter
Upsizing to large 20-inch housings can require additional wall space, pipework changes or a different mounting arrangement.
WU20-25M vs WU20-40M
| Feature | WU20-25M | WU20-40M |
|---|---|---|
| Water Source | Mains water | Mains water |
| Housing Format | Twin 20-inch large diameter | Twin 20-inch large diameter |
| Maximum Published Flow | 60L/min | 60L/min |
| Nominal Micron Rating | 5 micron | 5 micron |
| Connection Size | 1" BSP / 25mm | 1½" BSP / 40mm |
| Stage 1 Cartridge | MB05LD2 | MB05LD2 |
| Stage 2 Cartridge | EC10LD2 | EC10LD2 |
| General Difference | 25mm connection arrangement | 40mm connection arrangement |
The key current manufacturer difference between these two 20-inch mains-water models is the plumbing connection size rather than published maximum flow. The appropriate version should be selected around the property's pipework and installation arrangement.
WU20-25M vs Smaller WU10-25M
WU20-25M
Uses the larger 20-inch cartridge format and Puretec publishes up to 60L/min maximum flow with a 25mm connection.
It can be a suitable fit where whole-house demand justifies the larger cartridge format.
WU10-25M
Uses the shorter 10-inch format with a lower published maximum flow while retaining the 25mm connection size.
It can suit installations where physical space and lower household demand make the smaller format more practical.
WU20-25M vs Rainwater Filtration
WU20-25M Mains Water
Designed for treated mains-water supplies with sediment and carbon filtration aimed at common mains-water concerns.
Rainwater Filtration
Rainwater can require a different filter configuration and may require additional treatment such as UV depending on the source and intended use.
Puretec offers separate rainwater-specific systems rather than describing the WU20-25M as a rainwater product.
Puretec WU20-25M Cartridge Maintenance
| Stage | Cartridge | Function |
|---|---|---|
| Stage 1 | MB05LD2 | 5-micron nominal melt-blown sediment filtration |
| Stage 2 | EC10LD2 | Extruded carbon treatment for chlorine, taste and odour reduction |
Cartridge life varies according to household water consumption, incoming sediment loading, chlorine exposure and other local water conditions.
Pressure loss, reduced flow or changes in water quality can indicate that cartridge servicing is required.
Puretec specifies genuine replacement cartridges for maintaining the intended WU20-25M filtration configuration.
COMMON QUESTIONS
Puretec WU20-25M Installation FAQs
What is the Puretec WU20-25M?
It is a twin-stage, large-diameter 20-inch whole-house water filter designed by Puretec for mains-water supplies.
Is the WU20-25M a whole-house water filter?
Yes. It is intended for installation on the household water supply so filtered water can feed multiple downstream fixtures.
Is the WU20-25M suitable for rainwater?
Puretec describes the WU20-25M as a mains-water system. Rainwater should be assessed using treatment equipment designed for that water source and intended use.
What does the WU20-25M reduce?
Puretec describes the system as reducing chlorine, taste, odour, chemicals, dirt and sediment through its sediment and carbon filtration stages.
Does the WU20-25M remove fluoride?
Puretec does not describe the standard WU20-25M cartridge arrangement as a dedicated fluoride-removal system. A different treatment method should be considered where fluoride reduction is a specific requirement.
Does the WU20-25M disinfect water?
No. The standard system does not include a UV disinfection stage and should not be treated as a microbiological sterilisation system.
Does the WU20-25M soften hard water?
No. Its standard sediment and carbon cartridges are not conventional water-softening equipment.
What is the maximum published flow rate?
Puretec currently publishes a maximum flow rate of 60 litres per minute.
What connection size does the WU20-25M use?
Puretec specifies 1-inch BSP connections, approximately 25mm nominal size.
What filtration rating does it use?
Puretec lists a nominal 5-micron rating for the sediment filtration stage.
Which cartridges does it use?
Puretec currently specifies the MB05LD2 sediment cartridge and EC10LD2 carbon cartridge.
Does the WU20-25M require electricity?
No. Puretec lists the standard system as requiring no electrical power.
What is the maximum pressure?
Puretec's current product page lists a maximum pressure of 520kPa.
When is a pressure-limiting device required?
Puretec states that an approved pressure-limiting device needs to be fitted where line pressure exceeds 500kPa.
What is the maximum water temperature?
Puretec currently lists a maximum water temperature of 52°C.
Can it filter water for showers and bathrooms?
Where installed on the suitable household mains supply, filtration can apply to downstream showers, bathrooms and other connected fixtures.
Will a whole-house filter affect water pressure?
Any filter creates some resistance to flow. Practical performance depends on incoming pressure, household demand, pipe sizing and cartridge condition.
How often should the cartridges be changed?
Cartridge life varies with water consumption and incoming water conditions. Servicing should follow Puretec's current guidance and the actual condition and performance of the cartridges.
Can it replace my existing whole-house filter?
Often, yes. Connection size, mounting, pressure, service clearance and household flow still need to be checked before treating the job as an exact replacement.
What is the difference between WU20-25M and WU20-40M?
Both currently use 20-inch twin housings, the same published 60L/min maximum flow and the same listed replacement cartridges. The key manufacturer difference is the connection size: 25mm on the WU20-25M and 40mm on the WU20-40M.
What is JR's Base package?
JR's current Base pathway is for exact replacement of an existing Puretec WU20-25M where the existing installation remains suitable.
What is JR's Silver package?
Silver is JR's current new wall-mounted pathway where the incoming water main is already exposed, including valves and pipework within package scope.
What is JR's Gold package?
Gold is the current freestanding pathway for an exposed incoming main, including valves, pipework and concreted supports within package conditions.
What if my incoming pipework is concealed?
JR's current Sapphire and Diamond packages provide pathways for wall-mounted or freestanding installations where the relevant incoming pipework is not already exposed.
Why does JR have a Platinum package if the filter needs no power?
The WU20-25M itself does not require power. JR's current Platinum pathway is for broader installations requiring electrical provision as part of the overall setup, including a double power point within the package conditions.
What booking options does JR currently list?
JR's live selector currently lists Priority Saver with a maximum 20-business-day window and Express with a maximum 5-business-day window, subject to current availability and booking conditions.
How much does Puretec WU20-25M installation cost?
Current supplied-and-installed pricing is displayed through JR's live selector above. Final scope depends on the installation package, pipework, pressure, mounting arrangement and site conditions.
Can JR install the WU20-25M in Brisbane?
Yes. JR installs suitable whole-house mains filtration systems throughout eligible Greater Brisbane service areas.
Can JR install the WU20-25M on the Gold Coast?
Yes. JR provides suitable whole-house filtration installation across eligible Gold Coast service areas.
Does JR install the WU20-25M in Logan?
JR services Logan and surrounding eligible South East Queensland areas, subject to current booking availability and site conditions.
Puretec WU20-25M Warranty & Maintenance
1-Year Manufacturer Warranty
Puretec currently lists one year parts and labour for the WU20-25M, subject to current manufacturer terms.
Cartridges Are Consumables
Puretec excludes replacement cartridges from the standard manufacturer warranty.
Service Access Matters
Routine cartridge replacement is considerably easier when isolation and housing clearance are planned properly during installation.
Puretec's product warranty is separate from JR's installation workmanship and support terms. Manufacturer warranty coverage remains subject to current Puretec conditions and correct installation, use and maintenance.
Why Choose JR Gas & Water for WU20-25M Installation?
LICENSED
Whole-house plumbing installation completed through appropriately licensed professionals.
SYSTEM CHECK
Household flow, incoming pressure, pipe sizing and installation position considered before finalising the setup.
COMMISSIONING
System flushing, connections and leak checks completed before handover.
SEQ
Brisbane, Gold Coast and surrounding eligible South East Queensland service coverage.
Whole-house filtration needs to suit both the treatment goal and the household's plumbing. JR considers water pressure, pipe size, mounting, cartridge access and real household demand before finalising the installation.
RELATED FILTRATION OPTIONS
Compare Whole-Home & Puretec Water Filters
Compare the WU20-25M with JR's wider current whole-home mains filtration and Puretec ranges if your property needs a different flow rating, pipe connection, filtration configuration or system format.
READY TO INSTALL
Install the Puretec WU20-25M With JR Gas & Water
The Puretec WU20-25M is a practical twin-stage whole-house filtration option for suitable mains-water homes wanting sediment, chlorine, taste and odour treatment with up to 60L/min published flow and 25mm connections.
Before installation, confirm the water source, incoming pressure, household flow requirement, pipe size, mounting arrangement, cartridge-service clearance and whether additional pressure control or pipework is required.
Not only are we productreview.com.au 2023 national winner of the Best Plumbers category we were also voted national Best Home Care store which shows that our customers don't just love our great product prices but our product knowledge, customer service, attention to detail and second to none installation quality.
Being competitively priced is very important to us, we are not going to be the cheapest but like thousands of our customers 5-star reviews can attest to, for that little bit more you get a lot more, with great service, a superior installation, aftersales support, and what you generally miss out on with the cheapest install, manufacturer backed warranty. We guarantee our work won't leave you high and dry if you are the unlucky few that have a system die under warranty.
Â
More from JR Gas & Water
Recently viewed
