PURETEC WHOLE HOME FILTRATION INSTALLATION
Puretec WU10-40M Installation Brisbane & Gold Coast
JR Gas & Water supplies and professionally installs the Puretec WU10-40M whole-house mains water filtration system across Brisbane, the Gold Coast and surrounding eligible South East Queensland service areas.
The WU10-40M is a twin-stage whole-home filter designed specifically for mains water supplies. It treats incoming household water before it reaches downstream taps, showers, bathrooms, laundries and appliances where the plumbing layout allows.
Puretec specifies large-diameter 10-inch twin housings, a nominal 5-micron sediment stage, carbon filtration, a maximum published flow rate of 30 litres per minute and large 40mm / 1½-inch BSP connections.
It is a practical option for homes wanting straightforward sediment, chlorine, taste and odour treatment throughout the property without the electrical, servicing or installation requirements of UV, reverse osmosis or more complex water-treatment systems.
Puretec WU10-40M quick answer:
the WU10-40M is a twin-stage whole-house filter designed for mains water.
Puretec specifies 10-inch large-diameter housings, an MB05LD1 5-micron
sediment cartridge, an EC10LD1 carbon cartridge, up to 30L/min published flow,
40mm / 1½-inch BSP connections, 520kPa maximum pressure and 52°C maximum water
temperature. The standard system requires no electrical power.
Puretec WU10-40M at a Glance
Product
WU10-40M
Twin-stage whole-house mains water filtration system.
Best Suited To
MAINS WATER
Homes wanting sediment and carbon treatment across multiple outlets.
Service Area
SEQ
Suitable installations across Brisbane, Gold Coast and surrounding eligible areas.
Installation Type
WHOLE HOME
Point-of-entry filtration connected to the household mains supply.
Who Is the Puretec WU10-40M For?
Mains-Water Homes
Puretec specifically designs the WU10-40M for treated mains-water supplies rather than rainwater treatment.
Whole-House Filtration
Suitable where the goal is to filter water across multiple household fixtures rather than only at one dedicated drinking-water tap.
Moderate Household Flow
With a published maximum flow of 30L/min, the WU10-40M can suit properties where expected simultaneous water demand fits within the system's practical flow capability.
PRODUCT SUITABILITY
Is the Puretec WU10-40M Right for My Home?
A Good Choice If...
Your property uses mains water, you want broad sediment and carbon treatment and your expected household flow suits a system with up to 30L/min published maximum flow.
Consider Another System If...
You use rainwater, need UV disinfection, require water softening, want reverse osmosis treatment or regularly need substantially higher simultaneous whole-house flow.
JR Should Check First If...
Incoming pressure is high, existing pipework differs substantially from the 40mm filter connection, mounting space is limited or several high-flow fixtures regularly operate together.
How Does the Puretec WU10-40M Work?
Incoming mains water reaches the system: the WU10-40M is installed at an appropriate point on the household water supply so downstream water passes through the filtration stages.
Stage 1 captures sediment: Puretec's MB05LD1 melt-blown cartridge provides nominal 5-micron filtration to help reduce dirt and suspended sediment.
Stage 2 provides carbon treatment: the EC10LD1 extruded carbon cartridge helps reduce chlorine together with unwanted taste and odour.
Filtered water continues through the property: treated water returns to the downstream household plumbing and supplies connected fixtures.
No electrical supply is required: filtration is driven by incoming water pressure without a powered pump or UV treatment stage.
What Does the Puretec WU10-40M Reduce?
Sediment & Dirt
The first-stage melt-blown cartridge helps reduce suspended dirt and sediment before water reaches the carbon stage.
Chlorine
Puretec lists chlorine reduction as one of the WU10-40M's principal mains-water treatment functions.
Taste & Odour
The carbon cartridge is designed to improve common taste and odour concerns associated with treated mains water.
The WU10-40M is not a water softener, UV disinfection system or reverse
osmosis system.
Its treatment claims should remain aligned with the installed sediment and
carbon cartridge configuration.
Whole-House Filtration vs a Drinking-Water Filter
An under-sink drinking-water filter treats one dedicated point of use, usually the kitchen.
The WU10-40M is intended for installation on the household water supply so filtration can apply to multiple connected fixtures throughout the property.
This can suit homes wanting chlorine, taste, odour and sediment treatment for showers, bathrooms and appliances as well as kitchen water.
Some properties use both systems: whole-house filtration for broad household treatment and a dedicated point-of-use filter where more specialised drinking water treatment is wanted.

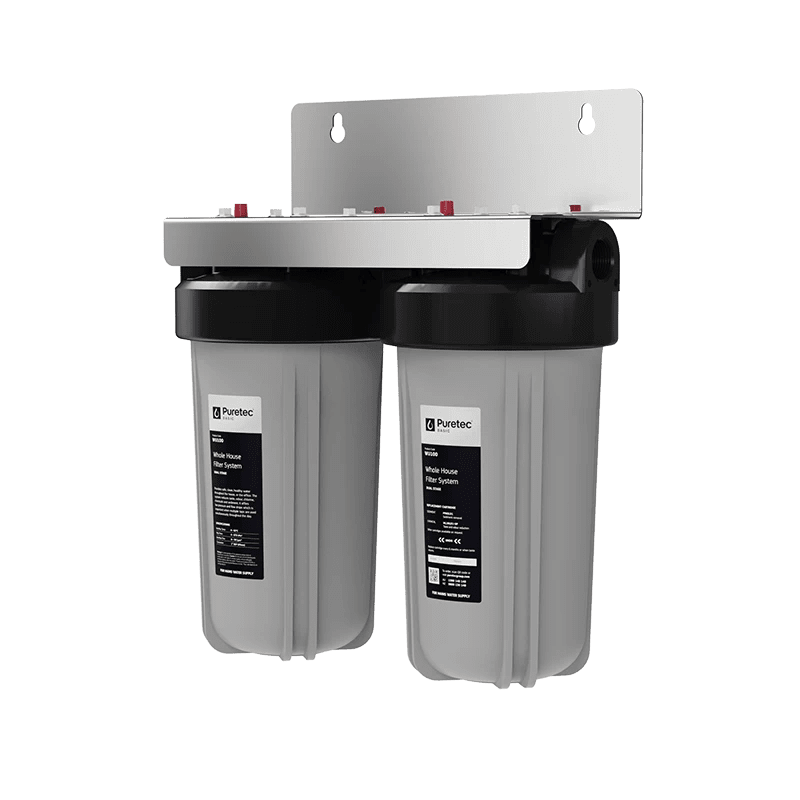

Key Puretec WU10-40M Features
Twin 10-Inch Housings
Two large-diameter 10-inch housings provide separate sediment and carbon filtration stages.
30L/min Published Flow
Designed around moderate whole-house water demand rather than single-tap drinking-water flow.
5-Micron Sediment Stage
Uses Puretec's MB05LD1 melt-blown sediment cartridge.
Carbon Treatment
Uses Puretec's EC10LD1 extruded carbon cartridge as the second filtration stage.
Stainless Steel Bracket
Puretec supplies the system with a stainless steel mounting bracket and housing wrench.
No Power Required
The standard WU10-40M operates from mains water pressure with no electrical supply required.
Puretec WU10-40M Specifications
| Specification | Puretec WU10-40M |
|---|---|
| Brand | Puretec |
| Model | WU10-40M |
| Product Type | Twin-stage whole-house mains water filtration system |
| Water Supply | Mains / town water |
| Housing Configuration | Twin large-diameter 10-inch housings |
| Stage 1 Cartridge | MB05LD1 melt-blown sediment cartridge |
| Stage 2 Cartridge | EC10LD1 extruded carbon cartridge |
| Nominal Micron Rating | 5 micron |
| Maximum Published Flow | 30L/min |
| Connection Size | 1½" BSP / 40mm |
| Maximum Pressure | 520kPa |
| Pressure Limiting Requirement | Approved pressure-limiting device required where supply pressure exceeds 500kPa |
| Maximum Water Temperature | 52°C |
| Electrical Supply | Not required |
| Mounting Bracket | Stainless steel |
| Housing Wrench | Included |
| Manufacturer Warranty | 1 year parts and labour, cartridges excluded, subject to current Puretec terms |
Manufacturer specifications can change. The exact supplied WU10-40M and current Puretec documentation remain the final technical reference for installation and servicing.
INSTALLATION REQUIREMENTS
What Is Required to Install a Puretec WU10-40M?
Suitable mains-water supply
Appropriate point-of-entry installation position
Household flow suited to the 30L/min published maximum
Suitable incoming pipework and connection arrangement
Water pressure within Puretec requirements
Pressure limiting where supply exceeds 500kPa
Suitable isolation arrangement
Strong wall or appropriate freestanding support
Clearance below housings for cartridge replacement
Future servicing access
Suitable protection for the installation position
Flushing and leak testing after installation
Water Pressure & Pressure Limiting
Whole-house filtration is installed on the household water supply, making incoming pressure an important part of both equipment protection and household performance.
Puretec publishes a maximum pressure of 520kPa for the WU10-40M.
Puretec also specifies that an approved pressure-limiting device needs to be fitted where line pressure exceeds 500kPa.
Pressure should therefore be checked during installation rather than assuming the existing supply conditions automatically suit the filtration system.
Whole-House Flow & Household Demand
Puretec publishes a maximum flow rate of 30L/min for the WU10-40M.
Practical flow at household fixtures also depends on incoming pressure, pipe sizing, pipe length, valves, fittings and the condition of the cartridges.
Multiple showers, bath filling, washing machines and outdoor outlets operating together can create substantially more demand than one tap running by itself.
Check household demand before selecting the WU10-40M.
If regular simultaneous flow is likely to exceed what a 30L/min filtration
system can comfortably support, a higher-flow whole-house model may be the
better fit.
Installation Position & Cartridge Access
The WU10-40M uses twin large-diameter housings, so the installation position should allow the bowls to be removed for cartridge servicing.
Isolation valves, pipework and mounting points should remain accessible after installation rather than being hidden behind permanent structures.
Clearance underneath the housings is especially important when changing the MB05LD1 sediment and EC10LD1 carbon cartridges.
Where wall mounting is not suitable, JR's current package structure also provides freestanding installation pathways according to the actual site.
JR Puretec WU10-40M Installation Packages
JR's current live WU10-40M selector uses six installation pathways so the package can reflect whether the job is an exact replacement, wall mounted or freestanding, and whether the incoming household water main is already exposed.
Base — Exact Replacement
For exact replacement of an existing Puretec WU10-40M where the current pipework, mounting position and installation arrangement remain suitable.
Silver — Wall Mounted, Exposed Main
JR's new wall-mounted pathway where the incoming water main is already exposed, including valves and pipework within current package scope.
Gold — Freestanding, Exposed Main
For new freestanding installations where the incoming main is exposed, including valves, pipework and concreted supports within current package conditions.
Sapphire — Wall Mounted, Main Not Exposed
For wall-mounted installations requiring additional access to incoming water pipework because the main is not already exposed.
Diamond — Freestanding, Main Not Exposed
For new freestanding installations where the incoming main is not exposed, including valves, pipework and concreted supports within current package allowances.
Platinum — Installation Requiring Power
JR's broader current package includes valves, pipework, a double power point and concreted supports where required. The standard WU10-40M itself does not require electrical power.
Use JR's live selector above as the final reference for current package inclusions, allowances, installation timing and pricing.
What Can a JR WU10-40M Installation Include?
Supply of the genuine Puretec WU10-40M
MB05LD1 sediment cartridge
EC10LD1 carbon cartridge
Stainless steel mounting bracket
Housing wrench
Professional system positioning
Valves according to selected package
Pipework according to selected package
Wall mounting where selected
Freestanding supports where selected
System flushing and leak checks
Basic cartridge servicing guidance
Exact inclusions depend on JR's current package selected and actual site conditions.
What May Require Additional Work?
Pressure-control work beyond selected package scope
Major incoming-water-main relocation
Substantial pipe-size alterations
Structural wall or mounting work
Difficult concealed pipe access outside package allowances
Protective enclosure unless expressly included
UV disinfection equipment
Water softening or specialist scale treatment
Rainwater treatment conversion
Rectification of unrelated plumbing defects
Puretec WU10-40M Installation Pricing
Current supplied-and-installed pricing is controlled through JR's live product and installation selector above rather than being hardcoded into this description.
Final scope depends on whether the installation is an exact replacement, wall mounted or freestanding, whether the incoming water main is exposed, pressure requirements and the amount of pipework needed.
JR's current live selector also lists Priority Saver with a maximum 20-business-day installation window and Express with a maximum 5-business-day window, subject to current availability and booking conditions.
BRISBANE INSTALLATION
Puretec WU10-40M Installation Brisbane
JR Gas & Water installs suitable Puretec WU10-40M whole-house filtration systems throughout Greater Brisbane for mains-water homes wanting filtration across multiple household fixtures.
Brisbane installations are assessed around incoming pressure, expected household flow, pipe sizing, the location of the incoming water main and future cartridge-service access.
A straightforward wall-mounted installation on exposed pipework can have a very different scope from a property where the main is concealed or where a freestanding support arrangement is required.
JR also services Logan, Ipswich, Redlands, Moreton Bay and surrounding eligible South East Queensland areas, subject to current booking availability.
GOLD COAST INSTALLATION
Puretec WU10-40M Installation Gold Coast
JR Gas & Water provides suitable Puretec WU10-40M supply and installation across eligible Gold Coast service areas.
The twin-stage 10-inch system can suit mains-water homes wanting whole-house sediment and carbon treatment where the expected simultaneous water demand suits the published 30L/min flow.
Incoming pressure, pipework, mounting location and future servicing access should all be confirmed before the installation is treated as straightforward.
Can the WU10-40M Replace My Existing Whole-House Filter?
Replacing Another WU10-40M
Usually the simplest pathway where existing pipework, pressure, mounting, valves and service access remain suitable.
Replacing Another Twin Filter
Often possible, but connection size, cartridge clearance, housing format, flow and pressure requirements still need to be checked.
Changing From a Different Size
Moving between 10-inch and 20-inch systems can change mounting height, cartridge clearance, flow capability and the required plumbing arrangement.
WU10-40M vs WU10-25M
| Feature | WU10-40M | WU10-25M |
|---|---|---|
| Water Source | Mains water | Mains water |
| Housing Format | Twin 10-inch large diameter | Twin 10-inch large diameter |
| Maximum Published Flow | 30L/min | 30L/min |
| Nominal Micron Rating | 5 micron | 5 micron |
| Connection | 1½" BSP / 40mm | 1" BSP / 25mm |
| Stage 1 Cartridge | MB05LD1 | MB05LD1 |
| Stage 2 Cartridge | EC10LD1 | EC10LD1 |
| General Difference | 40mm connection arrangement | 25mm connection arrangement |
The principal current manufacturer difference between these two mains-water models is the plumbing connection size. Both use the same 10-inch cartridge format and have the same published maximum flow.
WU10-40M vs WU20-40M
| Feature | WU10-40M | WU20-40M |
|---|---|---|
| Housing Format | Twin 10-inch | Twin 20-inch |
| Maximum Published Flow | 30L/min | 60L/min |
| Connection | 1½" BSP / 40mm | 1½" BSP / 40mm |
| Sediment Cartridge | MB05LD1 | MB05LD2 |
| Carbon Cartridge | EC10LD1 | EC10LD2 |
| General Fit | Moderate flow with shorter cartridge format | Higher published flow with larger cartridge format |
The WU20-40M retains the same 40mm connection size but uses larger 20-inch cartridges and carries a higher published maximum flow. It can therefore be a better fit where higher simultaneous household demand justifies the larger system.
WU10-40M vs Rainwater Filtration
WU10-40M Mains Water
Designed for treated mains-water supplies with sediment and carbon treatment aimed at common mains-water concerns.
Rainwater Filtration
Rainwater can require different cartridge configurations and additional treatment such as UV depending on the water source and intended use.
Puretec provides separate rainwater-specific systems rather than describing the WU10-40M as a rainwater filtration product.
Puretec WU10-40M Cartridge Maintenance
| Stage | Cartridge | Function |
|---|---|---|
| Stage 1 | MB05LD1 | 5-micron nominal melt-blown sediment filtration |
| Stage 2 | EC10LD1 | Extruded carbon treatment for chlorine, taste and odour reduction |
Cartridge life depends on household water consumption, incoming sediment, chlorine loading and local mains-water conditions.
A noticeable reduction in household flow or changes in water quality can indicate that cartridge servicing is required.
Puretec specifies genuine replacement cartridges for maintaining the intended WU10-40M filtration configuration.
COMMON QUESTIONS
Puretec WU10-40M Installation FAQs
What is the Puretec WU10-40M?
It is a twin-stage, large-diameter 10-inch whole-house filtration system designed by Puretec for mains-water supplies.
Is the WU10-40M a whole-house water filter?
Yes. It is designed for point-of-entry filtration so treated water can feed multiple downstream household fixtures.
Is the WU10-40M suitable for rainwater?
Puretec describes the WU10-40M as a mains-water system. Rainwater should use filtration selected around rainwater conditions and the intended use.
What does the WU10-40M reduce?
Puretec describes the system as reducing chlorine, taste, odour, chemicals and sediment through its sediment and carbon filtration stages.
Does the WU10-40M remove fluoride?
Puretec does not describe the standard WU10-40M cartridge configuration as a dedicated fluoride-removal system.
Does the WU10-40M disinfect water?
No. The standard system does not contain UV disinfection and should not be represented as a microbiological sterilisation system.
Does it soften hard water?
No. The standard sediment and carbon cartridges are not conventional water-softening equipment.
What is the maximum published flow rate?
Puretec currently publishes a maximum flow rate of 30 litres per minute for the WU10-40M.
What connection size does the WU10-40M use?
Puretec specifies 1½-inch BSP connections, approximately 40mm nominal size.
What filtration rating does the system use?
Puretec lists a nominal 5-micron filtration rating for the sediment stage.
Which cartridges does the WU10-40M use?
Puretec currently specifies an MB05LD1 melt-blown sediment cartridge and EC10LD1 extruded carbon cartridge.
Does the WU10-40M require electricity?
No. Puretec lists the standard system as requiring no power.
What is the maximum operating pressure?
Puretec currently publishes a maximum pressure of 520kPa.
When is a pressure-limiting device required?
Puretec states that an approved pressure-limiting device needs to be fitted where line pressure exceeds 500kPa.
What is the maximum water temperature?
Puretec currently lists a maximum water temperature of 52°C.
Can the system filter shower and bathroom water?
Where installed on a suitable household mains supply, filtration can apply to downstream showers, bathrooms and other connected fixtures.
Will the WU10-40M affect household water pressure?
Any filtration system creates resistance to flow. Practical performance depends on incoming pressure, household demand, pipework and cartridge condition.
Is 30L/min enough for my home?
It depends on simultaneous demand. Homes regularly operating several high-flow fixtures at once may benefit from comparing a higher-flow whole-house system.
What is the difference between WU10-40M and WU10-25M?
Both use 10-inch housings, the same listed cartridges and the same 30L/min maximum published flow. The principal current manufacturer difference is the connection size: 40mm on the WU10-40M and 25mm on the WU10-25M.
What is the difference between WU10-40M and WU20-40M?
Both use 40mm connections, but the WU20-40M uses larger 20-inch cartridges and Puretec publishes a higher 60L/min maximum flow for that model.
How often should the cartridges be changed?
Cartridge life varies with household usage and incoming water conditions. Servicing should follow Puretec's current guidance and actual cartridge performance rather than assuming one fixed interval suits every property.
Can the WU10-40M replace my existing whole-house filter?
Often, yes. Connection size, mounting position, household flow, pressure and servicing clearance should still be checked before treating the replacement as like-for-like.
What is JR's Base installation package?
JR's current Base pathway is for exact replacement of an existing Puretec WU10-40M where the existing installation remains suitable.
What is JR's Silver package?
Silver is JR's current wall-mounted new-installation pathway where the incoming household main is already exposed, including valves and pipework within package scope.
What is JR's Gold package?
Gold is JR's current freestanding pathway where the incoming main is exposed, including valves, pipework and concreted supports within package scope.
What if my incoming mains pipework is not exposed?
JR's current Sapphire and Diamond packages provide wall-mounted and freestanding pathways where the required incoming pipework is not already exposed.
Why does JR have a Platinum package if the WU10-40M needs no power?
The WU10-40M itself requires no power. JR's current Platinum package is a broader installation pathway for sites where electrical provision forms part of the overall installation scope.
What booking options does JR currently list?
JR's current selector lists Priority Saver with a maximum 20-business-day window and Express with a maximum 5-business-day window, subject to live availability and booking conditions.
How much does Puretec WU10-40M installation cost?
Current supplied-and-installed pricing is shown through JR's live selector above. Final scope depends on the selected installation package, pipework, mounting arrangement, pressure and site conditions.
Can JR install the WU10-40M in Brisbane?
Yes. JR installs suitable whole-house mains filtration systems throughout eligible Greater Brisbane service areas.
Can JR install the WU10-40M on the Gold Coast?
Yes. JR provides suitable whole-house filtration installations across eligible Gold Coast service areas.
Does JR install the WU10-40M in Logan?
JR's current WU10-40M product information includes Logan within its stated installation coverage, subject to current availability and site conditions.
Puretec WU10-40M Warranty & Maintenance
1-Year Manufacturer Warranty
Puretec currently lists one year parts and labour, subject to current manufacturer warranty terms.
Cartridges Are Consumables
Replacement cartridges are excluded from Puretec's standard manufacturer warranty.
Service Access Matters
Future cartridge changes are easier when isolation and housing clearance are planned properly during the original installation.
Puretec's manufacturer warranty is separate from JR's installation workmanship and support terms. Manufacturer coverage remains subject to current Puretec conditions and correct installation, operation and maintenance.
Why Choose JR Gas & Water for WU10-40M Installation?
LICENSED
Whole-house plumbing installation completed through appropriately licensed professionals.
SYSTEM CHECK
Household flow, incoming pressure, pipe sizing and installation position considered before finalising the system.
COMMISSIONING
Filtration system flushing, connection checks and leak testing completed before handover.
SEQ
Brisbane, Gold Coast and surrounding eligible South East Queensland service coverage.
Whole-house filtration needs to suit both treatment goals and household plumbing. JR considers pressure, expected flow, pipe sizing, mounting, cartridge access and the actual installation position before finalising the setup.
RELATED FILTRATION OPTIONS
Compare Whole-Home & Puretec Water Filters
Compare the WU10-40M with JR's wider current whole-home mains filtration and Puretec ranges if your property needs a different flow rating, cartridge size, connection arrangement or filtration configuration.
READY TO INSTALL
Install the Puretec WU10-40M With JR Gas & Water
The Puretec WU10-40M is a practical twin-stage whole-house filtration option for suitable mains-water homes wanting sediment, chlorine, taste and odour treatment with 40mm connections and up to 30L/min published flow.
Before installation, confirm the water source, incoming pressure, household flow demand, pipe sizing, mounting arrangement, cartridge-service clearance and whether additional pressure control or pipework changes are required.
Not only are we productreview.com.au 2023 national winner of the Best Plumbers category we were also voted national Best Home Care store which shows that our customers don't just love our great product prices but our product knowledge, customer service, attention to detail and second to none installation quality.
Being competitively priced is very important to us, we are not going to be the cheapest but like thousands of our customers 5-star reviews can attest to, for that little bit more you get a lot more, with great service, a superior installation, aftersales support, and what you generally miss out on with the cheapest install, manufacturer backed warranty. We guarantee our work won't leave you high and dry if you are the unlucky few that have a system die under warranty.
Â
More from JR Gas & Water
Recently viewed
