PURETEC WHOLE HOME UV FILTRATION INSTALLATION
Puretec WU-UV150 Installation Brisbane & Gold Coast
JR Gas & Water supplies and professionally installs the Puretec WU-UV150 filtration and ultraviolet water-treatment system across Brisbane, the Gold Coast and surrounding eligible South East Queensland service areas.
The WU-UV150 combines two cartridge-filtration stages with ultraviolet treatment in one reversible frame. Puretec designs the system for both mains and rainwater applications where whole-home filtration and UV treatment are required.
Puretec publishes a maximum flow rate of 60 litres per minute with 25mm / 1-inch BSP connections. The system uses a PP05LD1 first-stage cartridge, ML10LD1-DP second-stage cartridge and RL6 ultraviolet lamp.
Unlike a standard filtration-only system, the WU-UV150 also requires a 220–240V electrical supply so the ultraviolet treatment stage can operate. Puretec specifies the unit for indoor installation.
Puretec WU-UV150 quick answer:
the WU-UV150 is a combined whole-home filtration and UV system designed for
mains or rainwater. Puretec publishes 60L/min flow, 25mm connections,
520kPa maximum pressure and a 220–240V / 50Hz power requirement. It combines
sediment and carbon filtration with an RL6 ultraviolet lamp, and Puretec states
its UV technology kills up to 99.99% of E. coli plus Giardia and
Cryptosporidium cysts under the manufacturer's stated conditions.
Puretec WU-UV150 at a Glance
System
FILTER + UV
Two filtration stages combined with ultraviolet water treatment.
Best Suited To
MAINS / RAIN
Puretec specifies the WU-UV150 for both mains and rainwater supplies.
Installation Area
INDOOR
Puretec specifies the WU-UV150 for indoor installation.
Maximum Flow
60 L/MIN
Puretec's current published maximum flow rate.
Who Is the Puretec WU-UV150 For?
Rainwater Homes
Relevant where tank water is used around the home and filtration plus ultraviolet treatment forms part of the water-treatment setup.
Mains-Water Homes Wanting UV
Puretec also specifies the system for mains-water applications where the household specifically wants filtration combined with an ultraviolet stage.
Whole-Home Treatment
Designed around higher flow than a drinking-water-only filter so treated water can serve multiple downstream outlets where the plumbing arrangement is suitable.
PRODUCT SUITABILITY
Is the Puretec WU-UV150 Right for My Home?
A Good Choice If...
You want whole-home filtration with an ultraviolet treatment stage, have a suitable mains or rainwater supply, indoor mounting space and an appropriate electrical supply.
Consider Another System If...
You only need basic mains-water sediment and chlorine filtration, require substantially more than 60L/min flow or do not have an appropriate indoor installation position.
JR Should Check First If...
Water pressure is high, power is not available, the water source has unusual treatment requirements, mounting space is restricted or several high-flow fixtures regularly operate together.
How Does the Puretec WU-UV150 Work?
Stage 1 filters incoming water: Puretec specifies the PP05LD1 cartridge as the first filtration stage.
Stage 2 provides further filtration: water then passes through Puretec's ML10LD1-DP cartridge before reaching the ultraviolet treatment chamber.
UV treatment follows filtration: the RL6 lamp exposes the flowing water to ultraviolet light inside the UV chamber.
Treated water continues through the property: after the UV stage, water passes into the downstream household plumbing.
The UV system monitors lamp operation: Puretec equips the WU-UV150 with a lamp countdown timer and audible and visible failure alarm.
What Does the UV Stage Do?
Ultraviolet treatment is different from cartridge filtration. Rather than physically trapping microorganisms in a replaceable filter cartridge, the UV stage uses ultraviolet light as part of the water-treatment process.
Puretec states that the WU-UV150's ultraviolet technology kills up to 99.99% of E. coli and also treats Giardia and Cryptosporidium cysts under the manufacturer's stated operating conditions.
UV performance depends on the complete system operating correctly.
The cartridges, UV lamp, quartz sleeve, water conditions, flow rate and
electrical supply all form part of the treatment setup. A UV lamp that is not
operating cannot provide active ultraviolet treatment.
Key Puretec WU-UV150 Features
Filtration + UV
Cartridge filtration and ultraviolet treatment are integrated into one whole-home system.
60L/min Flow
Puretec publishes a maximum system flow of 60 litres per minute.
Reversible Frame
The mounting arrangement can be configured left-to-right or right-to-left to suit the direction of the water supply.
Lamp Countdown Timer
The controller includes a countdown function to support ongoing UV lamp maintenance.
Failure Alarm
Puretec includes audible and visible UV lamp failure indication.
Mains or Rainwater
Puretec specifies the WU-UV150 for both mains-water and rainwater applications.
Puretec WU-UV150 Specifications
| Specification | Puretec WU-UV150 |
|---|---|
| Current Model | WU-UV150-LF |
| Product Type | Whole-home filtration and ultraviolet treatment system |
| Water Supply | Mains or rainwater |
| Maximum Published Flow | 60L/min |
| Connection Size | 1" BSP / 25mm |
| Stage 1 Cartridge | PP05LD1 |
| Stage 2 Cartridge | ML10LD1-DP |
| UV Lamp | RL6 |
| Quartz Sleeve | RQS6 |
| Power Supply | 220–240V AC / 50Hz |
| Maximum Pressure | 520kPa |
| Pressure Limiting | Approved pressure-limiting device required where line pressure exceeds 500kPa |
| Maximum Water Temperature | 52°C, protect from freezing |
| Installation Location | Indoor installation |
| Mounting | Reversible left-to-right or right-to-left frame configuration |
| UV Monitoring | Lamp countdown timer with audible and visible failure alarm |
| Manufacturer Warranty | 1 year parts and labour, subject to current Puretec terms |
Manufacturer specifications can change. The exact supplied appliance and current Puretec installation and servicing instructions remain the final technical reference.
INSTALLATION REQUIREMENTS
What Is Required to Install a Puretec WU-UV150?
Suitable mains or rainwater supply
Indoor installation position
Household flow suited to the system
25mm / 1-inch connection arrangement
Incoming pressure within Puretec requirements
Pressure limiting where supply exceeds 500kPa
Suitable isolation valves
220–240V electrical supply
Accessible power point where required by the installation
Secure mounting position
Clearance for filter, lamp and quartz-sleeve servicing
Flushing, commissioning and operational checks
Indoor Installation & Power Requirements
Puretec currently specifies the WU-UV150 for indoor installation.
The system also needs a 220–240V / 50Hz electrical supply for the UV lamp and controller.
This makes installation different from a standard non-powered whole-house cartridge filter. The final location needs to suit both the plumbing and the electrical requirements while remaining accessible for servicing.
No power means no active UV treatment.
The filtration cartridges can still physically contain water, but the
ultraviolet treatment stage requires its powered UV lamp to operate.
Water Pressure & Flow Requirements
Puretec publishes a maximum pressure of 520kPa for the WU-UV150 and states that an approved pressure-limiting device is required where incoming line pressure exceeds 500kPa.
Puretec also publishes a maximum system flow of 60L/min.
Practical household performance still depends on the incoming water supply, pipework, valves, pump arrangement where applicable, cartridge condition and how many fixtures are operating simultaneously.
The system should therefore be selected around actual household demand rather than flow rating alone.
JR Puretec WU-UV150 Installation Packages
JR's current live WU-UV150 selector uses six installation pathways so the scope can reflect the existing plumbing, mounting arrangement, accessibility of the incoming water main and whether a suitable power point already exists.
Base — Exact Replacement
For exact replacement of an existing Puretec WU-UV150 where the existing plumbing, mounting position, valves and electrical provision remain suitable.
Silver — Wall Mounted, Exposed Main
For a new wall-mounted installation where the incoming water main is already exposed, with plumbing work according to the current package scope.
Gold — Freestanding, Exposed Main
For a new freestanding installation where the incoming main is exposed, including the support arrangement within current package conditions.
Sapphire — Wall Mounted, Main Not Exposed
For wall-mounted installations where additional plumbing access is required because the incoming water main is not already exposed.
Diamond — Freestanding, Main Not Exposed
For freestanding installations where the incoming water main is not exposed and broader plumbing and support work is required.
Platinum — Power Provision Required
The WU-UV150 always requires electrical power. JR's current Platinum pathway is relevant where the installation also requires provision of a suitable double power point within the current package conditions.
Current package inclusions, allowances, installation timing and pricing are controlled by JR's live selector above.
What Can a JR WU-UV150 Installation Include?
Supply of the genuine Puretec WU-UV150
PP05LD1 first-stage cartridge
ML10LD1-DP second-stage cartridge
RL6 UV lamp and UV chamber assembly
RQS6 quartz sleeve
Professional system positioning
Plumbing work according to selected package
Mounting or supports according to selected package
Electrical provision where included in selected package
System flushing
Leak and operational checks
Basic maintenance and UV servicing guidance
Final inclusions depend on the live JR package selected and actual site conditions.
Puretec WU-UV150 Installation Pricing
Current supplied-and-installed pricing is shown through JR's live product and installation selector above rather than being hardcoded into this description.
Final installation scope depends on whether the job is an exact replacement, wall mounted or freestanding, whether the incoming water main is exposed and whether a suitable electrical supply is already available.
Pressure-control work, additional pipework, electrical provision and unusual access conditions can also affect the final package required.
JR's live selector controls current Priority Saver and Express booking options, availability and package pricing.
BRISBANE INSTALLATION
Puretec WU-UV150 Installation Brisbane
JR Gas & Water installs suitable Puretec WU-UV150 systems throughout Greater Brisbane for mains-water and rainwater properties needing whole-home filtration with an ultraviolet treatment stage.
Brisbane installations are assessed around the water source, incoming pressure, expected household flow, mounting location, power access and ongoing servicing clearance.
A straightforward replacement where plumbing and power already suit the unit can have a very different scope from a new rainwater treatment installation requiring pipework, supports and a new electrical outlet.
JR also services Logan and surrounding eligible South East Queensland areas, subject to current booking availability and site conditions.
GOLD COAST INSTALLATION
Puretec WU-UV150 Installation Gold Coast
JR Gas & Water provides suitable WU-UV150 supply and installation across eligible Gold Coast service areas.
The system can suit rainwater homes wanting filtration and ultraviolet treatment together, as well as mains-water properties where a UV stage is specifically wanted.
Incoming water conditions, pressure, electrical supply, indoor installation space and future filter and UV servicing access should all be confirmed before finalising the installation package.
Can the WU-UV150 Replace My Existing Water Treatment System?
Replacing Another WU-UV150
Usually the simplest pathway where the existing plumbing, power, mounting position and service access remain suitable.
Replacing Filtration Without UV
Often possible, but the new installation needs a suitable power supply and enough space for the ultraviolet chamber, controller and future servicing.
Replacing Another UV System
Flow, connection size, cartridge arrangement, UV equipment, electrical supply and mounting dimensions should be checked rather than assuming different UV systems are directly interchangeable.
WU-UV150 vs Filtration Without UV
WU-UV150 Filtration + UV
Combines cartridge filtration with an active ultraviolet treatment stage and requires electrical power.
It is relevant where microbiological treatment forms part of the property's water-treatment requirements.
Standard Whole-House Filtration
Sediment and carbon systems can reduce particulate material, chlorine, taste and odour without requiring a UV lamp or electrical supply.
They can be a simpler fit where ultraviolet treatment is not required for the property's water source or treatment goals.

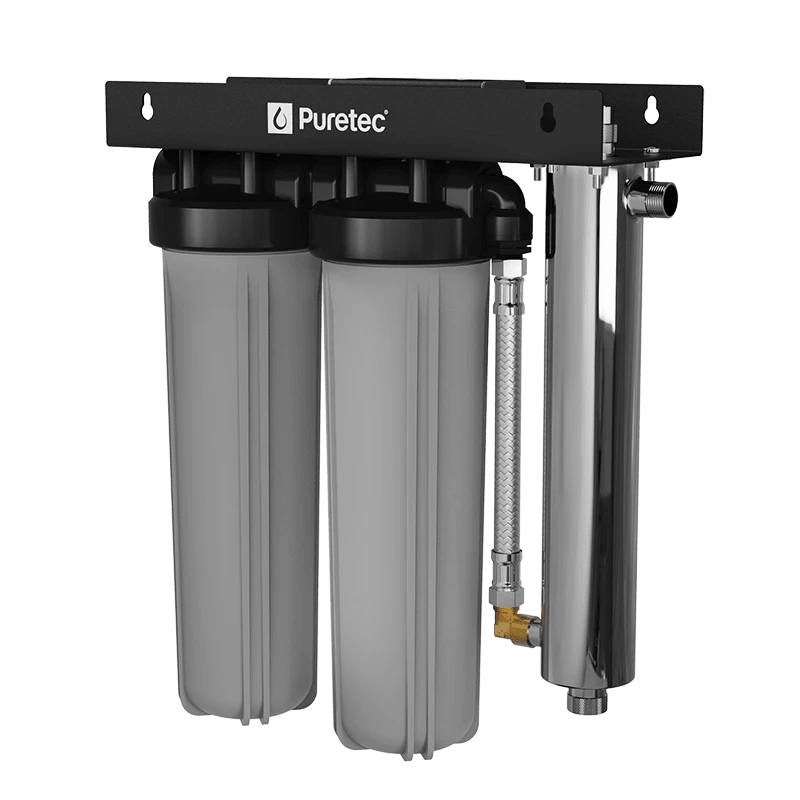

WU-UV150 vs WU-UV250
| Feature | WU-UV150 | WU-UV250 |
|---|---|---|
| Water Source | Mains or rainwater | Mains or rainwater |
| Filtration + UV | Yes | Yes |
| Maximum Published Flow | 60L/min | 110L/min |
| Connection Size | 1" / 25mm | 1" / 25mm |
| Installation | Indoor | Indoor |
| General Fit | Moderate whole-home flow requirements | Higher whole-home flow requirements |
The practical difference is largely system capacity. The WU-UV250 is the higher-flow option, while the WU-UV150 can suit properties where the published 60L/min capacity is appropriate.
Puretec WU-UV150 Maintenance
Filter Cartridges
The PP05LD1 and ML10LD1-DP cartridges are consumable filtration components and require ongoing replacement according to water conditions, usage and Puretec's current servicing guidance.
UV Lamp
The RL6 lamp is a service component. Follow Puretec's current maintenance schedule and the controller's lamp-life indication rather than relying only on whether the lamp still appears illuminated.
Quartz Sleeve
The RQS6 quartz sleeve should remain clean and serviceable so ultraviolet light can pass effectively into the water-treatment chamber.
Water quality, sediment loading and household use affect servicing requirements. Current Puretec maintenance instructions should be followed for the installed system.
COMMON QUESTIONS
Puretec WU-UV150 Installation FAQs
What is the Puretec WU-UV150?
It is an all-in-one whole-home system combining two filtration stages with ultraviolet water treatment.
Can the WU-UV150 be used on rainwater?
Yes. Puretec specifies the WU-UV150 for both rainwater and mains-water applications.
Can the WU-UV150 be used on mains water?
Yes. Puretec's current product information specifically includes mains-water use as well as rainwater.
What is the maximum flow rate?
Puretec publishes a maximum flow rate of 60 litres per minute.
What size water connections does it use?
Puretec specifies 1-inch BSP connections, approximately 25mm nominal size.
Does the WU-UV150 need electricity?
Yes. The ultraviolet lamp and controller require a 220–240V / 50Hz electrical supply.
Can it be installed outdoors?
Puretec currently specifies the WU-UV150 for indoor installation. The installation position should therefore be planned around that manufacturer requirement.
What is the maximum water pressure?
Puretec publishes a maximum system pressure of 520kPa.
When is pressure limiting required?
Puretec states that an approved pressure-limiting device must be fitted where incoming line pressure exceeds 500kPa.
What cartridges does the WU-UV150 use?
Puretec currently specifies PP05LD1 for Stage 1 and ML10LD1-DP for Stage 2.
What UV lamp does it use?
Puretec specifies the RL6 ultraviolet replacement lamp.
What quartz sleeve does it use?
Puretec specifies the RQS6 quartz sleeve.
Does the system alert me if the UV lamp fails?
Puretec states that the WU-UV150 includes a lamp countdown timer and audible and visible failure alarm.
What microorganisms does Puretec claim the UV system treats?
Puretec states that its ultraviolet technology kills up to 99.99% of E. coli and also treats Giardia and Cryptosporidium cysts under the manufacturer's stated conditions.
Will the UV stage soften hard water?
No. UV treatment is not a conventional water-softening process. Dedicated hardness or scale treatment needs to be considered separately where required.
Can the WU-UV150 replace a normal whole-house filter?
Potentially. The new setup also requires appropriate electrical supply, indoor installation space and servicing access for the UV components.
What is JR's Base installation package?
JR's current Base pathway is for exact replacement of an existing Puretec WU-UV150 where the existing installation remains suitable.
What if I do not already have a power point?
JR's current Platinum pathway is intended for installations requiring power provision as part of the overall scope. Use the live selector for current inclusions.
How much does WU-UV150 installation cost?
Current supplied-and-installed pricing is shown through JR's live selector. Final scope depends on plumbing, mounting, power availability, pressure and site conditions.
Can JR install the WU-UV150 in Brisbane or the Gold Coast?
Yes. JR installs suitable WU-UV150 systems across eligible Brisbane, Gold Coast, Logan and surrounding South East Queensland service areas.
Puretec WU-UV150 Warranty & Ongoing Care
1-Year Manufacturer Warranty
Puretec currently lists a one-year parts-and-labour warranty, subject to current manufacturer terms.
Consumable Components
Filter cartridges and UV service components require ongoing maintenance and replacement according to Puretec's current instructions.
Keep the System Accessible
Cartridge, lamp and quartz-sleeve access should be considered during the original installation so future servicing remains practical.
Puretec's manufacturer warranty is separate from JR's installation workmanship and support terms. Manufacturer coverage remains subject to current Puretec conditions and correct installation, operation and maintenance.
Why Choose JR Gas & Water for WU-UV150 Installation?
LICENSED
Plumbing and required electrical work coordinated through appropriately licensed professionals.
SYSTEM CHECK
Water source, household flow, pressure, power access and installation position considered before finalising the setup.
COMMISSIONING
Filtration, plumbing connections and UV system operation checked before handover.
SEQ
Brisbane, Gold Coast and surrounding eligible South East Queensland service coverage.
A whole-home UV system needs the filtration, plumbing, electrical supply and service position to work together. JR assesses the complete installation rather than treating the WU-UV150 like a basic cartridge filter.
RELATED FILTRATION OPTIONS
Compare Rainwater, UV & Puretec Filtration
Compare JR's current rainwater, ultraviolet and Puretec ranges if your property needs a different flow capacity, filtration configuration or treatment level.
READY TO INSTALL
Install the Puretec WU-UV150 With JR Gas & Water
The Puretec WU-UV150 is a combined whole-home filtration and ultraviolet treatment option for suitable mains-water and rainwater properties requiring up to 60L/min published flow.
Before installation, confirm the water source, incoming pressure, household flow requirement, 25mm plumbing arrangement, indoor mounting position, servicing clearance and whether a suitable electrical supply is already available.
Not only are we productreview.com.au 2023 national winner of the Best Plumbers category we were also voted national Best Home Care store which shows that our customers don't just love our great product prices but our product knowledge, customer service, attention to detail and second to none installation quality.
Being competitively priced is very important to us, we are not going to be the cheapest but like thousands of our customers 5-star reviews can attest to, for that little bit more you get a lot more, with great service, a superior installation, aftersales support, and what you generally miss out on with the cheapest install, manufacturer backed warranty. We guarantee our work won't leave you high and dry if you are the unlucky few that have a system die under warranty.
Â
More from JR Gas & Water
Recently viewed
