PURETEC WHOLE HOUSE UV FILTRATION INSTALLATION
Puretec WU-UV150 Installation Brisbane & Gold Coast
JR Gas & Water supplies and installs the Puretec WU-UV150 across eligible Brisbane, Gold Coast and surrounding South East Queensland areas for homes wanting whole-house filtration combined with ultraviolet water treatment.
The WU-UV150 is an all-in-one filtration and UV system designed for mains or rainwater supplies. It combines two filtration stages with Puretec ultraviolet technology and is rated for flow up to 60 litres per minute through a 1-inch BSP connection. Puretec specifies the system for indoor installation.
For JR customers, choosing the product is only part of the job. The installation also needs to suit the incoming water supply, available flow, pipework, water pressure, power location and future access for cartridges, the UV lamp and quartz sleeve.

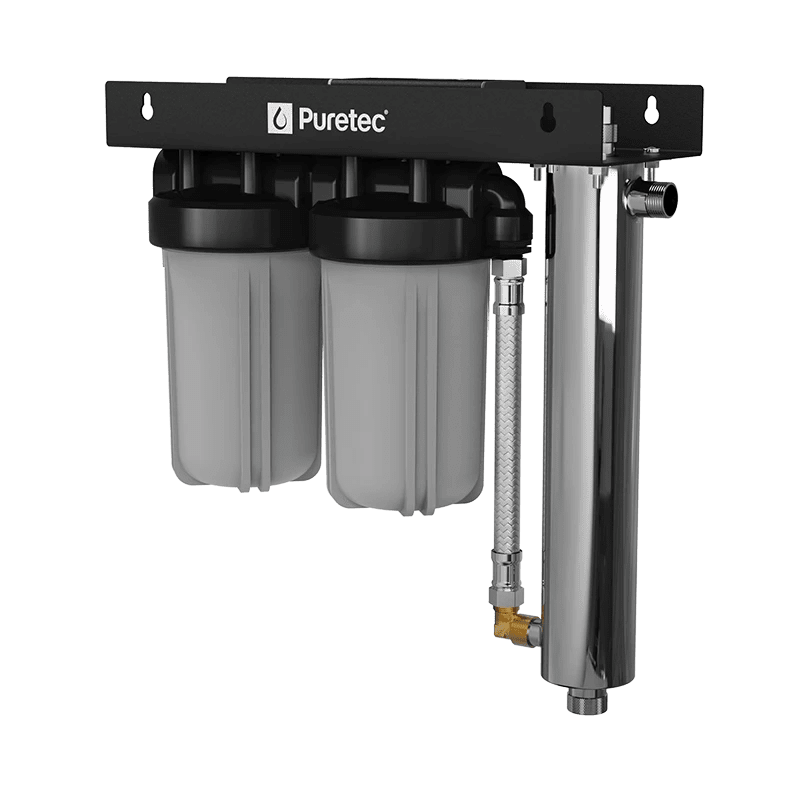

Puretec WU-UV150 at a glance: a 60 L/min whole-house filtration and UV system for mains or rainwater, using dual filtration stages followed by ultraviolet treatment. It uses 1-inch BSP connections, requires 220–240V / 50Hz power, is specified for indoor installation and has a maximum operating pressure of 520 kPa. JR Gas & Water can supply and install the WU-UV150 across eligible Brisbane and Gold Coast service areas.
Puretec WU-UV150 Supply & Installation at a Glance
Filtration + UV
Product Type
Whole-house dual-stage filtration combined with ultraviolet water treatment in one frame.
60 L/min
Rated Flow
Designed by Puretec for flow up to 60 litres per minute with a 1-inch BSP connection.
Mains + Rainwater
Water Source
Designed for both mains and rainwater supplies, subject to the water source and installation conditions.
SEQ
Installation Area
Professional installation across eligible Brisbane, Gold Coast, Logan, Ipswich, Redlands and Moreton Bay areas.
Who Is the Puretec WU-UV150 Best For?
Rainwater Homes Wanting UV Treatment
The WU-UV150 is particularly relevant where stored rainwater is being used and the treatment setup calls for filtration followed by UV treatment.
Whole-House Treatment
Unlike an under-sink filter that treats a single drinking-water outlet, the WU-UV150 is designed for installation on a household water supply so treated water can be delivered to multiple outlets.
Homes Wanting Filtration + UV Together
It suits customers who specifically want particulate/carbon filtration and ultraviolet treatment integrated into one system rather than installing separate standalone components.
PRODUCT SUITABILITY
Is the Puretec WU-UV150 Right for My Home?
A Good Choice If...
You want whole-house treatment, have a mains or rainwater supply, require up to 60 L/min of rated system flow and want filtration combined with UV treatment.
Consider Another Option If...
Your required household flow is above the WU-UV150's 60 L/min rating, you only need drinking water treated at one outlet, or your installation conditions do not suit this system.
JR Should Check First If...
Your pressure is high, available space is tight, the proposed location is exposed outdoors, the incoming pipe arrangement is unusual, or there is uncertainty about suitable power and service access.
What Water Supply Does the WU-UV150 Suit?
Puretec specifies the WU-UV150 for both mains and rainwater supplies. The important distinction is that the complete treatment requirement still depends on where the water comes from and how it will be used.
Rainwater Applications
For a rainwater property, the WU-UV150 provides filtration before ultraviolet treatment. The broader rainwater setup should also be considered, including the tank, pump, incoming water condition and how the treated water is distributed through the property.
Mains Water Applications
The WU-UV150 can also be used on mains water where the customer specifically wants whole-house filtration with an additional UV treatment stage. JR can assess whether this level of treatment suits the actual objective rather than automatically specifying UV where it is unnecessary.
How Does the Puretec WU-UV150 Work?
Water enters the WU-UV150 and passes through its filtration stages before moving through the ultraviolet treatment section. The filtration stages prepare and treat the incoming water, while the UV stage exposes the flowing water to ultraviolet light.
Puretec states that its UV technology kills up to 99.99% of bacteria and identifies E. coli, Giardia and Cryptosporidium cysts among the microorganisms treated by the system. UV treatment is chemical-free and works while the water passes through the UV chamber.
In simple terms: incoming water → filtration stages → UV treatment → treated water distributed through the home. The combination is what separates the WU-UV150 from a basic filtration-only whole-house system.
Key Features of the Puretec WU-UV150
60 L/min Rated Flow
Designed for whole-house applications with a published maximum flow rate of 60 litres per minute.
Integrated UV Treatment
Combines filtration with Puretec ultraviolet treatment rather than relying on filtration alone.
Reversible Mounting Frame
The mounting arrangement can be configured for left-to-right or right-to-left water entry to improve installation flexibility.
1-Inch BSP Connections
Uses 1-inch BSP (25 mm) connections for integration into a suitable household water supply.
UV Lamp Monitoring
Includes a lamp countdown timer together with audible and visible failure indication.
All-in-One Layout
Filtration and ultraviolet treatment are combined on a single frame for a more integrated installation.
Puretec WU-UV150 Specifications
| Brand | Puretec |
| Model | WU-UV150-LF |
| Product Type | Whole-house filtration and ultraviolet treatment system |
| Water Supply | Mains and rainwater |
| Flow Rate | 60 L/min |
| Connection | 1" BSP (25 mm) |
| Micron Rating | 1 micron |
| Power Supply | 220–240 VAC / 50 Hz |
| Maximum Pressure | 520 kPa |
| Maximum Temperature | 52°C; protect from freezing |
| Stage 1 Replacement Cartridge | PP05LD1 |
| Stage 2 Replacement Cartridge | ML10LD1-DP |
| UV Lamp | RL6 |
| Quartz Sleeve | RQS6 |
| Installation Location | Indoor installation |
| Manufacturer Warranty | 1 year parts and labour |
Pressure requirement: Puretec specifies that where line pressure exceeds 500 kPa, an approved pressure-limiting device must be installed in accordance with the applicable plumbing requirements.
INSTALLATION REQUIREMENTS
What Is Required to Install the Puretec WU-UV150?
Suitable indoor location with enough space for the complete frame and ongoing servicing.
Accessible incoming water supply suitable for integrating the 1-inch system connections.
Suitable water pressure, including pressure control where required.
220–240V / 50Hz power available for operation of the UV equipment.
Service clearance so cartridges, the UV lamp and quartz sleeve can be maintained.
Appropriate isolation so the filtration equipment can be serviced safely.
Correct flow direction, with the reversible frame configured to suit the property's pipe entry.
Suitable plumbing arrangement for the water source, intended application and household demand.
What's Included With Puretec WU-UV150 Installation?
Standard Installation
Supply of the applicable WU-UV150 system and installation to a suitable existing water supply where the selected installation package and site conditions meet the standard scope.
Connection & Commissioning
The system is connected, checked and commissioned so the filtration and UV equipment can operate as intended, with the installation reviewed for practical future servicing.
Possible Additional Work
Extra pipework, pressure control, valves, relocation, mounting changes, electrical work or other site-specific alterations may fall outside a standard installation and require additional pricing.
How Much Does Puretec WU-UV150 Installation Cost?
Current supplied-and-installed pricing is shown in the product and installation selector above. This keeps the displayed price aligned with the installation package and current product pricing rather than hard-coding a figure into the long-form page content.
The final WU-UV150 installation cost can change where the property requires additional pipework, valves, pressure control, electrical work, relocation, mounting alterations or other work outside the selected standard installation scope.
For a straightforward installation, select the appropriate package above to see the current price and booking options. Where the existing plumbing or installation position is unusual, JR can assess the job before confirming the final scope.
BRISBANE INSTALLATION
Puretec WU-UV150 Installation Brisbane
JR Gas & Water supplies and installs the Puretec WU-UV150 in Brisbane for suitable mains and rainwater properties requiring whole-house filtration with UV treatment. Installation planning focuses on the incoming water line, pressure, available indoor mounting area, access to power and enough clearance to service the filtration and UV components later.
For Brisbane rainwater properties, JR can consider the WU-UV150 as part of the wider tank-water arrangement rather than treating the filter as an isolated component. Pump performance, the existing pipe route and how the rainwater is used through the home can all affect the final installation.
Brisbane installations are available across eligible service areas, with surrounding Logan, Ipswich, Redlands and Moreton Bay locations also serviced subject to current booking availability and job scope.
GOLD COAST INSTALLATION
Puretec WU-UV150 Installation Gold Coast
For Gold Coast homes, the WU-UV150 can provide a practical route to combining whole-property filtration and UV treatment in one installation. JR Gas & Water can supply and install the system in eligible Gold Coast service areas where the site's water supply, pressure, flow requirement and mounting position suit the unit.
A Gold Coast installation may be a new filtration setup or a replacement for existing filtration equipment. When replacing another system, the existing connections, isolation arrangement, power position and service space should be checked rather than assuming a different filter will be a direct dimensional replacement.
Where a property has rainwater storage, the condition and arrangement of the wider tank-water system should also be considered so the filtration and UV equipment forms part of a sensible complete treatment setup.
Can the Puretec WU-UV150 Replace My Existing Filter?
Replacing Another WU-UV150
A like-for-like replacement may be relatively straightforward where the existing plumbing, mounting, pressure and electrical arrangement remain suitable, but the installation should still be checked before replacement.
Replacing a Basic Whole-House Filter
Moving from filtration-only equipment to the WU-UV150 adds a UV treatment stage, which means the new installation also needs suitable power, mounting and access for UV maintenance.
Replacing Another Brand
A different brand or system can potentially be replaced, but connection positions, flow requirements, frame dimensions and servicing access may require plumbing changes rather than a simple swap.
How Often Does the Puretec WU-UV150 Need Servicing?
The WU-UV150 contains serviceable filtration and UV components, so it should not be treated as a fit-and-forget appliance. Ongoing servicing includes monitoring and replacing the appropriate cartridges and maintaining the UV equipment using compatible parts.
Filter Cartridges
The system uses Puretec replacement cartridges including the PP05LD1 first-stage cartridge and ML10LD1-DP second-stage cartridge. Replacement timing should follow the applicable Puretec servicing guidance and actual water conditions.
UV Lamp
The system uses the Puretec RL6 UV lamp and includes a lamp countdown timer plus audible and visible failure alarm to assist with monitoring the UV stage.
Quartz Sleeve
The UV assembly uses the RQS6 quartz sleeve. The UV components need to remain serviceable because their condition is part of maintaining effective UV operation.
How Does the WU-UV150 Compare With Other Filtration Options?
| Option | Main Treatment | Whole House | UV Treatment | Best Considered When |
|---|---|---|---|---|
| Puretec WU-UV150 | Multi-stage filtration + UV | Yes | Yes | You want whole-house filtration and UV together with up to 60 L/min rated flow. |
| Standard Whole-House Filter | Depends on cartridges selected | Yes | No | Your treatment goal does not require a UV stage. |
| Under-Sink Filter | Dedicated drinking-water filtration | No | Usually no | Your main priority is drinking and cooking water at one outlet rather than treating the entire home. |
| Higher-Flow UV System | Filtration + UV | Yes | Yes | Your required household treatment flow exceeds the WU-UV150's 60 L/min rating. |
The right option depends on the water source, treatment objective, required flow and installation conditions. A system with more treatment stages is not automatically the right choice if those stages do not match the property's actual water requirements.
COMMON QUESTIONS
Puretec WU-UV150 Installation FAQs
How much does Puretec WU-UV150 installation cost?
Current supplied-and-installed pricing is shown in the product and installation selector above. Additional cost can apply where the property needs extra pipework, valves, pressure control, electrical work, relocation or other work outside the selected standard installation scope.
Can JR Gas & Water install the Puretec WU-UV150 in Brisbane?
Yes. JR Gas & Water supplies and installs the WU-UV150 across eligible Brisbane service areas, subject to the property's water supply, pressure, installation location, power and other site requirements.
Can JR install the Puretec WU-UV150 on the Gold Coast?
Yes. Installation is available across eligible Gold Coast areas where the site and proposed installation arrangement are suitable for the system.
Is the Puretec WU-UV150 suitable for rainwater?
Yes. Puretec specifies the WU-UV150 for both mains and rainwater supplies. For rainwater installations, the wider tank, pump, water condition and intended use should also be considered.
Can the WU-UV150 be used on mains water?
Yes. Puretec also specifies the WU-UV150 for mains water. Whether UV treatment is appropriate for a particular mains-water property depends on what the homeowner wants the treatment system to achieve.
What is the flow rate of the Puretec WU-UV150?
The manufacturer's published flow rate is 60 litres per minute. Properties requiring greater treatment flow should consider whether a higher-flow system is more appropriate.
Does the Puretec WU-UV150 need electricity?
Yes. The UV equipment requires a 220–240 VAC / 50Hz power supply, so suitable power availability needs to be considered when choosing the installation location.
Can the WU-UV150 be installed outdoors?
Puretec specifies the WU-UV150 for indoor installation. The proposed location should therefore be assessed accordingly rather than assuming the standard unit can simply be mounted in an exposed outdoor position.
What pressure can the WU-UV150 handle?
Puretec publishes a maximum pressure of 520 kPa. The manufacturer also specifies that where line pressure exceeds 500 kPa, an approved pressure-limiting device must be installed to meet the applicable plumbing requirements.
What microorganisms does the UV system treat?
Puretec states that its UV technology kills up to 99.99% of bacteria and specifically identifies E. coli, Giardia and Cryptosporidium cysts in the WU-UV150 product information.
Can the Puretec WU-UV150 replace another whole-house filter?
Potentially. JR should first check the existing pipework, connections, pressure, available mounting area, power and service access because changing from a filtration-only system to filtration plus UV may require installation changes.
What replacement parts does the WU-UV150 use?
Puretec lists the PP05LD1 first-stage cartridge, ML10LD1-DP second-stage cartridge, RL6 UV lamp and RQS6 quartz sleeve for the WU-UV150-LF.
Puretec WU-UV150 Warranty and Maintenance
Manufacturer Warranty
Puretec publishes a 1-year parts and labour warranty for the WU-UV150-LF, subject to the manufacturer's applicable warranty terms and conditions.
JR Warranty Eligibility
Any JR Gas & Water installation or Lifetime Warranty eligibility should be read according to the applicable JR package and terms shown with the live product offer. It is separate from Puretec's manufacturer warranty.
Ongoing Maintenance
Plan for cartridge servicing plus maintenance of the UV lamp and quartz sleeve. The installation should leave enough clearance for these components to be accessed without unnecessary plumbing alterations.
Why Choose JR Gas & Water for Puretec WU-UV150 Installation?
JR Gas & Water is a licensed South East Queensland plumbing and water filtration business providing professional filtration installation across Brisbane, the Gold Coast and surrounding service areas. Our approach considers the complete installation rather than treating the filtration system as a box-only purchase.
For the WU-UV150, that means checking practical factors such as the water source, flow requirement, pressure, pipe arrangement, mounting position, power and future servicing access before the installation is treated as complete.
COMPARE YOUR OPTIONS
Compare Water Filtration Systems & Installation Options
Not sure whether the WU-UV150 is the right filtration direction? These destinations are all available directly through the current JR Gas & Water main menu.
READY TO INSTALL
Install the Puretec WU-UV150 With JR Gas & Water
The Puretec WU-UV150 is designed for homeowners wanting whole-house filtration combined with ultraviolet treatment in a 60 L/min system suitable for mains or rainwater. The main installation considerations are the water source, required flow, pressure, indoor mounting position, power and ongoing service access.
JR Gas & Water supplies and installs the WU-UV150 across eligible Brisbane, Gold Coast and surrounding South East Queensland areas. Use the product and installation options above to check the current supplied-and-installed price and choose the installation pathway that suits your property.
Not only are we productreview.com.au 2023 national winner of the Best Plumbers category we were also voted national Best Home Care store which shows that our customers don't just love our great product prices but our product knowledge, customer service, attention to detail and second to none installation quality.
Being competitively priced is very important to us, we are not going to be the cheapest but like thousands of our customers 5-star reviews can attest to, for that little bit more you get a lot more, with great service, a superior installation, aftersales support, and what you generally miss out on with the cheapest install, manufacturer backed warranty. We guarantee our work won't leave you high and dry if you are the unlucky few that have a system die under warranty.
