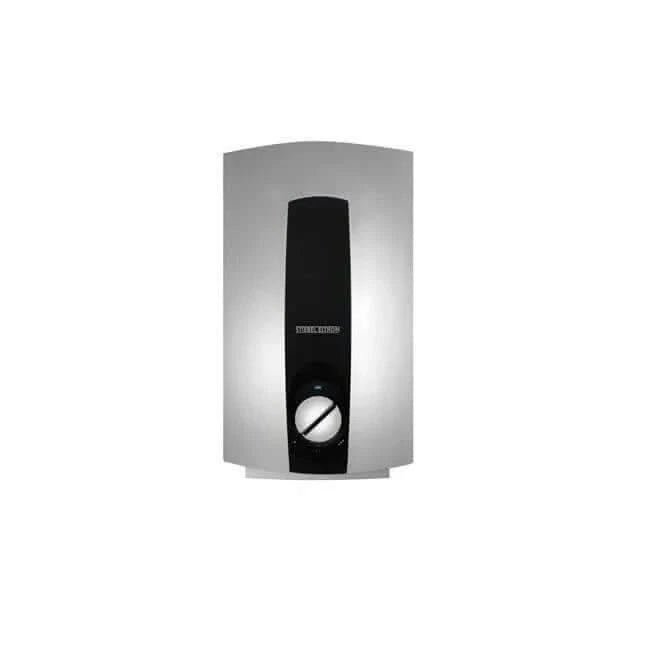

Stiebel Eltron DHCE8/60 Instant Hot Water $1149 Installed - Water Heaters
Award Winning
2023–2025 ProductReview.com.au Winners
Product Protection
Live Availability
Same Day Installation Available 365 Days
Trusted Locally
1000+ 5-Star Google Installation Reviews

Stiebel Eltron DHCE8/60 Instant Hot Water | Supply+Install | LIFETIME WARRANTY

Hot water, hassle-free. This Stiebel Eltron is built for families who value reliability, efficiency, and peace of mind. With expert installation and unbeatable service, you’re in the best hands!
Quick Specs & Benefits View product specifications and key details
  • Volume: 8L
  • Width: 200 mm
  • Height: 360 mm
  • Maximum Warranty: 5 Years
  • LED/LCD Status Indicator: Yes
  • Made In: Germany
Recommended

Gold Package

3 of 6
From ...
or
Already Have A Compliant Setup?
Base installation may suit an exact like-for-like instant-electric replacement where the existing installation is already compliant and no alterations are required.
From...

Select Your Preferred Install

Choose an exact installation date, or stay flexible and save.

🏷️ Brand – Stiebel Eltron
🔢 Model Number –
📦 Volume – 8L
📏 Width – 200mm
📐 Height – 360mm
🌍 Manufactured In – Germany
🛠️ Cylinder / Heat Exchange Material –
🛡️ Cylinder / Heat-Exchange Warranty – 5 Years
🔇 Noise Level – dBa
⚖️ Dry Weight – kg
⚡ Energy Source –
📡 WiFi Controller Built-in or Compatible –
⏲️ Built-In Timer –
💡 LED/LCD Status Indicator – Yes
📊 Coefficient of Performance (COP) –

STIEBEL ELTRON INSTANT ELECTRIC INSTALLATION

Stiebel Eltron DHCE 8/60 Installation Brisbane & Gold Coast

JR Gas & Water supplies and installs the Stiebel Eltron DHCE 8/60 across eligible Brisbane and Gold Coast service areas. It is a compact single-phase electric instantaneous water heater designed specifically for low-flow hot water applications where a conventional storage tank would be unnecessary or take up valuable space.

The DHCE 8/60 is rated at 9.5kW on a 240V single-phase supply and draws approximately 40A. Unlike a standard plug-in appliance, it requires a dedicated hard-wired electrical circuit. The unit heats water only while water is flowing and allows three selectable delivery settings of 40°C, 50°C and 60°C.

Stiebel Eltron positions this model for low-flow applications rather than high-demand whole-home use. It can suit selected basins, sinks, kitchenettes, utility areas and other point-of-use or light multi-outlet installations where the electrical supply, water pressure and required flow are appropriate.

Stiebel Eltron DHCE 8/60 at a glance: The DHCE 8/60 is a 9.5kW, 40A single-phase instantaneous electric water heater with a 1.5L/min minimum activation flow, selectable 40°C, 50°C and 60°C output settings, compact 360 × 200 × 110mm dimensions and a dedicated hard-wired electrical connection. It is intended for low-flow applications rather than normal whole-home family demand.

Stiebel Eltron DHCE 8/60 Supply & Installation at a Glance

Product Type

Single-phase electronically controlled instantaneous electric water heater.

Electrical Load

9.5kW at 240V with approximately 40A rated current.

Best Suited To

Low-flow sinks, basins, kitchenettes, utility areas and selected light-demand multi-outlet applications.

Installation Area

Professional supply and installation across eligible Brisbane and Gold Coast service areas.

Who Is the Stiebel Eltron DHCE 8/60 Best For?

Low-Flow Point-of-Use Applications

The DHCE 8/60 is specifically designed for low-flow demand. It can work well where hot water is needed close to a basin, sink, kitchenette or utility outlet without installing a larger storage system.

Properties With Limited Space

At only 360mm high, 200mm wide and 110mm deep, the unit can fit into compact service areas, cupboards and other spaces where a conventional storage cylinder would not be practical.

Like-for-Like Compact Replacements

The simplest installations are generally replacements of an existing comparable single-phase instantaneous heater where the dedicated circuit, pipework and mounting position remain suitable.

PRODUCT SUITABILITY

Is the Stiebel Eltron DHCE 8/60 Right for My Property?

A Good Choice If...

You need hot water for a low-flow application, have a suitable 40A single-phase circuit, want a compact wall-mounted system and do not require conventional whole-home shower-level hot water performance.

Consider Another Option If...

You need to serve a normal family bathroom, multiple showers or heavy simultaneous demand. A larger three-phase instantaneous heater, storage system, heat pump or gas continuous-flow system may be more appropriate.

JR Should Check First If...

You are replacing storage hot water, want the unit to serve several outlets, are unsure of circuit capacity or expect higher flow than a low-flow instantaneous appliance can realistically provide.

How Much Hot Water Can the DHCE 8/60 Deliver?

The DHCE 8/60 does not have one fixed litres-per-minute hot water rating. Its delivered temperature depends on incoming cold-water temperature and water flow through the appliance.

At 240V, Stiebel Eltron publishes temperature rises of approximately 33°C at 4L/min, 27°C at 5L/min, 22°C at 6L/min, 19°C at 7L/min and 15°C at 9L/min.

Stiebel Eltron uses approximately 18°C as the seasonal-average cold-water reference for Brisbane. At a 6L/min flow, a 22°C temperature rise would therefore correspond to roughly 40°C outlet water under that reference condition.

This illustrates why the DHCE 8/60 is described as a low-flow system. Increasing flow reduces the amount of temperature rise the 9.5kW heater can provide.

How Does the Stiebel Eltron DHCE 8/60 Work?

The DHCE 8/60 heats water only while water is flowing through the appliance. When flow reaches the 1.5L/min switch-on threshold, the electronically controlled heating system activates and transfers heat into the water as it passes through the unit.

Unlike a storage heater, there is no large tank holding hot water between uses. The appliance therefore avoids standing storage heat losses, although its available hot water output is limited by the 9.5kW electrical input and the temperature rise required.

The operating process is simple: a hot outlet opens → sufficient flow activates the heater → the tubular heating element heats the passing water → hot water leaves the appliance at the selected temperature where operating conditions allow.

Key Features of the Stiebel Eltron DHCE 8/60

9.5kW Single-Phase Heating

The DHCE 8/60 operates at 9.5kW on a 240V single-phase supply and draws approximately 40A.

1.5L/min Switch-On Flow

The low minimum activation flow makes the DHCE suitable for low-flow tapware and smaller point-of-use applications.

Three Temperature Settings

The DHCE 8/60 provides selectable 40°C, 50°C and 60°C output settings.

Compact Installation

The appliance measures just 360 × 200 × 110mm and has only 0.45L of internal water capacity.

No Safe Tray or Flue

Stiebel Eltron states that the unit does not require a flue, ventilation or conventional safe tray, subject to local installation requirements.

Close-to-Outlet Installation

Its compact dimensions allow installation close to frequently used outlets, helping reduce the amount of water lost while waiting for hot water to travel through long pipe runs.

Stiebel Eltron DHCE 8/60 Specifications

Specification Details
Brand Stiebel Eltron
Model DHCE 8/60
Article Number 233948
Product Type Single-phase electric instantaneous water heater
Rated Output at 240V 9.5kW
Rated Current at 240V 40A
Electrical Supply 1/N/PE/AC 220–240V single phase
Electrical Connection Dedicated hard-wired circuit
Minimum Switch-On Flow 1.5L/min
Maximum Permissible Pressure 1000kPa
Selectable Temperatures 40°C / 50°C / 60°C
Water Connection G 1/2 / 15mm class
Dimensions 360 × 200 × 110mm
Weight Filled 2.45kg
Nominal Internal Capacity 0.45L
Heating System Tubular heating element
IP Rating IP25
For One or Several Draw-Off Points Yes
Electronic Flow Rate Control No
Accepts Pre-Heated Water No
Programmable Temperature No
Colour White
Approvals WaterMark approved / AS3498
Domestic Manufacturer Warranty 5 years full parts and labour
Commercial Manufacturer Warranty 1 year full parts and labour
Important: the DHCE 8/60 requires a 40A hard-wired single-phase circuit. A normal 10A power point is not suitable. Electrical capacity, cable sizing, switchboard protection and isolation need to be confirmed for the installation.
INSTALLATION REQUIREMENTS

What Is Required to Install the Stiebel Eltron DHCE 8/60?

The DHCE 8/60 is physically small, but its electrical load is far greater than a normal plug-in appliance. Correct circuit capacity is therefore one of the most important installation checks.

Suitable 220–240V single-phase supply
Dedicated hard-wired electrical circuit
Approximately 40A circuit capacity at 240V
Correct cable sizing and circuit protection
Suitable switchboard capacity
Electrical installation compliant with AS/NZS 3000
Suitable hot and cold water pipework
Water pressure within manufacturer limits
Suitable wall-mounting position
Practical future service access
Correct delivery-temperature controls where required
Licensed plumbing and electrical installation

A standard power point cannot be used. Stiebel Eltron specifically states that the DHCE requires a dedicated hard-wired circuit because its electrical demand exceeds normal 10A plug-in capacity.

What's Included With Stiebel Eltron DHCE 8/60 Installation?

Standard Installation

The applicable JR installation package covers the standard plumbing and installation work shown in the live product selector. A genuine like-for-like replacement can be relatively straightforward where the existing circuit, plumbing and mounting position already suit the DHCE.

Testing & Commissioning

The heater is connected, filled and tested for correct operation. Water flow, selected temperature, electrical operation and general function are checked before handover.

Possible Additional Work

New cabling, switchboard changes, circuit protection, pressure-control items, plumbing alterations or relocation can increase the installation scope and may require additional quotation.

How Much Does Stiebel Eltron DHCE 8/60 Installation Cost?

Current supplied-and-installed pricing is shown in JR's live product and installation selector above. This allows the price to reflect the actual installation package rather than hard-coding a figure into long-form product content.

A true like-for-like replacement where the property already has a suitable 40A hard-wired circuit can be considerably simpler than a new installation requiring electrical cabling, switchboard work or changes to the plumbing layout.

Additional pressure control, pipe alterations, difficult access or relocation can also affect the final installed cost.

BRISBANE INSTALLATION

Stiebel Eltron DHCE 8/60 Installation Brisbane

JR Gas & Water supplies and installs the Stiebel Eltron DHCE 8/60 across eligible Brisbane service areas. It can be particularly useful in compact applications where one or several low-flow outlets need local hot water and a traditional storage cylinder would be excessive for the job.

Stiebel Eltron uses approximately 18°C as the seasonal-average incoming cold-water temperature for Brisbane in its performance guidance. This matters because the DHCE 8/60's available outlet temperature changes with water flow and incoming temperature.

For Brisbane like-for-like replacements, the existing hard-wired circuit should still be checked before treating the installation as automatic. JR also services eligible surrounding areas including Logan, Ipswich, Moreton Bay and Redlands.

GOLD COAST INSTALLATION

Stiebel Eltron DHCE 8/60 Installation Gold Coast

Gold Coast DHCE 8/60 installations need the same match between low-flow hot water demand and available electrical capacity. The compact appliance can suit apartments, offices, kitchenettes, utility spaces and selected remote sinks where installing a larger central hot water system would be impractical.

Where an existing compact instantaneous heater is being replaced, JR can assess whether the current mounting position, water services and electrical circuit remain suitable.

For new installations, outlet flow should be considered before ordering. Installing a 9.5kW unit for an application that actually needs normal whole-home shower flow can produce disappointing performance even when the electrical installation itself is correct.

Can the Stiebel Eltron DHCE 8/60 Replace My Existing Hot Water System?

Replacing a Compact Instantaneous Unit

This is generally the closest replacement pathway. Circuit capacity, cable sizing, water connections, mounting position and required outlet temperature still need to be checked.

Replacing Small Electric Storage

A DHCE can eliminate the storage tank in selected low-flow applications, but it cannot automatically reproduce the same hot water temperature and flow available from a storage water heater.

Replacing Whole-Home Storage

The DHCE 8/60 is generally not an equivalent replacement for a normal household storage system serving showers and several high-demand outlets. A higher-capacity system should usually be considered.

Adding Local Hot Water

The compact format can work well where a remote sink or utility outlet is a long distance from the main hot water system and a local low-flow supply is more practical than extending long hot-water pipework.

DHCE 8/60 vs DHCE 8/50 vs DHCE 6/50

Feature DHCE 6/50 DHCE 8/50 DHCE 8/60
Rated Output 7.1kW 9.5kW 9.5kW
Rated Current Approx. 30A 40A 40A
Supply Single phase Single phase Single phase
Minimum Switch-On Flow 1.5L/min 1.5L/min 1.5L/min
Maximum Selectable Temperature 50°C 50°C 60°C
Dimensions 360 × 200 × 110mm 360 × 200 × 110mm 360 × 200 × 110mm
Typical Reason to Consider Lower electrical demand Higher output with 50°C limit Higher output with selectable 60°C maximum

The DHCE 8/60 and DHCE 8/50 use the same 9.5kW electrical output, but their temperature-control positioning differs. The DHCE 8/50 is the dedicated 50°C model, while the DHCE 8/60 allows selection up to 60°C.

DHCE 8/60 vs DEL 18 Plus

The DHCE 8/60 and DEL 18 Plus are both Stiebel Eltron instantaneous electric heaters, but they serve very different applications.

Feature DHCE 8/60 DEL 18 Plus
Electrical Supply Single phase Three phase
Rated Output 9.5kW 19.4kW
Rated Current 40A single phase 27A per phase
Application Low-flow use Higher-output multi-outlet / one-bathroom class
Temperature Range 40 / 50 / 60°C selectable 20–50°C adjustable
Minimum Switch-On Flow 1.5L/min 2.5L/min
Dimensions 360 × 200 × 110mm 466 × 225 × 116mm

The DHCE 8/60 should not be chosen simply because the property only has single-phase power if the required hot water demand exceeds what a 9.5kW low-flow system can realistically provide.

COMMON QUESTIONS

Stiebel Eltron DHCE 8/60 Installation FAQs

How much does Stiebel Eltron DHCE 8/60 installation cost?

Current supplied-and-installed pricing is shown in JR's live product selector. Final cost depends on whether the existing circuit and plumbing are suitable or whether electrical, switchboard or pipework changes are required.

Can JR install the DHCE 8/60 in Brisbane?

Yes. JR supplies and installs the DHCE 8/60 across eligible Brisbane service areas where the electrical supply and intended low-flow application suit the unit.

Can JR install the DHCE 8/60 on the Gold Coast?

Yes. Installation is available across eligible Gold Coast areas subject to electrical, plumbing and application suitability.

Does the DHCE 8/60 run from a normal power point?

No. Stiebel Eltron specifically states that the DHCE 8/60 requires a dedicated hard-wired circuit. It draws approximately 40A at 240V.

Does the DHCE 8/60 require three-phase power?

No. The DHCE 8/60 is a single-phase appliance. Its electrical demand is still substantial at approximately 40A.

Can the DHCE 8/60 run a normal household shower?

Stiebel Eltron describes this model as a low-flow water heater. It should not automatically be treated as a normal whole-home shower system. Performance depends on incoming water temperature, flow and required outlet temperature.

What temperatures can the DHCE 8/60 provide?

The unit has three selectable settings: 40°C, 50°C and 60°C. Actual delivered temperature still depends on available heater output and water flow.

Can the DHCE 8/60 serve more than one outlet?

Stiebel Eltron lists it for one or several draw-off points, but it remains a low-flow heater. Total simultaneous demand must stay within the available heating capacity.

Can the DHCE 8/60 be installed in a cupboard?

Yes, subject to the manufacturer's installation requirements and suitable service access. Stiebel Eltron notes that no flue, ventilation or conventional safe tray is required.

Can the DHCE 8/60 use pre-heated solar water?

No. Stiebel Eltron's current technical data lists the DHCE 8/60 as not accepting pre-heated water.

What warranty does the DHCE 8/60 have?

Stiebel Eltron currently provides 5 years full parts and labour for domestic use and 1 year full parts and labour for commercial use, subject to its warranty conditions.

Can the DHCE 8/60 replace an electric storage water heater?

Only in selected low-flow applications. Stiebel Eltron specifically warns that the DHCE 8/60 will not provide the same hot water temperature and flow as a normal electric storage heater, so replacement suitability should be assessed first.

Stiebel Eltron DHCE 8/60 Warranty and Maintenance

Domestic Manufacturer Warranty

Stiebel Eltron currently provides 5 years full parts and labour for the DHCE 8/60 when used for domestic purposes, subject to its current warranty conditions.

Commercial Manufacturer Warranty

For commercial use, Stiebel Eltron currently lists 1 year full parts and labour for the DHCE range.

JR Lifetime Warranty Eligibility

The current JR product listing identifies the DHCE 8/60 as Lifetime Warranty eligible. JR warranty coverage is separate from Stiebel Eltron's manufacturer warranty and remains subject to JR's applicable terms.

Why Choose JR Gas & Water for DHCE 8/60 Installation?

Low-flow instantaneous electric hot water needs to be selected around the actual outlet rather than simply because the unit is compact. Electrical capacity, required flow, incoming water temperature and required delivery temperature all affect whether the DHCE 8/60 is suitable.

JR Gas & Water supplies and installs instant electric hot water systems across Brisbane, the Gold Coast and eligible surrounding South East Queensland areas. The current JR DHCE 8/60 product page also identifies the unit as Lifetime Warranty eligible and provides live installation-package selection.

With the DHCE 8/60, the key is not overselling a small single-phase appliance as a whole-home system. Correctly matched to a basin, sink, kitchenette or another low-flow requirement, it can be a very practical compact hot water solution.

COMPARE YOUR OPTIONS

Compare Instant Electric Hot Water Systems

Compare the DHCE 8/60 with other single-phase compact heaters and higher-output three-phase systems before choosing the final installation. Flow demand, electrical capacity and required water temperature matter more than physical size alone.

Use JR's current main navigation to compare Hot Water Systems and Instant Electric Hot Water options.

READY TO INSTALL

Install the Stiebel Eltron DHCE 8/60 With JR Gas & Water

The Stiebel Eltron DHCE 8/60 is a compact 9.5kW single-phase instantaneous water heater designed specifically for low-flow hot water applications. Its main strengths are compact dimensions, 1.5L/min activation, selectable temperatures up to 60°C and close-to-point-of-use installation.

The critical checks before installation are the required outlet flow, incoming water temperature, 40A single-phase electrical capacity, circuit design and plumbing location. Where the property already has a compatible hard-wired setup, replacement can be straightforward. New circuits, switchboard alterations or system-type conversions should be assessed before installation.

Gas continuous flow hot water systems provide hot water on demand, heating water only as it passes through the appliance. With no storage tank, these systems are highly efficient and can provide an endless supply of hot water when correctly sized and maintained.

Like any gas appliance, regular maintenance is recommended to ensure safe operation, maintain peak efficiency and support your manufacturer's warranty.

Homeowner Maintenance – Every 6 Months

Every six months we recommend carrying out a simple visual inspection of your continuous flow hot water system.

Homeowners should:

  • Check for water leaks around the unit and pipework.
  • Ensure the gas supply is turned on.
  • Keep the area around the appliance free from leaves, dirt and debris.
  • Ensure the air intake and flue terminal remain unobstructed.
  • Inspect visible pipework for corrosion or damage.
  • Listen for unusual noises during operation.
  • Confirm the unit is producing hot water at the correct temperature.

Why is this important?

Gas continuous flow systems rely on unrestricted airflow and proper gas combustion to operate safely and efficiently.

Blocked vents, debris, water leaks or damaged pipework can reduce performance, increase gas consumption and potentially lead to system faults.

Regular visual inspections help identify problems before they become expensive repairs.

JR 6-Month Gas Continuous Flow Health Check

Recommended Service – $99

Our professional inspection helps ensure your gas continuous flow hot water system continues operating safely and efficiently.

Our technician will:

  • Inspect the complete hot water unit.
  • Check for water leaks and corrosion.
  • Inspect gas pipework and fittings.
  • Perform a gas leak test.
  • Check burner operation.
  • Inspect ignition performance.
  • Check heat exchanger condition.
  • Inspect the flue and air intake.
  • Test water temperature and flow.
  • Inspect electrical connections and controller operation (where fitted).
  • Check isolation valves and filters.
  • Identify components showing signs of wear.

Service Price: $99

Routine inspections help maximise efficiency, reduce operating costs and minimise the likelihood of unexpected breakdowns.

If Your Hot Water System Isn't Working

Before arranging a service, check the following:

  • Ensure the gas supply is turned on.
  • Check whether other gas appliances in your home are operating.
  • Confirm the electrical power is switched on, as most continuous flow systems require electricity for ignition and controls.
  • Check the circuit breaker or isolation switch.
  • Ensure there is adequate water flow, as the unit will not ignite below its minimum operating flow rate.
  • Check the controller for any error codes (where fitted).
  • Ensure the air intake and flue terminal are free from obstructions.
  • Look for any visible water leaks.

If your system still isn't producing hot water, contact JR Gas & Water for professional diagnosis and repair.

General Signs Your System May Need Attention

Arrange a service if you notice:

  • No hot water.
  • Fluctuating water temperatures.
  • Water not reaching the selected temperature.
  • Error codes displayed on the controller.
  • Reduced water flow.
  • Water leaking from the unit.
  • Unusual burner or fan noises.
  • Visible corrosion.
  • Higher than normal gas consumption.
  • Ignition failures or repeated shutdowns.

Early servicing can often prevent costly repairs and keep your hot water system operating reliably.

Protect Your Warranty & Maximise System Life

Routine maintenance helps keep your gas continuous flow hot water system operating safely, efficiently and reliably.

Following the manufacturer's recommended maintenance schedule may also assist in maintaining warranty coverage.

Failure to maintain your system may result in:

  • Reduced heating efficiency.
  • Increased gas consumption.
  • Ignition or burner faults.
  • Heat exchanger damage.
  • Unexpected loss of hot water.
  • Shortened component lifespan.
  • Possible reduction or loss of manufacturer warranty, depending on the manufacturer's maintenance requirements.

Preventative maintenance is a cost-effective way to protect your investment, maintain efficient operation and maximise the life of your gas continuous flow hot water system.

Please note: Maintenance requirements vary between manufacturers and models. Always refer to your owner's manual for the maintenance schedule applicable to your gas continuous flow hot water system. JR Gas & Water services all major gas continuous flow hot water brands in accordance with manufacturer recommendations where applicable.

If you're in Queensland and considering a new electric hot water system, JR Gas & Water is the company to choose. Here's why:

Experience and Expertise: JR Gas & Water has over 10 years of experience in the gas and plumbing industry. Their team of licensed and insured professionals is highly skilled and knowledgeable about all aspects of electric hot water system installation, maintenance, and repair. They can provide expert advice on the best system for your needs and ensure a smooth installation process.

Quality Products: JR Gas & Water uses only high-quality products from trusted brands to ensure your electric hot water system is reliable and efficient. They also offer a range of options to suit different budgets and requirements.

Competitive Pricing: JR Gas & Water offers competitive pricing for their electric hot water systems, ensuring that you get a great value for your investment. They also provide a detailed quote upfront, so there are no surprises or hidden costs.

Customer Service: JR Gas & Water is committed to providing excellent customer service. They are always available to answer any questions or concerns you may have and are committed to ensuring your satisfaction.

Local Business: JR Gas & Water is a locally owned and operated business in Queensland. By choosing them for your electric hot water installation, you are supporting a local business and contributing to the local economy.

Warranty and Guarantee: JR Gas & Water provides a warranty and guarantee on all their products and services, giving you peace of mind knowing that your system is covered in case of any issues.

Energy Efficiency: Electric hot water systems can be energy efficient, and JR Gas & Water can help you choose the right system for your needs. They can provide advice on energy-saving features and options, such as timers and thermostats, to help you save on your energy bills.

Safety: JR Gas & Water is committed to safety and ensuring that all installations are done to the highest safety standards. They are also familiar with local safety regulations and requirements, ensuring that your electric hot water system is installed safely and in compliance with all relevant codes.

JR Gas & Water is a reliable and experienced choice for your electric hot water system installation in Queensland. With a commitment to quality products, competitive pricing, excellent customer service, and safety, they can help you make the switch to a more efficient and cost-effective solution for your hot water needs. Contact them today to learn more about their services and how they can help you.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.
