View all hot water service areas🏷️ Brand: Rheem
🔢 Model Number: 4A1080
📦 Volume: 80L
📏 Width: 495 mm
📐 Height: 885 mm
🌍 Manufactured In: Australia
🛠️ Cylinder / Heat Exchange Material: Stainless Steel
🛡️ Cylinder / Heat Exchange Warranty: 12 Years
🔇 Noise Level: NA dBa
⚖️ Dry Weight: 23 kg
⚡ Energy Source: Electric
📡 WiFi Controller: No
⏲️ Built-In Timer: No
💡 LED/LCD Status Indicator: No
📊 Coefficient of Performance (COP):

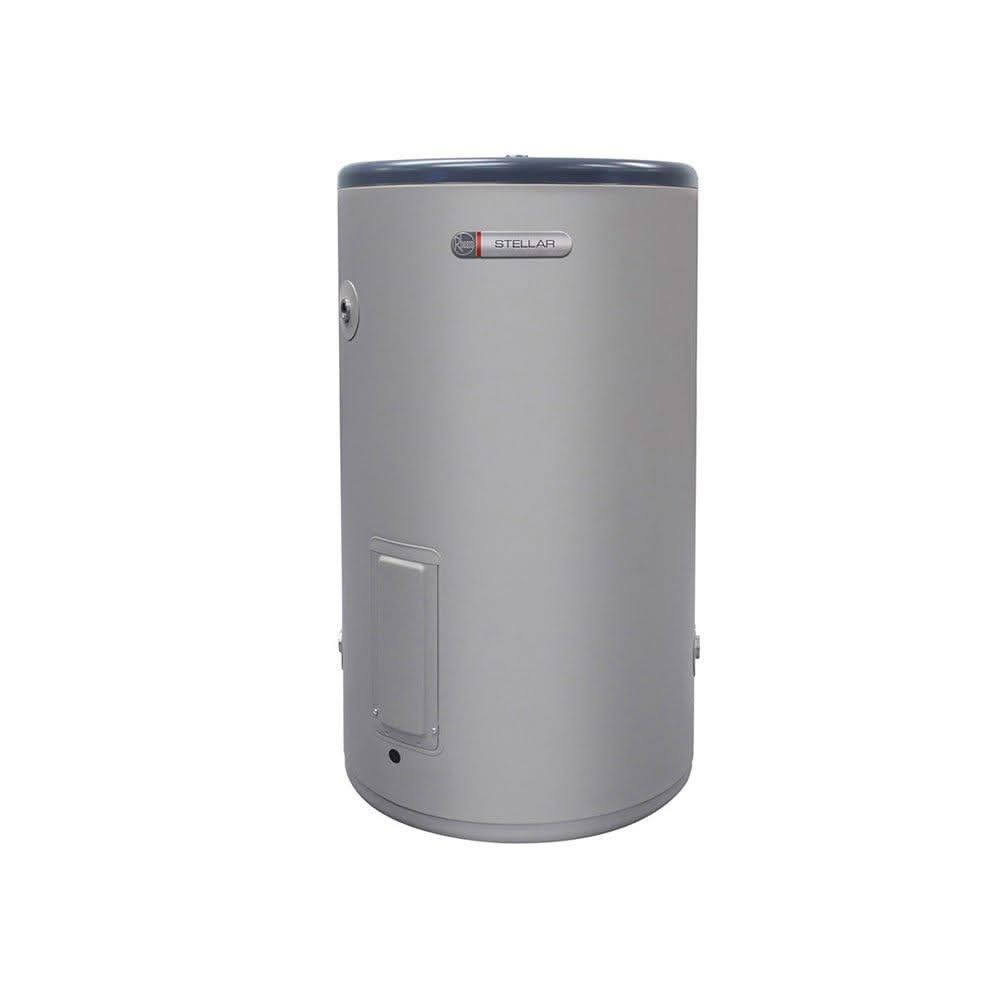

RHEEM STELLAR STAINLESS STEEL ELECTRIC HOT WATER
Rheem Stellar 80L Stainless Steel Electric Water Heater Installation in Brisbane & Gold Coast
Looking for Rheem Stellar 80L Stainless Steel Electric Water Heater installation in Brisbane or the Gold Coast? JR Gas & Water provides professional supply and installation for homeowners and property owners wanting a compact, premium electric storage hot water system.
The Rheem Stellar 80L Stainless Steel Electric Water Heater is an 80 litre mains pressure electric storage hot water system designed for smaller households and light-demand applications.
It features a stainless steel cylinder and water fittings, dual-handed cold water connections, a top hot water connection and an anode-free tank design.
The model is also described by Rheem as Australian made and suitable for applications such as one-bedroom apartments, kitchens, canteens and smaller households where hot water demand matches the system's capacity.
For customers comparing Rheem Stellar 80L installed pricing, Rheem Stellar 80L supply and install, stainless steel electric hot water replacement or Rheem electric hot water installation in Brisbane, the important question is whether the heater suits the property's water quality, electrical supply, plumbing arrangement, available space and actual hot water demand.
JR Gas & Water provides electric hot water installation across Brisbane, the Gold Coast, Logan, Ipswich, Moreton Bay and Redlands, subject to service availability.
Rheem Stellar 80L at a glance:
The Rheem Stellar 80L is a compact, Australian-made stainless steel electric storage hot water system with an 80 litre capacity. It features stainless steel cylinder construction, stainless steel water fittings, dual-handed cold water connections, a top hot water connection and no sacrificial anode. Rheem positions it for up to approximately three people under its stated usage assumptions. Stainless steel water quality suitability and the property's electrical and plumbing arrangements should be checked before installation.
Rheem Stellar 80L Stainless Steel Electric Water Heater Key Features
80L Electric Storage
Compact stored hot water capacity for suitable smaller households and light-demand properties.
Stainless Steel Cylinder
Premium stainless steel tank construction rather than conventional vitreous enamel lined steel.
No Sacrificial Anode
Anode-free cylinder design removes the need for routine sacrificial anode replacement.
Stainless Steel Water Fittings
Stainless steel fittings complement the cylinder construction.
Dual-Handed Cold Connections
Provides connection flexibility for suitable replacement installations.
Top Hot Water Connection
Hot water outlet positioned at the top of the unit.
Mains Pressure Operation
Designed to supply multiple outlets where the property's demand suits the tank capacity.
Australian Made
Described by Rheem as an Australian-made stainless steel electric storage water heater.
PRODUCT OVERVIEW
What Is the Rheem Stellar 80L Stainless Steel Electric Water Heater?
The Rheem Stellar 80L Stainless Steel Electric Water Heater is an electric storage hot water system designed to heat and store water ready for use.
Unlike an instantaneous water heater, which heats water as it flows through the appliance, the Rheem Stellar 80L stores heated water inside its cylinder.
When hot water is drawn from the system, replacement cold water enters the tank and is reheated by the electric heating element when required.
The Stellar 80L is a mains pressure storage system, allowing it to supply more than one hot water outlet where the available storage capacity and usage pattern are suitable.
Its main distinguishing feature is the stainless steel cylinder, which differs from conventional vitreous enamel lined electric storage tanks.
The system also features dual-handed cold water connections and a top hot water connection, providing useful installation flexibility.
For the right property, the Rheem Stellar 80L offers compact stored hot water with premium cylinder construction and a familiar electric storage operating format.
STAINLESS STEEL CONSTRUCTION
Why Choose a Stainless Steel Electric Hot Water System?
One of the main reasons buyers consider the Rheem Stellar 80L is its stainless steel cylinder construction.
Conventional electric storage water heaters commonly use a steel cylinder protected by a vitreous enamel lining and sacrificial anode.
The Rheem Stellar stainless steel design uses a different approach, with stainless steel cylinder construction and no sacrificial anode.
This can be attractive to property owners looking for a premium tank material and reduced maintenance associated with anode replacement.
However, stainless steel is not automatically suitable for every water supply.
Water chemistry, including relevant manufacturer water quality limits, must be considered before selecting a stainless steel storage system.
Rheem notes that stainless steel cylinders are not recommended in every area, so local water quality suitability should be confirmed before installation.
Rheem Stellar 80L Anode-Free Stainless Steel Tank
The Rheem Stellar 80L features a stainless steel cylinder that does not use a sacrificial anode.
In many vitreous enamel lined storage water heaters, a sacrificial anode is used as part of the cylinder's corrosion protection arrangement.
Because the Stellar 80L uses a stainless steel cylinder design without an anode, there is no sacrificial anode to inspect or replace as part of routine tank maintenance.
This may reduce some maintenance requirements compared with storage systems that use replaceable sacrificial anodes.
However, an anode-free design does not mean the heater is maintenance-free.
Valves, electrical components, plumbing connections and other system components still require appropriate inspection and maintenance in accordance with Rheem's instructions.
Correct water quality remains particularly important for stainless steel cylinder suitability.
IMPORTANT SUITABILITY CHECK

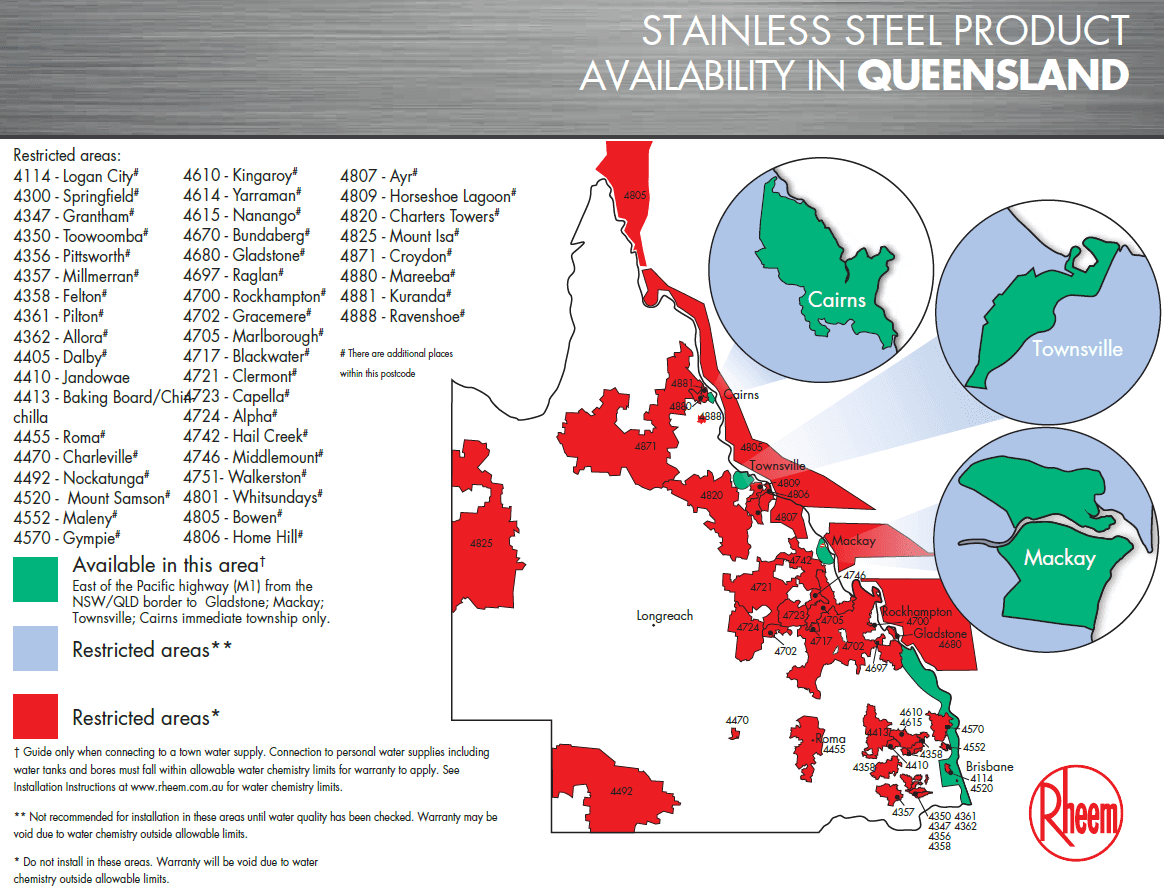

Is Stainless Steel Hot Water Suitable for Brisbane and Gold Coast Water?
Stainless steel storage hot water systems must be selected with the property's water quality in mind.
The Rheem Stellar 80L is not necessarily suitable for every water supply or every property.
Water chemistry can vary depending on the supply source, local conditions and whether a property uses mains water, rainwater, bore water or another supply arrangement.
Rheem's current water quality requirements should be checked before installing a stainless steel cylinder.
This is especially important where the property has a non-standard water supply or known water quality issues.
JR Gas & Water considers water quality suitability as part of determining whether a stainless steel hot water system is an appropriate choice.
If the property's water quality falls outside the manufacturer's permitted conditions, a different storage system may be more suitable.
Why Choose the Rheem Stellar 80L Stainless Steel Electric Water Heater?
Premium Tank Construction
Stainless steel cylinder and water fittings provide a different construction approach from conventional enamel lined storage tanks.
Compact Storage Capacity
80 litre capacity intended for smaller households and suitable light-demand applications.
No Anode Replacement
Anode-free cylinder design removes one routine maintenance requirement associated with some storage heaters.
Connection Flexibility
Dual-handed cold water connections can assist with suitable replacement layouts.
Australian-Made Product
Rheem identifies the Stellar stainless steel electric storage system as Australian made.
Recognised Manufacturer
Rheem is an established Australian hot water brand with manufacturer product support.
The Rheem Stellar 80L is worth considering where a compact electric storage system is required and the property is suitable for stainless steel cylinder construction.
However, the best choice depends on more than tank material. Capacity, water quality, electricity supply and installation conditions must all be considered.
HOUSEHOLD SUITABILITY
Is the Rheem Stellar 80L Right for Your Home?
The Rheem Stellar 80L is generally suited to smaller households and properties with lighter hot water demand.
Rheem positions the model for up to approximately three people under its stated usage assumptions.
However, actual suitability depends on how much hot water is used, how quickly it is consumed and when the heater can reheat.
Potentially Suitable Applications
One-bedroom apartments, smaller dwellings, kitchens, canteens and suitable light-demand properties.
May Require a Larger System
Properties with multiple bathrooms, frequent long showers, significant bath use or heavy simultaneous hot water demand.
The number of occupants is only a starting point for hot water sizing.
A smaller household with high hot water usage may require a larger storage heater than a household with more occupants but lighter demand.
JR Gas & Water assesses actual usage and the property's existing installation before recommending the Rheem Stellar 80L.
Rheem Stellar 80L for Apartments, Kitchens and Canteens
The Rheem Stellar 80L is intended for applications where a compact electric storage heater can provide sufficient hot water.
Potential applications include:
One-bedroom apartments
Smaller residential dwellings
Suitable kitchen applications
Canteens with modest demand
Compact electric storage replacements
Properties with compatible existing services
For commercial or non-residential applications, the system's suitability, operating conditions and applicable warranty requirements should be checked separately.
A canteen or kitchen with high peak demand may require greater storage capacity or a different hot water configuration.
Rheem Stellar 80L Mains Pressure Hot Water Operation
The Rheem Stellar 80L is described as a mains pressure electric storage hot water system.
This means the heater is designed to deliver hot water through a pressurised plumbing arrangement, subject to its operating limits and the property's water supply conditions.
It may supply multiple outlets where the overall hot water demand is compatible with the tank's capacity.
However, mains pressure operation does not mean the system can provide unlimited hot water or maintain the same delivery performance under every simultaneous-use condition.
Incoming water pressure, pipework, valves, fixtures and the available stored hot water all influence the result.
Pressure control arrangements must meet the manufacturer's specifications and applicable plumbing requirements.
INSTALLATION FLEXIBILITY
Rheem Stellar 80L Dual-Handed Cold Water Connections
The Rheem Stellar 80L features dual-handed cold water connections and a hot water connection at the top of the unit.
This layout may help simplify suitable electric storage replacements where the existing plumbing arrangement can be adapted to the new heater.
Dual-handed cold water connections provide flexibility in selecting the appropriate cold water connection position.
However, the design does not guarantee that every existing hot water system can be replaced without pipework alterations.
Connection sizes, heights, valve locations, access and available space still need to be checked.
JR Gas & Water assesses the existing plumbing layout before confirming the installation scope.
How Does the Rheem Stellar 80L Electric Water Heater Work?
1. Cold water enters the cylinder: Water enters the stainless steel storage tank through the cold water plumbing connection.
2. The electric element heats the water: Electrical energy is converted into heat within the storage heater.
3. The thermostat regulates heating: The heater controls water temperature according to its operating arrangement.
4. Hot water is stored: Heated water remains inside the stainless steel cylinder until required.
5. Hot water is delivered: Opening a hot water outlet draws heated water from the tank through the property's plumbing system.
6. The tank reheats: Replacement water is reheated when the thermostat calls for heating and electrical power is available.
The heater's practical recovery performance depends on its element configuration, electricity supply and the amount of hot water consumed.
ELECTRICAL REQUIREMENTS
Rheem Stellar 80L Electrical Supply and Heating Element
The Rheem manufacturer product listing identifies the relevant Stellar 80L variant as a single element 3.6kW electric water heater.
The selected model's electrical requirements must be checked before installation.
Electrical compatibility depends on the existing circuit, protection devices, connection arrangement and applicable electricity tariff.
If the property is replacing an older electric storage heater, the existing electrical circuit should not automatically be assumed suitable for the new model.
Any required electrical alterations must be completed by appropriately licensed personnel.
The exact tariff compatibility and electrical connection requirements should be confirmed against the current Rheem installation instructions.
Rheem Stellar 80L Continuous Tariff and Off-Peak Considerations
Electricity tariff arrangements influence when an electric storage hot water system can reheat water.
A continuous electricity supply generally allows reheating when required, while an off-peak arrangement may restrict heating to scheduled periods.
For a compact 80 litre system, available reheating time can be particularly important.
If hot water is depleted before the next permitted heating period, the property may experience insufficient hot water.
The correct tariff arrangement should be selected according to the exact Rheem model's requirements and the property's usage pattern.
JR Gas & Water considers the existing electrical setup and hot water demand when assessing replacement suitability.
TECHNICAL DETAILS

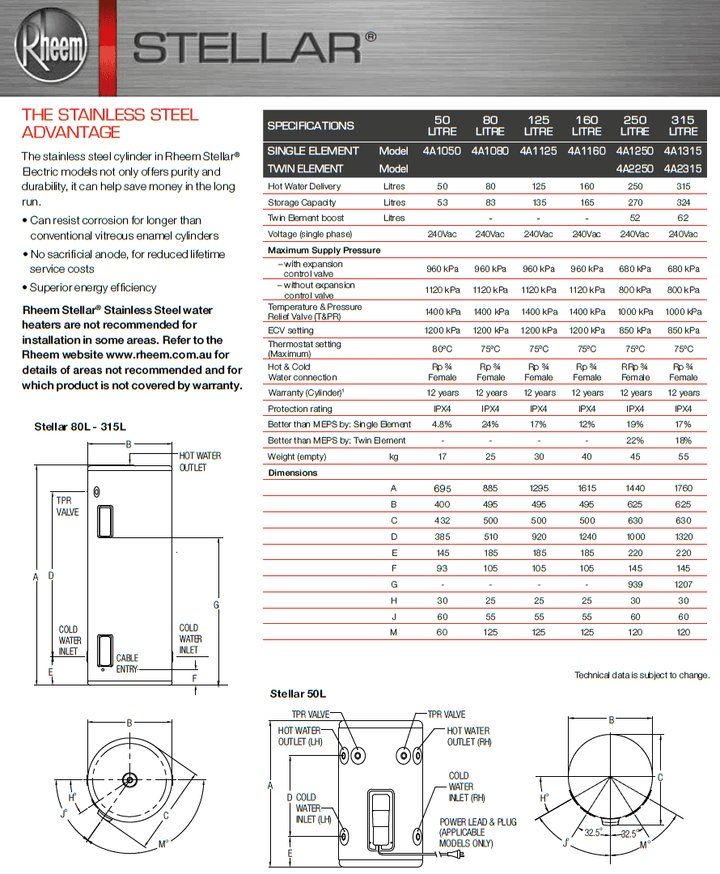

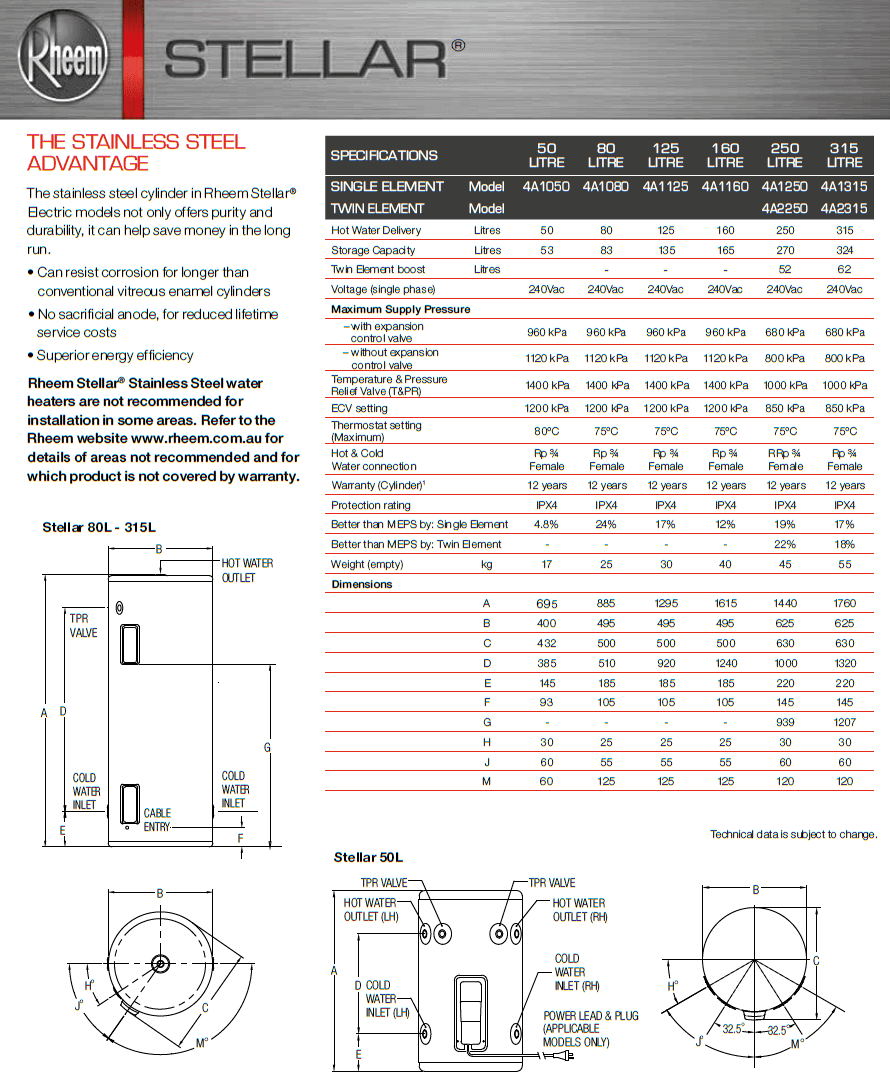

Rheem Stellar 80L Stainless Steel Electric Water Heater Specifications
| Specification | Details |
|---|---|
| Brand | Rheem |
| Product Range | Stellar Stainless Steel Electric |
| Product | Rheem Stellar 80L Stainless Steel Electric Water Heater |
| Manufacturer Product Reference | 4A1080G7, as identified in the supplied Rheem product link |
| System Type | Electric storage hot water system |
| Nominal Capacity | 80 litres |
| Water Delivery Arrangement | Mains pressure |
| Cylinder Material | Stainless steel |
| Water Fittings | Stainless steel |
| Sacrificial Anode | Not required by cylinder design |
| Cold Water Connections | Dual-handed |
| Hot Water Connection | Top of unit |
| Heating Configuration | Single element |
| Heating Element Rating | 3.6kW for the referenced variant |
| Manufacturing Origin | Australian made, as stated in supplied manufacturer information |
| Indicative Household Suitability | Up to approximately 3 people under Rheem's usage assumptions |
| Typical Applications | Smaller households, one-bedroom apartments, kitchens and suitable canteens |
| Overall Height | Confirm current Rheem specification |
| Overall Diameter | Confirm current Rheem specification |
| Empty Weight | Confirm current Rheem specification |
| Water Connection Sizes | Confirm current Rheem specification |
| Maximum Water Supply Pressure | Confirm current Rheem specification |
| Relief Valve Rating | Confirm current Rheem specification |
| Recovery Rate | Confirm current Rheem specification |
| Electricity Tariff Compatibility | Confirm current Rheem installation instructions |
| Water Quality Limits | Confirm current Rheem stainless steel water quality requirements |
| Installation Location Requirements | Confirm current Rheem installation instructions |
| Required Clearances | Confirm current Rheem installation instructions |
| Manufacturer Warranty | Confirm current Rheem warranty statement for selected model and application |
| Installation Areas | Brisbane, Gold Coast and eligible surrounding areas |
Product details are based on the supplied Rheem-linked description. Current manufacturer specifications, warranty terms and water quality requirements should be checked for the exact selected model before installation.
Rheem Stellar 80L Manufacturer Product Information
The Rheem Stellar 80L is listed in Rheem Australia's stainless steel electric water heater range.
The supplied manufacturer product reference identifies model 4A1080G7, described as an 80 litre stainless steel electric water heater with a single 3.6kW element.
For current specifications, installation requirements and water quality limitations, refer to the official Rheem Stellar 80L Stainless Steel Electric Water Heater manufacturer product page.
Manufacturer documentation should take precedence where product specifications or installation requirements have changed.
Rheem Stellar 80L Installation Requirements
Professional installation requires confirming that the heater suits the property's services, installation position and water quality.
Correct Rheem Stellar 80L model selection
Suitable household hot water demand
Stainless steel water quality suitability
Adequate installation space
Suitable supporting base
Manufacturer-approved installation location
Compatible electrical circuit
Correct heating element electrical requirements
Suitable electricity tariff arrangement
Correct top hot water connection
Suitable cold water connection position
Water pressure assessment
Pressure limiting where required
Required relief valve arrangements
Required temperature limiting arrangements
Drainage and overflow considerations
Access for servicing and maintenance
Safe commissioning and testing
The tank must be correctly filled and purged before the electric heating element is energised.
Installation must follow current Rheem instructions and applicable plumbing and electrical requirements.
Can the Rheem Stellar 80L Replace Your Existing Electric Hot Water System?
The Rheem Stellar 80L may be a practical replacement for an existing compact electric storage heater where the property's hot water demand remains suitable.
The dual-handed cold water connections may simplify some changeovers.
However, replacement suitability depends on more than whether the new tank fits in the same location.
Existing heater capacity
Household hot water usage
Stainless steel water quality suitability
Electrical circuit compatibility
Electricity tariff arrangement
Available installation space
Existing pipework positions
Water pressure and valves
Access and drainage
Manufacturer installation requirements
Some replacements may require plumbing alterations, valve upgrades, electrical work, drainage improvements or relocation.
JR Gas & Water assesses the existing installation before confirming the replacement scope.
What's Involved in Installing the Rheem Stellar 80L?
1. Assess the Property
Review the existing heater, household demand, stainless steel water quality suitability, electrical supply, plumbing, pressure conditions and installation space.
2. Supply and Install
Supply the selected Rheem Stellar 80L, remove the old heater where included, position the new unit and complete suitable plumbing and electrical connections.
3. Test and Commission
Fill and purge the cylinder, check valves and connections, energise the heater when safe and verify correct operation.
The final installation scope depends on the property's existing services and conditions.
Additional work may include valve upgrades, pressure limiting, tempering valve work, tray or drain arrangements, electrical alterations or pipework relocation.
SUPPLY & INSTALL PRICING
How Much Does Rheem Stellar 80L Installation Cost in Brisbane or the Gold Coast?
Rheem Stellar 80L installed pricing depends on the unit supply and the installation work required.
A straightforward replacement in a suitable existing location is generally simpler than a job requiring plumbing alterations, electrical upgrades, valve work or relocation.
Factors affecting installation pricing include:
Rheem Stellar 80L unit supply
Removal of the existing heater
Installation access
Stainless steel water quality suitability
Electrical circuit compatibility
Electricity tariff requirements
Plumbing connection alterations
Water pressure conditions
Pressure limiting valve requirements
Relief valve arrangements
Tempering valve requirements
Drainage and tray requirements
Base work or relocation
Additional compliance work
No fixed installed price is stated because actual site conditions and installation scope vary.
JR Gas & Water can assess the existing setup and determine the work required for a suitable installation.
Rheem Stellar 80L Running Costs and Electricity Consumption
The referenced Rheem Stellar 80L variant is described as using a 3.6kW electric heating element.
When operating at its stated full rating, a 3.6kW element consumes approximately 3.6 kilowatt-hours of electricity per hour of active heating.
However, the element does not necessarily operate continuously throughout the day.
Actual electricity consumption depends on hot water usage, incoming cold water temperature, storage heat losses and thermostat operation.
Electricity tariff arrangements can also affect operating costs.
The stainless steel cylinder's anode-free design may reduce some maintenance requirements, but it does not eliminate electricity consumption or all servicing needs.
For properties prioritising lower electricity consumption, a suitable heat pump hot water system may also be worth considering.
Rheem Stellar 80L Stainless Steel vs Conventional Electric Storage
The Rheem Stellar 80L differs from many conventional electric storage systems primarily through its cylinder construction.
| Feature | Rheem Stellar 80L Stainless Steel | Conventional Enamel Lined Storage |
|---|---|---|
| Cylinder Construction | Stainless steel | Vitreous enamel lined steel |
| Sacrificial Anode | No sacrificial anode | Commonly uses a sacrificial anode |
| Water Quality Suitability | Must meet Rheem stainless steel requirements | Must meet the relevant manufacturer's requirements |
| Heating Method | Electric resistance heating | Electric resistance heating |
| Maintenance | No anode replacement; other maintenance remains necessary | May require anode inspection or replacement plus other maintenance |
| Best Choice | Where stainless steel suitability, capacity and installation requirements align | Where conventional storage construction is better suited to the property |
Neither cylinder type is automatically the best choice for every property.
Water quality, hot water demand, installation conditions and manufacturer requirements should guide the decision.
Rheem Stellar 80L Electric Storage vs Heat Pump Hot Water
The Rheem Stellar 80L uses conventional electric resistance heating to heat stored water.
A heat pump hot water system uses electricity to transfer heat from surrounding air into water.
Under suitable operating conditions, heat pumps can generally use less electricity than conventional electric resistance heating.
However, heat pump systems have different equipment costs, installation requirements, operating characteristics and space considerations.
The Rheem Stellar 80L may be more practical where a compact conventional electric storage replacement is required and the existing services are compatible.
A heat pump may be worth considering where lower electricity consumption is a priority and the property can accommodate the equipment.
Why Choose a Quality Hot Water System Instead of a Cheaper Alternative?
A hot water system should be assessed on more than the initial purchase price.
Correct sizing, cylinder construction, manufacturer support, installation suitability and long-term maintenance all matter.
The Rheem Stellar 80L offers premium features including a stainless steel cylinder, stainless steel water fittings, anode-free design and dual-handed cold water connections.
These features may make it an attractive alternative to a cheaper conventional storage system where the property is suitable.
However, a premium stainless steel cylinder is not automatically the best choice if water quality conditions are unsuitable or the heater is undersized for the property.
JR Gas & Water focuses on the right product and the right installation together.
Rheem Stellar 80L Maintenance and Long-Term Care
The Rheem Stellar 80L features an anode-free stainless steel cylinder, removing the need for sacrificial anode replacement.
However, the system still requires appropriate maintenance in accordance with Rheem's instructions.
Signs that professional attention may be required include:
Reduced hot water availability
Unexpected water temperature changes
Longer reheating times
Water leaking from the cylinder
Unusual relief valve discharge
Electrical circuit trips
Heating element faults
Leaking plumbing connections
Water quality suitability remains important throughout the system's operating life.
Valve servicing, electrical safety checks and other maintenance should follow the current Rheem instructions.
Rheem Stellar 80L Stainless Steel Electric Water Heater Warranty
The Rheem Stellar 80L is supported by the manufacturer's warranty arrangements applicable to the selected model and installation type.
Exact cylinder, parts and labour warranty periods should be confirmed from the current Rheem warranty statement.
Warranty eligibility may depend on correct installation, water quality, maintenance, operating conditions and the nature of the application.
Because the Rheem Stellar 80L uses a stainless steel cylinder, compliance with Rheem's water quality requirements is particularly important.
Manufacturer warranty coverage is separate from any JR Gas & Water installation workmanship warranty.
BRISBANE INSTALLATION

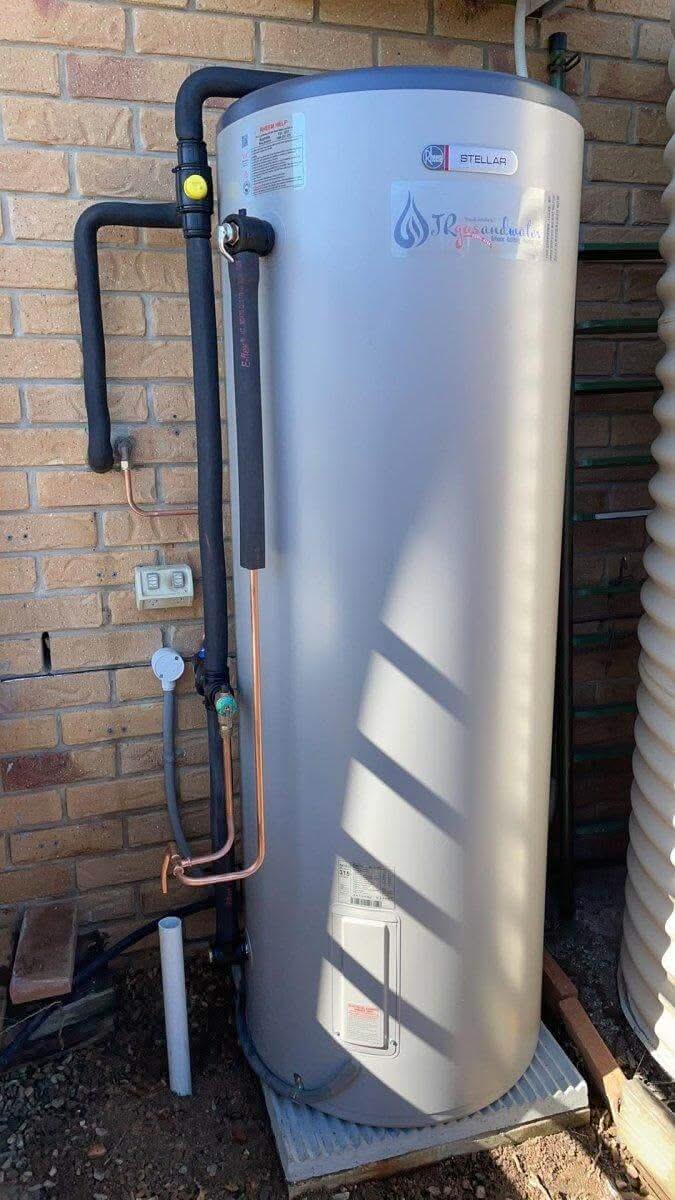

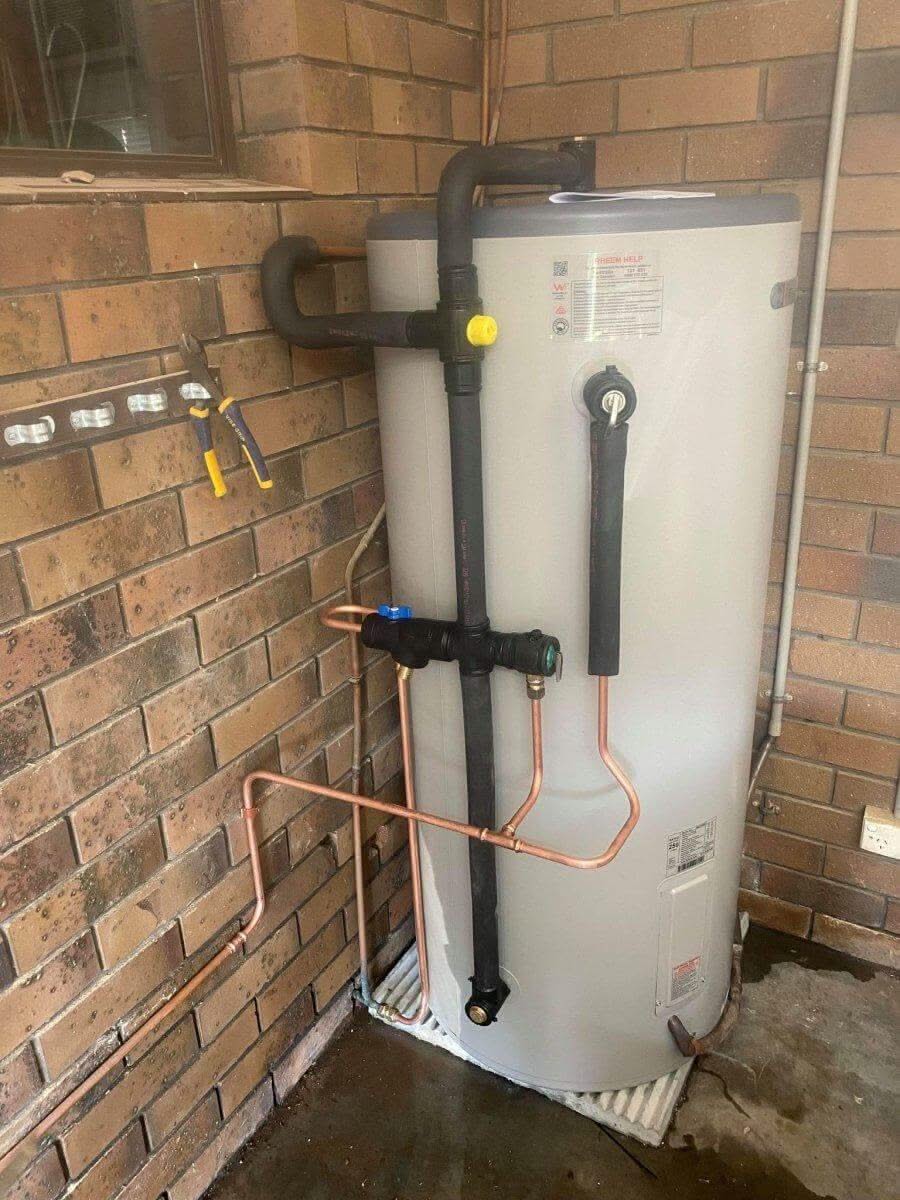

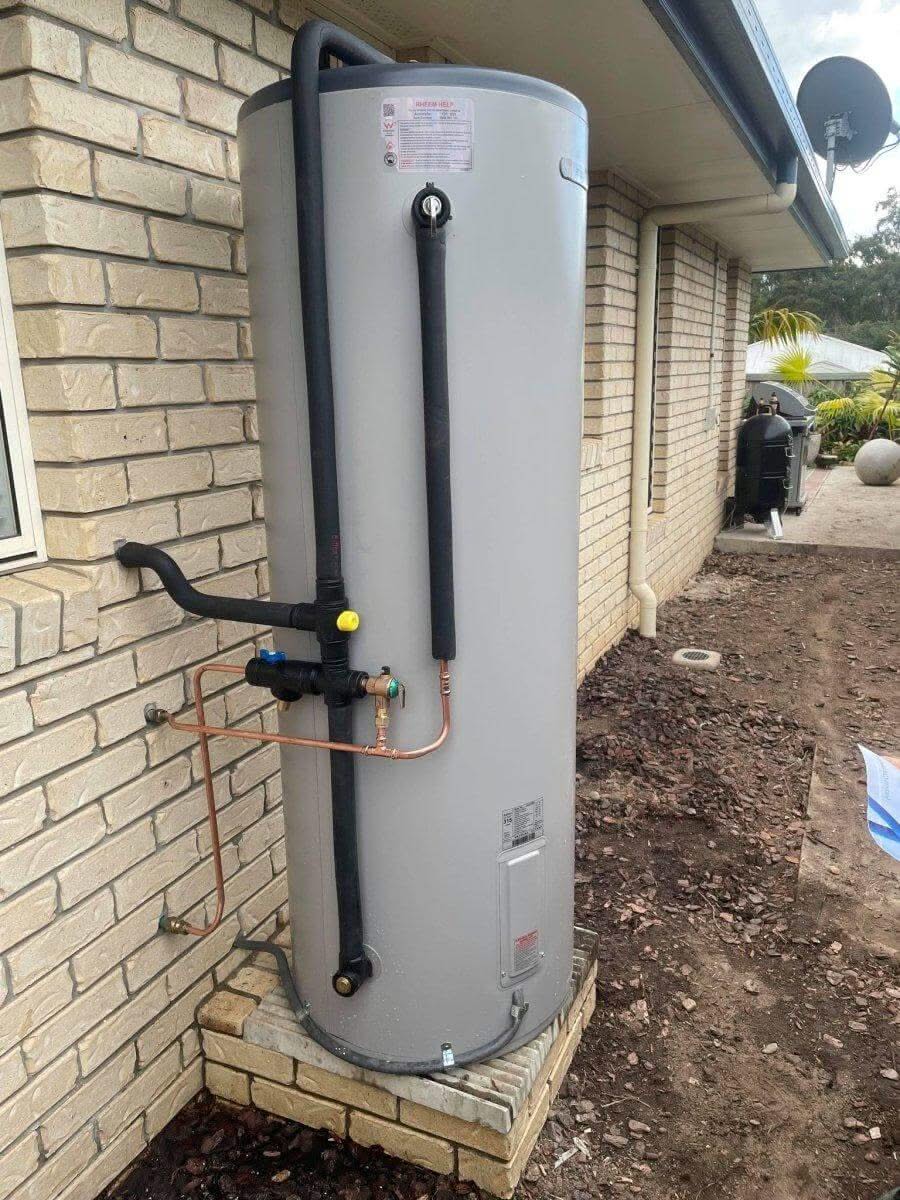

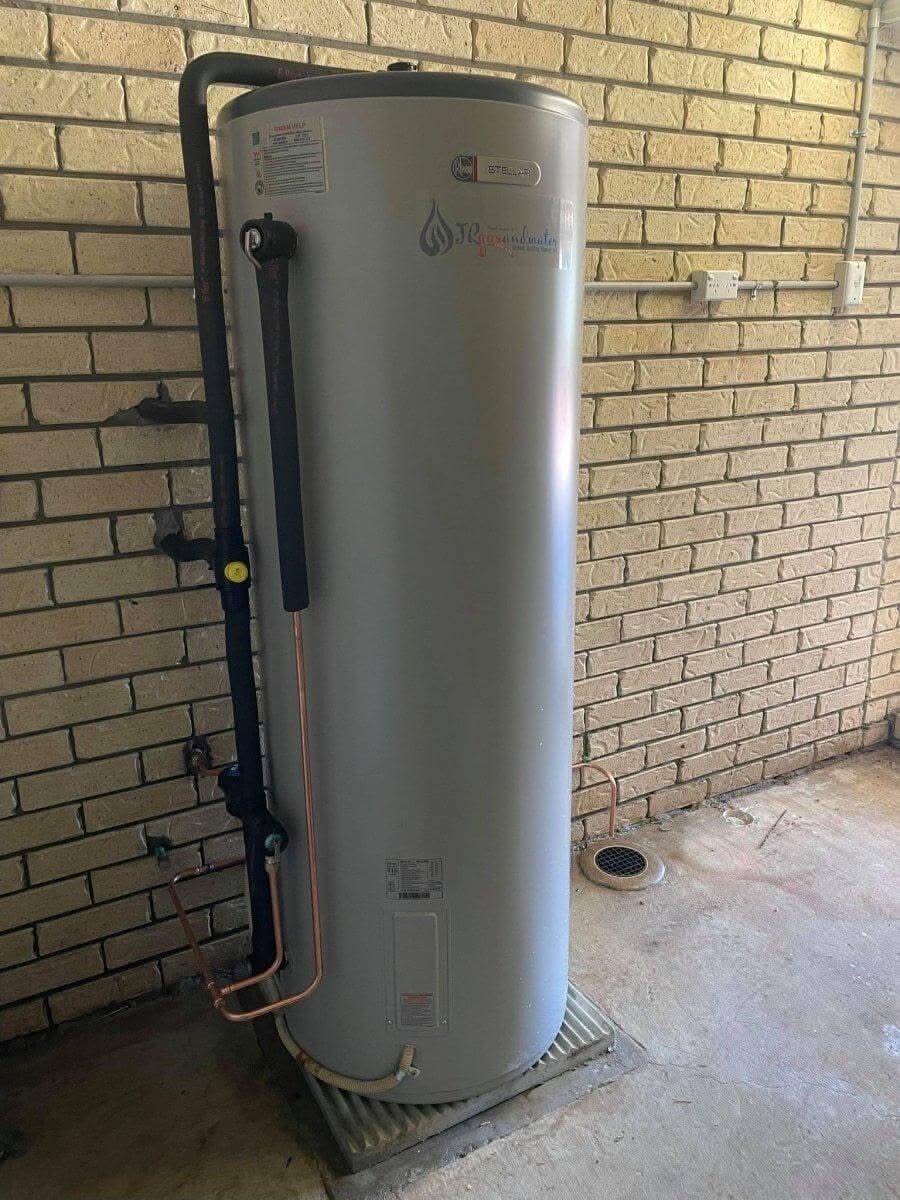

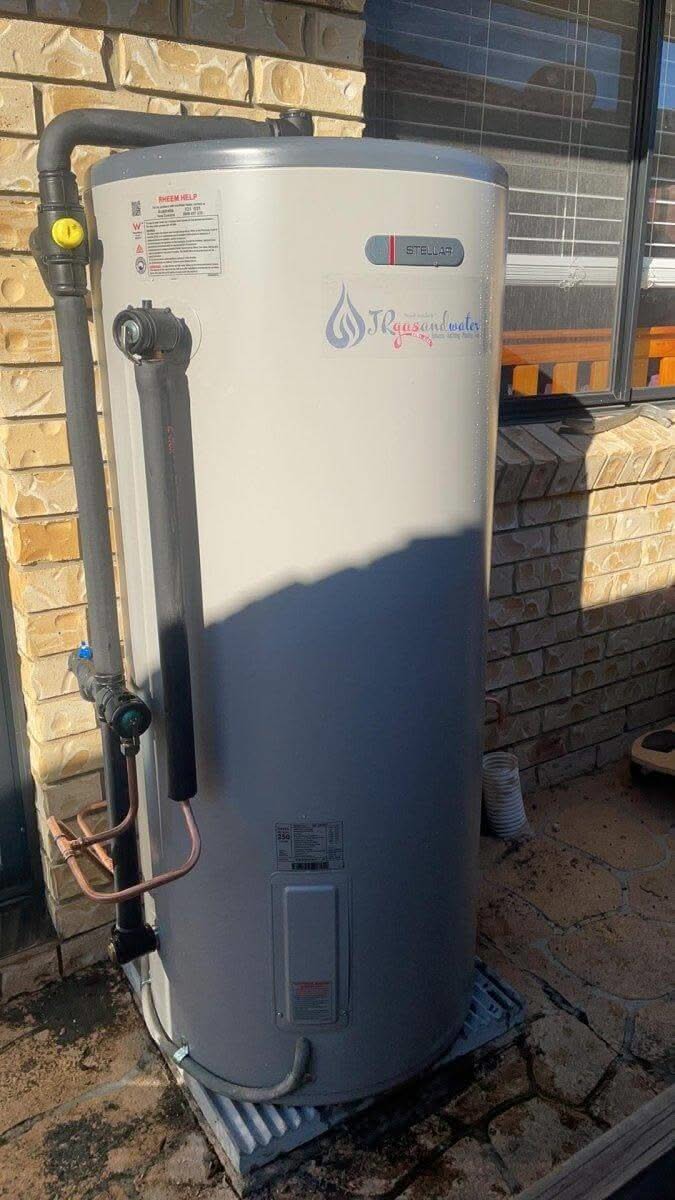

Rheem Stellar 80L Stainless Steel Electric Water Heater Installation Brisbane
JR Gas & Water provides Rheem Stellar 80L Stainless Steel Electric Water Heater installation in Brisbane for suitable homes and properties.
The Rheem Stellar 80L may be a practical replacement for an older compact electric storage heater where the household's hot water demand and the property's water quality are suitable.
Before installation, the electrical supply, plumbing layout, water pressure, drainage, available space and stainless steel water quality requirements should be assessed.
JR Gas & Water also services eligible surrounding areas including Logan, Ipswich, Moreton Bay and Redlands.
GOLD COAST INSTALLATION
Rheem Stellar 80L Stainless Steel Electric Water Heater Installation Gold Coast
JR Gas & Water provides Rheem Stellar 80L Stainless Steel Electric Water Heater installation on the Gold Coast for suitable properties.
The compact stainless steel storage design may appeal to homeowners and property owners wanting a premium electric storage replacement.
However, the installation must suit the property's water quality, electrical supply, plumbing arrangement and hot water demand.
Whether the work is a straightforward replacement or requires additional plumbing or electrical alterations, the final installation scope depends on the existing site conditions.
COMMON QUESTIONS
Rheem Stellar 80L Stainless Steel Electric Water Heater Installation FAQs
How much does Rheem Stellar 80L installation cost in Brisbane or the Gold Coast?
Installation cost depends on the existing hot water setup, plumbing, electrical supply, access, valve requirements and any additional work needed. A straightforward like-for-like replacement is generally simpler than a job requiring electrical alterations or relocation.
What is the Rheem Stellar 80L Stainless Steel Electric Water Heater?
It is an 80 litre mains pressure electric storage hot water system with a stainless steel cylinder, stainless steel water fittings, dual-handed cold water connections and a top hot water connection.
Is the Rheem Stellar 80L suitable for three people?
Rheem positions the model for up to approximately three people under its stated usage assumptions. Actual suitability depends on shower duration, hot water usage and available reheating time.
Is the Rheem Stellar 80L suitable for a one-bedroom apartment?
It may be a practical option for a one-bedroom apartment with light hot water demand, provided the installation location, water quality and existing services are suitable.
Can the Rheem Stellar 80L be used in a kitchen or canteen?
Rheem identifies kitchens and canteens among potential applications. Suitability depends on actual peak hot water demand and the installation requirements.
Is the Rheem Stellar 80L made in Australia?
The supplied Rheem product information identifies the Stellar 80L as Australian made. Current manufacturing origin should be confirmed for the selected model.
Does the Rheem Stellar 80L have a stainless steel tank?
Yes. Stainless steel cylinder construction is one of the model's main distinguishing features.
Does the Rheem Stellar 80L need an anode?
No. The stainless steel cylinder design does not use a sacrificial anode, removing the need for routine anode replacement.
Is stainless steel better than vitreous enamel?
Stainless steel offers different construction and maintenance characteristics, but it is not automatically better for every property. Water quality suitability and manufacturer requirements should guide the choice.
Is stainless steel hot water suitable for every Brisbane or Gold Coast property?
No. Rheem notes that stainless steel cylinders are not recommended in every area. The property's water quality should be assessed against current Rheem requirements.
What are the Rheem Stellar 80L water quality requirements?
The exact water quality limits should be confirmed from current Rheem manufacturer documentation for the selected model. Non-standard water supplies may require particular attention.
Does the Rheem Stellar 80L have dual-handed connections?
Yes. The model features dual-handed cold water connections and a hot water connection at the top of the unit.
What size heating element does the Rheem Stellar 80L use?
The supplied Rheem product reference identifies a single 3.6kW heating element. Confirm the selected model's electrical specification before installation.
Is the Rheem Stellar 80L a mains pressure system?
Yes. It is described as a mains pressure electric storage hot water system, suitable for supplying multiple outlets where demand is compatible with its capacity.
Can the Rheem Stellar 80L replace my current electric hot water system?
In many cases, yes. Replacement suitability depends on household demand, water quality, installation space, electrical supply, plumbing connections and existing valves.
Can the Rheem Stellar 80L run on off-peak electricity?
Tariff compatibility should be confirmed from the current Rheem installation instructions for the exact selected model. Off-peak heating can also affect available reheating time.
How long does the Rheem Stellar 80L take to heat up?
Reheating time depends on the amount of water requiring heating, incoming water temperature and the heating element's operating conditions. Exact recovery performance should be confirmed from Rheem's current specification.
What are the Rheem Stellar 80L dimensions?
Exact dimensions should be confirmed from the current Rheem dimensional drawing for the selected model before installation.
Does the Rheem Stellar 80L need a tempering valve?
Temperature limiting requirements depend on the installation and applicable plumbing standards. Existing arrangements should be assessed during installation planning.
Does the Rheem Stellar 80L need a pressure limiting valve?
A pressure limiting valve may be required depending on incoming water pressure and the manufacturer's permitted operating conditions.
What warranty comes with the Rheem Stellar 80L?
Warranty coverage depends on the selected model and application. Exact cylinder, parts and labour periods should be confirmed from Rheem's current warranty statement.
Is the Rheem Stellar 80L expensive to run?
Running costs depend on actual hot water usage, electricity rates, storage heat losses and the heater's operating arrangement. The referenced variant uses a 3.6kW element.
Does the Rheem Stellar 80L require maintenance?
Yes. Although the stainless steel cylinder does not require sacrificial anode replacement, valves, electrical components and other system components still require appropriate maintenance.
What is included in a standard Rheem Stellar 80L installation?
A typical installation may include supply of the heater, removal of the existing unit where included, suitable plumbing and electrical connections, testing and commissioning. Exact inclusions depend on the agreed scope.
Can JR Gas & Water install the Rheem Stellar 80L in my area?
JR Gas & Water provides hot water installation across Brisbane, the Gold Coast and eligible surrounding areas including Logan, Ipswich, Moreton Bay and Redlands, subject to availability.
Why Choose JR Gas & Water for Rheem Stellar 80L Installation?
Correct System Selection
Assessment of household demand, compact storage capacity and stainless steel water quality suitability.
Installation-Led Approach
Consideration of electrical supply, plumbing, water pressure, valves, drainage and available installation space.
Local Installation Services
Electric hot water installation across Brisbane, the Gold Coast and eligible surrounding service areas.
The Rheem Stellar 80L is a premium compact electric storage option when its capacity, stainless steel cylinder requirements and installation conditions suit the property.
JR Gas & Water focuses on selecting the right product and completing the installation correctly rather than treating every hot water replacement as a simple tank swap.
COMPARE YOUR HOT WATER OPTIONS
Is the Rheem Stellar 80L the Right Stainless Steel Hot Water System for Your Property?
The Rheem Stellar 80L may be a practical solution for smaller households and suitable properties with lighter hot water demand.
Its stainless steel cylinder, anode-free design, dual-handed cold water connections and compact electric storage format make it worth considering for compatible replacements.
However, water quality suitability, household demand, electrical supply, plumbing layout, water pressure and available installation space must all be assessed.
JR Gas & Water can help determine whether the Rheem Stellar 80L or another electric storage hot water system is the better fit for your property.
READY TO INSTALL
Install the Rheem Stellar 80L Stainless Steel Electric Water Heater With JR Gas & Water
The Rheem Stellar 80L Stainless Steel Electric Water Heater is a compact electric storage hot water system designed for suitable smaller households and light-demand properties.
With 80 litres of storage capacity, stainless steel cylinder construction, stainless steel water fittings, dual-handed cold water connections, top hot water connection and an anode-free design, it offers a premium alternative to conventional electric storage heaters where water quality and installation conditions are suitable.
Final installation suitability depends on the property's water supply, hot water demand, electrical arrangement, plumbing conditions and available space.
JR Gas & Water provides Rheem Stellar 80L Stainless Steel Electric Water Heater supply and installation in Brisbane, the Gold Coast and eligible surrounding areas.
Contact JR Gas & Water to discuss your existing hot water system, stainless steel suitability, installation requirements and available replacement options.
Your electric storage hot water system is built to provide years of reliable hot water, but like any major household appliance, it requires regular maintenance to remain safe, efficient and covered under the manufacturer's warranty.
Many manufacturers specify routine maintenance throughout the life of the system. Following these recommendations helps maximise the lifespan of the unit, maintain safe operation and reduce the likelihood of unexpected breakdowns.
Homeowner Maintenance – Every 6 Months
Every six months, homeowners should carefully operate the Pressure & Temperature Relief (PTR) Valve and Expansion Control Valve (ECV) (where fitted).
This simple maintenance helps:
- Confirm the safety valves are operating correctly.
- Flush away mineral deposits that can cause the valves to seize.
- Prevent excessive pressure from building inside the tank.
- Extend the life of the safety valves.
Why is this important?
Over time, minerals naturally found in water can build up inside the valves. If they are never operated, they may become stuck or fail when they're needed most.
A seized PTR or ECV valve can lead to:
- Excessive pressure inside the tank.
- Continuous leaking from the valve.
- Reduced system efficiency.
- Premature component failure.
- Potential safety risks.
Important: Always follow your manufacturer's instructions when operating the valves, as hot water will discharge during testing. If you're unsure or unable to perform this maintenance safely, contact a licensed plumber.
JR 6-Month Hot Water Health Check
Recommended Service – $99
While homeowner maintenance is important, a professional inspection provides additional peace of mind and can identify issues long before they become expensive repairs.
Our JR 6-Month Hot Water Health Check includes:
- Inspection for water leaks and corrosion.
- Testing of the PTR valve.
- Testing of the ECV (where fitted).
- Checking electrical operation.
- Inspecting wiring and electrical connections.
- Checking thermostat operation.
- Inspecting the element for signs of failure (where possible).
- Inspecting insulation and pipework.
- Checking for unusual noises or signs of sediment build-up.
- Confirming correct operation and water heating performance.
- Identifying any components showing signs of wear.
Service Price: $99
Regular inspections help detect small problems early, reducing the likelihood of unexpected breakdowns and helping maximise the life of your hot water system.
Recommended 5-Year Major Service
Current Price: $449
Most electric storage hot water manufacturers recommend replacing several key components approximately every five years to maintain reliable operation and protect the storage tank.
Our comprehensive 5-Year Service includes:
- Replacement of the sacrificial anode.
- Replacement of the Pressure & Temperature Relief (PTR) Valve.
- Replacement of the Expansion Control Valve (ECV).
- Full inspection of the hot water system.
- Electrical safety and operational testing.
- Inspection of pipework, valves and fittings.
- Leak and corrosion inspection.
- System performance testing.
Why These Components Matter
Sacrificial Anode
The sacrificial anode protects the steel tank from internal corrosion.
Instead of the tank rusting, the anode slowly corrodes over time. Once it has been consumed, the tank itself begins to rust from the inside, often leading to leaks and complete tank failure.
Replacing the anode is one of the most effective ways to extend the life of a storage hot water system.
Pressure & Temperature Relief (PTR) Valve
The PTR valve is one of the most important safety devices on your hot water system.
It automatically releases water if pressure or temperature inside the tank becomes too high, protecting both the system and your home.
Over time, scale and mineral deposits can prevent the valve from operating correctly, making regular testing and replacement essential.
Expansion Control Valve (ECV)
The ECV manages pressure created as water expands during heating.
A correctly functioning ECV:
- Reduces stress on the storage tank.
- Protects plumbing components.
- Helps extend the life of the hot water system.
- Reduces unnecessary water discharge through the PTR valve.
If Your Hot Water System Isn't Working
Before arranging a service, there are a few simple checks you can perform:
- Ensure the power is switched on at the electrical switchboard.
- Check whether the hot water circuit breaker or safety switch (RCD) has tripped.
- Confirm the isolation switch near the hot water system is turned on.
- Check whether your electricity supplier has scheduled an off-peak interruption.
- Look for obvious water leaks around the system.
- Check whether water is continuously flowing from the PTR or ECV valve.
- Listen for unusual noises such as excessive boiling, rumbling or banging.
- Confirm the system has had sufficient time to reheat after heavy water usage.
If your system still isn't producing hot water, contact JR Gas & Water for professional diagnosis and repair.
General Signs Your System May Need Attention
Arrange a service if you notice:
- Water leaking from the tank.
- Constant dripping from relief valves.
- Rust-coloured or dirty hot water.
- Reduced hot water capacity.
- Water taking much longer to heat.
- Unusual noises during heating.
- Visible corrosion.
- Fluctuating water temperature.
- Repeated electrical trips.
Early repairs are often significantly less expensive than replacing a failed hot water system.
Protect Your Warranty & Maximise System Life
Regular maintenance not only helps keep your hot water system operating safely and efficiently—it can also assist in meeting manufacturer maintenance requirements.
Ignoring recommended servicing may result in:
- Premature tank corrosion.
- Seized or leaking safety valves.
- Reduced efficiency and higher running costs.
- Unexpected loss of hot water.
- Avoidable repair costs.
- Shortened system lifespan.
- Possible reduction or loss of manufacturer warranty, depending on the manufacturer's maintenance requirements.
A small investment in preventative maintenance can add years to the life of your hot water system and help avoid the inconvenience and expense of an unexpected replacement.
ZipPay – 6-Month Interest-Free on All Products
ZipPay allows you to buy now and pay later, offering flexible, interest-free payments for up to 6 months on all JR products. It’s easy to set up, and you can customize your repayment schedule to suit your budget. Payments can be made weekly, fortnightly, or monthly, with a $6 fee if the balance isn’t paid off by the due date.
Humm – Up to 12 Months Interest-Free
Humm provides interest-free payment plans on purchases up to $30,000, perfect for both small and large buys. For items over $2,000, you can spread payments over 12 months. Humm also offers flexibility in scheduling payments based on when you get paid
Afterpay – 8 Weeks, No Interest
With Afterpay, spread the cost of purchases across four equal installments, due every two weeks, over an 8-week period. There’s no interest, and as long as payments are made on time, there are no fees. Perfect for purchases between $100 and $1,500
Plenti Finance – For Reclaim Systems Only
Plenti Finance is available exclusively for Reclaim Energy systems. This option offers tailored repayment terms with competitive interest rates, helping make eco-friendly choices more affordable. For more detailed information on Plenti’s terms and eligibility for Reclaim systems, visit the Reclaim Energy finance page
If you're in Queensland and considering a new electric hot water system, JR Gas & Water is the company to choose. Here's why:
Experience and Expertise: JR Gas & Water has over 10 years of experience in the gas and plumbing industry. Their team of licensed and insured professionals is highly skilled and knowledgeable about all aspects of electric hot water system installation, maintenance, and repair. They can provide expert advice on the best system for your needs and ensure a smooth installation process.
Quality Products: JR Gas & Water uses only high-quality products from trusted brands to ensure your electric hot water system is reliable and efficient. They also offer a range of options to suit different budgets and requirements.
Competitive Pricing: JR Gas & Water offers competitive pricing for their electric hot water systems, ensuring that you get a great value for your investment. They also provide a detailed quote upfront, so there are no surprises or hidden costs.
Customer Service: JR Gas & Water is committed to providing excellent customer service. They are always available to answer any questions or concerns you may have and are committed to ensuring your satisfaction.
Local Business: JR Gas & Water is a locally owned and operated business in Queensland. By choosing them for your electric hot water installation, you are supporting a local business and contributing to the local economy.
Warranty and Guarantee: JR Gas & Water provides a warranty and guarantee on all their products and services, giving you peace of mind knowing that your system is covered in case of any issues.
Energy Efficiency: Electric hot water systems can be energy efficient, and JR Gas & Water can help you choose the right system for your needs. They can provide advice on energy-saving features and options, such as timers and thermostats, to help you save on your energy bills.
Safety: JR Gas & Water is committed to safety and ensuring that all installations are done to the highest safety standards. They are also familiar with local safety regulations and requirements, ensuring that your electric hot water system is installed safely and in compliance with all relevant codes.
JR Gas & Water is a reliable and experienced choice for your electric hot water system installation in Queensland. With a commitment to quality products, competitive pricing, excellent customer service, and safety, they can help you make the switch to a more efficient and cost-effective solution for your hot water needs. Contact them today to learn more about their services and how they can help you.
