PURETEC WHOLE HOME FILTRATION INSTALLATION
Puretec WU10-25M Installation Brisbane & Gold Coast
JR Gas & Water supplies and professionally installs the Puretec WU10-25M whole-house mains water filtration system across Brisbane, the Gold Coast and surrounding eligible South East Queensland service areas.

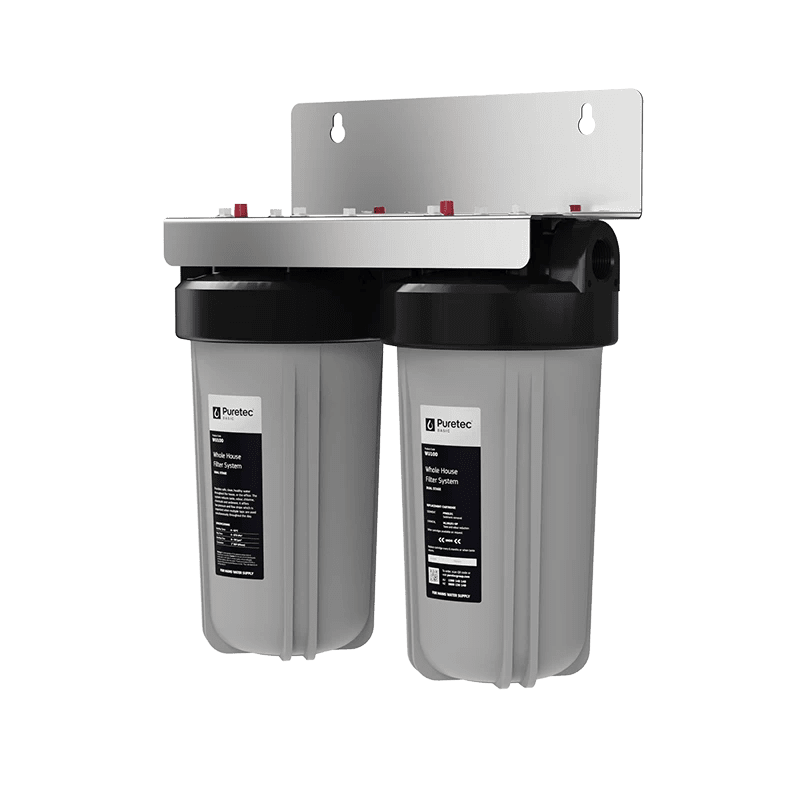

The WU10-25M is a twin-stage whole-home filter designed specifically for mains water. It is installed on a suitable household water supply so filtration can apply to multiple downstream taps, showers, bathrooms, laundries and appliances rather than only one drinking-water outlet.
Puretec specifies twin large-diameter 10-inch housings, a nominal 5-micron sediment cartridge, carbon filtration, a maximum published flow of 30 litres per minute and 25mm / 1-inch BSP connections.
It is a practical general-purpose whole-home filtration option for households wanting sediment, chlorine, taste and odour treatment without moving to a more complex UV, reverse osmosis or water-softening system.
Puretec WU10-25M quick answer:
the WU10-25M is a twin-stage whole-house filter for mains water. Puretec
specifies 10-inch large-diameter housings, an MB05LD1 5-micron sediment
cartridge, an EC10LD1 carbon cartridge, up to 30L/min published flow,
25mm / 1-inch BSP connections, 520kPa maximum pressure and 52°C maximum water
temperature. The standard system requires no electrical supply.
Puretec WU10-25M at a Glance
Product
WU10-25M
Twin-stage mains-water whole-house filtration system.
Best Suited To
MAINS WATER
Homes wanting general sediment and carbon filtration across multiple outlets.
Installation Area
SEQ
Brisbane, Gold Coast and surrounding eligible South East Queensland areas.
Installation Type
WHOLE HOME
Point-of-entry filtration connected to the household mains supply.
Who Is the Puretec WU10-25M For?
Mains-Water Homes
Puretec designs the WU10-25M for treated mains-water supplies rather than rainwater treatment.
Whole-House Filtration
Suitable where filtration is wanted across multiple household fixtures rather than only through one dedicated drinking-water tap.
Moderate Household Flow
With a published maximum flow of 30L/min, the system can suit properties where normal simultaneous demand fits within its practical flow capability.
PRODUCT SUITABILITY
Is the Puretec WU10-25M Right for My Home?
A Good Choice If...
Your property uses mains water, you want straightforward whole-home sediment and carbon treatment and your household water demand suits the system's published flow range.
Consider Another System If...
You use rainwater, need UV disinfection, require dedicated hardness or scale treatment, want reverse osmosis treatment or regularly need higher simultaneous whole-house flow.
JR Should Check First If...
Incoming pressure is high, the existing water main differs significantly from the 25mm connection arrangement, installation space is limited or several high-flow fixtures regularly operate together.
How Does the Puretec WU10-25M Work?
Incoming mains water reaches the system: the WU10-25M is installed at a suitable point on the household water supply so downstream water passes through both filtration stages.
Stage 1 captures sediment: Puretec's MB05LD1 melt-blown cartridge provides nominal 5-micron filtration to help reduce dirt and suspended sediment.
Stage 2 provides carbon treatment: the EC10LD1 extruded carbon cartridge helps reduce chlorine, unwanted taste and odour.
Filtered water continues through the home: after treatment, water returns to the downstream household plumbing and supplies connected fixtures.
No electrical power is required: the standard system operates from incoming mains water pressure without a powered pump or UV lamp.
What Does the Puretec WU10-25M Reduce?
Sediment & Dirt
The first-stage melt-blown cartridge helps capture suspended dirt and sediment before the water reaches the carbon stage.
Chlorine
Puretec lists chlorine reduction as one of the principal treatment functions of the WU10-25M.
Taste & Odour
The carbon cartridge is intended to improve common taste and odour concerns associated with treated mains water.
The WU10-25M is not a water softener, UV disinfection system or reverse
osmosis system.
Its treatment capability should be matched to the sediment and carbon
cartridges fitted to the system.
Whole-House Filtration vs a Drinking-Water Filter
A conventional under-sink filter normally treats one dedicated kitchen outlet for drinking and cooking.
The WU10-25M is designed for a different role. It treats water at a suitable point on the household mains supply so filtration can apply to multiple downstream fixtures.
This can suit homes wanting sediment and chlorine treatment for showers, bathrooms, laundry and appliances as well as kitchen water.
Some properties combine whole-house filtration with a separate point-of-use drinking-water system where more specialised treatment is wanted at the kitchen.
Key Puretec WU10-25M Features
Twin 10-Inch Housings
Two large-diameter 10-inch housings provide separate sediment and carbon filtration stages.
30L/min Published Flow
Designed around moderate whole-house demand rather than single-tap drinking water flow.
5-Micron Sediment Stage
Uses Puretec's MB05LD1 melt-blown sediment cartridge.
Carbon Treatment
Uses Puretec's EC10LD1 extruded carbon cartridge as the second filtration stage.
Stainless Steel Bracket
The system includes a stainless steel mounting bracket and housing wrench.
No Power Required
Operates from normal mains water pressure without an electrical supply.
Puretec WU10-25M Specifications
| Specification | Puretec WU10-25M |
|---|---|
| Brand | Puretec |
| Model | WU10-25M |
| Product Type | Twin-stage whole-house mains water filtration system |
| Water Supply | Mains / town water |
| Housing Configuration | Twin large-diameter 10-inch housings |
| Stage 1 Cartridge | MB05LD1 melt-blown sediment cartridge |
| Stage 2 Cartridge | EC10LD1 extruded carbon cartridge |
| Nominal Micron Rating | 5 micron |
| Maximum Published Flow | 30L/min |
| Connection Size | 1" BSP / 25mm |
| Maximum Pressure | 520kPa |
| Pressure Limiting Requirement | Approved pressure-limiting device required where supply pressure exceeds 500kPa |
| Maximum Water Temperature | 52°C |
| Electrical Supply | Not required |
| Mounting Bracket | Stainless steel |
| Housing Wrench | Included |
| Manufacturer Warranty | 1 year parts and labour, cartridges excluded, subject to current Puretec terms |
Technical data can change. The exact supplied WU10-25M and current Puretec installation documentation remain the final reference for installation and servicing.
INSTALLATION REQUIREMENTS
What Is Required to Install a Puretec WU10-25M?
Suitable mains-water supply
Appropriate point-of-entry installation position
Household flow suited to the system
Suitable incoming pipework and connection arrangement
Water pressure within Puretec requirements
Pressure limiting where supply exceeds 500kPa
Suitable isolation arrangement
Strong wall or appropriate freestanding support
Clearance beneath housings for cartridge replacement
Future servicing access
Suitable protection for the installation position
Flushing and leak testing after installation
Water Pressure & Pressure Limiting
Whole-house filtration sits on the incoming water supply, so water pressure is an important installation consideration.
Puretec publishes a maximum pressure of 520kPa for the WU10-25M.
Puretec also states that an approved pressure-limiting device needs to be fitted where supply pressure exceeds 500kPa.
Incoming pressure should therefore be checked as part of installation rather than assuming the existing property pressure is automatically suitable.
Whole-House Flow & Household Demand
Puretec publishes a maximum flow rate of 30L/min for the WU10-25M.
Actual flow available at fixtures also depends on incoming pressure, household pipework, pipe length, valves, fittings and cartridge condition.
Several showers, bath filling, laundry use and outdoor taps operating together can create much greater demand than one tap operating alone.
Check simultaneous household demand before choosing the system.
Where regular demand is likely to exceed what a 30L/min filtration system can
comfortably support, a larger-flow whole-house option may be more appropriate.
Installation Position & Cartridge Access
The WU10-25M uses twin large-diameter housings and requires enough installation space for both the filter assembly and future cartridge servicing.
Isolation valves, pipework and mounting points should remain accessible after installation.
Clearance underneath the housings is especially important because the bowls need to be removed when the MB05LD1 and EC10LD1 cartridges are replaced.
Where wall mounting is unsuitable, JR's current package structure also provides freestanding installation pathways according to the site conditions.
JR Puretec WU10-25M Installation Packages
JR's current live WU10-25M page uses six installation pathways so the scope can reflect whether the system is an exact replacement, wall mounted or freestanding and whether the incoming water main is already exposed.
Base — Exact Replacement
For exact replacement of an existing Puretec WU10-25M where the existing installation position, pipework and mounting arrangement remain suitable.
Silver — Wall Mounted, Exposed Main
For a new wall-mounted installation where the incoming water main is already exposed, including valves and pipework within current package scope.
Gold — Freestanding, Exposed Main
For a new freestanding installation where the incoming water main is exposed, including valves, pipework and concreted supports within current package conditions.
Sapphire — Wall Mounted, Main Not Exposed
For wall-mounted installations where additional work is required because the relevant incoming pipework is not already exposed.
Diamond — Freestanding, Main Not Exposed
For freestanding installations where the incoming main is not exposed, including valves, pipework and concreted supports within current package allowances.
Platinum — Broader Installation Scope
JR's current Platinum pathway includes valves, pipework, a double power point and concreted supports where required. The standard WU10-25M itself does not require electrical power.
Use JR's live selector above as the final reference for current package inclusions, allowances, availability and pricing.
What Can a JR WU10-25M Installation Include?
Supply of the genuine Puretec WU10-25M
MB05LD1 sediment cartridge
EC10LD1 carbon cartridge
Stainless steel mounting bracket
Housing wrench
Professional system positioning
Valves according to selected package
Pipework according to selected package
Wall mounting where selected
Freestanding supports where selected
System flushing and leak checks
Basic cartridge servicing guidance
Exact inclusions depend on the current JR package selected and actual site conditions.
What May Require Additional Work?
Pressure-control work beyond selected package scope
Major incoming-water-main relocation
Substantial pipe-size alterations
Structural wall or mounting work
Difficult concealed pipe access outside package allowances
Protective enclosure unless expressly included
UV disinfection equipment
Water softening or specialist scale treatment
Rainwater treatment conversion
Rectification of unrelated plumbing defects
Puretec WU10-25M Installation Pricing
Current supplied-and-installed pricing is controlled through JR's live product and installation selector above rather than being hardcoded into this description.
Final scope depends on whether the installation is an exact replacement, wall mounted or freestanding, whether the incoming water main is exposed, the pressure requirements and the amount of pipework needed.
JR's current live selector also provides Priority Saver and Express booking choices. Current timing and availability should be taken from the live selector at the time of booking.
BRISBANE INSTALLATION
Puretec WU10-25M Installation Brisbane
JR Gas & Water installs suitable Puretec WU10-25M whole-house filtration systems throughout Greater Brisbane for mains-water homes wanting filtration across multiple household fixtures.
Brisbane installations are assessed around incoming pressure, household flow, pipe size, the position of the incoming water main and future cartridge-service access.
A straightforward wall-mounted installation on exposed pipework can have a very different scope from a property where the main is concealed or a freestanding support arrangement is required.
JR also services Logan, Ipswich, Redlands, Moreton Bay and surrounding eligible South East Queensland areas, subject to current booking availability.
GOLD COAST INSTALLATION
Puretec WU10-25M Installation Gold Coast
JR Gas & Water provides suitable Puretec WU10-25M supply and installation across eligible Gold Coast service areas.
The twin-stage 10-inch system can suit mains-water homes wanting general whole-house sediment and carbon treatment where expected simultaneous demand suits its published 30L/min maximum flow.
Incoming pressure, existing pipework, mounting position and future cartridge access should all be checked before treating the installation as straightforward.
Can the WU10-25M Replace My Existing Whole-House Filter?
Replacing Another WU10-25M
Usually the simplest pathway where existing pipework, pressure, mounting, isolation and service access remain suitable.
Replacing Another Twin Filter
Often possible, but connection size, housing dimensions, cartridge clearance, flow and pressure requirements still need to be checked.
Changing From a Different Size
Moving between 10-inch and 20-inch systems can change mounting height, service clearance, flow capability and the plumbing arrangement.
WU10-25M vs WU10-40M
| Feature | WU10-25M | WU10-40M |
|---|---|---|
| Water Source | Mains water | Mains water |
| Housing Format | Twin 10-inch large diameter | Twin 10-inch large diameter |
| Maximum Published Flow | 30L/min | 30L/min |
| Nominal Micron Rating | 5 micron | 5 micron |
| Connection Size | 1" BSP / 25mm | 1½" BSP / 40mm |
| Stage 1 Cartridge | MB05LD1 | MB05LD1 |
| Stage 2 Cartridge | EC10LD1 | EC10LD1 |
| General Difference | 25mm connection arrangement | 40mm connection arrangement |
The main current difference is connection size rather than published flow or cartridge format. Selection should therefore consider the property's existing plumbing arrangement.
WU10-25M vs WU20-25M
| Feature | WU10-25M | WU20-25M |
|---|---|---|
| Housing Format | Twin 10-inch | Twin 20-inch |
| Maximum Published Flow | 30L/min | 60L/min |
| Connection Size | 1" BSP / 25mm | 1" BSP / 25mm |
| Sediment Cartridge | MB05LD1 | MB05LD2 |
| Carbon Cartridge | EC10LD1 | EC10LD2 |
| General Fit | Moderate flow and more compact cartridge format | Higher published flow with larger cartridge format |
The WU20-25M keeps the same 25mm connection size while moving to larger 20-inch cartridges and a higher published maximum flow. It can be a better fit where higher simultaneous household demand justifies the larger system.
WU10-25M vs Rainwater Filtration
WU10-25M Mains Water
Designed for treated mains-water supplies with sediment and carbon treatment aimed at common mains-water concerns.
Rainwater Filtration
Rainwater can require different filtration and potentially additional treatment such as UV depending on the source and intended use.
Puretec provides separate rainwater-specific systems rather than describing the WU10-25M as a rainwater filtration product.
Puretec WU10-25M Cartridge Maintenance
| Stage | Cartridge | Function |
|---|---|---|
| Stage 1 | MB05LD1 | 5-micron nominal melt-blown sediment filtration |
| Stage 2 | EC10LD1 | Extruded carbon treatment for chlorine, taste and odour reduction |
Cartridge life varies according to household water use, incoming sediment loading, chlorine exposure and local water conditions.
Reduced household flow or changes in filtered-water quality can indicate that cartridge servicing is required.
Puretec recommends genuine replacement cartridges for maintaining the intended filtration configuration.
COMMON QUESTIONS
Puretec WU10-25M Installation FAQs
What is the Puretec WU10-25M?
It is a twin-stage, large-diameter 10-inch whole-house filtration system designed for mains-water supplies.
Is the WU10-25M a whole-house water filter?
Yes. It is designed for point-of-entry filtration so treated water can feed multiple downstream household fixtures.
Is the WU10-25M suitable for rainwater?
No. Puretec describes the WU10-25M as a mains-water system. Rainwater treatment should be selected around the water source and intended use.
What does the WU10-25M reduce?
Puretec describes the system as reducing chlorine, taste, odour, chemicals and sediment through its sediment and carbon filtration stages.
Does the WU10-25M remove fluoride?
Puretec does not describe the standard WU10-25M cartridge configuration as a dedicated fluoride-removal system.
Does the WU10-25M kill bacteria?
No. The standard system does not contain UV disinfection and should not be treated as a microbiological sterilisation system.
Does it soften hard water?
No. The standard sediment and carbon cartridges are not conventional water softening equipment.
What is the maximum published flow rate?
Puretec publishes a maximum flow rate of 30 litres per minute.
What connection size does the WU10-25M use?
Puretec specifies 1-inch BSP connections, approximately 25mm nominal size.
What filtration rating does it use?
The sediment stage has a nominal 5-micron rating.
Which cartridges does the WU10-25M use?
Puretec specifies the MB05LD1 melt-blown sediment cartridge and EC10LD1 extruded carbon cartridge.
Does the WU10-25M require electricity?
No. The standard filtration system requires no electrical supply.
What is the maximum pressure?
Puretec currently publishes a maximum pressure of 520kPa.
When is a pressure-limiting valve required?
Puretec states that an approved pressure-limiting device needs to be fitted where line pressure exceeds 500kPa.
What is the maximum water temperature?
Puretec publishes a maximum water temperature of 52°C.
Can it filter shower and bathroom water?
Where installed on the appropriate household water supply, filtration can apply to downstream showers, bathrooms and other connected fixtures.
Will the WU10-25M affect household water pressure?
Every filtration system creates some resistance to flow. Practical performance depends on incoming pressure, household demand, pipework and cartridge condition.
Is 30L/min enough for my home?
It depends on simultaneous household demand. Homes regularly operating several higher-flow fixtures together may be better suited to comparing a higher-flow system.
What is the difference between WU10-25M and WU10-40M?
Both use 10-inch housings, the same listed cartridges and the same published 30L/min maximum flow. The principal difference is the connection size: 25mm on the WU10-25M and 40mm on the WU10-40M.
What is the difference between WU10-25M and WU20-25M?
Both use 25mm connections, but the WU20-25M uses larger 20-inch cartridges and Puretec publishes a higher 60L/min maximum flow for that model.
How often should the cartridges be changed?
Cartridge life varies with household usage and incoming water conditions. Follow Puretec's current servicing guidance and the actual condition and performance of the cartridges.
Can the WU10-25M replace my existing whole-house filter?
Often, yes. Connection size, mounting, pressure, household flow and servicing clearance should still be checked before treating the installation as like-for-like.
What is JR's Base installation package?
JR's current Base pathway is for exact replacement of an existing Puretec WU10-25M where the existing installation remains suitable.
What is JR's Silver package?
Silver is JR's current wall-mounted new-installation pathway where the incoming water main is already exposed, including valves and pipework within package scope.
What is JR's Gold package?
Gold is JR's current freestanding pathway where the incoming main is exposed, including valves, pipework and concreted supports within package scope.
What if my incoming pipework is not exposed?
JR's current Sapphire and Diamond pathways cover wall-mounted and freestanding installations where the relevant incoming water pipework is not already exposed.
Why does JR list a Platinum package if the filter needs no power?
The standard WU10-25M does not require power. JR's Platinum package is a broader installation pathway that includes electrical provision where the overall installation requires it.
What booking options does JR currently offer?
JR's live selector currently includes Priority Saver and Express installation choices. Use the live selector above for current availability and timing.
How much does Puretec WU10-25M installation cost?
Current supplied-and-installed pricing is shown through JR's live selector. Final scope depends on the selected package, pipework, pressure, mounting arrangement and site conditions.
Can JR install the WU10-25M in Brisbane?
Yes. JR installs suitable whole-house mains filtration systems throughout eligible Greater Brisbane service areas.
Can JR install the WU10-25M on the Gold Coast?
Yes. JR provides suitable whole-house filtration installation across eligible Gold Coast service areas.
Does JR install the WU10-25M in Logan?
JR's current product information includes Logan within its stated service coverage, subject to current booking availability and site conditions.
Puretec WU10-25M Warranty & Maintenance
1-Year Manufacturer Warranty
Puretec currently lists one year parts and labour, subject to current manufacturer warranty terms.
Cartridges Are Consumables
Replacement filter cartridges are excluded from Puretec's standard manufacturer warranty.
Service Access Matters
Future cartridge replacement is easier when isolation and housing clearance are planned properly during installation.
Puretec's manufacturer warranty is separate from JR's installation workmanship and support terms. Manufacturer coverage remains subject to current Puretec conditions and correct installation, use and maintenance.
Why Choose JR Gas & Water for WU10-25M Installation?
LICENSED
Whole-house plumbing installation completed through appropriately licensed professionals.
SYSTEM CHECK
Household flow, incoming pressure, pipe sizing and installation position considered before finalising the setup.
COMMISSIONING
Filtration system flushing, connection checks and leak testing completed before handover.
SEQ
Brisbane, Gold Coast and surrounding eligible South East Queensland service coverage.
Whole-house filtration needs to suit both the treatment goal and the household's plumbing. JR considers pressure, expected flow, pipe sizing, mounting, cartridge access and the actual installation position before finalising the setup.
RELATED FILTRATION OPTIONS
Compare Whole-Home & Puretec Water Filters
Compare the WU10-25M with JR's wider whole-home mains filtration and Puretec ranges if your property needs a different flow rate, cartridge size, connection arrangement or filtration configuration.
READY TO INSTALL
Install the Puretec WU10-25M With JR Gas & Water
The Puretec WU10-25M is a practical twin-stage whole-house filtration option for suitable mains-water homes wanting sediment, chlorine, taste and odour treatment with 25mm connections and up to 30L/min published flow.
Before installation, confirm the water source, incoming pressure, household flow demand, pipe size, mounting arrangement, cartridge-service clearance and whether additional pressure control or pipework alterations are required.
Not only are we productreview.com.au 2023 national winner of the Best Plumbers category we were also voted national Best Home Care store which shows that our customers don't just love our great product prices but our product knowledge, customer service, attention to detail and second to none installation quality.
Being competitively priced is very important to us, we are not going to be the cheapest but like thousands of our customers 5-star reviews can attest to, for that little bit more you get a lot more, with great service, a superior installation, aftersales support, and what you generally miss out on with the cheapest install, manufacturer backed warranty. We guarantee our work won't leave you high and dry if you are the unlucky few that have a system die under warranty.
Â
More from JR Gas & Water
Recently viewed
