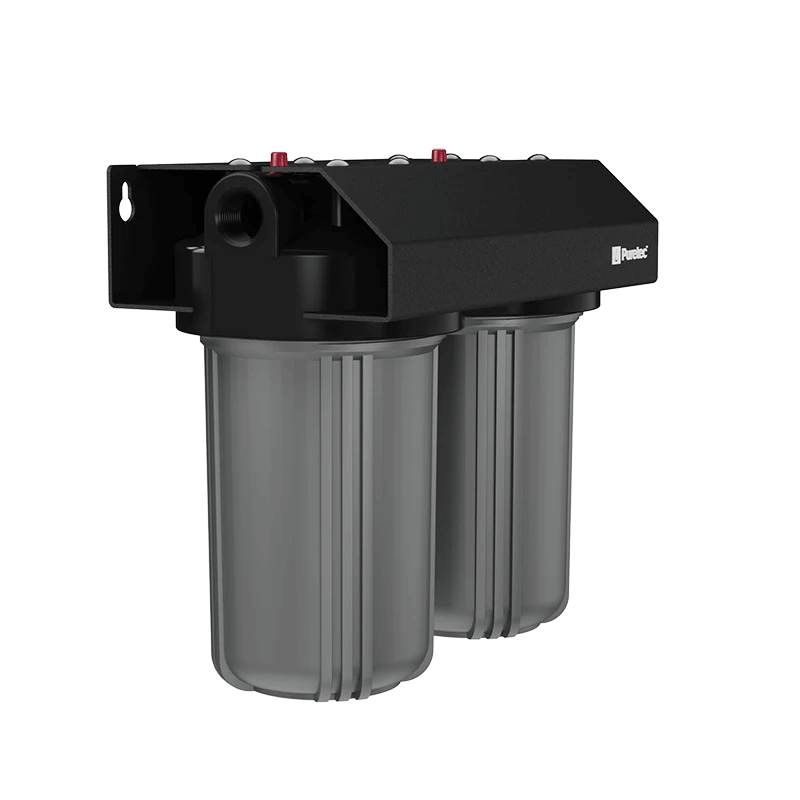

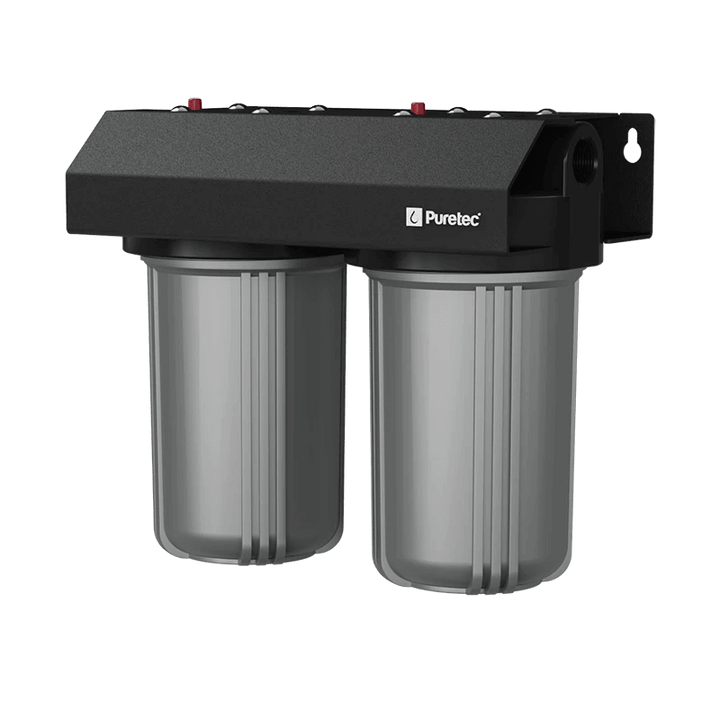

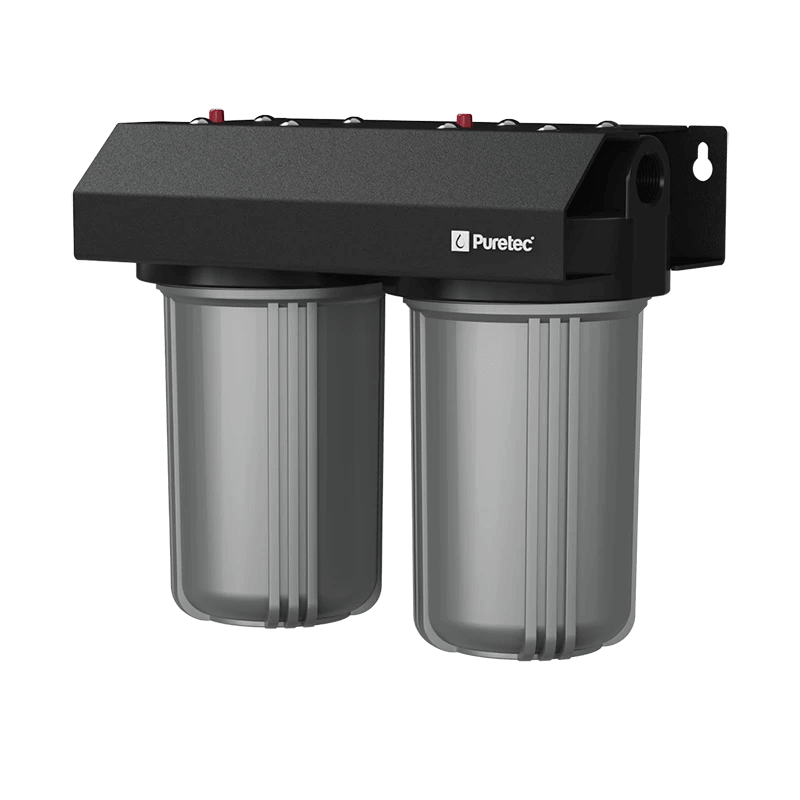

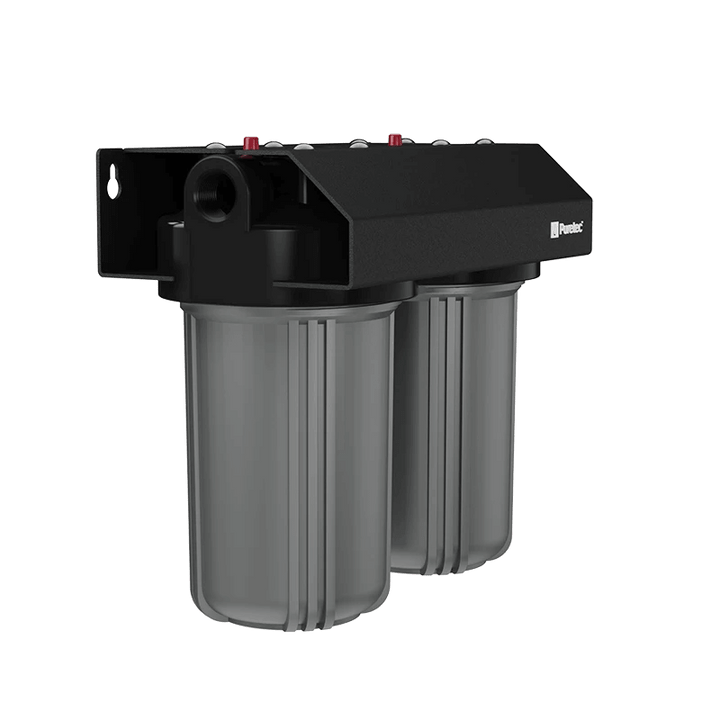

Puretec WH2-30 | Supply+Install | LIFETIME WARRANTY

Quick Specs & Benefits See what this filter targets and how it helps
  • Quality Category: Premium
  • Warranty: Comprehensive 10 Year
  • NSF/ANSI Certified: Yes
What This Filter Helps With
Sediment & Visible Particles The product data lists particles such as dirt, sand, silt, rust or sediment. The particulate stage helps capture these suspended solids before they travel through taps and appliances.
Chlorine, Taste & Odour This model is listed to help reduce chlorine and/or related taste and odour concerns, helping improve the everyday taste and smell of water throughout the home.
VOCs, Pesticides & Other Organic Chemicals The product data lists reduction of one or more organic chemical groups such as VOCs, pesticides, herbicides, solvents or pharmaceuticals. Exact performance depends on the filter media and the individual contaminant.
Listed Metals One or more metals such as lead, mercury, copper, arsenic or chromium are included in this model's contaminant data. Refer to the product certification or specification for the exact reduction claim for each metal.
View the full contaminant list for this model
Dirt, Sand, Silt, Rust, Sediment, Microplastics, Chlorine, Chloramine (partial reduction), Volatile Organic Compounds (VOCs), Pesticides, Herbicides, Industrial Solvents, Some Pharmaceuticals, Chlorine taste & odor, Organic smells, Sulfur compounds (reducing rotten egg smell), Lead (significant reduction), Mercury (significant reduction), Copper (significant reduction), Some arsenic compounds (partial reduction), Chromium 6 (partial reduction), Trihalomethanes (THMs), and Haloacetic acids (HAAs)
"Helps reduce" or "removes" should be read according to the manufacturer's tested specification for the selected model and cartridge. Reduction does not necessarily mean 100% removal.
Recommended

Silver Package

2 of 5
From...
GET A QUOTE

Select Your Preferred Install

PURETEC WHOLE-HOUSE MAINS WATER FILTRATION

Puretec WH2-30 Installation Brisbane & Gold Coast

JR Gas & Water supplies and professionally installs the Puretec WH2-30 whole-house water filter across eligible Brisbane and Gold Coast properties. It is a compact dual-stage system designed for treated mains-water supplies and filters the incoming water before it is distributed through applicable household taps, showers, baths and appliances.

The current WH2-30-LF combines a 10-inch sediment cartridge with a 10-inch carbon block cartridge. Puretec currently lists the system for reduction of sediment, chlorine, unwanted taste and odour, chemicals including PFAS and other manufacturer-listed treatment targets while providing a published maximum flow rate of 30 litres per minute.

The WH2-30 is a passive filtration system. It does not use electricity, UV treatment, reverse osmosis or ion-exchange water-softening resin. Its focus is straightforward whole-house sediment and carbon filtration in a more compact package than Puretec's 20-inch WH2-55 and WH2-60 systems.

Puretec WH2-30 at a glance: this is a dual-stage 10-inch whole-house mains-water filter with a published maximum flow of 30 L/min and a 1-inch BSP connection. Stage one uses the PX05MP1 5-micron sediment cartridge and stage two uses the CB10MP1 carbon block. Puretec currently lists sediment, chlorine, taste, odour and chemicals including PFAS among the system's reduction targets and provides a 10-year system warranty excluding consumable cartridges.

Puretec WH2-30 Supply & Installation at a Glance

Filtration Dual Stage
Maximum Flow 30 L/min
Connection 1" BSP
Power Required No

Who Is the Puretec WH2-30 Best For?

Mains-Water Homes

Puretec positions the WH2 range for treated mains or town water, providing filtration before water reaches the applicable household outlets.

Small to Medium Residences

Puretec currently categorises the WH2-30 as suitable for small to medium residences, subject to actual peak household flow and plumbing conditions.

Customers Wanting Compact Whole-House Filtration

The shorter 10-inch cartridge housings use considerably less vertical wall space than Puretec's 20-inch WH2-55 and WH2-60 systems.

PRODUCT SUITABILITY

Is the Puretec WH2-30 Right for My Property?

A Good Choice If...

  • Your property uses treated mains or town water.
  • You want filtration throughout the home rather than one drinking outlet.
  • You want separate sediment and carbon stages.
  • Your required whole-house flow suits a 30 L/min filter.
  • You want a system that requires no electricity.
  • You have suitable wall space and servicing access.

Consider Another Option If...

  • You need more than 30 L/min peak household filtration flow.
  • You specifically want conventional water softening.
  • You require microbiological disinfection for untreated water.
  • You specifically want broad dissolved-solids or fluoride reduction.
  • You only need filtered drinking water at the kitchen.
  • You want a fully enclosed exterior filtration cabinet.

JR Should Check First If...

  • Incoming water pressure exceeds 500 kPa.
  • Your household has high simultaneous water demand.
  • Your incoming main is larger or smaller than the system connection.
  • The intended mounting wall is unsuitable.
  • The filter would be exposed to strong direct sunlight.
  • Your source is bore, rain or otherwise untreated water.
30 L/min is a maximum product flow rating, not a household-size guarantee. Actual suitability depends on simultaneous water demand, incoming pressure, pipework and cartridge condition. A property with higher peak demand may be better matched to a larger WH2 model.

How Does the Puretec WH2-30 Work?

The WH2-30 uses two MaxiPlus™ 4.5-inch × 10-inch cartridges in sequence. The first stage deals with suspended particulate material before the water reaches the downstream carbon-treatment stage.

1

Stage 1 – PX05MP1 Sediment Filtration

The first housing contains Puretec's PX05MP1 5-micron polyspun sediment cartridge. It is designed to reduce dirt, rust, sand, silt, algae and other suspended particles before water reaches the carbon block.

2

Stage 2 – CB10MP1 Carbon Filtration

The second housing contains Puretec's CB10MP1 bonded activated-carbon block cartridge. This stage is used for chlorine, unwanted taste and odour, sediment and the chemical-reduction performance attributed by Puretec to the current WH2-30 system.

Why sediment comes first: capturing particulate material before the carbon block helps reduce sediment loading on the downstream treatment media and maintains the intended two-stage filtration arrangement.

What Does the Puretec WH2-30 Reduce?

Puretec currently lists sediment, chlorine, taste and odour, harmful chemicals and PFAS among the reduction targets for the WH2-30. Claims should stay tied to the genuine PX05MP1 and CB10MP1 cartridge configuration and current Puretec documentation.

Sediment & Visible Particles

The PX05MP1 5-micron first stage targets suspended dirt, rust, sand, silt, algae and other particles in the incoming mains-water supply.

Chlorine, Taste & Odour

The CB10MP1 bonded-carbon stage reduces chlorine and compounds associated with unwanted taste and odour in treated mains water.

Manufacturer-Listed Chemicals Including PFAS

Puretec's current WH2-30 product page specifically includes harmful chemicals, including PFAS, among the reduction targets for the system.

Reduction does not mean guaranteed 100% removal. Treatment performance depends on water quality, flow, cartridge loading, contact time and the specific substance being considered.

Key Features of the Puretec WH2-30

30 L/min Maximum Flow

Puretec publishes a maximum flow rate of 30 litres per minute for the current WH2-30-LF.

Compact 10-Inch Cartridges

The WH2-30 uses two 4.5-inch × 10-inch MaxiPlus™ cartridges, reducing overall installation height compared with the 20-inch WH2 systems.

1-Inch BSP Connection

The system uses a 25 mm / 1-inch BSP plumbing connection, which should be considered alongside the existing incoming pipework before installation.

Rust-Proof Anti-Flex Bracket

Puretec's current WH2-30 uses an integrated rust-proof, anti-flex aluminium wall-mount bracket to support the twin-housing assembly.

No Electricity Required

The standard system contains no pump, UV lamp, powered valve or electronic treatment controller.

10-Year Manufacturer Warranty

Puretec currently provides one year parts and labour plus nine additional years parts only on the WH2-30 system, excluding consumable cartridges.

Puretec WH2-30 Specifications

Specification Detail
Brand Puretec
Current Model WH2-30-LF
Application Whole-house treated mains / town-water filtration
Puretec Residence Category Small to medium
Filtration Stages 2
Stage 1 Cartridge PX05MP1 polyspun sediment cartridge
Stage 1 Rating 5 micron nominal
Stage 2 Cartridge CB10MP1 bonded activated-carbon block
Carbon Cartridge Rating 10 micron
Cartridge Format MaxiPlus™ 4.5" × 10"
Maximum Flow Rate 30 L/min
Current Model Maximum Pressure 520 kPa
Pressure Control Puretec requires an approved pressure-limiting device where line pressure exceeds 500 kPa
Connection 1" BSP / 25 mm
Published Dimensions Approx. 337 mm H × 379 mm W × 209 mm D
Rear Mounting Width Approx. 345 mm
Service Clearance At least 50 mm beneath the filter bowls according to Puretec installation guidance, with additional working space recommended
Power Requirement None
UV Treatment No
Reverse Osmosis No
Water Softening No conventional ion-exchange softening stage
WaterMark Puretec's WH-series documentation identifies AS 3497 WaterMark certification, Licence No. WM 74617
NSF/ANSI JR currently displays “NSF/ANSI Certified: Yes”; the Puretec manufacturer material reviewed does not identify the specific complete-system NSF/ANSI certification basis, so a specific NSF/ANSI standard should not be claimed without supporting certification documentation
Manufacturer Warranty 10 years: 1 year parts and labour plus 9 years parts only; cartridges excluded
Cartridge Service Guide Generally 6–12 months depending on water quality and use; Puretec recommends approximately six-month replacement for optimum filtered-water quality
JR Lifetime Warranty Eligible where applicable JR installation and warranty conditions are met
Current pressure data takes priority: older Puretec WH2 literature lists a broader 200–875 kPa range, while Puretec's current WH2-30-LF product page specifies a maximum pressure of 520 kPa. Puretec's installation guidance also requires pressure limiting above 500 kPa, so installation should follow the current model documentation.
INSTALLATION REQUIREMENTS

What Is Required to Install the Puretec WH2-30?

  • Suitable treated mains-water point-of-entry connection
  • Solid mounting surface for the twin filter bracket
  • Wall space for approximately 337 × 379 × 209 mm system dimensions
  • Clearance beneath the filter bowls for cartridge changes
  • Accessible isolation before the filtration system
  • Appropriate point-of-entry backflow prevention
  • Pressure limiting where incoming pressure exceeds 500 kPa
  • Protection from water hammer
  • Cold-water application
  • Protection from freezing
  • Location protected from strong direct sunlight
  • Accessible pipework for future servicing
  • Leak-management planning where leakage could damage property
  • Qualified licensed plumbing installation
Pressure control should be checked before installation. Puretec currently lists 520 kPa as the model maximum and separately instructs that an approved pressure-limiting valve must be installed where incoming line pressure exceeds 500 kPa.

Where Should the Puretec WH2-30 Be Installed?

The WH2-30 is normally installed on the treated mains-water supply before the applicable household plumbing branches so the connected outlets receive water after both filtration stages.

Its compact 337 mm published height can make the WH2-30 easier to position than a 20-inch whole-house filter, but the bowls still need practical room below them so cartridges can be removed during servicing.

The wall or mounting surface must be capable of securely supporting the filled twin filter system. Puretec also advises against installing the housings in strong direct sunlight and requires the system to be protected from freezing and water-hammer conditions.

What's Included With Puretec WH2-30 Installation?

Selected JR Installation Package

The live JR product and installation selector above remains the source of truth for current installed pricing, package inclusions and your selected installation timeframe.

Mounting, Connection & Commissioning

For an applicable standard installation, the WH2-30 is mounted in a suitable position, connected to accessible mains-water pipework and checked before the water supply is returned to service.

Possible Additional Work

Pressure control, backflow equipment, additional isolation, pipe alterations, mounting reinforcement, leak protection, relocation or other non-standard work may require additional allowance or quotation.

How Much Does Puretec WH2-30 Installation Cost?

Current supplied-and-installed pricing is displayed in JR's live product and installation selector above. That live selector should remain the pricing source rather than publishing a fixed figure in the long-form content.

Final cost can depend on the incoming-main location, pipe diameter, wall construction, pressure-control requirements, isolation, backflow equipment, accessibility and whether the job is a straightforward replacement or a completely new whole-house installation.

If the property falls outside the applicable standard package, JR's written or onsite quote pathway can be used before additional work proceeds.

BRISBANE INSTALLATION

Puretec WH2-30 Installation Brisbane

JR Gas & Water supplies and installs the Puretec WH2-30 across eligible Brisbane properties for customers wanting compact sediment and carbon treatment across their treated mains-water supply.

For a Brisbane installation, JR considers the incoming main, expected simultaneous household demand, pipe diameter, pressure, mounting structure and future cartridge access. The WH2-30's 30 L/min maximum-flow rating can suit many small-to-medium residential applications, but actual sizing should follow household demand rather than residence labels alone.

Where line pressure exceeds Puretec's requirements, pressure control should be addressed before the filter is commissioned. Eligible JR service coverage also extends through Logan, Ipswich, Moreton Bay and Redlands.

GOLD COAST INSTALLATION

Puretec WH2-30 Installation Gold Coast

JR Gas & Water also provides Puretec WH2-30 supply and installation across eligible Gold Coast properties. The shorter 10-inch filter housings can be useful where a conventional open whole-house filter is wanted but the installation area has less vertical clearance than a 20-inch system requires.

The proposed Gold Coast location should still provide a stable mounting surface, protection from unsuitable weather exposure and direct sunlight, accessible isolation and enough working room beneath the housings for future cartridge servicing.

Where the property requires more than the WH2-30's published maximum flow or the existing incoming main is better matched to a larger connection, JR can assess the WH2-35, WH2-55, WH2-60 or another whole-house platform instead.

Can the Puretec WH2-30 Replace My Existing Whole-House Filter?

Replacing Another WH2-30

An exact replacement can be relatively straightforward where the existing bracket position, pipework, valves, pressure control and installation remain suitable.

Replacing a WH2-35

Both systems use the same PX05MP1 and CB10MP1 cartridges, but their plumbing connections differ. The WH2-30 uses 1-inch BSP while the WH2-35 uses a larger connection.

Replacing a 20-Inch Filter

The WH2-30 is physically shorter and uses 10-inch cartridges. Connection position, bracket spacing and required household flow need to be checked before downsizing.

Replacing Another Brand

Potentially. Connection size, mounting centres, dimensions, pressure conditions and future service clearance should be checked before treating the changeover as like-for-like.

Which Replacement Cartridges Does the Puretec WH2-30 Use?

Stage Cartridge Size Function
Stage 1 PX05MP1 4.5" × 10" 5-micron sediment pre-filtration
Stage 2 CB10MP1 4.5" × 10" 10-micron bonded activated-carbon treatment

Puretec specifies the same PX05MP1 and CB10MP1 pair for both the WH2-30 and WH2-35. These are the exact cartridge codes to use when servicing the standard WH2-30 configuration.

How Often Does the Puretec WH2-30 Need Servicing?

Puretec's current maintenance guidance specifies replacement of WH-series cartridges every 6–12 months depending on water quality and household usage and recommends approximately six-month replacement to maintain optimum filtered-water quality.

Sediment Cartridge Loading

The PX05MP1 can block sooner where the incoming mains supply carries greater amounts of rust, silt or other particulate matter. Falling household flow can be an indication that the sediment stage needs attention.

Carbon Treatment Capacity

The CB10MP1 has finite carbon-treatment capacity. Household consumption and incoming chlorine or chemical loading can influence practical service life.

Housing & O-Ring Inspection

Puretec recommends checking the housings and seals during cartridge servicing and replacing O-rings approximately every 3–5 years or sooner where deterioration is evident.

After servicing: the system should be repressurised gradually, checked carefully for leaks and flushed in accordance with Puretec's cartridge and system instructions before returning to normal use.

Puretec WH2-30 vs Other Whole-House Options

System Maximum Flow Connection Cartridge Format Main Difference
Puretec WH2-30 30 L/min 1" BSP 10-inch dual stage Compact WH2 option for lower household flow
Puretec WH2-35 Current Puretec page lists 30 L/min 1½" BSP 10-inch dual stage Same replacement cartridges with larger connection
Puretec WH2-55 55 L/min 1" BSP 20-inch dual stage Larger cartridge capacity and higher flow
Puretec WH2-60 60 L/min 1½" BSP 20-inch dual stage Highest-flow conventional WH2 model
Puretec FilterWall Model dependent Model dependent Enclosed multi-stage platform Different enclosure, appearance and treatment configurations
Puretec Softrol Water Softener Model dependent Model dependent Ion-exchange resin Designed for hardness reduction rather than sediment-and-carbon filtration

The best model depends on actual household peak flow, existing pipe size, available wall space and treatment goal. A larger system is not automatically required where the property's real flow demand suits the WH2-30.

Puretec WH2-30 Warranty & Maintenance

10-Year Manufacturer Warranty

Puretec currently provides a 10-year warranty consisting of 1 year parts and labour plus 9 years parts only on the WH2-30. Consumable cartridges are excluded.

Genuine Replacement Cartridges

Puretec instructs customers to use genuine PX05MP1 and CB10MP1 replacement cartridges to maintain system performance, applicable standards and warranty conditions.

JR Lifetime Warranty Eligibility

JR's current product listing identifies the WH2-30 as Lifetime Warranty eligible. JR's Lifetime Warranty remains separate from Puretec's manufacturer warranty and is subject to applicable JR installation and warranty conditions.

COMMON QUESTIONS

Puretec WH2-30 Installation FAQs

How much does Puretec WH2-30 installation cost?

Current supplied-and-installed pricing is shown in JR's live product and installation selector above. Final cost depends on the package and requirements such as pipe alterations, pressure control, isolation valves, backflow equipment and mounting conditions.

Can JR install the Puretec WH2-30 in Brisbane?

Yes. JR Gas & Water supplies and installs the WH2-30 across eligible Brisbane and surrounding South East Queensland service areas.

Can JR install the Puretec WH2-30 on the Gold Coast?

Yes. Professional supply and installation are available across eligible Gold Coast areas where the mains plumbing, pressure, mounting position and required flow suit the system.

Is the Puretec WH2-30 designed for mains water?

Yes. Puretec specifically designs the WH2 range for treated mains or town-water filtration.

What is the maximum flow rate of the WH2-30?

Puretec currently publishes a maximum flow rate of 30 litres per minute.

What size connection does the Puretec WH2-30 use?

The current WH2-30-LF uses a 1-inch BSP / 25 mm plumbing connection.

What cartridges does the Puretec WH2-30 use?

Puretec specifies PX05MP1 for the first sediment stage and CB10MP1 for the second carbon stage. Both are MaxiPlus™ 4.5-inch × 10-inch cartridges.

What micron rating is the sediment filter?

The PX05MP1 first-stage sediment cartridge is rated at 5 micron nominal.

What micron rating is the CB10MP1 carbon cartridge?

The CB10MP1 is a 10-micron bonded activated-carbon block cartridge.

Does the WH2-30 reduce chlorine?

Yes. Chlorine reduction is one of Puretec's current published treatment functions for the WH2-30.

Does the Puretec WH2-30 reduce PFAS?

Puretec's current WH2-30 product information specifically lists harmful chemicals including PFAS among the substances reduced by the system. This should be described as reduction rather than guaranteed complete removal.

Does the WH2-30 remove fluoride or TDS?

The WH2-30 is not a reverse-osmosis or broad dissolved-solids-removal system. Where fluoride or TDS reduction is the main treatment objective, another filtration technology should be assessed.

Does the Puretec WH2-30 soften hard water?

No. It provides sediment and carbon filtration. Conventional hardness reduction requires a water softener or another treatment system designed specifically for hardness.

Does the WH2-30 require electricity?

No. The standard WH2-30 is a passive filtration system and contains no powered treatment stage.

What is the maximum pressure for the Puretec WH2-30?

Puretec's current WH2-30-LF product page lists a maximum pressure of 520 kPa. Puretec requires an approved pressure-limiting device where line pressure exceeds 500 kPa.

What are the Puretec WH2-30 dimensions?

Puretec's WH2 specification drawing lists the 10-inch WH2-30/WH2-35 platform at approximately 337 mm high × 379 mm wide × 209 mm deep, with a rear mounting width of approximately 345 mm. Additional clearance is required for servicing.

How often should the WH2-30 cartridges be replaced?

Puretec specifies replacement every 6–12 months depending on water quality and usage and recommends approximately six-month cartridge changes for optimum filtered-water quality.

Can the Puretec WH2-30 be used on untreated rainwater?

The WH2 platform is primarily designed for mains water. Puretec warns against using the system on microbiologically unsafe or unknown-quality water without adequate disinfection. Rainwater or bore-water treatment should be assessed separately.

Is the Puretec WH2-30 WaterMark certified?

Puretec's current WH-series installation documentation identifies AS 3497 WaterMark certification under Licence No. WM 74617.

Is the Puretec WH2-30 NSF/ANSI certified?

JR's current product metadata displays “NSF/ANSI Certified: Yes”. The Puretec manufacturer material reviewed does not identify the specific complete-system NSF/ANSI certification basis, so a specific NSF/ANSI standard should be verified before being published as a manufacturer-backed certification claim.

What is the Puretec WH2-30 warranty?

Puretec currently provides a 10-year system warranty comprising one year parts and labour plus nine years parts only. Consumable filter cartridges are excluded.

Why Choose JR Gas & Water for Puretec WH2-30 Installation?

Flow & Pressure Assessment

JR can check whether the 30 L/min WH2-30 is appropriately matched to the household's expected simultaneous water demand and incoming pressure.

Installation-Led Setup

Mounting, isolation, pressure control, backflow requirements and future cartridge access are considered alongside the filter itself.

Brisbane & Gold Coast Coverage

Professional whole-house filtration installation and servicing are available across eligible Brisbane, Gold Coast and surrounding South East Queensland service areas.

COMPARE YOUR OPTIONS

Related Whole-Home Water Filtration Options

Compare JR's current whole-home mains filtration range, Puretec systems and genuine replacement cartridges before selecting your final filtration setup.

All Water Filtration Systems Whole Home Mains Water Filtration Water Filter Cartridges Puretec What's in Brisbane's Drinking Water
READY TO INSTALL

Install the Puretec WH2-30 With JR Gas & Water

The Puretec WH2-30 is the compact 10-inch dual-stage option in Puretec's conventional WH2 whole-house range. Its PX05MP1 sediment cartridge, CB10MP1 carbon stage, 30 L/min maximum-flow rating and 1-inch plumbing connection make it a practical mains-water filtration system where those specifications match the property's actual demand.

JR Gas & Water supplies and installs the WH2-30 across eligible Brisbane and Gold Coast properties. Before booking, confirm the mains-water connection, household flow requirements, pressure, mounting position, service clearance and current installation package through the live options above.

Choose Your Installation Package Above

Select the applicable package and preferred installation timeframe using JR's live selector. If the property requires pressure control, backflow equipment, additional isolation valves, significant pipe alterations, mounting reinforcement or another non-standard requirement, use the written or onsite quote pathway before proceeding.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.
