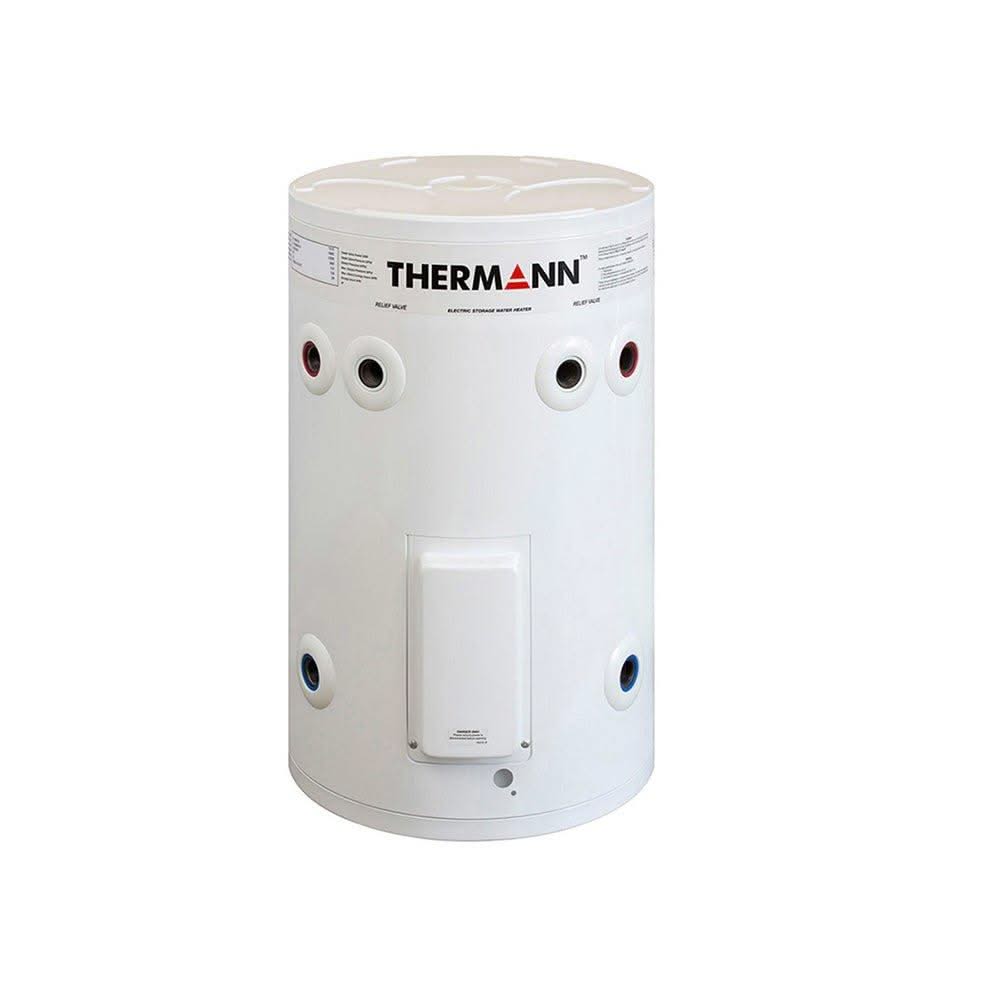

Thermann 50L Electric Hot Water System | Supply+Install | LIFETIME WARRANTY

Enjoy reliable, affordable hot water every day with the Thermann 50L electric hot water system — built for Australian homes and larger families of up to 1. Featuring a durable Steel Enamel tank, 10 year factory warranty, and expert installation across Brisbane and the Gold Coast, this system delivers performance you can count on. Made in Australia and backed by award-winning service.
Quick Specs & Benefits View product specifications and installation details
  • Volume: 50L
  • Recommended Household Size: 1 people +
    • 50L: 1 person full time tariff
    • 80L: 1 person full time tariff, 1 person off peak
    • 125L: 2 people full time, 2 people off peak
    • 160L: 3 people full time, 2 people off peak
    • 250L: 5 people full time, 4 people off peak, 6 people dual element
    • 315L: 6 people full time, 5 people off peak, 7 people dual element
    • 400L: 8 people full time, 7 people off peak, 9 people dual element
  • Model Number: 9507168
  • Width: 405 mm
  • Height: 670 mm
  • Minimum Room Needed for Internal Installations: 555 W x 505 D x 770 H mm
  • Indoor / Outdoor Installation: Indoor and outdoor installation compatible
  • Element Configuration: Single Element
  • Connections: Left and right hand side connections
  • Available in the Following Power Ratings: 1.8kW, 2.4kW, 3.6kW and 4.8kW +

    We will adjust the element size on site to suit your existing circuit, so there is nothing extra you need to check before installation.

    • 1.8kW: 8 amp minimum, 10 amp recommended
    • 2.4kW: 10 amp minimum, 15 amp recommended
    • 3.6kW: 15 amp minimum, 20 amp recommended
    • 4.8kW: 20 amp minimum, 25 amp recommended
  • Internal Cylinder Material: Steel Enamel
  • Maximum Cylinder Warranty: 10 Years +
    • Cylinder: 10 years
    • Thermostat: 12 months
    • Element: 12 months
    • Valve Set: 24 months
    • Parts and Labour: 1 year on all
  • Made In: Australia
Recommended

Gold Package

3 of 6
From ...
or
Already Have A Compliant Setup?
Base installation may suit an exact like-for-like electric storage replacement where the existing installation is already compliant and no alterations are required.
From...

Select Your Preferred Install

Choose an exact installation date, or stay flexible and save.

🏷️ Brand: Thermann
🔢 Model Number: 9507168
📦 Volume: 50L
📏 Width: 405 mm
📐 Height: 670 mm
🌍 Manufactured In: Australia
🛠️ Cylinder / Heat Exchange Material: Steel Enamel
🛡️ Cylinder / Heat Exchange Warranty: 10 Years
🔇 Noise Level: NA dBa
⚖️ Dry Weight: kg
⚡ Energy Source: Electric
📡 WiFi Controller:
⏲️ Built-In Timer: No
💡 LED/LCD Status Indicator:
📊 Coefficient of Performance (COP):

THERMANN SMALL ELECTRIC STORAGE HOT WATER

Thermann 50L Small Electric Storage Installation in Brisbane & Gold Coast

Looking for Thermann 50L Small Electric Storage installation in Brisbane or the Gold Coast? JR Gas & Water supplies and installs compact electric storage hot water systems for homes, offices, kitchenettes, utility areas and other properties requiring reliable hot water for lighter demand.

The Thermann 50L Small Electric Storage is a compact electric storage water heater providing 50 litres of storage capacity and 50 litres of hot water delivery. It is designed for locations where space is limited and a larger electric storage tank may be unnecessary.

With Thermann's V Fit configuration, dual-handed water connections, compact dimensions and a choice of 2.4kW plug-in or 3.6kW hardwired versions, the system offers practical flexibility when replacing an older small electric hot water heater.

The 2.4kW version is supplied with a GPO plug-in connection, while the 3.6kW version requires an appropriate hardwired electrical connection. The correct version depends on the property's existing electrical arrangement and installation requirements.

For customers comparing Thermann 50L installed pricing, Thermann 50L supply and install, small electric hot water replacement or 50 litre electric storage installation, the right choice depends on the tank size, available space, plumbing layout, electrical supply and actual hot water demand.

JR Gas & Water provides professional hot water installation across Brisbane, the Gold Coast, Logan, Ipswich, Moreton Bay and Redlands, subject to availability.

Thermann 50L at a glance: The Thermann 50L Small Electric Storage is a compact electric storage hot water system with 50 litres of storage capacity and hot water delivery. It features a V Fit configuration, dual-handed water connections and 2.4kW plug-in or 3.6kW hardwired options. Approximate dimensions are 670mm high and 405mm in diameter, with an empty weight of approximately 23kg. It is generally suited to light hot water demand, including around 1–2 people on a continuous tariff depending on usage. The supplied product information lists a 7-year domestic tank warranty and 1-year domestic parts and labour warranty, subject to manufacturer conditions.

Thermann 50L Small Electric Storage Key Features

50L Storage Capacity

Compact stored hot water capacity designed for suitable light-demand applications.

50L Hot Water Delivery

Provides 50 litres of hot water delivery according to the supplied product information.

V Fit Configuration

Thermann's installation-oriented configuration designed to assist with suitable replacement applications.

Dual-Handed Connections

Flexible water connection arrangement that can assist with existing plumbing layouts.

2.4kW Plug-In Option

Available with a GPO plug-in connection for a suitable electrical installation.

3.6kW Hardwired Option

Alternative element configuration requiring a compatible hardwired electrical supply.

Compact Dimensions

Approximately 670mm high and 405mm in diameter, suitable for assessment in tighter spaces.

Domestic Tank Warranty

7-year tank warranty stated in the supplied information, subject to current manufacturer conditions.

PRODUCT OVERVIEW

What Is the Thermann 50L Small Electric Storage?

The Thermann 50L Small Electric Storage is a compact electric storage hot water system designed to heat and store water for everyday use.

It provides 50 litres of storage capacity and 50 litres of hot water delivery, making it a practical option for properties with relatively low hot water requirements.

The system is part of the Thermann small electric storage range, which is intended for applications where a full-size residential storage tank may be unnecessary or difficult to accommodate.

Unlike an instantaneous water heater, the Thermann 50L stores heated water inside its tank until required.

When hot water is used, cold water enters the cylinder and the electric heating element reheats the stored water according to the system's operating controls.

The model is available in 2.4kW plug-in and 3.6kW hardwired configurations, allowing the appropriate version to be selected for a compatible installation.

Its compact dimensions, dual-handed water connections and V Fit configuration are particularly relevant when assessing a replacement for an older small electric storage heater.

Why Choose the Thermann 50L Small Electric Storage?

Compact Hot Water Storage

Provides 50 litres of stored hot water without the space requirements of a larger residential tank.

Flexible Electrical Options

Available in 2.4kW plug-in and 3.6kW hardwired versions to suit different compatible electrical arrangements.

Replacement-Friendly Design

V Fit configuration and dual-handed connections can help simplify suitable electric storage changeovers.

Light-Demand Applications

Worth considering for offices, kitchenettes, utility areas, compact amenities and smaller properties.

Small Physical Footprint

Approximately 670mm high and 405mm in diameter, making it suitable for assessment in restricted spaces.

Straightforward Electric Storage

Conventional electric storage operation for properties where a compact tank-style system is appropriate.

SYSTEM SIZING

Is the Thermann 50L Small Electric Storage Right for Your Home?

The Thermann 50L is generally best suited to light hot water demand.

The supplied product information indicates suitability for approximately 1–2 people on a continuous electricity tariff, depending on usage patterns.

It may also be practical for small offices, kitchenettes, utility rooms, compact amenities and other locations where hot water demand is limited.

Potentially Suitable Applications

Small households with limited demand, offices, kitchenettes, utility rooms, compact amenities and appropriate small tenancies.

Applications That May Need More Capacity

Larger households, multiple bathrooms, regular long showers, baths or properties with frequent simultaneous hot water use.

The correct capacity depends on the property's actual hot water use, not simply the number of occupants.

A compact kitchenette with occasional hot water use has different requirements from a home with regular shower demand.

JR Gas & Water considers the intended use, electrical arrangement, available space and existing plumbing before recommending the Thermann 50L.

Is a 50 Litre Electric Storage Hot Water System Big Enough?

A 50 litre electric storage system can be suitable where hot water demand is relatively light.

However, it has considerably less stored hot water than larger 80L, 125L, 160L or 250L electric storage systems.

Actual usable hot water depends on stored water temperature, incoming cold water temperature, outlet temperature, fixture flow rates and how quickly the system reheats.

Several long showers or multiple outlets operating close together may use the available stored hot water faster than it can be replenished.

For a property with higher daily demand, a larger storage system may be a better choice.

The Thermann 50L should be selected because its capacity suits the property, rather than simply because it is compact or has a lower upfront purchase price.

COMPACT DIMENSIONS

Thermann 50L Small Electric Storage Dimensions

The Thermann 50L is designed for locations where installation space can be limited.

The supplied product information identifies the following approximate dimensions and empty weight:

670mm

Approximate total height

405mm

Approximate cylinder diameter

23kg

Approximate empty weight

These figures should be confirmed against the current manufacturer dimensional drawing for the exact 2.4kW or 3.6kW version being installed.

The installation must also allow adequate space for pipework, valves, electrical access, drainage and future maintenance.

A heater that physically fits into a cupboard or utility area is not automatically suitable for installation there.

Thermann V Fit Configuration for Easier Replacement

The Thermann 50L uses a V Fit style configuration intended to assist with suitable installation and replacement applications.

This is particularly relevant when an existing small electric storage water heater is being replaced and the installer needs to work within an established plumbing layout.

The system also features dual-handed water connections, providing additional flexibility when connecting the heater to compatible pipework.

However, a V Fit configuration does not guarantee a direct replacement for every older electric water heater.

Pipework alterations, valve upgrades or electrical changes may still be required depending on the existing installation.

JR Gas & Water assesses the available space, plumbing and electrical arrangement before confirming whether a straightforward changeover is possible.

Thermann 50L Dual-Handed Water Connections

The Thermann 50L features dual-handed water connections.

This design can help accommodate different existing plumbing arrangements when replacing a small electric storage heater.

Connection flexibility may reduce the amount of pipework modification required in suitable installations.

However, existing connection positions, valve requirements and available clearances still need to be checked.

Where the existing plumbing does not align appropriately, additional pipework may be required to complete the installation safely and compliantly.

ELECTRICAL CONFIGURATIONS

Thermann 50L 2.4kW Plug-In vs 3.6kW Hardwired

The Thermann 50L Small Electric Storage is available in two electrical configurations.

2.4kW Plug-In Version

Uses a 2.4kW heating element and is supplied with a GPO plug-in connection.

Installation requires a suitable, compliant electrical outlet and circuit that meet the manufacturer's requirements.

3.6kW Hardwired Version

Uses a 3.6kW heating element and requires an appropriate hardwired electrical connection.

The electrical circuit, protection and connection must be assessed for compatibility with the selected heater.

The 3.6kW element has a higher rated heating output than the 2.4kW element and can provide faster reheating under comparable conditions.

However, the higher element rating also requires a suitable electrical installation.

The plug-in version should not be assumed to work with any convenient power point. Outlet suitability, circuit capacity and manufacturer instructions must be checked.

Similarly, the hardwired version must be connected by an appropriately licensed electrical worker.

Can the Thermann 50L Run on Continuous or Off-Peak Electricity?

The supplied product information identifies the Thermann 50L as suitable for approximately 1–2 people on a continuous tariff, depending on usage.

It also describes the model as potentially suitable for off-peak style electricity arrangements.

However, tariff compatibility must be checked for the exact selected version and installation.

A continuous tariff provides electricity for reheating throughout the day, subject to normal thermostat operation.

A restricted off-peak or controlled-load arrangement may provide electricity only during specified periods.

Because the Thermann 50L has a relatively small storage capacity, restricted heating periods may not suit properties with frequent hot water use.

Before installation, JR Gas & Water considers the existing electrical supply, selected element configuration and actual demand.

How Does the Thermann 50L Electric Storage Water Heater Work?

1. Cold water enters the cylinder: Water flows into the tank through the cold water connection.

2. The electric element heats the water: The selected 2.4kW or 3.6kW element converts electrical energy into heat.

3. The thermostat controls heating: The system regulates water heating according to its operating controls.

4. Hot water is stored: Heated water remains in the 50 litre storage cylinder until required.

5. Hot water is delivered: Opening a hot water outlet draws heated water from the tank.

6. The tank reheats: Replacement water is heated when the thermostat calls for heating and electricity is available.

The actual reheating time depends on the selected element, incoming water temperature and amount of water requiring heating.

TECHNICAL DETAILS

Thermann 50L Small Electric Storage Specifications

Specification Details
Brand Thermann
Product Thermann 50L Small Electric Storage
System Type Electric storage hot water system
Storage Capacity 50 litres
Hot Water Delivery 50 litres
Product Range Thermann Small Electric Storage
Installation Configuration V Fit style
Water Connections Dual-handed
Element Options 2.4kW or 3.6kW
2.4kW Connection GPO plug-in version
3.6kW Connection Hardwired version
Approximate Total Height 670mm
Approximate Diameter 405mm
Approximate Empty Weight 23kg
Indicative Household Suitability Approximately 1–2 people on continuous tariff, depending on usage
Electricity Tariff Confirm compatibility for the selected version and site
Domestic Tank Warranty 7 years, subject to current manufacturer terms
Domestic Parts and Labour Warranty 1 year, subject to current manufacturer terms
Timed Recirculation Tank Warranty 3 years, subject to current manufacturer terms
Commercial Tank Warranty 3 years, subject to current manufacturer terms
Commercial Parts and Labour Warranty 1 year, subject to current manufacturer terms
Exact Model Codes Confirm current manufacturer specification
Rated Voltage Confirm current manufacturer specification
Water Connection Sizes Confirm current manufacturer specification
Maximum Water Supply Pressure Confirm current manufacturer specification
Relief Valve Rating Confirm current manufacturer specification
Recovery Rate Confirm current manufacturer specification
Installation Clearances Confirm current installation instructions
Installation Areas Brisbane, Gold Coast and eligible surrounding areas

Specifications are based on the supplied product information and have not been independently verified against current Thermann manufacturer documentation. Confirm exact model codes, dimensions, electrical requirements, pressure limits, tariff compatibility, warranty conditions and installation instructions before installation.

INSTALLATION REQUIREMENTS

Thermann 50L Small Electric Storage Installation Requirements

Correct installation requires the heater to suit the property's hot water demand, electrical arrangement, plumbing layout, water pressure and available space.

Correct Thermann 50L model selection
Suitable 50 litre hot water capacity
Correct 2.4kW or 3.6kW version
Compatible electricity tariff
Suitable GPO or hardwired connection
Compliant electrical circuit
Suitable installation location
Adequate manufacturer clearances
Safe installation and servicing access
Suitable supporting surface
Compatible hot and cold water connections
Correct dual-handed connection arrangement
Water pressure assessment
Pressure limiting where required
Required relief valve arrangements
Temperature limiting where required
Suitable drainage arrangements
Correct filling before energising
Testing and commissioning
Compliance with applicable requirements

Some installations may require additional electrical work, plumbing alterations, valve upgrades, drainage improvements or relocation.

The final scope depends on the existing property conditions and the selected heater version.

Important: Fill the Thermann 50L Tank Before Connecting Power

The supplied product information specifically notes that the Thermann 50L storage tank must be filled with water before connecting it to a power source.

Operating an electric storage heater without sufficient water can damage the heating element.

During commissioning, the installer must ensure the cylinder is filled and air has been purged in accordance with the manufacturer's instructions before energising the system.

This requirement applies regardless of whether the selected heater is the 2.4kW plug-in version or the 3.6kW hardwired version.

Can the Thermann 50L Replace Your Existing Electric Hot Water System?

The Thermann 50L may be a suitable replacement for an existing small electric storage heater where 50 litres remains appropriate for the property's hot water demand.

The V Fit configuration, dual-handed water connections and compact dimensions can assist with suitable replacement applications.

However, a 50 litre system is not automatically interchangeable with every older 50 litre heater.

Before confirming replacement suitability, JR Gas & Water considers:

Existing hot water system capacity
Actual hot water demand
Existing element wattage
Electrical connection type
Existing tariff arrangement
Available installation dimensions
Pipework connection positions
Water pressure and valves
Drainage requirements
Access for removal and installation

Where the existing system uses a plug-in connection, the selected replacement must still be checked for electrical compatibility.

Where the existing system is hardwired, the appropriate replacement version and circuit requirements must be confirmed.

What's Involved in Installing the Thermann 50L Small Electric Storage?

1. Assess the Existing Installation

Review hot water demand, the existing heater, electrical supply, element configuration, available space, plumbing, valves and drainage.

2. Supply and Install

Supply the selected Thermann 50L version, remove the old heater where included, position the new unit and complete suitable plumbing and electrical connections.

3. Commission and Test

Fill and purge the cylinder before energising, inspect connections, test operation and confirm the installation is functioning appropriately.

Additional work may be required for unsuitable electrical connections, valve upgrades, pipework modifications, drainage improvements or relocation.

JR Gas & Water aims to make the required installation scope clear before the work proceeds.

SUPPLY & INSTALL PRICING

How Much Does Thermann 50L Installation Cost in Brisbane or the Gold Coast?

Thermann 50L Small Electric Storage installed pricing depends on the selected model and the work required at the property.

A straightforward like-for-like replacement may be simpler than an installation requiring electrical changes, plumbing alterations or relocation.

Factors affecting installation cost include:

Thermann 50L unit supply
2.4kW or 3.6kW model selection
Removal of the existing heater
Existing GPO or hardwired connection
Electrical circuit suitability
Electrical alterations where required
Electricity tariff compatibility
Installation location and access
Plumbing connection compatibility
Water pressure conditions
Pressure limiting requirements
Relief valve requirements
Temperature limiting requirements
Drainage improvements
Base preparation
Relocation or additional pipework

No fixed installed price is stated because the final cost depends on the existing installation and required work.

JR Gas & Water can assess the property and determine the appropriate supply and installation scope.

Thermann 50L Running Costs and Electricity Consumption

The Thermann 50L uses electric resistance heating to heat water stored in its cylinder.

Running costs depend on actual hot water demand, incoming water temperature, storage heat losses, electricity pricing and the selected heating element configuration.

The 2.4kW and 3.6kW ratings describe heating element power, not the total electricity used over a day.

For the same amount of water heated through the same temperature increase, the energy required is broadly similar, although the higher-rated element can complete the heating cycle more quickly.

A smaller storage system does not automatically guarantee lower running costs if it is frequently emptied and reheated.

Electricity tariff arrangements should also be considered, particularly where controlled-load or off-peak options are available and compatible with the selected model.

Thermann 50L vs Thermann 25L and 80L Electric Storage

The Thermann 50L sits between smaller point-of-use style storage systems and larger electric storage models.

Consideration 25L Class Thermann 50L 80L Class
Nominal Capacity 25 litres 50 litres 80 litres
Relative Storage Smaller Intermediate Larger
Typical Consideration Very limited hot water demand Light hot water demand Greater hot water demand
Space Requirement Model dependent Approx. 670mm high × 405mm diameter Model dependent
Selection Priority Smallest suitable capacity Balance of compact size and storage Additional stored hot water

The 25L and 80L columns are general capacity-class comparisons, not verified specifications for particular Thermann models. Exact product selection requires the relevant manufacturer specifications.

The right capacity depends on how much hot water the property uses, how quickly it needs reheating and the space available for installation.

Why Choose a Quality Electric Hot Water System Instead of a Cheaper Alternative?

A compact electric hot water system should not be selected on upfront purchase price alone.

Correct capacity, electrical compatibility, plumbing connections, installation access and long-term serviceability all affect the result.

The Thermann 50L offers practical features including a V Fit configuration, dual-handed water connections, compact dimensions and a choice of plug-in or hardwired versions.

However, even a suitable product can perform poorly if it is undersized for the property or connected to an incompatible electrical arrangement.

JR Gas & Water focuses on selecting the appropriate product and completing the installation correctly rather than treating every hot water replacement as a simple tank swap.

Thermann 50L Maintenance and Long-Term Care

The Thermann 50L should be maintained in accordance with the manufacturer's current instructions.

As with other electric storage water heaters, valves, electrical components and plumbing connections may require professional attention over time.

Signs that the system may need inspection include:

Reduced hot water availability
Unexpected temperature changes
Longer reheating times
Water leaking from the tank
Unusual relief valve discharge
Electrical circuit trips
Heating element faults
Leaking pipework or connections

Maintenance intervals, water quality requirements and any cylinder protection component servicing should be confirmed against current Thermann documentation.

Required servicing should be carried out by appropriately qualified personnel.

Thermann 50L Small Electric Storage Warranty

The supplied product information lists the following warranty arrangements for the Thermann 50L Small Electric Storage:

Application Tank Warranty Parts & Labour
Domestic Use 7 years 1 year
Timed Recirculation System 3 years Confirm applicable conditions
Commercial Use 3 years 1 year

These warranty periods are taken from the supplied product information and must be checked against the current manufacturer warranty statement.

Warranty eligibility may depend on installation, water quality, maintenance, operating conditions and application type.

Manufacturer product warranty coverage is separate from any JR Gas & Water installation workmanship warranty.

BRISBANE INSTALLATION

Thermann 50L Small Electric Storage Installation Brisbane

JR Gas & Water provides Thermann 50L Small Electric Storage installation in Brisbane for suitable homes and properties.

The Thermann 50L may be a practical replacement where an existing compact electric storage heater has reached the end of its service life and 50 litres remains appropriate for the property's demand.

Before installation, the selected 2.4kW or 3.6kW version, electrical connection, plumbing layout, available space, water pressure, valves and drainage should be assessed.

JR Gas & Water also services eligible surrounding areas including Logan, Ipswich, Moreton Bay and Redlands.

GOLD COAST INSTALLATION

Thermann 50L Small Electric Storage Installation Gold Coast

JR Gas & Water provides Thermann 50L Small Electric Storage installation on the Gold Coast for suitable properties.

The compact design can make it worth considering for small households, offices, kitchenettes, utility areas and other applications with light hot water demand.

However, the system must be matched to the property's electrical arrangement, selected element configuration, plumbing layout and available installation space.

Some installations are straightforward replacements, while others may require additional electrical, plumbing, valve or drainage work.

COMMON QUESTIONS

Thermann 50L Small Electric Storage Installation FAQs

How much does Thermann 50L installation cost in Brisbane or the Gold Coast?

Installation cost depends on the selected heater version, existing electrical connection, plumbing layout, valves, access and any additional work required. A straightforward like-for-like replacement is generally simpler than a job requiring electrical changes or relocation.

What is the Thermann 50L Small Electric Storage?

It is a compact electric storage hot water system providing 50 litres of storage capacity and 50 litres of hot water delivery.

Is the Thermann 50L suitable for my home?

It may be suitable for properties with light hot water demand where the installation space, plumbing and electrical supply are compatible.

How many people can use the Thermann 50L?

The supplied product information indicates approximately 1–2 people on a continuous tariff, depending on hot water usage patterns.

Is the Thermann 50L suitable for an office or kitchenette?

It may be suitable for offices, kitchenettes, utility rooms and compact amenities with limited hot water requirements.

Is 50 litres enough for a shower?

It depends on the shower's flow rate, duration, incoming water temperature, stored water temperature and other hot water use. The Thermann 50L is generally intended for lighter demand.

Is the Thermann 50L suitable for a large family?

It is generally not the preferred choice for larger households with heavy daily hot water demand. A larger storage system may be more appropriate.

What are the Thermann 50L dimensions?

The supplied dimensions are approximately 670mm high and 405mm in diameter. Exact dimensions should be confirmed from the current manufacturer specification.

How much does the Thermann 50L weigh?

The supplied product information lists an approximate empty weight of 23kg. The filled installation weight will be substantially higher.

What is Thermann V Fit?

V Fit is the installation-oriented configuration identified in the supplied product information, intended to assist with suitable replacement applications.

Does the Thermann 50L have dual-handed water connections?

Yes. Dual-handed connections can provide additional flexibility when matching the new heater to existing plumbing.

Does the Thermann 50L come in a plug-in version?

Yes. The supplied product information identifies a 2.4kW version with a GPO plug-in connection.

Does the Thermann 50L come in a hardwired version?

Yes. A 3.6kW hardwired version is also identified in the supplied product information.

What is the difference between the 2.4kW and 3.6kW versions?

The 2.4kW version has a lower-rated heating element and plug-in connection, while the 3.6kW version has a higher-rated element and requires a compatible hardwired connection.

Does the 3.6kW Thermann 50L heat faster?

Under comparable conditions, the higher-rated 3.6kW element can heat water faster than the 2.4kW element. Exact recovery times should be confirmed from the manufacturer.

Can the Thermann 50L use a normal power point?

The 2.4kW plug-in version requires a suitable, compliant GPO and electrical circuit. It should not be assumed that any existing outlet is appropriate.

Can the Thermann 50L run on off-peak electricity?

The supplied information describes possible off-peak suitability, but tariff compatibility must be confirmed for the exact selected version and property.

Can the Thermann 50L replace my existing electric hot water system?

In many cases, yes. Suitability depends on capacity, dimensions, electrical connection, tariff, plumbing, water pressure, valves and installation location.

Does the Thermann 50L need a pressure limiting valve?

A pressure limiting valve may be required depending on incoming water pressure and the manufacturer's operating limits.

Does the Thermann 50L need a tempering valve?

Temperature limiting requirements depend on the installation and applicable plumbing standards. The existing setup should be assessed before replacement.

Does the Thermann 50L need to be filled before power is connected?

Yes. The supplied product information specifically states that the tank must be filled with water before connecting it to a power source.

How long does the Thermann 50L take to heat up?

Reheating time depends on whether the 2.4kW or 3.6kW version is installed, incoming water temperature and the amount of water requiring heating.

Is the Thermann 50L expensive to run?

Running costs depend on hot water demand, electricity rates, selected element configuration and storage heat losses. The tariff arrangement should also be considered.

What warranty comes with the Thermann 50L?

The supplied information lists a 7-year domestic tank warranty and 1-year domestic parts and labour warranty. The tank warranty is listed as 3 years for timed recirculation and commercial applications, with 1-year parts and labour for commercial use. Current manufacturer terms apply.

What is included in a standard Thermann 50L installation?

A typical installation may include supply of the unit, removal of the old heater where included, plumbing connections, electrical connection, valve assessment, testing and commissioning. Final inclusions depend on the agreed scope.

Can the Thermann 50L be relocated during installation?

Relocation may be possible where the new location is suitable, but it can require additional pipework, electrical changes, drainage arrangements and other work.

Can JR Gas & Water install the Thermann 50L in my area?

JR Gas & Water provides hot water installation across Brisbane, the Gold Coast and eligible surrounding areas including Logan, Ipswich, Moreton Bay and Redlands, subject to availability.

Why Choose JR Gas & Water for Thermann 50L Installation?

Correct System Selection

Assessment of actual hot water demand and whether a compact 50 litre storage heater is appropriate.

Installation-Led Advice

Consideration of plug-in or hardwired requirements, tariff compatibility, plumbing, valves, drainage and available space.

Local Hot Water Installation

Professional electric hot water replacement across Brisbane, the Gold Coast and eligible surrounding areas.

The Thermann 50L can be a practical compact electric storage solution where hot water demand is light and the selected electrical configuration suits the property.

JR Gas & Water focuses on ensuring the product, electrical arrangement and installation location are appropriate for the application.

COMPACT ELECTRIC HOT WATER

Need a Compact 50L Electric Hot Water System?

The Thermann 50L Small Electric Storage is designed for suitable light-demand applications where a compact electric storage heater makes sense.

Its 50 litre storage capacity, V Fit configuration, dual-handed water connections and 2.4kW plug-in or 3.6kW hardwired options make it worth considering for compatible replacements.

However, the system must be matched to the property's hot water requirements, plumbing layout, available space and electrical supply.

JR Gas & Water can help assess whether the Thermann 50L or another hot water system is the appropriate choice.

READY TO INSTALL

Install the Thermann 50L Small Electric Storage With JR Gas & Water

The Thermann 50L Small Electric Storage is a compact electric hot water system designed for properties with light hot water demand.

With 50 litres of storage capacity, 50 litres of hot water delivery, a V Fit configuration, dual-handed water connections and plug-in or hardwired options, it offers a practical choice for suitable small-capacity replacements.

The selected 2.4kW or 3.6kW version must suit the property's electrical connection, tariff arrangement and installation requirements.

Final suitability depends on actual hot water demand, available space, plumbing layout, water pressure, valves and electrical supply.

JR Gas & Water provides Thermann 50L Small Electric Storage supply and installation in Brisbane, the Gold Coast and eligible surrounding areas.

Contact JR Gas & Water to discuss your existing heater, installation requirements and suitable compact electric hot water replacement options.

Your electric storage hot water system is built to provide years of reliable hot water, but like any major household appliance, it requires regular maintenance to remain safe, efficient and covered under the manufacturer's warranty.

Many manufacturers specify routine maintenance throughout the life of the system. Following these recommendations helps maximise the lifespan of the unit, maintain safe operation and reduce the likelihood of unexpected breakdowns.

Homeowner Maintenance – Every 6 Months

Every six months, homeowners should carefully operate the Pressure & Temperature Relief (PTR) Valve and Expansion Control Valve (ECV) (where fitted).

This simple maintenance helps:

  • Confirm the safety valves are operating correctly.
  • Flush away mineral deposits that can cause the valves to seize.
  • Prevent excessive pressure from building inside the tank.
  • Extend the life of the safety valves.

Why is this important?

Over time, minerals naturally found in water can build up inside the valves. If they are never operated, they may become stuck or fail when they're needed most.

A seized PTR or ECV valve can lead to:

  • Excessive pressure inside the tank.
  • Continuous leaking from the valve.
  • Reduced system efficiency.
  • Premature component failure.
  • Potential safety risks.

Important: Always follow your manufacturer's instructions when operating the valves, as hot water will discharge during testing. If you're unsure or unable to perform this maintenance safely, contact a licensed plumber.

JR 6-Month Hot Water Health Check

Recommended Service – $99

While homeowner maintenance is important, a professional inspection provides additional peace of mind and can identify issues long before they become expensive repairs.

Our JR 6-Month Hot Water Health Check includes:

  • Inspection for water leaks and corrosion.
  • Testing of the PTR valve.
  • Testing of the ECV (where fitted).
  • Checking electrical operation.
  • Inspecting wiring and electrical connections.
  • Checking thermostat operation.
  • Inspecting the element for signs of failure (where possible).
  • Inspecting insulation and pipework.
  • Checking for unusual noises or signs of sediment build-up.
  • Confirming correct operation and water heating performance.
  • Identifying any components showing signs of wear.

Service Price: $99

Regular inspections help detect small problems early, reducing the likelihood of unexpected breakdowns and helping maximise the life of your hot water system.

Recommended 5-Year Major Service

Current Price: $449

Most electric storage hot water manufacturers recommend replacing several key components approximately every five years to maintain reliable operation and protect the storage tank.

Our comprehensive 5-Year Service includes:

  • Replacement of the sacrificial anode.
  • Replacement of the Pressure & Temperature Relief (PTR) Valve.
  • Replacement of the Expansion Control Valve (ECV).
  • Full inspection of the hot water system.
  • Electrical safety and operational testing.
  • Inspection of pipework, valves and fittings.
  • Leak and corrosion inspection.
  • System performance testing.

Why These Components Matter

Sacrificial Anode

The sacrificial anode protects the steel tank from internal corrosion.

Instead of the tank rusting, the anode slowly corrodes over time. Once it has been consumed, the tank itself begins to rust from the inside, often leading to leaks and complete tank failure.

Replacing the anode is one of the most effective ways to extend the life of a storage hot water system.

Pressure & Temperature Relief (PTR) Valve

The PTR valve is one of the most important safety devices on your hot water system.

It automatically releases water if pressure or temperature inside the tank becomes too high, protecting both the system and your home.

Over time, scale and mineral deposits can prevent the valve from operating correctly, making regular testing and replacement essential.

Expansion Control Valve (ECV)

The ECV manages pressure created as water expands during heating.

A correctly functioning ECV:

  • Reduces stress on the storage tank.
  • Protects plumbing components.
  • Helps extend the life of the hot water system.
  • Reduces unnecessary water discharge through the PTR valve.

If Your Hot Water System Isn't Working

Before arranging a service, there are a few simple checks you can perform:

  • Ensure the power is switched on at the electrical switchboard.
  • Check whether the hot water circuit breaker or safety switch (RCD) has tripped.
  • Confirm the isolation switch near the hot water system is turned on.
  • Check whether your electricity supplier has scheduled an off-peak interruption.
  • Look for obvious water leaks around the system.
  • Check whether water is continuously flowing from the PTR or ECV valve.
  • Listen for unusual noises such as excessive boiling, rumbling or banging.
  • Confirm the system has had sufficient time to reheat after heavy water usage.

If your system still isn't producing hot water, contact JR Gas & Water for professional diagnosis and repair.

General Signs Your System May Need Attention

Arrange a service if you notice:

  • Water leaking from the tank.
  • Constant dripping from relief valves.
  • Rust-coloured or dirty hot water.
  • Reduced hot water capacity.
  • Water taking much longer to heat.
  • Unusual noises during heating.
  • Visible corrosion.
  • Fluctuating water temperature.
  • Repeated electrical trips.

Early repairs are often significantly less expensive than replacing a failed hot water system.

Protect Your Warranty & Maximise System Life

Regular maintenance not only helps keep your hot water system operating safely and efficiently—it can also assist in meeting manufacturer maintenance requirements.

Ignoring recommended servicing may result in:

  • Premature tank corrosion.
  • Seized or leaking safety valves.
  • Reduced efficiency and higher running costs.
  • Unexpected loss of hot water.
  • Avoidable repair costs.
  • Shortened system lifespan.
  • Possible reduction or loss of manufacturer warranty, depending on the manufacturer's maintenance requirements.

A small investment in preventative maintenance can add years to the life of your hot water system and help avoid the inconvenience and expense of an unexpected replacement.

ZipPay – 6-Month Interest-Free on All Products

ZipPay allows you to buy now and pay later, offering flexible, interest-free payments for up to 6 months on all JR products. It’s easy to set up, and you can customize your repayment schedule to suit your budget. Payments can be made weekly, fortnightly, or monthly, with a $6 fee if the balance isn’t paid off by the due date​.

Humm – Up to 12 Months Interest-Free

Humm provides interest-free payment plans on purchases up to $30,000, perfect for both small and large buys. For items over $2,000, you can spread payments over 12 months. Humm also offers flexibility in scheduling payments based on when you get paid​

Afterpay – 8 Weeks, No Interest

With Afterpay, spread the cost of purchases across four equal installments, due every two weeks, over an 8-week period. There’s no interest, and as long as payments are made on time, there are no fees. Perfect for purchases between $100 and $1,500​

Plenti Finance – For Reclaim Systems Only

Plenti Finance is available exclusively for Reclaim Energy systems. This option offers tailored repayment terms with competitive interest rates, helping make eco-friendly choices more affordable. For more detailed information on Plenti’s terms and eligibility for Reclaim systems, visit the Reclaim Energy finance page​

If you're in Queensland and considering a new electric hot water system, JR Gas & Water is the company to choose. Here's why:

Experience and Expertise: JR Gas & Water has over 10 years of experience in the gas and plumbing industry. Their team of licensed and insured professionals is highly skilled and knowledgeable about all aspects of electric hot water system installation, maintenance, and repair. They can provide expert advice on the best system for your needs and ensure a smooth installation process.

Quality Products: JR Gas & Water uses only high-quality products from trusted brands to ensure your electric hot water system is reliable and efficient. They also offer a range of options to suit different budgets and requirements.

Competitive Pricing: JR Gas & Water offers competitive pricing for their electric hot water systems, ensuring that you get a great value for your investment. They also provide a detailed quote upfront, so there are no surprises or hidden costs.

Customer Service: JR Gas & Water is committed to providing excellent customer service. They are always available to answer any questions or concerns you may have and are committed to ensuring your satisfaction.

Local Business: JR Gas & Water is a locally owned and operated business in Queensland. By choosing them for your electric hot water installation, you are supporting a local business and contributing to the local economy.

Warranty and Guarantee: JR Gas & Water provides a warranty and guarantee on all their products and services, giving you peace of mind knowing that your system is covered in case of any issues.

Energy Efficiency: Electric hot water systems can be energy efficient, and JR Gas & Water can help you choose the right system for your needs. They can provide advice on energy-saving features and options, such as timers and thermostats, to help you save on your energy bills.

Safety: JR Gas & Water is committed to safety and ensuring that all installations are done to the highest safety standards. They are also familiar with local safety regulations and requirements, ensuring that your electric hot water system is installed safely and in compliance with all relevant codes.

JR Gas & Water is a reliable and experienced choice for your electric hot water system installation in Queensland. With a commitment to quality products, competitive pricing, excellent customer service, and safety, they can help you make the switch to a more efficient and cost-effective solution for your hot water needs. Contact them today to learn more about their services and how they can help you.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.
