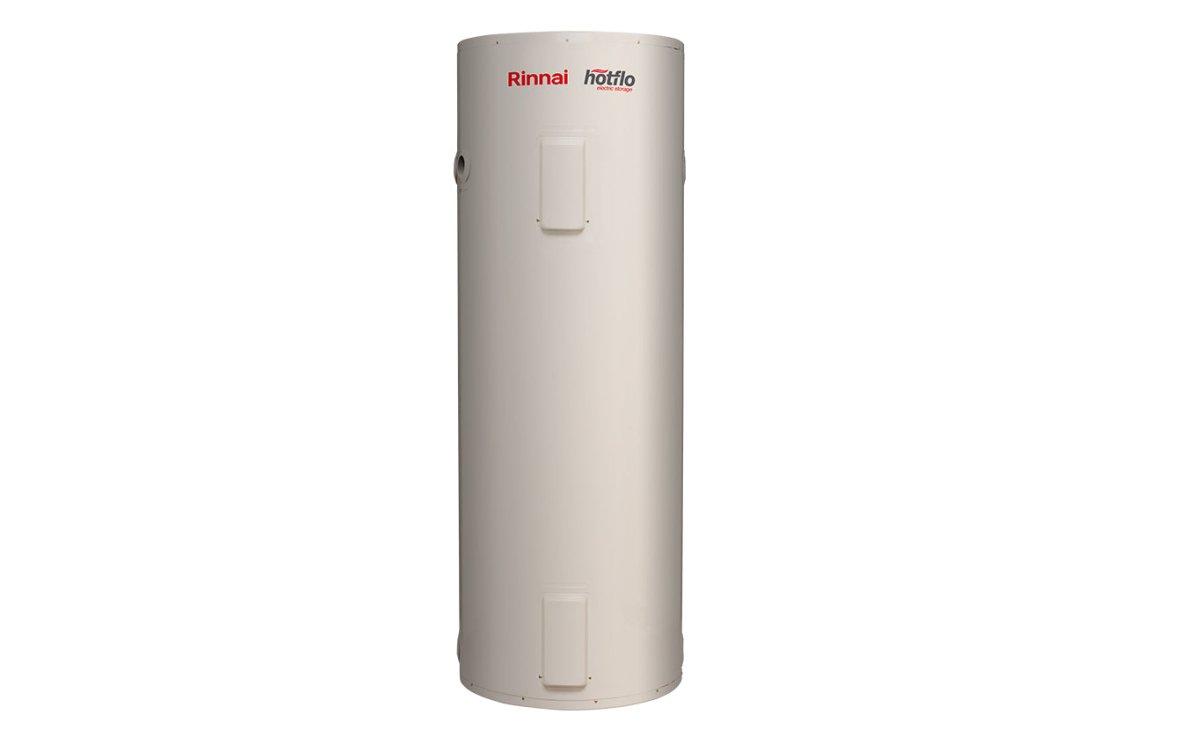

Rinnai 315L DUAL Element Electric Hot Water System | Supply+Install | LIFETIME WARRANTY

Enjoy reliable, affordable hot water every day with the Rinnai 315L electric hot water system — built for Australian homes and larger families of up to 7. Featuring a durable Steel Enamel tank, 10 year factory warranty, and expert installation across Brisbane and the Gold Coast, this system delivers performance you can count on. Made in China and backed by award-winning service.
Quick Specs & Benefits View product specifications and installation details
  • Volume: 315L
  • Recommended Household Size: 7 people +
    • 50L: 1 person full time tariff
    • 80L: 1 person full time tariff, 1 person off peak
    • 125L: 2 people full time, 2 people off peak
    • 160L: 3 people full time, 2 people off peak
    • 250L: 5 people full time, 4 people off peak, 6 people dual element
    • 315L: 6 people full time, 5 people off peak, 7 people dual element
    • 400L: 8 people full time, 7 people off peak, 9 people dual element
  • Model Number: EHFA315T
  • Width: 625 mm
  • Height: 1765 mm
  • Minimum Room Needed for Internal Installations: 775 W x 725 D x 1865 H mm
  • Indoor / Outdoor Installation: Indoor and outdoor installation compatible
  • Element Configuration: Twin Element
  • Connections: Left and right hand side connections
  • Available in the Following Power Ratings: 1.8kW, 2.4kW, 3.6kW and 4.8kW +

    We will adjust the element size on site to suit your existing circuit, so there is nothing extra you need to check before installation.

    • 1.8kW: 8 amp minimum, 10 amp recommended
    • 2.4kW: 10 amp minimum, 15 amp recommended
    • 3.6kW: 15 amp minimum, 20 amp recommended
    • 4.8kW: 20 amp minimum, 25 amp recommended
  • Internal Cylinder Material: Steel Enamel
  • Maximum Cylinder Warranty: 10 Years +
    • Cylinder: 10 years
    • Thermostat: 12 months
    • Element: 12 months
    • Valve Set: 24 months
    • Parts and Labour: 1 year on all
  • Made In: China
Recommended

Gold Package

3 of 6
From ...
GET A QUOTE
or
Already Have A Compliant Setup?
Base installation may suit an exact like-for-like electric storage replacement where the existing installation is already compliant and no alterations are required.
From...

Select Your Preferred Install

Choose an exact installation date, or stay flexible and save.

🏷️ Brand: Rinnai
🔢 Model Number: EHFA315T
📦 Volume: 315L
📏 Width: 625 mm
📐 Height: 1765 mm
🌍 Manufactured In: China
🛠️ Cylinder / Heat Exchange Material: Steel Enamel
🛡️ Cylinder / Heat Exchange Warranty: 10 Years
🔇 Noise Level: dBa
⚖️ Dry Weight: kg
⚡ Energy Source:
📡 WiFi Controller: No
⏲️ Built-In Timer: No
💡 LED/LCD Status Indicator: No
📊 Coefficient of Performance (COP):

RINNAI ELECTRIC STORAGE SUPPLY & INSTALLATION

Rinnai Hotflo 315L Dual Element Installation Brisbane & Gold Coast

JR Gas & Water supplies and professionally installs the Rinnai Hotflo 315L Dual Element electric storage hot water system across Brisbane, the Gold Coast and surrounding South East Queensland service areas.

The current JR product is the Rinnai EHFA315T, a large-capacity electric storage system designed for households needing a substantial reserve of stored hot water with the recovery flexibility of a twin-element configuration.

For the current Queensland and Western Australia 315L model, Rinnai lists approximately 336 litres of physical storage capacity with 315 litres of rated hot-water delivery, together with 2.4kW, 3.6kW and 4.8kW heating-element options.

It is particularly relevant to larger households, high daily hot-water demand and replacement installations where conventional electric storage remains the preferred system type.

Rinnai Hotflo 315L Dual Element quick answer: the EHFA315T is a large twin-element electric storage system with approximately 336L physical storage and 315L rated hot-water delivery in the current QLD/WA specification. It uses 240V single-phase power, offers 2.4kW, 3.6kW and 4.8kW element options, has dual-handed 20mm water connections and is suitable for appropriate internal or external installation. Household suitability depends on demand, electricity tariff, recovery time and the existing electrical setup.

Rinnai Hotflo 315L Dual Element at a Glance

Hot-Water Delivery

315 L

Rated hot-water delivery for the current 315L QLD/WA Hotflo model.

Physical Storage

336 L

Approximate physical storage capacity in Rinnai's current Queensland and Western Australia specification.

Element Options

2.4 / 3.6 / 4.8

Kilowatt element options currently listed by Rinnai for this tank size.

Configuration

TWIN

Upper and lower heating-element arrangement for suitable high-demand and controlled-tariff installations.

Who Is the Rinnai Hotflo 315L Dual Element Best For?

Larger Households

Suitable for homes where 250L storage may be marginal and a larger reserve is preferred for showers, baths, kitchen and laundry use.

Higher Daily Demand

A useful option where several household members use hot water across morning and evening peak periods and recovery performance matters.

Large Electric Storage Replacement

Particularly practical where an existing 315L or similar large electric storage system is being replaced and the site remains suitable for conventional storage hot water.

PRODUCT SUITABILITY

Is the Rinnai Hotflo 315L Dual Element Right for My Home?

A Good Choice If...

You need substantial stored hot water, have a suitable electrical and tariff arrangement, and have enough physical space for a large floor-mounted cylinder.

Consider Another System If...

Your household demand is much lower, installation space is restricted, or your priority is changing to heat-pump, solar or another higher-efficiency hot-water technology.

JR Should Check First If...

You are changing from another system type, the current electrical setup is uncertain, the tank is indoors, access is tight or the existing valves, drains or support base need substantial work.

How Does the Rinnai Hotflo 315L Dual Element Work?

Cold water enters the storage cylinder: mains water fills the pressurised storage tank through the cold-water connection.

Electric elements heat the water: electrical resistance elements convert electricity directly into heat within the cylinder.

Hot water remains stored: the insulated tank holds heated water ready for household demand.

Hot water is drawn from the upper part of the cylinder: when a fixture opens, hot water leaves and replacement cold water enters the tank.

Twin-element recovery: the upper element can provide additional recovery of the upper portion of the tank while the lower element heats the main stored volume, depending on the electrical and tariff arrangement.

What Does Dual or Twin Element Mean?

A dual-element electric storage tank contains two heating elements: one lower element and one upper element.

In a typical controlled-tariff arrangement, the lower element can heat the main tank volume during the available controlled-power period while the upper element can provide additional recovery when configured to do so.

This makes twin-element storage useful where a large household wants the economy of controlled electricity but may occasionally need faster recovery in the upper section of the cylinder.

Twin element does not mean both elements constantly operate together. The way they operate depends on the wiring, thermostats, tariff and control arrangement. The existing electrical setup needs to be checked when replacing or upgrading a dual-element system.

Peak, Continuous & Off-Peak Electricity

Electric storage sizing is closely connected to when the system is allowed to reheat.

A tank with continuous electricity can recover whenever thermostat demand calls for heating, while a controlled or off-peak circuit may only energise during specific tariff windows.

The less recovery time available during the day, the more important stored capacity becomes.

A dual-element setup can offer additional recovery flexibility where the property has the correct metering, tariff and electrical arrangement.

Rinnai Hotflo 315L Household Sizing

Rinnai's technical sizing guidance changes according to climate and whether the tank uses continuous or controlled electricity.

Electricity Setup Warm Climate Guidance Cool Climate Guidance
Peak / Continuous Electricity Approximately 8–9 people Approximately 6–7 people
Off-Peak / Controlled Electricity Approximately 6–7 people Approximately 5–6 people

Rinnai also markets the 315L size generally as suitable for large families. Household headcount is only a guide: shower flow, baths, laundry, daily habits, incoming-water temperature and recovery availability can materially change the required storage size.

Key Rinnai Hotflo 315L Features

Vitreous Enamel-Lined Steel Tank

The steel cylinder uses vitreous enamel lining to help protect the internal tank surface against corrosion.

Sacrificial Anode Protection

Built-in anode protection forms part of the corrosion-management system protecting the steel cylinder.

Dual-Handed Connections

Connections on both sides of the tank can improve flexibility when replacing an existing electric storage system.

Internal or External Capability

Rinnai specifies the 315L Hotflo for suitable internal or external installation.

Thermostatic Safety Control

Automatic thermostat control and safety temperature shut-off manage normal heating operation.

10-Year Cylinder Warranty

Rinnai currently lists a 10-year cylinder warranty, subject to its current warranty conditions.

Rinnai EHFA315T Specifications

Specification Rinnai Hotflo 315L Dual Element
Brand Rinnai
JR Model EHFA315T
Product Type Large electric storage hot-water system
Configuration Twin / dual element
Physical Storage Capacity Approximately 336L
Rated Hot-Water Delivery 315L
Heating Elements Available 2.4kW / 3.6kW / 4.8kW
Electrical Supply 240V AC, 50Hz
Tank Construction Vitreous enamel-lined steel
Corrosion Protection Sacrificial anode
Water Connections Rp 3/4" / 20mm
Connection Arrangement Dual handed
Overall Height Approximately 1765mm
Tank Diameter Approximately 625mm
Width Including PTR Valve Approximately 700mm
Hot-Water Outlet Height Approximately 1430mm
Cold-Water Inlet Height Approximately 90mm
Lower Electrical Entry Approximately 50mm
Upper Electrical Entry Approximately 1193mm
Published Packaged Weight Approximately 109kg
PTR Relief Setting 1000kPa
Expansion Control Valve Setting 850kPa
Maximum Inlet Pressure With ECV 680kPa
Maximum Inlet Pressure Without ECV 800kPa
Ingress Protection IPX4
Cylinder Warranty 10 years, subject to current Rinnai warranty conditions

Current Rinnai 315L specifications vary between its standard national model and the Queensland / Western Australia variant. This page uses the current QLD/WA data matching the local South East Queensland installation market. The exact supplied appliance label and current installation manual remain the final technical reference.

315L Tank Size & Installation Space

The current Queensland and Western Australia 315L Hotflo is approximately 1765mm high and 625mm in tank diameter.

Allowing for the PTR valve increases the published overall width to approximately 700mm.

A large storage cylinder also needs space for water pipework, valves, electrical entries, relief-valve drainage and future service access.

Height

1765 mm

Tank Diameter

625 mm

Width With PTR

700 mm

Delivery

315 L

JR's current product information also identifies additional room requirements for internal installations. Indoor jobs should be assessed separately from the standard external online installation packages.

INSTALLATION REQUIREMENTS

What Is Required to Install a Rinnai Hotflo 315L Dual Element?

Suitable level and structurally sound tank position
Adequate access to move the cylinder into position
Correct hot and cold water pipework
Suitable inlet pressure-control arrangement
Correct PTR valve installation
Expansion-control arrangement where required
Suitable relief-valve drain lines
Electrical circuit matched to element configuration
Correct twin-element control arrangement
Appropriate isolation
Service access around the cylinder
Commissioning after plumbing and electrical work

Water Pressure & Valve Requirements

Storage cylinders rely on correctly selected pressure-control and relief valves to protect the tank and plumbing system.

Rinnai's current QLD/WA data lists a 1000kPa PTR relief setting and an 850kPa expansion-control setting.

The published maximum inlet pressure is 680kPa where an expansion-control valve is installed and 800kPa where one is not used, subject to the complete valve arrangement and current installation instructions.

Existing valves should therefore be assessed rather than automatically reused simply because they were connected to the previous hot-water cylinder.

PTR & Expansion Drain Lines

The pressure and temperature relief valve forms part of the cylinder's safety system and requires a correctly arranged discharge drain.

Where an expansion-control valve is fitted, its discharge also needs an appropriate drainage path.

Drain lines should remain unobstructed and terminate in a suitable location so normal thermal expansion or a safety-valve event does not create avoidable damage around the property.

Older installations can have undersized, damaged or poorly located drainage, so drain-line condition should be checked during replacement.

Electrical Requirements

The Hotflo 315L dual-element system is a hard-wired electrical appliance.

Rinnai currently lists 2.4kW, 3.6kW and 4.8kW element options for the QLD/WA 315L model, so circuit suitability depends on the exact element configuration being installed.

The existing circuit, cable size, protective devices, isolator, tariff control and twin-element wiring arrangement all need to suit the replacement system.

A like-for-like replacement may reuse suitable existing electrical services, while a change in element size, tariff arrangement or system location can require additional electrical work.

External vs Internal Installation

Rinnai specifies the 315L Hotflo range as suitable for appropriate internal or external installation.

JR's current online electric-storage package structure is specifically intended for external installations.

Internal installation can require additional consideration of safe trays, drainage, access, available room and the consequences of a future tank or valve leak.

Internal installations need separate assessment. JR's live package information directs internal installations to a separate quote pathway rather than treating them as a standard external package.

JR Hotflo 315L Dual Element Installation Packages

JR's current live EHFA315T page uses six installation pathways so the package can be matched to the condition of the existing plumbing, electrical supply and installation area.

Base — Exact Compliant Replacement

For an identical make, model or series replacement in an already compliant external location where no additional pipework, valves, support base, electrical work or disposal scope is required.

Silver — Minor Upgrade

Includes minor pipework alterations and a replacement valve kit for suitable existing electric-storage installations, without broader electrical work, support-base work or disposal.

Gold — Standard Replacement

JR's current standard replacement pathway adds a new valve set, old-system removal, expansion drain lines, support base and broader plumbing alterations within package limits.

Sapphire — Minor Electrical Work

Builds on the standard replacement scope with electrical safety items such as an isolator, safety switch and limited cable alterations.

Diamond — New Electrical Circuit

Intended for installations requiring a broader electrical upgrade including a new circuit within the current package conditions.

Platinum — Relocation & Major Upgrade

JR's broadest current pathway includes relocation, extensive plumbing, valves, support base, drain lines, electrical upgrades and a new circuit within the live package scope.

Use JR's live selector above as the final reference for package inclusions, pipework and cabling allowances, availability and current pricing.

What Can a Rinnai 315L Installation Include?

Rinnai EHFA315T according to selected package
Licensed plumbing work
Electrical work according to selected package
Existing-system removal where included
Positioning of the new cylinder
Hot and cold water connections
Valve replacement where included
Pressure-control work where required
Drain-line work according to package
Support base where included
Commissioning and operational checks
Basic customer handover

Final inclusions depend on the live installation package selected and the actual conditions found at the property.

What May Require Additional Work?

Electrical work beyond the selected package allowance
Switchboard upgrades outside package scope
Major hot or cold water rerouting
Major drainage alterations
Structural or access modifications
Internal installation without separate assessment
Relocation outside the selected package allowance
Roof-mounted solar-component removal
Rectification of unrelated plumbing defects
Rectification of unrelated electrical defects

How Much Does Rinnai Hotflo 315L Dual Element Installation Cost?

Current supplied-and-installed pricing is shown through JR's live product and installation selector above rather than being hardcoded into this description.

An exact compliant EHFA315T replacement can have a significantly different installation scope from a job needing new valves, drain lines, a support base, electrical alterations, a new circuit or relocation.

Use the live package selector above as the current reference for pricing, installation availability and package inclusions.

BRISBANE INSTALLATION

Rinnai Hotflo 315L Dual Element Installation Brisbane

JR Gas & Water installs suitable Rinnai 315L electric storage systems throughout Greater Brisbane for larger households wanting a substantial stored-hot-water reserve.

Brisbane installations can range from a straightforward replacement of an existing large electric cylinder through to installations requiring new valves, support-base work, drain lines or electrical upgrades.

JR considers household demand, electricity tariff, twin-element configuration, available installation space, access, water pressure and the existing electrical setup before confirming the installation pathway.

JR also services Logan, Ipswich, Redlands and Moreton Bay, subject to current service-area and installation availability.

GOLD COAST INSTALLATION

Rinnai Hotflo 315L Dual Element Installation Gold Coast

JR Gas & Water provides suitable Rinnai 315L electric storage replacement and installation across eligible Gold Coast service areas.

A 315L system can suit households wanting more stored capacity than a 250L tank without stepping to the physical size and stored volume of a 400L cylinder.

Actual suitability still depends on shower flow, bath use, household routines, tariff and available recovery time rather than tank size or household headcount alone.

Can the Rinnai 315L Dual Element Replace My Existing System?

Replacing Another EHFA315T

Usually the simplest pathway where the existing external installation is compliant and the electrical arrangement, pipework, valves, base and drains remain suitable.

Replacing Another Large Electric Tank

Often possible, but tank dimensions, connection positions, element rating, valve arrangement and electrical supply should be checked before treating the installation as like-for-like.

Changing From Another System Type

Converting from gas, heat pump or solar can require new electrical services, altered plumbing and removal or modification of the previous hot-water equipment.

315L Dual Element vs 315L Single Element

315L Dual Element

Adds an upper heating element that can provide additional recovery flexibility where the electricity tariff and electrical configuration support it.

This can suit households where peak-use recovery is more important.

315L Single Element

Uses one primary heating element and can be a practical option where the available heating window and stored volume comfortably meet household demand.

It can also provide a simpler replacement pathway where the existing system is already single element.

315L vs 250L & 400L Electric Storage

Hotflo Size Rated Hot-Water Delivery General Difference
250L 250L Smaller footprint and lower stored-water volume
315L 315L Large household capacity with less bulk than the 400L size
400L 400L Largest stored-water delivery in the current Hotflo range

Tank size should reflect actual use. Oversizing means keeping more water hot than necessary, while undersizing can leave the household waiting for the cylinder to recover after heavy demand.

Electric Storage vs Heat Pump Hot Water

Rinnai Electric Storage

Uses straightforward resistive electric elements and stored hot water. It can provide a simple replacement pathway where conventional electric storage is already installed.

Heat Pump Hot Water

Uses refrigeration-cycle technology to transfer heat into stored water and can use substantially less electricity to provide the same amount of heat under suitable operating conditions.

The appropriate system depends on installation budget, household demand, available space, electricity tariff, noise considerations and longer-term energy-use priorities.

COMMON QUESTIONS

Rinnai Hotflo 315L Dual Element Installation FAQs

What is the Rinnai EHFA315T?

It is JR's current Rinnai Hotflo 315L dual-element electric storage hot-water product for larger residential demand.

Is it exactly a 315L physical tank?

Rinnai's current Queensland and Western Australia specification lists approximately 336L physical storage capacity and 315L rated hot-water delivery.

What does dual element mean?

The tank contains lower and upper electric heating elements. This can provide additional recovery flexibility compared with a basic single-element cylinder when the electrical setup and tariff support it.

Do both elements operate together?

Not necessarily. Operation depends on the thermostat, control wiring, electricity tariff and electrical configuration.

What element sizes are currently listed by Rinnai?

Rinnai's current QLD/WA technical specification lists 2.4kW, 3.6kW and 4.8kW options for the 315L size.

What power supply does it use?

The system uses 240V AC, 50Hz electrical supply. Circuit requirements depend on the installed element configuration.

How many people can a 315L system suit?

Rinnai's sizing varies by climate and tariff. Current technical guidance ranges from approximately 5–6 people on cool-climate off-peak supply through to 8–9 people on warm-climate continuous electricity. Actual household demand should be assessed.

Can a 315L twin-element tank use off-peak electricity?

Yes, where the property has a suitable controlled-tariff and twin-element electrical arrangement. The exact setup should be confirmed during installation.

What are the current QLD/WA dimensions?

Rinnai lists approximately 1765mm overall height, 625mm tank diameter and around 700mm total width when the PTR-valve projection is included.

How heavy is the tank?

The current QLD/WA product specification lists approximately 109kg packaged weight. Once filled, the installation also carries the mass of more than 300 litres of water.

Can the Rinnai 315L be installed outside?

Yes. Rinnai specifies the Hotflo 315L for suitable external installation.

Can it be installed indoors?

The product can suit appropriate internal installation, but JR's current standard online packages are for external installations. Internal jobs require separate assessment.

Does the tank have plumbing connections on both sides?

Yes. The Hotflo uses a dual-handed connection arrangement to provide greater replacement flexibility.

What size are the water connections?

Rinnai currently lists Rp 3/4-inch, approximately 20mm, water connections.

What is the PTR valve rating?

The current Queensland and Western Australia specification lists a 1000kPa relief setting.

What is the expansion-control valve setting?

Rinnai's current QLD/WA specification lists an 850kPa expansion-control setting.

Does the system require a pressure-limiting valve?

Pressure-control requirements depend on the incoming mains pressure and complete valve arrangement. The installation should follow the current Rinnai instructions for the supplied model.

What is the cylinder made from?

The Hotflo uses a steel storage cylinder with vitreous enamel lining and sacrificial anode corrosion protection.

What cylinder warranty does it have?

Rinnai currently advertises a 10-year cylinder warranty, subject to its current warranty terms and exclusions.

Can it replace my existing 315L electric system?

Often, yes. Dimensions, element configuration, pipework, valves, electrical supply, drain lines and the installation base still need to be checked.

Can it replace a 250L system?

Potentially. The larger cylinder requires more physical space and may have different connections, electrical requirements and household sizing implications.

Can it replace gas, solar or heat-pump hot water?

It can on suitable properties, but changing system type can require new electrical work, plumbing alterations and removal or modification of the previous equipment.

What is JR's Base package for?

Base is intended for an identical compliant external replacement where no additional plumbing, valve, support-base or electrical work is required.

Which package covers a normal older-system replacement?

JR currently identifies Gold as its standard replacement pathway, including broader plumbing, valve, drain-line, support-base and disposal scope within package conditions.

What if electrical work is required?

Sapphire adds minor electrical work, while Diamond and Platinum provide broader electrical scope including a new electrical circuit within their current package conditions.

Can JR install the Rinnai 315L in Brisbane?

Yes. JR installs suitable electric storage hot-water systems throughout Greater Brisbane and surrounding eligible South East Queensland areas.

Can JR install the Rinnai 315L on the Gold Coast?

Yes. JR provides suitable electric storage replacement and installation across eligible Gold Coast service areas.

How much does Rinnai Hotflo 315L Dual Element installation cost?

Current supplied-and-installed pricing is displayed through JR's live package selector above. Final scope depends on the existing cylinder, plumbing, valves, drainage, electrical arrangement, installation location and whether relocation is required.

Rinnai Hotflo Warranty & Maintenance

10-Year Cylinder Warranty

Rinnai currently lists a 10-year cylinder warranty for the Hotflo 315L, subject to its current warranty conditions.

Maintain Safety Valves

PTR and expansion-control valves where fitted should be maintained according to the manufacturer's current instructions.

Maintain Anode Protection

The sacrificial anode forms part of the steel cylinder's internal corrosion-protection system and should be maintained in accordance with Rinnai's servicing guidance.

Rinnai's manufacturer warranty is separate from JR's installation workmanship and support terms. Refer to the current JR installation package terms for the workmanship coverage applying to the selected job.

Why Choose JR Gas & Water for Rinnai 315L Installation?

LICENSED

Plumbing and electrical work completed through appropriately licensed tradespeople.

SYSTEM PLANNING

Household demand, electricity tariff, recovery requirements and tank size considered together.

CLEAR SCOPE

Plumbing, valves, drainage, base and electrical requirements matched to the selected installation pathway.

SEQ

Brisbane, Gold Coast and surrounding South East Queensland service coverage.

A 315L dual-element cylinder needs to suit both household hot-water demand and the electrical system controlling its recovery. JR considers access, tariff, element configuration, plumbing, pressure control, drainage and future service access before finalising the installation.

COMPARE YOUR OPTIONS

Compare Electric & Rinnai Hot Water Systems

Compare the Rinnai Hotflo 315L Dual Element with JR's wider live electric and Rinnai ranges if your property needs a different tank size, recovery arrangement or hot-water technology.

Electric Hot Water Systems → Rinnai Hot Water Systems →
READY TO INSTALL

Install the Rinnai Hotflo 315L Dual Element With JR Gas & Water

The Rinnai EHFA315T is a large-capacity electric storage option for suitable households wanting 315L-class hot-water delivery with the recovery flexibility of a twin-element arrangement.

Before installation, confirm household demand, electricity tariff, element configuration, electrical circuit, available space, access, water pressure, valve arrangement, drainage and whether the job is an exact replacement or requires broader plumbing, electrical or relocation work.

Your electric storage hot water system is built to provide years of reliable hot water, but like any major household appliance, it requires regular maintenance to remain safe, efficient and covered under the manufacturer's warranty.

Many manufacturers specify routine maintenance throughout the life of the system. Following these recommendations helps maximise the lifespan of the unit, maintain safe operation and reduce the likelihood of unexpected breakdowns.

Homeowner Maintenance – Every 6 Months

Every six months, homeowners should carefully operate the Pressure & Temperature Relief (PTR) Valve and Expansion Control Valve (ECV) (where fitted).

This simple maintenance helps:

  • Confirm the safety valves are operating correctly.
  • Flush away mineral deposits that can cause the valves to seize.
  • Prevent excessive pressure from building inside the tank.
  • Extend the life of the safety valves.

Why is this important?

Over time, minerals naturally found in water can build up inside the valves. If they are never operated, they may become stuck or fail when they're needed most.

A seized PTR or ECV valve can lead to:

  • Excessive pressure inside the tank.
  • Continuous leaking from the valve.
  • Reduced system efficiency.
  • Premature component failure.
  • Potential safety risks.

Important: Always follow your manufacturer's instructions when operating the valves, as hot water will discharge during testing. If you're unsure or unable to perform this maintenance safely, contact a licensed plumber.

JR 6-Month Hot Water Health Check

Recommended Service – $99

While homeowner maintenance is important, a professional inspection provides additional peace of mind and can identify issues long before they become expensive repairs.

Our JR 6-Month Hot Water Health Check includes:

  • Inspection for water leaks and corrosion.
  • Testing of the PTR valve.
  • Testing of the ECV (where fitted).
  • Checking electrical operation.
  • Inspecting wiring and electrical connections.
  • Checking thermostat operation.
  • Inspecting the element for signs of failure (where possible).
  • Inspecting insulation and pipework.
  • Checking for unusual noises or signs of sediment build-up.
  • Confirming correct operation and water heating performance.
  • Identifying any components showing signs of wear.

Service Price: $99

Regular inspections help detect small problems early, reducing the likelihood of unexpected breakdowns and helping maximise the life of your hot water system.

Recommended 5-Year Major Service

Current Price: $449

Most electric storage hot water manufacturers recommend replacing several key components approximately every five years to maintain reliable operation and protect the storage tank.

Our comprehensive 5-Year Service includes:

  • Replacement of the sacrificial anode.
  • Replacement of the Pressure & Temperature Relief (PTR) Valve.
  • Replacement of the Expansion Control Valve (ECV).
  • Full inspection of the hot water system.
  • Electrical safety and operational testing.
  • Inspection of pipework, valves and fittings.
  • Leak and corrosion inspection.
  • System performance testing.

Why These Components Matter

Sacrificial Anode

The sacrificial anode protects the steel tank from internal corrosion.

Instead of the tank rusting, the anode slowly corrodes over time. Once it has been consumed, the tank itself begins to rust from the inside, often leading to leaks and complete tank failure.

Replacing the anode is one of the most effective ways to extend the life of a storage hot water system.

Pressure & Temperature Relief (PTR) Valve

The PTR valve is one of the most important safety devices on your hot water system.

It automatically releases water if pressure or temperature inside the tank becomes too high, protecting both the system and your home.

Over time, scale and mineral deposits can prevent the valve from operating correctly, making regular testing and replacement essential.

Expansion Control Valve (ECV)

The ECV manages pressure created as water expands during heating.

A correctly functioning ECV:

  • Reduces stress on the storage tank.
  • Protects plumbing components.
  • Helps extend the life of the hot water system.
  • Reduces unnecessary water discharge through the PTR valve.

If Your Hot Water System Isn't Working

Before arranging a service, there are a few simple checks you can perform:

  • Ensure the power is switched on at the electrical switchboard.
  • Check whether the hot water circuit breaker or safety switch (RCD) has tripped.
  • Confirm the isolation switch near the hot water system is turned on.
  • Check whether your electricity supplier has scheduled an off-peak interruption.
  • Look for obvious water leaks around the system.
  • Check whether water is continuously flowing from the PTR or ECV valve.
  • Listen for unusual noises such as excessive boiling, rumbling or banging.
  • Confirm the system has had sufficient time to reheat after heavy water usage.

If your system still isn't producing hot water, contact JR Gas & Water for professional diagnosis and repair.

General Signs Your System May Need Attention

Arrange a service if you notice:

  • Water leaking from the tank.
  • Constant dripping from relief valves.
  • Rust-coloured or dirty hot water.
  • Reduced hot water capacity.
  • Water taking much longer to heat.
  • Unusual noises during heating.
  • Visible corrosion.
  • Fluctuating water temperature.
  • Repeated electrical trips.

Early repairs are often significantly less expensive than replacing a failed hot water system.

Protect Your Warranty & Maximise System Life

Regular maintenance not only helps keep your hot water system operating safely and efficiently—it can also assist in meeting manufacturer maintenance requirements.

Ignoring recommended servicing may result in:

  • Premature tank corrosion.
  • Seized or leaking safety valves.
  • Reduced efficiency and higher running costs.
  • Unexpected loss of hot water.
  • Avoidable repair costs.
  • Shortened system lifespan.
  • Possible reduction or loss of manufacturer warranty, depending on the manufacturer's maintenance requirements.

A small investment in preventative maintenance can add years to the life of your hot water system and help avoid the inconvenience and expense of an unexpected replacement.

ZipPay – 6-Month Interest-Free on All Products

ZipPay allows you to buy now and pay later, offering flexible, interest-free payments for up to 6 months on all JR products. It’s easy to set up, and you can customize your repayment schedule to suit your budget. Payments can be made weekly, fortnightly, or monthly, with a $6 fee if the balance isn’t paid off by the due date​.

Humm – Up to 12 Months Interest-Free

Humm provides interest-free payment plans on purchases up to $30,000, perfect for both small and large buys. For items over $2,000, you can spread payments over 12 months. Humm also offers flexibility in scheduling payments based on when you get paid​

Afterpay – 8 Weeks, No Interest

With Afterpay, spread the cost of purchases across four equal installments, due every two weeks, over an 8-week period. There’s no interest, and as long as payments are made on time, there are no fees. Perfect for purchases between $100 and $1,500​

Plenti Finance – For Reclaim Systems Only

Plenti Finance is available exclusively for Reclaim Energy systems. This option offers tailored repayment terms with competitive interest rates, helping make eco-friendly choices more affordable. For more detailed information on Plenti’s terms and eligibility for Reclaim systems, visit the Reclaim Energy finance page​

If you're in Queensland and considering a new electric hot water system, JR Gas & Water is the company to choose. Here's why:

Experience and Expertise: JR Gas & Water has over 10 years of experience in the gas and plumbing industry. Their team of licensed and insured professionals is highly skilled and knowledgeable about all aspects of electric hot water system installation, maintenance, and repair. They can provide expert advice on the best system for your needs and ensure a smooth installation process.

Quality Products: JR Gas & Water uses only high-quality products from trusted brands to ensure your electric hot water system is reliable and efficient. They also offer a range of options to suit different budgets and requirements.

Competitive Pricing: JR Gas & Water offers competitive pricing for their electric hot water systems, ensuring that you get a great value for your investment. They also provide a detailed quote upfront, so there are no surprises or hidden costs.

Customer Service: JR Gas & Water is committed to providing excellent customer service. They are always available to answer any questions or concerns you may have and are committed to ensuring your satisfaction.

Local Business: JR Gas & Water is a locally owned and operated business in Queensland. By choosing them for your electric hot water installation, you are supporting a local business and contributing to the local economy.

Warranty and Guarantee: JR Gas & Water provides a warranty and guarantee on all their products and services, giving you peace of mind knowing that your system is covered in case of any issues.

Energy Efficiency: Electric hot water systems can be energy efficient, and JR Gas & Water can help you choose the right system for your needs. They can provide advice on energy-saving features and options, such as timers and thermostats, to help you save on your energy bills.

Safety: JR Gas & Water is committed to safety and ensuring that all installations are done to the highest safety standards. They are also familiar with local safety regulations and requirements, ensuring that your electric hot water system is installed safely and in compliance with all relevant codes.

JR Gas & Water is a reliable and experienced choice for your electric hot water system installation in Queensland. With a commitment to quality products, competitive pricing, excellent customer service, and safety, they can help you make the switch to a more efficient and cost-effective solution for your hot water needs. Contact them today to learn more about their services and how they can help you.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.
