PURETEC WATER SOFTENER INSTALLATION

Puretec SOL40-E1 Installation Brisbane & Gold Coast

JR Gas & Water supplies and professionally installs the Puretec SOL40-E1 Softrol™ water softener across eligible Brisbane and Gold Coast properties. It is a whole-property ion-exchange water softener designed to reduce hardness minerals that contribute to scale, spotting and mineral deposits throughout the plumbing system.

The SOL40-E1 uses Puretec's automatic E1-matic control valve with scheduled time-based regeneration. Unlike the SOL40-E3, which measures water volume to determine regeneration demand, the E1 operates according to a programmed regeneration interval that should be selected around the property's hardness level and water consumption.

This is an active water-treatment system rather than a passive cartridge filter. Installation requires suitable whole-property plumbing, drainage, overflow provision, mains power, sufficient floor space and ongoing access for salt replenishment and servicing.

Puretec SOL40-E1 at a glance: this is a WaterMark-approved 40 L/min domestic water softener using an automatic time-based E1-matic valve. Puretec's current product page advertises 18,000 L capacity at 100 ppm hardness, while the 2025 SOL-E1 technical guide's regeneration table lists 15,400 L at 100 mg/L for the SOL40-E1. Actual regeneration capacity depends on hardness, water use and system setup, so commissioning should follow the current technical documentation supplied with the unit.

Puretec SOL40-E1 Supply & Installation at a Glance

Treatment Type Ion-Exchange Softening

Service Flow 40 L/min

Control Valve Automatic E1-matic

Regeneration Time Based

Who Is the Puretec SOL40-E1 Best For?

Properties With Measured Hard Water

The SOL40-E1 is designed for properties where water testing confirms hardness and the goal is to reduce the calcium and other minerals responsible for scale formation.

Whole-Property Softening

Installed on the main supply so softened water can be distributed to applicable downstream bathrooms, hot-water equipment, laundries, kitchens and fixtures.

Customers Wanting Simple Scheduled Regeneration

The E1-matic valve uses a programmed regeneration interval rather than the volumetric water-use measurement provided by Puretec's E3 valve.

PRODUCT SUITABILITY

Is the Puretec SOL40-E1 Right for My Property?

A Good Choice If...

Your water hardness has been measured.
You want actual ion-exchange water softening.
You want hardness treatment throughout the property.
A 40 L/min service-flow model suits the required demand.
You have suitable drainage and mains power.
You are prepared to maintain salt levels and service the system.

Consider Another Option If...

Your only concern is chlorine taste or odour.
Your primary problem is sediment rather than hardness.
You only need drinking-water filtration at one tap.
You do not want a salt-regenerated system.
You do not have suitable drainage for regeneration.
Scale control without hardness removal better suits your objective.

JR Should Check First If...

Your hardness level is unknown.
Free chlorine may exceed 1 ppm.
Incoming pressure exceeds 500 kPa.
You have unusually high peak household water demand.
The installation location is remote from drainage or power.
You want pools, irrigation or other high-flow services softened.

Water analysis comes first. Puretec's current installation guide requires the incoming water conditions to be assessed before setup. Hardness, iron, manganese, pH, TDS and other water characteristics can affect correct selection, programming and upstream treatment requirements.

How Does the Puretec SOL40-E1 Work?

The SOL40-E1 uses ion-exchange resin to reduce hardness minerals from incoming water. During normal service, hard water flows through the resin bed before the treated water continues to the property. At the programmed regeneration interval, the valve automatically regenerates the resin using the salt solution stored in the cabinet.

1

Hard Water Enters

Incoming water containing calcium and other hardness minerals enters the softening vessel.

2

Ion Exchange

The Softrol™ resin reduces the hardness minerals responsible for conventional hard-water scale and spotting.

3

Timed Regeneration

The E1 valve regenerates at the programmed interval rather than measuring the exact volume of water treated.

4

Salt Regenerates the Resin

The system uses softener salt and the drain connection to restore the resin before automatically returning to service.

How Does E1 Time-Based Regeneration Work?

Puretec's current SOL-E1 guide states that the E1 valve is factory set to regenerate every third day. That interval is adjustable because the appropriate regeneration frequency depends on the hardness of the incoming water and how much water the property uses.

Scheduled Operation

The valve counts days to the next regeneration and initiates the cycle at the programmed regeneration time.

90-Minute Regeneration

Puretec's current E1 technical guide lists approximately 90 minutes for the regeneration cycle.

Programming Matters

If regeneration is set too infrequently for the hardness and water demand, treatment capacity can be exhausted before the next cycle. Unnecessarily frequent regeneration can use more water and salt.

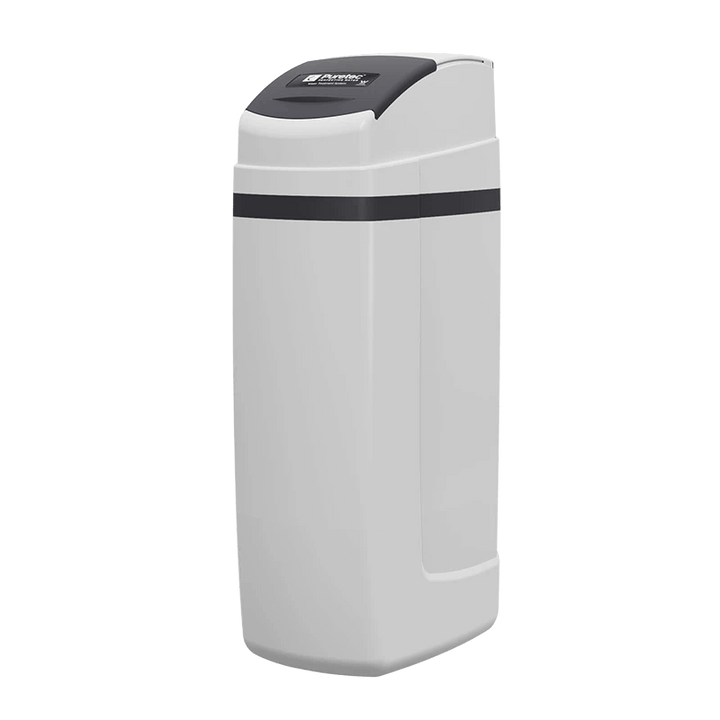

Puretec SOL40-E1 Specifications

Specification	Detail
Brand	Puretec
Model	SOL40-E1
System Type	Softrol™ automatic domestic water softener
Valve	Automatic E1-matic
Regeneration Control	Time based / scheduled
Factory Regeneration Setting	Every third day according to the current SOL-E1 user guide; adjust to water hardness and consumption
Approximate Regeneration Time	90 minutes
Service Flow Rate	40 L/min
Puretec Product-Page Capacity	18,000 litres based on 100 ppm hardness
2025 Technical-Guide Capacity Table	15,400 L at 100 mg/L; 7,700 L at 200 mg/L; 5,130 L at 300 mg/L; 3,850 L at 400 mg/L; 3,080 L at 500 mg/L
Operating Pressure	138–862 kPa
Pressure Limiting	Approved pressure-limiting device required where line pressure exceeds 500 kPa
Operating Temperature	0–48°C; protect from freezing
Electrical Connection	Current 2025 technical guide specifies 240V / 50 Hz
Inlet / Outlet	25 mm / 1-inch
Drain Connection	⅝ inch
Overflow Connection	⅝ inch
Dimensions	1125 mm H × 350 mm W × 490 mm D
Dry Weight	38 kg
Salt Storage	Approximately 50 kg maximum; Puretec recommends maintaining normal operating level below maximum capacity
Replacement Media Kit	RMK-SOL40
WaterMark	Yes — Puretec identifies the SOL40-E1 as WaterMark approved
NSF/ANSI	Puretec's current SOL40-E1 product page and technical guide do not identify complete-system NSF/ANSI certification; confirm the certification basis before relying on any separate retailer metadata
Manufacturer Warranty	6 years: 1 year parts and labour plus 5 years parts only, excluding consumables
Conditional Manufacturer Extended Warranty	Up to 10 years where an eligible Puretec pre-filter is installed and Puretec cartridge/media maintenance conditions are met
JR Lifetime Warranty	JR currently identifies the SOL40-E1 as Lifetime Warranty eligible; applicable JR conditions apply separately

Capacity-source discrepancy: Puretec's live SOL40-E1 product page currently states 18,000 L at 100 ppm hardness, while Puretec's 2025 technical user guide lists 15,400 L at 100 mg/L in its E1 regeneration table. For commissioning and regeneration programming, use the current technical documentation supplied with the exact unit rather than assuming one universal litre figure.

What Size Property Does the Puretec SOL40-E1 Suit?

The SOL40-E1 should not be sized from bedroom count alone. Puretec publishes a 40 L/min service-flow rate, but suitability also depends on incoming hardness, simultaneous household water demand and how frequently the E1 valve is programmed to regenerate.

Higher hardness consumes the resin's treatment capacity faster. For example, Puretec's current E1 technical guide shows substantially less water can be treated between regenerations as hardness increases from 100 mg/L to 500 mg/L.

JR should therefore confirm both peak flow and hardness load before treating the SOL40-E1 as correctly sized for a property.

INSTALLATION REQUIREMENTS

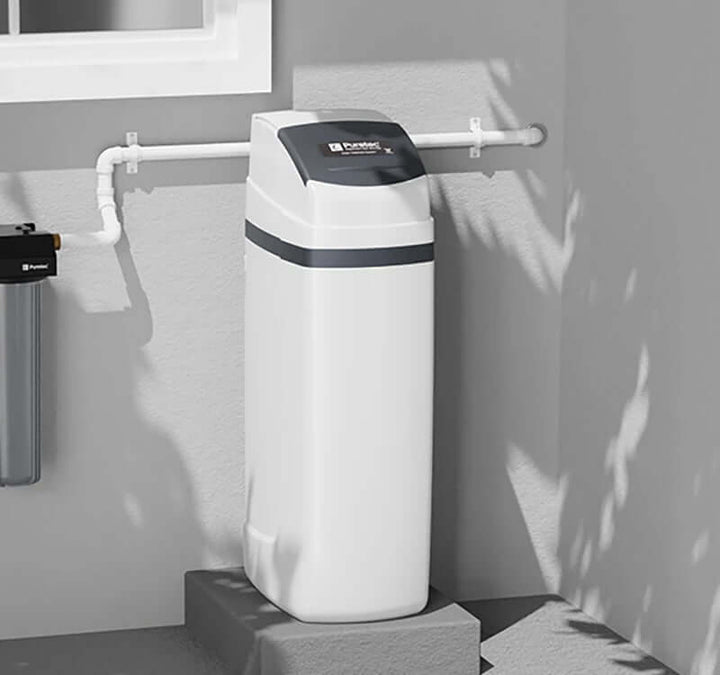

What Is Required to Install the Puretec SOL40-E1?

Water analysis before final programming
Suitable whole-property incoming water connection
Stable, level surface supporting the complete wet unit
Space for the 1125 × 350 × 490 mm cabinet plus servicing
Suitable regeneration-water drain
⅝-inch drain tubing arrangement
Separate ⅝-inch overflow route to drainage
Required air gap at the drainage point
Suitable non-switched mains electrical supply
Approved point-of-entry backflow prevention
Pressure-limiting device where line pressure exceeds 500 kPa
Protection from freezing and unsuitable environmental exposure
Easy access for salt replenishment
Clear access for control-valve and media servicing
Carbon pre-filtration where chlorine conditions require it
Correct relationship to hot-water equipment and other treatment systems
Qualified plumbing installation

Drain arrangement matters: Puretec's current guide says the overflow must run separately to the approved drain point rather than being connected into the regeneration drain line. The drain also requires an appropriate air gap.

Protect the resin from chlorine. Puretec specifies a free-chlorine tolerance of 1 ppm. Higher chlorine can permanently damage the softening resin and is excluded from warranty. Puretec recommends an appropriate carbon pre-filter where chlorine exceeds this limit and recommends carbon pre-filtration generally to protect against chlorine spikes and prolong resin life.

Does the Puretec SOL40-E1 Need a Carbon Pre-Filter?

A softener and a carbon filter perform different jobs. The SOL40-E1 reduces hardness through ion exchange; a suitable upstream carbon filter can reduce chlorine loading before water reaches the softening resin.

Puretec recommends carbon pre-filtration where free chlorine exceeds 1 ppm and also recommends it more generally to protect against chlorine spikes. This can be particularly relevant on treated mains water where protecting the resin and maximising its service life are priorities.

An eligible Puretec pre-filter is also part of Puretec's conditional 10-year manufacturer-warranty pathway when Puretec cartridges and Softrol™ media are replaced in accordance with the warranty conditions.

What's Included With Puretec SOL40-E1 Installation?

Selected JR Package

The live product and installation selector above remains the source of truth for the selected package, current supplied-and-installed price, installation timeframe and package-specific allowances.

Connection & Commissioning

For an applicable standard installation, the softener is connected to suitable water, drainage and power provisions, checked for correct operation and commissioned for the property's water conditions.

Possible Additional Work

Carbon pre-filtration, bypass equipment, pressure control, backflow protection, extended drainage, new electrical work, additional valves, difficult pipework or relocation can require a different package or additional quotation.

How Much Does Puretec SOL40-E1 Installation Cost?

Current supplied-and-installed pricing is shown in JR's live product and installation selector above. The live selector should remain the pricing source rather than hard-coding a fixed installed figure into the product description.

The final cost can vary with incoming-main access, distance to drainage, existing power, pressure control, backflow requirements, pre-filtration, bypass or blending equipment, pipe sizing and the amount of additional plumbing required.

Where the standard installation package does not accurately match the site, use JR's written or onsite quote pathway before non-standard work proceeds.

BRISBANE INSTALLATION

Puretec SOL40-E1 Installation Brisbane

JR Gas & Water supplies and installs the Puretec SOL40-E1 across eligible Brisbane properties where testing confirms a genuine hard-water problem and a salt-regenerated whole-property softener is appropriate.

A Brisbane installation requires more planning than a passive whole-house filter. JR needs to consider the incoming main, measured hardness, pressure, expected household flow, drainage route, overflow, mains power, available floor area and future access for adding salt and servicing the control valve.

Where mains-water chlorine also needs treatment, an appropriate Puretec whole-house carbon filter can be assessed upstream of the softener. Eligible service coverage also extends through Logan, Ipswich, Moreton Bay and Redlands.

GOLD COAST INSTALLATION

Puretec SOL40-E1 Installation Gold Coast

JR Gas & Water also provides Puretec SOL40-E1 supply and installation across eligible Gold Coast properties. The 40 L/min model can suit residential properties where the required flow and hardness load support the SOL40 platform.

The installation location needs a firm level base, drainage, separate overflow path, power and practical access to the brine cabinet. If the most convenient plumbing position is remote from a suitable drain or electrical supply, the site should be assessed before assuming the standard online package will apply.

Existing filtration should also be considered. Whole-house carbon filtration and softening solve different water-treatment problems and can be combined where both chlorine treatment and hardness reduction are required.

Can the Puretec SOL40-E1 Replace My Existing Water Softener?

Replacing Another SOL40-E1

An exact model replacement may be comparatively straightforward where the existing connections, drainage, overflow, electrical supply and installation position remain compliant and serviceable.

Replacing Another Softener Brand

Potentially. Inlet and outlet position, cabinet dimensions, valve configuration, drain requirements and electrical arrangements should be checked before treating another brand as a direct replacement.

Replacing an AntiScale System

The treatment process changes substantially. The SOL40-E1 uses ion exchange to reduce hardness, while AntiScale products generally aim to control scale behaviour without removing hardness minerals in the same way.

Replacing a Whole-House Filter

A sediment or carbon filter is not a substitute for a water softener. Where both filtration and hardness reduction are needed, the systems may form separate stages in the same treatment setup.

Puretec SOL40-E1 vs SOL40-E3

Feature	Puretec SOL40-E1	Puretec SOL40-E3
Service Flow	40 L/min	40 L/min
Softening Technology	Ion exchange	Ion exchange
Control Valve	Automatic E1-matic	Volumetric E3-matic
Regeneration Trigger	Programmed time/day interval	Measured water-use capacity
Factory E1 Setting	Every third day, adjustable to suit hardness and use	Not applicable
Water/Salt Efficiency Strategy	Depends heavily on choosing the correct regeneration interval	Regenerates according to measured treated-water usage and programmed capacity
Best Considered When	You want the simpler scheduled-control SOL40 platform	You prefer usage-based regeneration control

Both systems provide the same basic water-softening technology and published 40 L/min service flow. The major difference is the control strategy: E1 schedules regeneration by time, while E3 uses volumetric water usage.

Puretec SOL40-E1 vs Other Softener Options

System	Published Flow	Regeneration Type	Main Difference
Puretec SOL30-E1	30 L/min	Automatic time based	Lower-flow domestic E1 model
Puretec SOL40-E1	40 L/min	Automatic time based	Higher-flow domestic E1 model
Puretec SOL40-E3	40 L/min	Volumetric	Usage-based regeneration control
AntiScale Cartridge System	Product dependent	No salt regeneration	Scale-management approach rather than conventional hardness removal

The right model depends on measured hardness, peak household flow, daily consumption, desired control strategy and the site's drainage, power and servicing conditions.

How Often Does the Puretec SOL40-E1 Need Servicing?

The SOL40-E1 regenerates automatically, but ownership still involves salt replenishment, checking operation and maintaining the Softrol™ resin and any upstream filtration.

Softener Salt

Puretec states that the brine tank holds approximately 50 kg. The current guide recommends maintaining the salt supply rather than allowing it to run out. Salt consumption varies with regeneration frequency.

Softrol™ Resin

Puretec lists the RMK-SOL40 replacement-media kit for the SOL40-E1. Resin condition and replacement should follow current Puretec servicing guidance and actual system condition.

CR2032 Backup Battery

The current E1 guide recommends replacing the control-valve CR2032 backup battery annually or after extended periods without power.

Any upstream Puretec pre-filter also has its own cartridge-replacement requirements. Keep maintenance records where the installation is intended to remain eligible for Puretec's extended manufacturer warranty.

Puretec SOL40-E1 Warranty

6-Year Puretec Warranty

Puretec currently states a six-year manufacturer warranty: 1 year parts and labour plus 5 years parts only. Consumable items are excluded.

Conditional 10-Year Extension

The SOL40-E1 can qualify for a 10-year Puretec warranty where an eligible Puretec pre-filter is installed and genuine Puretec cartridges and Softrol™ media are replaced according to the required maintenance program.

JR Lifetime Warranty Eligibility

JR's current SOL40-E1 product listing identifies the installation as Lifetime Warranty eligible. JR's Lifetime Warranty is separate from Puretec's manufacturer warranty and subject to JR's applicable terms and installation conditions.

COMMON QUESTIONS

Puretec SOL40-E1 Installation FAQs

How much does Puretec SOL40-E1 installation cost?

Current supplied-and-installed pricing is shown in JR's live product and installation selector above. Final cost depends on drainage, power, pre-filtration, pressure control, backflow requirements, pipework and the selected installation package.

Can JR install the Puretec SOL40-E1 in Brisbane?

Yes. JR Gas & Water supplies and installs the SOL40-E1 across eligible Brisbane and surrounding South East Queensland service areas.

Can JR install the Puretec SOL40-E1 on the Gold Coast?

Yes. Installation is available across eligible Gold Coast areas where the water conditions and site requirements suit the system.

Does the Puretec SOL40-E1 actually remove water hardness?

Yes. It is an ion-exchange water softener designed to reduce calcium and other hardness minerals rather than simply changing the way scale behaves.

What is the flow rate of the Puretec SOL40-E1?

Puretec publishes a service flow rate of 40 litres per minute.

Does the SOL40-E1 always treat 18,000 litres between regenerations?

No. Puretec's product page advertises 18,000 litres at 100 ppm hardness, while its current 2025 technical guide lists 15,400 litres at 100 mg/L and progressively lower capacities as hardness rises. Regeneration should be set from the property's measured hardness and water demand.

How often does the E1 valve regenerate?

The current Puretec E1 guide says the valve is factory set to regenerate every third day. The interval should be adjusted where necessary according to hardness and water usage.

How long does regeneration take?

Puretec's current SOL-E1 guide lists an approximate regeneration time of 90 minutes.

What is the difference between the SOL40-E1 and SOL40-E3?

Both are 40 L/min Softrol™ water softeners. The E1 uses scheduled time-based regeneration, while the E3 uses volumetric regeneration based on measured water usage and programmed treatment capacity.

What are the dimensions of the SOL40-E1?

The current Puretec technical guide lists the system at approximately 1125 mm high × 350 mm wide × 490 mm deep. Extra space is required for plumbing, salt access and servicing.

Does the SOL40-E1 need electricity?

Yes. The automatic control valve requires mains power. Puretec's current 2025 technical guide specifies 240V / 50 Hz.

Does the SOL40-E1 need a drain?

Yes. The current Puretec guide specifies a ⅝-inch regeneration drain connection and a separate ⅝-inch overflow connection to an approved drainage point.

How much salt does the SOL40-E1 hold?

Puretec states that the salt storage capacity is approximately 50 kg. Salt is consumed during regeneration and needs to be replenished periodically.

Does the SOL40-E1 need a carbon pre-filter?

Puretec requires consideration of carbon pre-filtration where free chlorine exceeds 1 ppm because higher chlorine can permanently damage the resin. Puretec also recommends carbon pre-filtration more generally to protect against chlorine spikes and prolong resin life.

What happens if my water pressure is above 500 kPa?

Puretec requires an approved pressure-limiting device where line pressure exceeds 500 kPa.

Is the Puretec SOL40-E1 WaterMark approved?

Yes. Puretec currently identifies the SOL40-E1 as a WaterMark-approved water softener.

Is the Puretec SOL40-E1 NSF/ANSI certified?

Puretec's current SOL40-E1 product page and 2025 technical guide do not state complete-system NSF/ANSI certification. JR's current product metadata displays an NSF/ANSI badge, so the exact certification basis should be verified before presenting that badge as a manufacturer-backed complete-system certification.

What is the Puretec SOL40-E1 manufacturer warranty?

Puretec currently states six years: one year parts and labour plus five years parts only, excluding consumables. A conditional 10-year warranty extension is available where Puretec's specified pre-filter and maintenance requirements are met.

Should hardness be tested before installing the SOL40-E1?

Yes. Hardness directly affects how much water can be treated between regeneration cycles, so water testing is important for correct selection and setup.

Why Choose JR Gas & Water for Puretec SOL40-E1 Installation?

Installation-Led Selection

JR considers hardness, household flow, pressure, drainage, power and pre-filtration before treating the SOL40-E1 as the correct solution for a property.

Powered-Treatment Installation Packages

JR's current SOL40-E1 product page provides live installation-package selection and quote pathways for jobs requiring additional drainage, power, pressure control or other site work.

South East Queensland Coverage

JR provides eligible water-filtration and treatment installations across Brisbane, the Gold Coast, Logan, Ipswich, Redlands, Moreton Bay and surrounding service areas.

COMPARE YOUR OPTIONS

Related Water Treatment & Filtration Options

Compare JR's current whole-home water-treatment range, Puretec systems and replacement-cartridge options or learn more about Brisbane's drinking water.

All Water Filtration Systems Whole Home Mains Water Filtration Water Filter Cartridges Puretec What's in Brisbane's Drinking Water

READY TO INSTALL

Install the Puretec SOL40-E1 With JR Gas & Water

The Puretec SOL40-E1 is a genuine salt-regenerated whole-property water softener for customers wanting hardness reduction through ion exchange. Its 40 L/min service flow and automatic E1-matic valve make it the scheduled-regeneration option in Puretec's domestic SOL40 range.

JR Gas & Water supplies and installs the SOL40-E1 across eligible Brisbane and Gold Coast properties. Before booking, confirm measured water hardness, required peak flow, drainage, overflow, power, incoming pressure and any carbon pre-filtration requirements through the live installation options above.

Choose Your Installation Package Above

Select the applicable installation package and preferred timeframe using JR's live selector. If the job requires extended drainage, new electrical work, pressure control, backflow equipment, carbon pre-filtration, bypass hardware or difficult pipe alterations, use the written or onsite quote pathway before proceeding.

Puretec SOL40-E1 Softener | Supply+Install | LIFETIME WARRANTY

Silver Package

Select Your Preferred Install

Our Water Filtration Installer Verdict

Water Filter Installation Areas
