ELECTRIC HOT WATER SAFETY VALVE REPAIR

PTR Valve Replacement Brisbane & Gold Coast

JR Gas & Water provides professional Pressure & Temperature Relief (PTR) valve replacement for electric hot water systems across eligible Brisbane, Gold Coast and surrounding South East Queensland service areas.

The PTR valve is a critical safety control fitted directly to a storage hot water system. It is designed to relieve excessive pressure and temperature if abnormal conditions develop within the water heater.

If a PTR valve is continually discharging, leaking from the valve body, corroded, blocked or no longer operating correctly, JR can assess the system and replace the valve with a suitable replacement for the water heater.

PTR valve replacement at a glance: A Pressure & Temperature Relief valve is an essential safety component fitted to a storage water heater. It provides pressure and temperature relief if abnormal conditions occur. Some periodic discharge can be normal, particularly during heating, but continuous or excessive discharge should be investigated. JR provides PTR valve diagnosis and replacement across Brisbane and the Gold Coast.

SERVICE AT A GLANCE

Electric Hot Water PTR Valve Replacement

Component

Pressure & Temperature Relief valve fitted directly to a suitable storage hot water system.

Primary Function

Provides safety relief when excessive pressure or temperature develops within the water heater.

Service Type

Inspection and replacement of an existing PTR valve where the valve is faulty, deteriorated or due for replacement.

Service Area

Available across eligible Brisbane, Gold Coast, Logan, Ipswich, Redlands, Moreton Bay and surrounding areas.

SAFETY COMPONENT

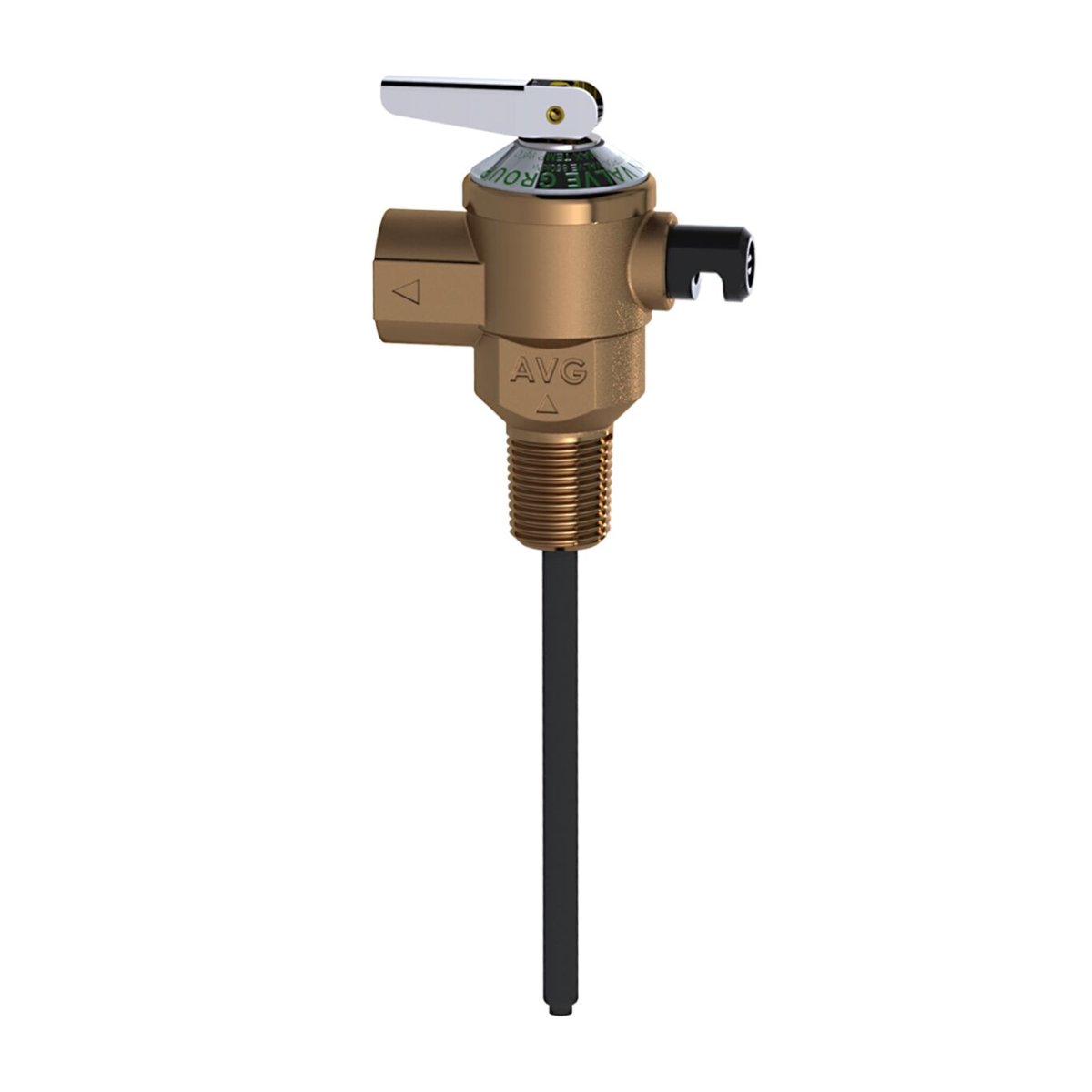

What Is a Pressure & Temperature Relief Valve?

A Pressure & Temperature Relief valve is one of the principal safety controls on a pressurised storage water heater. The valve is connected directly to the storage cylinder and incorporates pressure relief together with a temperature-sensing element.

Pressure Relief

If pressure inside the storage water heater rises beyond the valve's operating setting, the PTR valve can open and discharge water through its drain line.

Temperature Relief

The valve also responds to excessive water temperature, providing an additional safety function if the normal temperature controls fail.

Emergency Safety Control

The PTR valve operates independently of the water heater's normal thermostat and forms an important backup safety control for the storage cylinder.

Important safety information: Never cap, block, plug or interfere with a PTR valve or its drain line. Water discharged from the valve can be very hot. If you are unsure about the condition or operation of the valve, arrange professional inspection.

COMMON FAULTS

When Might a PTR Valve Need Replacing?

Water from the PTR drain does not automatically mean the valve has failed. Storage water heaters can discharge some water while heating because the stored water expands. The amount, timing and cause of discharge need to be considered before replacing the valve.

Continuous discharge from the PTR valve rather than occasional heating-cycle discharge.

Excessive or abnormal water flow from the PTR drain line compared with the system's normal behaviour.

Leakage from the valve body or connection rather than from the intended relief outlet.

Visible corrosion or deterioration affecting the existing valve or its connection to the water heater.

Valve does not operate correctly when inspected or tested in accordance with the water heater manufacturer's requirements.

Scheduled replacement is due under the applicable water heater manufacturer's maintenance instructions.

Do not diagnose the PTR valve from the symptom alone. Continuous discharge can also be associated with excessive incoming water pressure, thermostat or temperature-control problems, thermal expansion or another fault within the hot water installation.

FAULT DIAGNOSIS

Is a Leaking PTR Valve Definitely Faulty?

Not always. A PTR valve is designed to discharge water under certain conditions, so the first step is determining whether the discharge is normal or whether another fault is causing the valve to operate excessively.

Periodic Dripping During Heating

A small amount of periodic relief-valve discharge can occur as stored water heats and expands. This does not automatically mean the PTR valve needs replacement.

Continuous Discharge

Water running continuously can indicate a faulty valve, excessive inlet pressure, abnormal water temperature or another problem requiring diagnosis.

Water Around the Tank

The PTR valve is only one possible source of a leak. Connections, other valves, pipework or the storage cylinder itself may also be responsible.

If water is excessively hot or the system appears to be overheating: do not assume replacing the PTR valve alone will solve the problem. A thermostat, control or other system fault may need investigation.

VALVE COMPARISON

PTR Valve vs Other Hot Water Valves

Several valves can be installed around a storage hot water system, but each performs a different function.

PTR Valve	Provides pressure and temperature relief directly from the storage water heater as a critical safety control.
Expansion Control Valve	Where fitted, relieves thermal expansion pressure from the cold-water inlet side before pressure reaches the PTR valve's operating point.
Pressure Limiting Valve	Controls excessive incoming mains-water pressure supplied to the hot water installation.
Duo Valve	Provides isolation and non-return functions on suitable cold-water inlet arrangements.
Tempering Valve	Mixes hot and cold water to control the temperature delivered to applicable household outlets.

These components are not interchangeable. The PTR valve must have the correct pressure rating, temperature rating and capacity for the particular water heater.

INSTALLATION REQUIREMENTS

What Is Required to Replace a PTR Valve?

A PTR valve cannot simply be selected because its thread fits the water heater. The replacement needs to comply with the requirements of the particular storage system.

Correct pressure rating for the specific storage water heater.

Correct relief capacity suitable for the water heater's heating input and manufacturer requirements.

Correct temperature-relief function for the applicable storage system.

Suitable PTR connection directly into the designated relief-valve connection on the water heater.

Suitable drain line allowing discharged water to flow safely and without obstruction.

System condition checked where continuous valve discharge may indicate another pressure or temperature fault.

The PTR drain line must remain open and unobstructed. Blocking or modifying a relief-valve drain can prevent the safety valve from operating as intended.

SERVICE SCOPE

What's Included With PTR Valve Replacement?

Existing Valve Assessment

The existing PTR valve and accessible surrounding hot water installation are checked to confirm the replacement requirement and identify obvious related issues.

PTR Valve Replacement

The existing valve is removed and replaced with an appropriate PTR valve suited to the applicable hot water system requirements.

Testing & Operation

The replacement installation is checked for leakage, drainage and operation before the hot water system is returned to normal service.

Possible additional work: Excessive incoming pressure, another failed valve, thermostat faults, damaged fittings, unsuitable drainage, corrosion or faults with the storage cylinder itself can require work beyond a standard PTR valve replacement.

CURRENT SERVICE PRICING

How Much Does PTR Valve Replacement Cost?

Current Pressure & Temperature Relief valve replacement pricing is shown in the live service and booking selector above. Keeping pricing connected to the current service options avoids placing a fixed amount in the page content that can become outdated.

The required work can vary depending on the existing installation.

Correct Valve Specification

The PTR valve must be matched to the particular water heater rather than selected solely by brand or physical connection size.

Existing Plumbing

Corroded fittings, damaged threads, unsuitable drainage or altered pipework can increase the repair scope.

Underlying Faults

Continuous discharge caused by excessive water pressure or abnormal heating may require additional diagnosis and repair.

Check Current PTR Valve Replacement Pricing

Use the live service options above to view the current selected service total and available booking timeframes for your property.

BRISBANE SERVICE

PTR Valve Replacement Brisbane

JR Gas & Water provides PTR valve replacement in Brisbane for suitable electric storage hot water systems.

If an existing storage system remains serviceable but the PTR valve is continuously discharging, leaking, corroded or due for scheduled replacement, replacing the valve may allow the water heater to remain in service without replacing the complete unit.

JR can also investigate whether abnormal PTR discharge is being caused by excessive mains pressure, another inlet valve, temperature-control problems or another fault within the hot water installation.

Service is available across eligible Brisbane areas and surrounding South East Queensland regions including Logan, Ipswich, Redlands and Moreton Bay.

GOLD COAST SERVICE

PTR Valve Replacement Gold Coast

JR Gas & Water provides Pressure & Temperature Relief valve replacement on the Gold Coast for suitable electric storage hot water systems across eligible service areas.

A leaking relief valve does not automatically mean the hot water tank itself has failed. Where the cylinder and other major components remain serviceable, replacing a faulty PTR valve may be the appropriate repair.

Where the valve is discharging because of another pressure or temperature issue, JR can identify the underlying fault before unnecessary parts are replaced. If the storage cylinder itself is leaking or heavily deteriorated, complete system replacement can then be considered separately.

SYSTEM COMPATIBILITY

Which Hot Water Systems Use a PTR Valve?

Pressure & Temperature Relief valves are used on pressurised storage water heaters. The exact PTR specification depends on the individual water heater and manufacturer requirements.

This JR service is specifically positioned as an electric hot water PTR valve repair. PTR valves are also used on suitable gas-storage, heat-pump and solar-storage water heaters, but valve ratings and system requirements differ between models.

Major Hot Water Brands

JR works on storage hot water systems from major brands including:

Rheem Rinnai Dux Thermann Aquamax Vulcan

Brand alone is not enough to select a PTR valve. The replacement must match the particular water heater's required pressure rating, temperature function and relief capacity.

MAINTENANCE & SAFETY

How Often Should a PTR Valve Be Checked or Replaced?

PTR valve maintenance should follow the instructions supplied by the manufacturer of the hot water system. Major Australian water-heater manufacturers commonly specify regular operation of the valve's easing lever and scheduled professional replacement.

Six-Month Valve Check

Many manufacturer instructions call for the PTR easing lever to be operated approximately every six months to help confirm that the valve and drain line are not blocked.

Five-Year Replacement

Manufacturer instructions for many common Australian storage water heaters specify PTR replacement at intervals not exceeding five years, with more frequent attention potentially required in adverse water conditions.

Follow Your Water Heater Manual

The requirements for the exact system always take priority. Maintenance intervals and procedures should be confirmed against the applicable manufacturer's instructions.

Hot water warning: Water discharged while operating a PTR easing lever can be extremely hot. Always follow the water heater manufacturer's instructions, stand clear of the discharge point and arrange professional servicing if you are unsure.

COMMON QUESTIONS

PTR Valve Replacement FAQs

What does a PTR valve do?

A Pressure & Temperature Relief valve is a safety control fitted to a storage water heater. It provides relief if excessive pressure or temperature develops inside the system.

Is it normal for a PTR valve to drip?

Some periodic discharge can be normal while a storage water heater is heating and the water is expanding. Continuous, excessive or unusual discharge should be investigated rather than automatically assumed to be normal.

How do I know if my PTR valve is faulty?

Possible signs include continuous abnormal discharge, leakage from the valve body or connection, corrosion, failure to operate correctly during testing or a valve identified as requiring scheduled replacement. Similar symptoms can also be caused by other system faults.

Can excessive water pressure make the PTR valve leak?

Yes. Excessive incoming water pressure can contribute to relief-valve discharge. A pressure-limiting valve or another part of the inlet-control arrangement may therefore need checking before assuming the PTR valve itself is the only problem.

Can a faulty thermostat cause PTR valve discharge?

Abnormally high water temperature can cause the PTR valve to operate. If overheating is suspected, the heating controls and water heater should be diagnosed rather than simply replacing the relief valve.

Is a PTR valve the same as an Expansion Control Valve?

No. The PTR valve is fitted directly to the water heater and provides pressure and temperature relief. An Expansion Control Valve, where fitted, is installed on the cold-water inlet and relieves thermal expansion pressure at a lower pressure setting.

Is a PTR valve the same as a pressure limiting valve?

No. A pressure-limiting valve controls incoming supply pressure. A PTR valve is a safety-relief device fitted to the storage water heater.

How often should a PTR valve be replaced?

Follow the maintenance instructions for your exact hot water system. Manufacturer guidance for many common Australian storage water heaters specifies PTR replacement at intervals not exceeding five years, with regular valve operation checks between major services.

How much does PTR valve replacement cost?

Current PTR valve replacement pricing is shown in the live service and booking selector above. Additional work can affect the total where pressure problems, pipework, drainage or another hot water fault also requires attention.

Can JR replace a PTR valve in Brisbane?

Yes. JR Gas & Water provides electric hot water PTR valve replacement across eligible Brisbane and surrounding South East Queensland service areas.

Can JR replace a PTR valve on the Gold Coast?

Yes. PTR valve assessment and replacement is available across eligible Gold Coast service areas for suitable electric hot water installations.

Do I need a new hot water system if the PTR valve is leaking?

Not necessarily. If the storage cylinder and other major components remain serviceable, a PTR valve or pressure-control issue may be repairable. If the storage cylinder itself is leaking or badly corroded, complete system replacement may be the more appropriate option.

Can I block the PTR drain if it keeps dripping?

No. The PTR valve and its drain line are safety components and must not be capped, blocked or obstructed. If discharge appears excessive, the correct response is to have the cause inspected.

Is same-day PTR valve replacement available?

Same-day or priority repair options may be available where the live booking schedule allows. Check the service selector above for current availability.

READY TO BOOK

Book Your PTR Valve Replacement With JR Gas & Water

If your electric storage hot water system has a PTR valve that is continually discharging, leaking abnormally, corroded, faulty or due for scheduled replacement, JR Gas & Water can assess the existing installation and complete the appropriate repair across eligible Brisbane and Gold Coast service areas.

Use the live service and booking selector above to choose your preferred repair timeframe. If you are unsure whether the PTR valve itself is causing the problem, the system can be diagnosed first so the underlying pressure, temperature or plumbing fault is identified before unnecessary parts are replaced.
