ELECTRIC HOT WATER VALVE REPAIR

Expansion Control Valve Replacement Brisbane & Gold Coast

JR Gas & Water provides professional Expansion Control Valve (ECV) replacement for electric hot water systems across eligible Brisbane, Gold Coast and surrounding South East Queensland service areas.

An Expansion Control Valve is installed on the cold-water inlet side of applicable storage hot water systems. As stored water heats and expands, system pressure increases. The ECV provides a controlled pressure-relief point on the cold side of the installation and discharges expansion water through its drain connection.

If an ECV is continually discharging, leaking from the valve body, deteriorated or no longer operating correctly, JR can inspect the existing hot water installation and replace the valve where required.

ECV replacement at a glance: An Expansion Control Valve relieves pressure created as stored water expands during heating. Some discharge during a heating cycle can be normal. JR Gas & Water can diagnose and replace faulty ECVs across Brisbane and the Gold Coast, with the replacement valve matched to the existing hot water system, inlet arrangement and pressure requirements.

SERVICE AT A GLANCE

Electric Hot Water ECV Replacement

Component

Expansion Control Valve fitted to the cold-water inlet side of applicable storage hot water installations.

Primary Function

Relieves excess pressure produced as stored water expands during normal heating.

Service Type

Assessment and replacement of an existing ECV where the valve is faulty or replacement is otherwise required.

Service Area

Available across eligible Brisbane, Gold Coast, Logan, Ipswich, Redlands, Moreton Bay and surrounding areas.

HOW THE VALVE WORKS

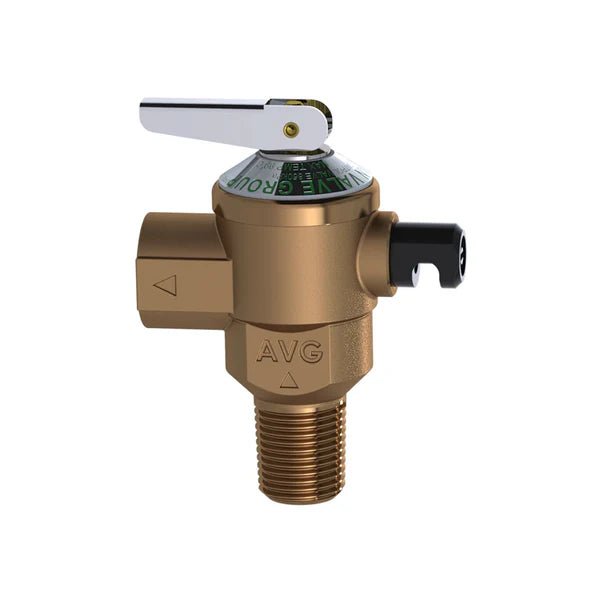

What Is an Expansion Control Valve?

Water expands when heated. In a pressurised storage hot water system, that thermal expansion increases pressure within the installation. Where an Expansion Control Valve is fitted, it provides a dedicated cold-side pressure-relief point.

Thermal Expansion

As the stored water temperature increases, the volume of water increases and pressure can rise within the hot water system.

Controlled Discharge

The ECV opens at its designed operating pressure and allows expansion water to discharge through the connected drain line.

Cold-Side Relief

The ECV operates on the cold-water inlet side and works alongside the other pressure and safety controls protecting the storage hot water installation.

Important: Some discharge from an ECV during a normal heating cycle can be expected. Water coming from the ECV does not automatically mean the valve has failed.

COMMON FAULTS

Signs an Expansion Control Valve May Need Attention

An ECV should be diagnosed in the context of the complete hot water system. The valve is designed to release expansion water, so normal heating-cycle discharge should not be mistaken for a fault.

Continuous discharge when the hot water system is not undergoing a normal heating cycle.

Abnormally heavy discharge that is significantly different from the system's usual operation.

Leakage from the valve body or fittings rather than through the intended drain outlet.

Visible corrosion or deterioration around the valve or its immediate plumbing connections.

Incorrect valve operation identified during hot water servicing or fault diagnosis.

Valve replacement required during servicing based on the condition and requirements of the existing system.

Continuous discharge does not automatically prove the ECV itself is faulty. Excessive inlet pressure, another pressure-control valve, incorrect valve selection or another plumbing problem can contribute to abnormal discharge.

FAULT DIAGNOSIS

Is the ECV Definitely Causing the Problem?

Not always. An Expansion Control Valve works as part of the broader hot water inlet and pressure-control arrangement. Several faults can produce similar symptoms.

Dripping During Heating

This may simply indicate that the valve is relieving thermal expansion pressure as designed. The amount and timing of the discharge need to be considered.

Water Running Continuously

Continuous discharge can indicate an ECV fault, excessive supply pressure or another problem within the inlet-control arrangement.

Water Around the Hot Water System

The ECV is only one possible source. Pipework, fittings, the PTR valve, other inlet valves or the storage cylinder may also leak.

VALVE COMPARISON

ECV vs Other Hot Water Valves

Expansion Control Valve	Relieves thermal expansion pressure from the cold-water inlet side of applicable storage hot water systems.
PTR Valve	The Pressure and Temperature Relief valve is fitted to the storage water heater and provides pressure and temperature relief as an important system safety control.
Pressure Limiting Valve	Controls excessive incoming water-supply pressure before it reaches downstream hot water and plumbing components.
Duo Valve	Provides isolation and non-return functions on suitable hot water inlet arrangements.
Tempering Valve	Mixes hot and cold water where required to control the temperature delivered to applicable fixtures.

These valves are not interchangeable. The correct valve type and pressure configuration must suit the particular hot water system and plumbing installation.

INSTALLATION REQUIREMENTS

What Is Required to Replace an Expansion Control Valve?

The replacement ECV needs to suit the existing hot water system and its inlet-control arrangement. Correct valve selection depends on more than simply matching the existing pipe connection.

Appropriate ECV pressure specification for the applicable water heater and valve arrangement.

Suitable cold-water inlet position for the existing installation.

Suitable drain connection for water discharged by the valve.

Existing inlet pressure checked where excessive or continuous discharge is occurring.

Accessible pipework and fittings suitable for removal and replacement of the valve.

Completed installation tested before returning the hot water system to normal operation.

SERVICE SCOPE

What's Included With Expansion Control Valve Replacement?

Existing Valve Assessment

The existing ECV and accessible surrounding inlet plumbing are checked to confirm the required repair and identify obvious related issues.

ECV Replacement

The existing Expansion Control Valve is removed and replaced with an appropriate valve for the applicable hot water installation.

Testing

The repaired section is returned to service and checked for leakage and correct operation after the replacement is completed.

Possible additional work: Other failed hot water valves, excessive water pressure, damaged pipework, unsuitable drainage, difficult access or faults elsewhere in the hot water system may require work beyond a standard ECV replacement.

CURRENT SERVICE PRICING

How Much Does ECV Replacement Cost?

Current Expansion Control Valve replacement pricing is shown in the live service and booking selector above. This keeps the price connected to JR's current service options instead of embedding a potentially outdated amount in the page content.

The final repair scope may depend on the existing hot water installation.

Valve Configuration

The replacement ECV needs to suit the existing water heater and surrounding inlet-control arrangement.

Pipework & Fittings

Corroded, altered or unsuitable pipework may require additional work before the replacement valve can be installed correctly.

Pressure Problems

If abnormal ECV discharge is being caused by excessive inlet pressure or another valve fault, the underlying issue may also require repair.

Check Current ECV Replacement Pricing

Use the live service options above to view the current selected service total and available booking timeframes.

BRISBANE SERVICE

Expansion Control Valve Replacement Brisbane

JR Gas & Water provides Expansion Control Valve replacement in Brisbane for suitable electric storage hot water installations.

An ECV repair may be appropriate where the storage hot water system itself remains serviceable but the existing expansion valve is leaking abnormally, deteriorated or no longer operating correctly.

Because some ECV discharge during water heating is normal, JR can assess the existing installation and determine whether the valve requires replacement or whether inlet pressure, another control valve, pipework or another part of the hot water system is responsible.

Service is available across eligible Brisbane areas and surrounding South East Queensland regions including Logan, Ipswich, Redlands and Moreton Bay.

GOLD COAST SERVICE

Expansion Control Valve Replacement Gold Coast

JR Gas & Water provides ECV replacement on the Gold Coast for suitable electric storage hot water systems across eligible service areas.

If an existing ECV is continually discharging or leaking abnormally, replacing the valve may restore correct operation without replacing the complete hot water system, provided the cylinder and other major components remain serviceable.

The existing valve configuration, water pressure and accessible surrounding pipework can be assessed before replacement so the repair addresses the actual problem rather than simply changing a valve based on the symptom alone.

SYSTEM COMPATIBILITY

Which Hot Water Systems Use Expansion Control Valves?

Expansion Control Valves are used on applicable pressurised storage hot water installations. Whether an ECV is required, and which valve is appropriate, depends on the water heater, installation design, pressure configuration and applicable plumbing requirements.

This JR service is specifically positioned for electric hot water ECV repair. Not every hot water installation uses an identical valve arrangement, so compatibility should be determined from the actual installation rather than brand name alone.

Major Hot Water Brands

JR services electric storage hot water systems from major brands including:

Rheem Rinnai Dux Thermann Aquamax Vulcan

Brand alone does not determine the correct ECV. The replacement valve must suit the actual hot water system, pressure requirements and existing inlet configuration.

MAINTENANCE

When Should an Expansion Control Valve Be Replaced?

There is no need to assume that every ECV must automatically be replaced simply because it reaches one fixed age. The correct maintenance approach should consider the hot water system manufacturer's requirements, the valve condition and the results of servicing or inspection.

Monitor Discharge

Some discharge during heating can be normal. A significant change in the amount or timing of discharge may justify inspection.

Check Valve Condition

Visible corrosion, deterioration or leakage from the valve body or connections should be investigated.

Maintain the Whole System

The ECV operates alongside other hot water valves and controls, so servicing should consider the complete storage system rather than one valve in isolation.

COMMON QUESTIONS

Expansion Control Valve Replacement FAQs

What does an Expansion Control Valve do?

An Expansion Control Valve relieves excess pressure generated as stored water expands during heating. It is fitted to the cold-water inlet side of applicable storage hot water installations.

Is it normal for an ECV to drip?

Yes. Some discharge while the hot water system is heating can be normal because the valve is designed to relieve thermal expansion pressure. Continuous or excessive discharge should be investigated.

How do I know if my Expansion Control Valve is faulty?

Possible signs include continuous abnormal discharge, leakage from the valve body or fittings, physical deterioration or incorrect valve operation identified during servicing. Other pressure faults can produce similar symptoms.

Is an ECV the same as a PTR valve?

No. The ECV relieves thermal expansion pressure from the cold-water side of applicable systems. The PTR valve is fitted to the storage water heater and provides separate pressure and temperature relief.

Is an ECV the same as a pressure limiting valve?

No. The ECV relieves pressure generated by thermal expansion. A pressure-limiting valve controls excessive incoming water-supply pressure.

Can an ECV waste water?

An ECV is designed to discharge some water as part of normal operation. If it is continually or abnormally discharging, additional water can be lost and the cause should be investigated.

How much does Expansion Control Valve replacement cost?

Current ECV replacement pricing is shown in the live service and booking selector above. Additional work may affect the total if other valves, pipework, drainage or pressure-control issues also require attention.

Can JR replace an ECV in Brisbane?

Yes. JR Gas & Water provides electric hot water Expansion Control Valve replacement across eligible Brisbane and surrounding South East Queensland service areas.

Can JR replace an ECV on the Gold Coast?

Yes. Expansion Control Valve inspection and replacement is available across eligible Gold Coast service areas for suitable electric hot water installations.

Can JR replace other hot water valves at the same time?

If inspection identifies another valve that also requires attention, the additional repair work can be discussed. ECVs, PTR valves, Duo valves, pressure-limiting valves and tempering valves all perform different functions.

Do I need a new hot water system if the ECV fails?

Not necessarily. If the storage cylinder and other major components remain serviceable, a faulty ECV can usually be treated as a valve repair. Complete replacement may be considered if the cylinder itself is leaking or the system has other significant faults.

Is same-day ECV replacement available?

Same-day or priority service may be available where the live booking schedule allows. Check the service options above for current availability.

READY TO BOOK

Book Your Expansion Control Valve Replacement With JR Gas & Water

If your electric storage hot water system has an Expansion Control Valve that is continually discharging, leaking abnormally, deteriorated or no longer operating correctly, JR Gas & Water can assess the existing installation and complete the appropriate repair across eligible Brisbane and Gold Coast service areas.

Use the live service and booking selector above to choose your preferred service option. If you are unsure whether the ECV is actually responsible for the problem, the hot water system can be diagnosed first so unnecessary parts are not replaced.
