Electric Hot Water Repair - DUO (Isolation/Non-Return Valve)

ELECTRIC HOT WATER VALVE REPAIR

Duo Valve Replacement Brisbane & Gold Coast

JR Gas & Water provides professional Duo valve replacement for electric hot water systems across eligible Brisbane, Gold Coast and surrounding South East Queensland service areas.

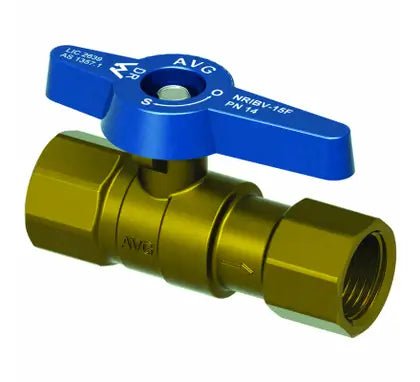

A Duo valve is fitted on the cold-water inlet side of many storage hot water installations. It combines an isolation valve and non-return valve, allowing the water supply to the hot water system to be isolated while helping prevent water from flowing backwards through the inlet connection.

If the valve is leaking, damaged, seized, restricting flow or no longer operating correctly, JR can inspect the installation and replace the valve where appropriate. Because similar symptoms can also be caused by other valves, excessive water pressure, pipework or the hot water system itself, the actual fault should be confirmed before unnecessary parts are replaced.

Duo valve replacement at a glance: A Duo valve combines isolation and non-return functions on the inlet side of many electric storage hot water systems. JR Gas & Water can replace faulty Duo valves across Brisbane and the Gold Coast, with the correct repair determined from the existing valve arrangement, pipework, system condition and site requirements.

SERVICE AT A GLANCE

Electric Hot Water Duo Valve Replacement

Component

Combination isolation and non-return valve used on the cold-water inlet side of suitable hot water installations.

Primary Function

Allows the hot water system water supply to be isolated and helps prevent reverse flow through the inlet.

Service Type

Inspection and replacement of the existing Duo valve where the valve has failed or replacement is appropriate.

Service Area

Available across eligible Brisbane, Gold Coast, Logan, Ipswich, Redlands, Moreton Bay and surrounding areas.

UNDERSTANDING THE COMPONENT

What Is a Duo Valve and What Does It Do?

A Duo valve is a combined plumbing valve commonly used as part of the inlet control arrangement on a storage hot water system. Its two key functions are water isolation and non-return protection.

Isolation

The isolation function allows the cold-water supply to the hot water unit to be shut off when the system or associated plumbing needs servicing.

Non-Return

The non-return function is designed to allow water to travel towards the hot water system while preventing reverse flow back through the inlet.

Part of a Larger Valve Set

A Duo valve should not automatically be confused with the pressure-limiting valve, expansion-control valve, tempering valve or pressure and temperature relief valve. These components perform different functions.

Important: A standard Duo valve is not itself the pressure-limiting valve. If water pressure needs to be controlled, the installation may use a separate pressure-limiting valve or another approved valve arrangement.

COMMON FAULTS

When Might a Duo Valve Need Replacing?

The condition of the valve and the actual cause of the problem should be checked before replacement. Symptoms around a hot water system can overlap, so a leaking or poorly performing system does not automatically mean the Duo valve has failed.

Visible leakage from the Duo valve body, spindle or nearby connection.

Valve will not isolate the water supply correctly when servicing is required.

Restricted inlet flow where the valve is found to be contributing to poor water flow.

Physical deterioration such as corrosion, damage or a seized operating mechanism.

Non-return function concerns identified during inspection or plumbing work.

Existing valve arrangement requires attention while other hot water repairs or replacement work is being completed.

JR Installer Check: Water around a hot water system can come from several locations, including valves, fittings, drain lines, pipework or the storage cylinder. Identifying exactly where the water is coming from is the first step.

FAULT DIAGNOSIS

Is the Duo Valve Definitely the Problem?

Not always. Low pressure, continuous discharge, water around the cylinder or unusual plumbing behaviour can have several possible causes. The Duo valve is only one part of the complete inlet and safety-valve arrangement.

Leaking Near the Inlet

The source may be the Duo valve, another valve, a fitting or nearby pipework. The exact leak point should be identified before replacing components.

Low Hot Water Pressure

A restriction may involve the Duo valve, another inlet valve, pipework, water pressure or another part of the installation. Testing helps narrow down the cause.

Valve Discharge

Water discharging from another control or relief valve is not automatically a Duo valve fault. System pressure, temperature and valve condition may need assessment.

SERVICE SCOPE

What's Included With Duo Valve Replacement?

Existing Valve Assessment

The existing Duo valve and accessible surrounding inlet plumbing are checked to confirm the required replacement and identify obvious installation issues relevant to the work.

Valve Replacement

The failed Duo valve is removed and replaced with an appropriate valve for the applicable installation, with the associated connection work completed as required.

Testing

The repaired section is returned to service and checked for correct operation and leakage following the replacement.

Possible additional work: Existing pipework alterations, other failed valves, pressure-control issues, inaccessible installations, damaged fittings or additional hot water faults may sit outside the standard Duo valve replacement scope. Where additional work is required, it should be identified before proceeding.

CURRENT SERVICE PRICING

How Much Does Duo Valve Replacement Cost?

The current price for the selected Duo valve repair service is shown in the service and booking selector above. This keeps the amount connected to the live service options rather than hard-coding a price into long-form page content.

The final scope can depend on the existing valve arrangement and installation condition.

Existing Pipework

Alterations may be required where pipework, fittings or connections differ from the standard replacement arrangement.

Other Valve Faults

A Duo valve may be only one part of the issue if pressure-limiting, expansion-control, relief or other valves also require attention.

Access & Condition

Restricted access, corrosion or deterioration around the existing hot water installation can change the work required.

Want the Current Duo Valve Replacement Price?

Use the live service options above to view the current selected service total and available booking timeframes for your property.

BRISBANE SERVICE

Duo Valve Replacement Brisbane

JR Gas & Water provides Duo valve replacement in Brisbane for suitable electric hot water installations. This service is particularly relevant where an existing storage hot water system remains serviceable but the inlet isolation/non-return valve has developed a fault or needs replacement as part of repair work.

Before replacing the valve, the surrounding installation should be considered because visible leaking, poor flow or pressure-related symptoms can originate from more than one component. JR can assess the existing arrangement and determine whether the Duo valve itself is the appropriate repair.

Service availability extends through eligible Brisbane areas and surrounding South East Queensland service regions including Logan, Ipswich, Redlands and Moreton Bay.

GOLD COAST SERVICE

Duo Valve Replacement Gold Coast

For Gold Coast properties with electric storage hot water, a failed Duo valve does not necessarily mean the complete hot water unit needs replacing. Where the cylinder and major components remain serviceable, replacing the faulty inlet valve may be the appropriate repair.

JR Gas & Water provides Duo valve replacement on the Gold Coast across eligible service areas, with the existing valve configuration, pipework and related hot water controls checked as part of determining the correct repair approach.

If the system has several faults, significant corrosion or a leaking storage cylinder, JR can also help determine whether repairing the valve or moving to complete hot water system replacement is the more appropriate next step.

SYSTEM COMPATIBILITY

Which Hot Water Systems Use a Duo Valve?

This JR service is specifically positioned for electric hot water Duo valve repair. Duo valves are used in suitable storage hot water inlet arrangements, but not every hot water installation uses the same valve configuration.

The correct replacement should be based on the actual plumbing arrangement rather than choosing a valve simply by the hot water system brand.

Major Hot Water Brands

JR works on electric hot water installations using major brands including:

Rheem Rinnai Dux Thermann Aquamax Vulcan

Brand alone does not determine compatibility. The plumber needs to match the replacement to the existing installation, valve configuration and applicable plumbing requirements.

VALVE COMPARISON

Duo Valve vs Other Hot Water Valves

Duo Valve	Combines isolation and non-return functions on suitable hot water inlet arrangements.
Pressure Limiting Valve	Limits incoming water pressure to the required level for the installation. This is a separate function from a standard Duo valve.
Expansion Control Valve	Used in applicable installations to manage expansion-related discharge on the cold-water side.
PTR Valve	A pressure and temperature relief valve fitted to the storage water heater as a safety component.
Tempering Valve	Mixes hot and cold water where required to control the delivered water temperature to applicable outlets.

COMMON QUESTIONS

Duo Valve Replacement FAQs

What does a Duo valve do on a hot water system?

A Duo valve combines isolation and non-return functions. It allows the water supply to the hot water unit to be isolated and helps prevent water flowing backwards through the inlet.

Is a Duo valve the same as a pressure limiting valve?

No. A standard Duo valve provides isolation and non-return functions. A pressure-limiting valve is a separate component designed to control incoming water pressure. Some installations may use multiple valves or a combined valve assembly.

How do I know if my Duo valve needs replacing?

Possible reasons include visible leakage from the valve, inability to isolate the water supply, physical deterioration or a confirmed restriction or non-return fault. Similar symptoms can have other causes, so inspection is recommended before replacing the valve.

Can a leaking Duo valve be repaired?

The correct approach depends on the valve condition and source of the leak. Where the valve itself has failed, replacement is generally the practical service option. A plumber should first confirm that the leak is actually coming from the Duo valve rather than a fitting or another component.

Can a faulty Duo valve cause low water flow?

A restricted or damaged inlet valve can contribute to reduced flow, but low hot water pressure can also result from other valves, pipework, supply pressure or the hot water system. The cause should be diagnosed rather than assumed.

How much does Duo valve replacement cost?

Current service pricing is shown in the live booking and service selector above. Additional work may affect the total where the existing pipework, fittings or other hot water valves also require attention.

Does JR replace Duo valves in Brisbane?

Yes. JR Gas & Water provides electric hot water Duo valve replacement across eligible Brisbane and surrounding South East Queensland service areas.

Does JR replace Duo valves on the Gold Coast?

Yes. Duo valve replacement is available across eligible Gold Coast service areas for suitable electric hot water installations.

Can JR replace other hot water valves at the same time?

If inspection identifies another failed or unsuitable valve, additional repair work can be discussed. Pressure-limiting valves, expansion-control valves, PTR valves and tempering valves have different functions and should only be replaced where required.

Do I need to replace the entire hot water system if the Duo valve fails?

Not necessarily. If the storage cylinder and the rest of the system remain serviceable, a failed Duo valve may be repaired by replacing the valve only. Complete system replacement may be considered where the cylinder itself is leaking, heavily deteriorated or has other significant faults.

Is same-day Duo valve service available?

JR offers same-day service options where live availability and the selected service timeframe allow. Check the booking options above for the current availability for this service.

HOT WATER OPTIONS

Repairs, Accessories & Hot Water Systems

If the problem extends beyond the Duo valve, compare JR's other hot water repair and replacement options.

Hot Water Repairs & Servicing Fault finding, valve repairs and servicing for hot water systems. Hot Water System Accessories Browse JR's current hot water accessory range. Hot Water Systems Compare current electric, gas, heat pump and solar replacement options.

READY TO BOOK

Book Your Duo Valve Replacement With JR Gas & Water

If your electric hot water system has a leaking, damaged, seized or faulty Duo isolation/non-return valve, JR Gas & Water can assess the existing arrangement and complete the appropriate replacement across eligible Brisbane and Gold Coast service areas.

Use the service selector and live booking options above to choose your preferred timeframe. If you are not sure whether the Duo valve is actually causing the problem, JR's hot water fault-finding service can be used to diagnose the system before parts are replaced.
