PURETEC WHOLE-HOME MAINS WATER FILTRATION

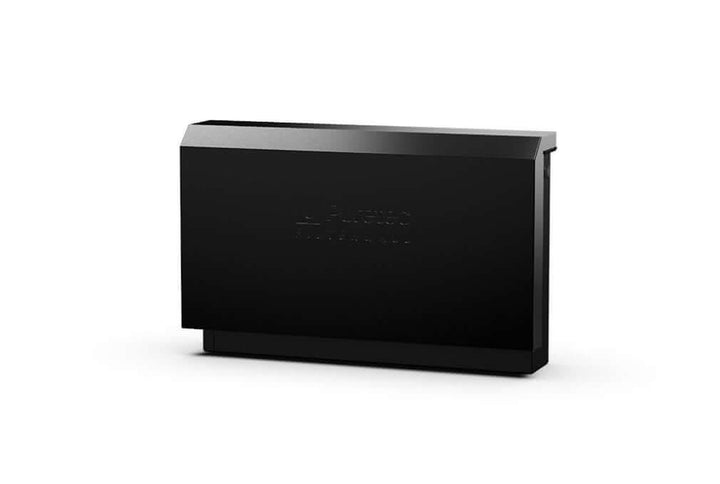

Puretec FILTERWALL F4E Installation Brisbane & Gold Coast
JR Gas & Water supplies and installs the Puretec FILTERWALL F4E across eligible Brisbane and Gold Coast properties for homeowners wanting whole-house mains-water filtration with sediment, carbon and ScaleProtect™ treatment in a premium external enclosure.
The current Puretec FILTERWALL-F4E-LF is a 3-stage point-of-entry system designed for mains water. It combines a PX05MP1 5-micron sediment cartridge, CB10MP1 10-micron carbon block and SCALEPROTECT-MP1 scale-management cartridge.
Puretec publishes a 30 L/min nominal flow rate, ¾" BSP female connections and a 200–875 kPa operating-pressure range. The F4E is supplied in Midnight Black and deliberately excludes the standard F4 bypass assembly.
Quick answer: the Puretec FILTERWALL F4E is a 30 L/min, 3-stage whole-house mains-water filter for small to medium homes. It uses PX05MP1 sediment filtration, CB10MP1 carbon filtration and SCALEPROTECT-MP1 scale management. Puretec currently documents chlorine, chemicals, sediment, PFAS and scale-treatment benefits. Unlike the standard F4, the F4E does not include the bypass or pressure-limiting-valve assembly.
Puretec FILTERWALL F4E at a Glance
Nominal Flow
30 L/min
Filtration
3 Stages
Cartridge Size
10" × 4.5"
Bypass
Excluded
What Is the Puretec FILTERWALL F4E?
The FILTERWALL F4E is the streamlined no-bypass version of Puretec's 30 L/min F4 whole-house filtration platform.
Water is treated at the point of entry before it branches throughout the home, allowing the filtration system to serve household taps, showers, baths, laundries and connected appliances supplied from the filtered mains line.
Sediment Filtration
The first 5-micron polyspun stage reduces suspended particulate before water reaches the carbon and scale-management stages.
Carbon Treatment
The second-stage carbon block provides Puretec's documented chlorine, unwanted taste and odour treatment.
ScaleProtect™
The final stage is designed to help manage scale build-up through Puretec's ScaleProtect™ treatment rather than conventional salt-based softening.
How the FILTERWALL F4E Works
1
PX05MP1
5-micron graded polyspun sediment filtration. This cartridge reduces dirt, rust, sand, silt, algae and other suspended particles.
The graded-density polypropylene media provides depth filtration rather than relying only on its outside surface.
2
CB10MP1
10-micron bonded carbon block filtration. This stage provides chlorine, unwanted taste, odour and sediment treatment before the water enters the ScaleProtect™ stage.
3
SCALEPROTECT-MP1
Scale-management treatment. Puretec specifies this stage for helping reduce scale build-up through its ScaleProtect™ technology.
Current cartridge code: Puretec's current product page and 2025 maintenance guide specify SCALEPROTECT-MP1. Older F4E documentation may show the legacy SCALEGUARD-MP1 name.
What Does the FILTERWALL F4E Target?
Sediment
The PX05MP1 stage provides nominal 5-micron sediment filtration for common suspended particles in the mains-water supply.
Chlorine & Odour
The CB10MP1 carbon block provides manufacturer-documented treatment for chlorine, unwanted taste and odour.
PFAS & Chemicals
Puretec's current exact F4E product page states that the FilterWall reduces PFAS chemicals and chlorine as part of its whole-home treatment function.
Scale Build-Up
The final ScaleProtect™ stage is intended to help manage scale deposits in plumbing and connected appliances.
ScaleProtect™ is not a conventional water softener. The F4E does not use salt regeneration to remove hardness minerals and should not be described as producing fully softened water.
Who Is the FILTERWALL F4E Best For?
Small to Medium Homes
The 30 L/min platform suits smaller and medium residential properties where the larger 55 L/min F6 platform is not required.
Mains-Water Properties
Puretec specifies the FilterWall F Series for treated mains water installed on the cold-water supply.
Homes Concerned About Scale
The F4E differs from the F3E by using ScaleProtect™ as the final stage instead of a second dedicated sediment cartridge.
Is the FILTERWALL F4E Right for Your Home?
Good Choice
- Home uses treated mains water
- 30 L/min nominal flow suits household demand
- Whole-home chlorine treatment is required
- Scale management is a priority
- PFAS treatment is part of the buying objective
- Midnight Black suits the installation
- A plumber-designed bypass arrangement is preferred
Consider Another System
- Household needs higher whole-home flow
- Extra sediment treatment is more important than scale management
- Rainwater or bore water is being treated
- UV disinfection is required
- Fluoride reduction is the main objective
- True hardness removal is required
JR Should Check
- Incoming mains-water position
- Peak household flow requirement
- Available installation space
- Incoming pressure
- Whether a PLV is required
- Desired bypass arrangement
- Future cartridge-service access
Puretec FILTERWALL F4E Specifications
| Specification | FILTERWALL-F4E-LF |
|---|---|
| System Type | 3-stage whole-house point-of-entry mains-water filtration system |
| Stage 1 | PX05MP1 — 5-micron graded polyspun sediment cartridge |
| Stage 2 | CB10MP1 — 10-micron carbon block cartridge |
| Stage 3 | SCALEPROTECT-MP1 — ScaleProtect™ cartridge |
| Published System Micron Rating | 5 micron nominal |
| Nominal Flow Rate | 30 L/min |
| Operating Pressure | 200–875 kPa |
| Pressure Limiting Requirement | Approved pressure-limiting device required where line pressure exceeds 500 kPa |
| Pressure Limiting Valve Included | No — not included with F4E |
| Operating Temperature | 0–52°C; protect from freezing |
| Published pH Range | 6.5–8.5 |
| Published Maximum Iron | 0.3 mg/L |
| Connection | ¾" BSP female inlet and outlet |
| Cartridge Size | MaxiPlus™ 4.5" × 10" |
| Bypass | Excluded |
| Colour | Midnight Black |
| Overall Dimensions | Approximately 916 W × 580 H × 227 D mm |
| Electrical Power | Not required |
| WaterMark | Current Puretec F4E specification carries WaterMark certification |
| Manufacturer Warranty | 10 years — 1 year parts and labour plus 9 years parts only; cartridges excluded |
Important F4E difference: Puretec's current maintenance documentation confirms that the pressure-limiting-valve and bypass assembly are not included with F4E. Where the property exceeds 500 kPa, an approved PLV must therefore form part of the installation scope.
FILTERWALL F4E Installation Requirements
- Licensed plumber installation
- Treated mains-water cold line
- Suitable point-of-entry location
- 200–875 kPa operating pressure
- Approved PLV where pressure exceeds 500 kPa
- Plumber-designed isolation arrangement
- Bypass added separately if required
- Suitable pipework route
- Stable wall or freestanding support
- Space for three filter bowls
- Protection from freezing
- Commissioning and leak checks
No factory bypass can be an installation advantage where a custom layout is preferred. Puretec describes the F4E's no-bypass configuration as providing additional flexibility to plumbers when planning the final pipework.
Mains water only. Puretec warns against using microbiologically unsafe or unknown-quality water without adequate disinfection before the FilterWall system.
Where Should the FILTERWALL F4E Be Installed?
The F4E is installed on the cold mains-water supply before the water branches throughout the property.
The location should provide straightforward access to the incoming main, adequate support for the enclosure and enough working room for future cartridge servicing.
External Wall
A suitable outside wall can provide a clean installation where the incoming main is accessible.
Freestanding Position
The FilterWall can also be configured with suitable freestanding support where this better suits the pipework and property layout.
Service Access
The location needs enough room to remove the cover and access all three filter bowls during routine maintenance.
What's Included With JR FILTERWALL F4E Installation?
System & Cartridges
- Genuine Puretec FILTERWALL F4E
- Midnight Black aluminium enclosure
- PX05MP1 cartridge
- CB10MP1 cartridge
- SCALEPROTECT-MP1 cartridge
- Factory filtration assembly
Installation & Commissioning
- Placement within selected package scope
- Applicable mains-water connections
- Pressure conditions assessed
- Isolation arrangement completed
- Leak checks after connection
- System flushed and commissioned
Possible Additional Work
- Pressure-limiting valve
- Custom bypass arrangement
- Locating a concealed water main
- Additional pipework
- Freestanding support or base work
- Unusual installation access
The live JR selector above is the source of truth. Exact current pricing, plumbing allowances, pressure-control work, support requirements and installation inclusions depend on the package selected above.
How Much Does Puretec FILTERWALL F4E Installation Cost?
Use JR's live installation selector above for the current supplied-and-installed price.
The installation scope depends on whether the water main is already accessible, whether a pressure-limiting valve is required, whether a custom bypass is being installed and how much additional pipework or support work is needed.
The live product configuration should remain the pricing source rather than embedding a fixed historical price into this description.
BRISBANE WHOLE-HOME WATER FILTRATION
Puretec FILTERWALL F4E Installation Brisbane
JR Gas & Water supplies and installs the Puretec FILTERWALL F4E across eligible Brisbane mains-water properties where the 30 L/min platform and ScaleProtect™ configuration suit the household.
For Brisbane installations, JR checks the incoming water-main location, available pressure and final mounting position before determining whether additional pressure control or a separate bypass arrangement should form part of the job.
The F4E can be particularly relevant where a small to medium household wants whole-home carbon filtration plus scale management without stepping up to the larger 20-inch F6 platform.
GOLD COAST WHOLE-HOME WATER FILTRATION
Puretec FILTERWALL F4E Installation Gold Coast
JR Gas & Water also installs the FILTERWALL F4E across eligible Gold Coast mains-water properties.
Gold Coast installation conditions can vary significantly in incoming-main location, external access and available installation space. The no-bypass F4E allows the final isolation and bypass arrangement to be planned around the actual site rather than relying on the standard factory assembly.
Where the home's flow demand exceeds the smaller 30 L/min platform, the larger F6 ScaleProtect™ configuration can also be assessed.
How Often Does the Puretec FILTERWALL F4E Need Servicing?
Puretec recommends replacing the FilterWall cartridge set every 6–12 months, depending on water quality and household usage.
Cartridges may require earlier replacement where household flow drops or unwanted taste and odour begin to return.
6–12 Month Cartridge Cycle
PX05MP1, CB10MP1 and SCALEPROTECT-MP1 are normally renewed as a complete set during scheduled servicing.
O-Ring Maintenance
Puretec recommends checking O-ring condition and lubrication during cartridge changes and replacing the seals approximately every 3–5 years.
Post-Service Flush
After the system has been reassembled and checked for leaks, Puretec specifies flushing through a downstream tap for approximately two minutes.
Puretec FR-F4 Premium Care Kit
Puretec specifies the FR-F4 Premium Care Kit for both FILTERWALL F4 and F4E servicing.
PX05MP1
5-micron graded polyspun sediment cartridge for the first stage.
CB10MP1
10-micron bonded carbon block cartridge for chlorine, unwanted taste and odour treatment.
SCALEPROTECT-MP1
ScaleProtect™ cartridge providing the third-stage scale-management treatment used by the current F4 and F4E.
The current genuine FR-F4 kit also includes O-rings and lubricant. This allows the routine cartridge service and common housing-seal maintenance to be completed with the matched factory care kit.
FILTERWALL F4E vs F4 vs F3
| Feature | FILTERWALL F4E | FILTERWALL F4 | FILTERWALL F3 |
|---|---|---|---|
| Nominal Flow | 30 L/min | 30 L/min | 30 L/min |
| Cartridge Size | 10" × 4.5" | 10" × 4.5" | 10" × 4.5" |
| Stage 1 | PX05MP1 sediment | PX05MP1 sediment | PL20MP1 sediment |
| Stage 2 | CB10MP1 carbon | CB10MP1 carbon | PX05MP1 sediment |
| Stage 3 | ScaleProtect™ | ScaleProtect™ | CB10MP1 carbon |
| Bypass | Excluded | Included | Included |
| Factory PLV Assembly | Not included | Standard F-Series assembly | Standard F-Series assembly |
| Primary Treatment Difference | Carbon + ScaleProtect™ with plumber-flexible installation | Carbon + ScaleProtect™ with standard bypass | Additional sediment filtration instead of ScaleProtect™ |
F4E and F4 use the same current cartridge set. The main difference is the factory plumbing assembly: F4E excludes the bypass and pressure-limiting-valve assembly, while standard F4 provides the conventional FilterWall arrangement.
FILTERWALL F4E vs F6
Both systems use sediment, carbon and ScaleProtect™ treatment, but they serve different household flow requirements.
| Feature | FILTERWALL F4E | FILTERWALL F6 |
|---|---|---|
| Nominal Flow | 30 L/min | 55 L/min |
| Cartridge Size | 10" × 4.5" | 20" × 4.5" |
| Sediment Stage | PX05MP1 | PX05MP2 |
| Carbon Stage | CB10MP1 | CB10MP2 |
| Scale Stage | SCALEPROTECT-MP1 | SCALEPROTECT-MP2 |
| Typical Comparison Reason | Small to medium household demand | Higher household flow demand |
Does the FILTERWALL F4E Soften Water?
No. ScaleProtect™ should not be confused with conventional ion-exchange water softening.
The F4E is designed to help manage scale build-up while retaining the mains-water minerals rather than exchanging hardness ions through a salt-regenerated resin bed.
If measurable hardness reduction and genuinely softened water are required, a dedicated water-softening system should be assessed separately.
Puretec FILTERWALL F4E Warranty
Puretec currently provides a 10-year manufacturer warranty for the FILTERWALL F4E, structured as 1 year parts and labour followed by 9 years parts only, subject to the manufacturer's current terms.
Replacement cartridges are consumable maintenance components and are excluded from the 10-year system warranty.
Puretec specifies genuine replacement cartridges for maintaining system performance and the applicable warranty pathway.
JR Lifetime Warranty is separate from Puretec's manufacturer warranty. Any Lifetime Warranty eligibility shown on the live JR product is governed by JR's current workmanship, servicing and eligibility terms.
COMMON QUESTIONS
Puretec FILTERWALL F4E Installation FAQs
What is the current Puretec FILTERWALL F4E model?
Puretec currently identifies the exact model as FILTERWALL-F4E-LF.
What is the FILTERWALL F4E flow rate?
Puretec publishes a nominal complete-system flow rate of 30 litres per minute.
What cartridges are inside the F4E?
The current cartridge sequence is PX05MP1, CB10MP1 and SCALEPROTECT-MP1.
What happened to the old SCALEGUARD-MP1 cartridge name?
Older Puretec F4E specifications may show SCALEGUARD-MP1. Puretec's current product page and 2025 maintenance documentation identify the Stage 3 cartridge as SCALEPROTECT-MP1.
What does the PX05MP1 cartridge do?
PX05MP1 is a nominal 5-micron polyspun sediment cartridge designed to reduce dirt, rust, sand, silt, algae and other suspended particulate.
What does CB10MP1 do?
CB10MP1 is a nominal 10-micron carbon block used for chlorine, unwanted taste, odour and sediment treatment.
What does ScaleProtect™ do?
ScaleProtect™ is Puretec's scale-management stage designed to help reduce scale build-up in plumbing and connected appliances.
Does the FILTERWALL F4E soften water?
No. ScaleProtect™ is not conventional ion-exchange softening and does not produce fully softened water through salt regeneration.
Does the F4E reduce PFAS?
Puretec's current exact F4E product page states that the FilterWall reduces PFAS chemicals and chlorine. No unsupported percentage-removal figure is added here.
Does the F4E reduce chlorine?
Yes. Chlorine reduction is part of Puretec's documented treatment function for the F4E and CB10MP1 carbon stage.
Does the F4E remove fluoride?
The current F4E documentation does not specify fluoride removal. A treatment technology specifically documented for dissolved fluoride should be considered where that is the objective.
Does the F4E disinfect water?
No. The F4E has no UV-disinfection stage and is designed for treated mains water.
Does the FILTERWALL F4E include a bypass?
No. Puretec specifically identifies the F4E as the bypass-excluded version.
Does the F4E include a pressure-limiting valve?
No. Puretec's current FilterWall maintenance documentation states that the pressure-limiting-valve and bypass assembly are not included with F3E and F4E models.
When does the F4E need a pressure-limiting valve?
Puretec states that an approved pressure-limiting device must be installed where incoming line pressure exceeds 500 kPa.
What pressure range does the F4E use?
Puretec specifies an operating-pressure range of 200–875 kPa.
Does the FILTERWALL F4E need electricity?
No. It is a passive pressure-driven whole-house filtration system and requires no electrical power for normal operation.
How large is the FILTERWALL F4E?
Puretec specifies approximately 916 mm wide × 580 mm high × 227 mm deep.
What colour is the FILTERWALL F4E?
The current F4E is supplied with a Midnight Black aluminium cover.
Is the FILTERWALL F4E suitable for rainwater?
Puretec's current FilterWall F Series maintenance guidance specifies mains-water supply. Rainwater should use filtration selected specifically for the source and may require UV disinfection.
How often should the F4E filters be replaced?
Puretec recommends replacement every 6–12 months depending on water quality and usage, or earlier where flow decreases or unwanted taste and odour return.
What maintenance kit suits the FILTERWALL F4E?
Puretec specifies the FR-F4 Premium Care Kit for the F4 and F4E. It contains the correct cartridge set together with O-rings and lubricant.
How often should the FilterWall O-rings be replaced?
Puretec recommends replacement approximately every 3–5 years, with seal condition and lubrication checked during cartridge servicing.
What is the difference between F4E and F4?
They use the same 30 L/min cartridge treatment platform. The F4 includes the standard bypass arrangement, while F4E excludes the bypass and pressure-limiting-valve assembly for greater installation flexibility.
What is the difference between F4E and F3?
F4E uses sediment, carbon and ScaleProtect™. F3 uses two sediment stages followed by carbon, so F3 prioritises additional particulate treatment while F4E adds scale management.
What is the difference between F4E and F6?
Both use the sediment-carbon-ScaleProtect™ treatment concept. F4E uses 10-inch cartridges at 30 L/min, while F6 uses 20-inch cartridges and is rated at 55 L/min.
What warranty does the FILTERWALL F4E have?
Puretec currently specifies 10 years — 1 year parts and labour plus 9 years parts only. Replacement cartridges are excluded.
Can JR install the FILTERWALL F4E in Brisbane?
Yes. JR provides whole-house mains-water filtration installation across eligible Brisbane and surrounding South East Queensland service areas.
Can JR install the FILTERWALL F4E on the Gold Coast?
Yes. FILTERWALL F4E installation is available across eligible Gold Coast mains-water properties where the plumbing and installation location suit the system.
How much does Puretec FILTERWALL F4E installation cost?
Use JR's live selector above for current supplied-and-installed pricing, package inclusions and appointment availability.
Why Choose JR Gas & Water for FILTERWALL F4E Installation?
Installation-Led Planning
JR considers water pressure, household flow, incoming-main position and whether the property needs a separate PLV or bypass arrangement before confirming the installation pathway.
Correct F4E Servicing
The system has a defined current FR-F4 service kit, helping keep replacement cartridge and ScaleProtect™ matching straightforward over the life of the filter.
Brisbane & Gold Coast Coverage
Professional whole-home mains-water filtration installation is available across eligible Brisbane, Gold Coast and surrounding South East Queensland service areas.
RELATED WATER FILTRATION
Related Puretec Water Filtration Options
Compare JR's current whole-home mains-water filtration, genuine replacement cartridges and broader Puretec range before selecting the final treatment and installation pathway.
SUPPLY + INSTALL
Install the Puretec FILTERWALL F4E With JR Gas & Water
The FILTERWALL F4E combines 5-micron sediment filtration, carbon treatment and Puretec ScaleProtect™ technology in the compact 30 L/min FilterWall platform, while leaving the bypass and pressure-control arrangement open for the plumber to configure around the property.
JR Gas & Water supplies and installs the Puretec FILTERWALL F4E across eligible Brisbane and Gold Coast properties. Choose the current installation package and preferred timeframe using the live options above.
Choose Your FILTERWALL F4E Installation Package Above
Use JR's live selector for current pricing, package inclusions and availability. Where the property requires a pressure-limiting valve, custom bypass, concealed-main investigation, additional pipework, freestanding supports or another non-standard requirement, select the applicable installation pathway or request a site-specific quote.
