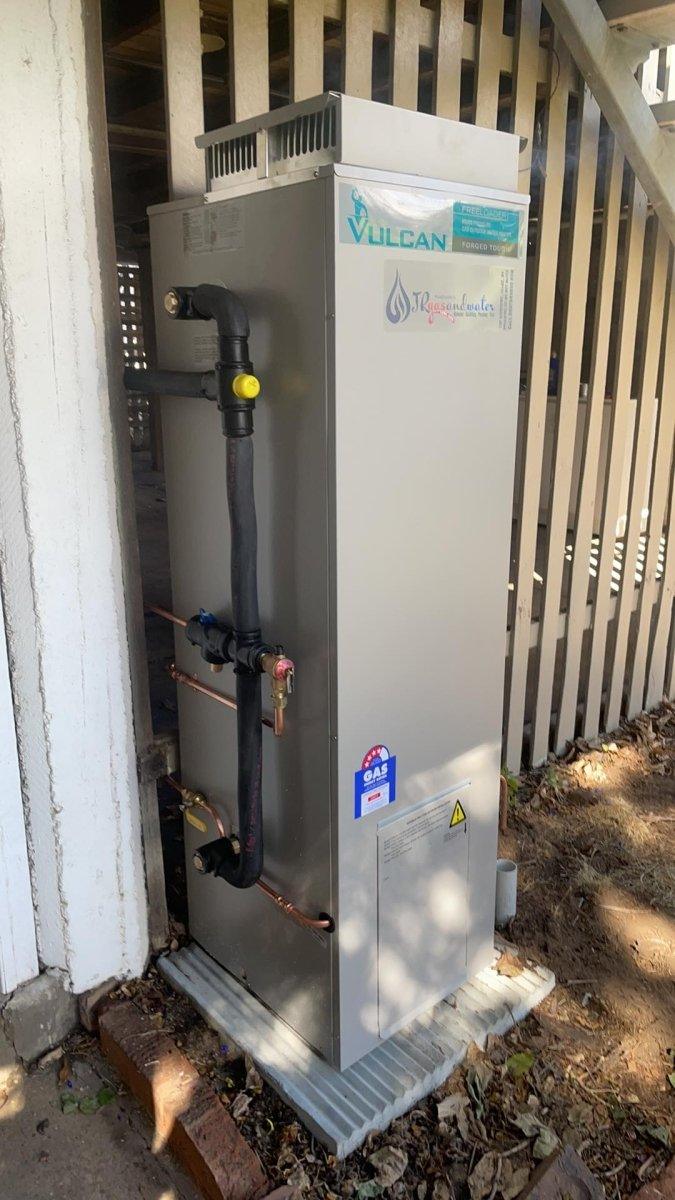

Components of a Gas Storage Hot Water System: A Complete Guide
A gas storage hot water system is a reliable and efficient way to supply hot water to homes and businesses. These systems use natural gas or LPG (propane) to heat and store water in an insulated tank, ensuring a steady supply of hot water when needed. Below, we break down the key components of a gas storage hot water system and their roles in keeping your water hot and safe.
Key Components of a Gas Storage Hot Water System
1. Storage Tank – The Heart of the System
The storage tank holds heated water until it is needed. Tanks come in various sizes, typically ranging from 90L to 400L, depending on household demand.
✔️ Made from stainless steel or vitreous enamel-coated steel for corrosion resistance.
✔️ Insulated to retain heat and reduce energy consumption.
✔️ Available for indoor or outdoor installation.
2. Burner Assembly – Heats the Water
The burner assembly is responsible for generating heat to warm the water inside the tank.
✔️ Fueled by natural gas or LPG, it ignites when the thermostat signals that water needs heating.
✔️ Includes a flame sensor and thermocouple to ensure safe operation.
✔️ Found at the bottom of the storage tank, heating water from below.
3. Gas Control Valve – Regulates Gas Flow
The gas control valve manages the gas supply to the burner assembly.
✔️ Opens and closes to control the gas flow for heating.
✔️ Works in tandem with the thermostat to maintain the desired water temperature.
✔️ Includes safety features to prevent gas leaks or uncontrolled flames.
4. Thermostat – Temperature Control
The thermostat ensures water is heated to the correct temperature, typically set between 50°C and 75°C for safety and efficiency.
✔️ Sends signals to the gas control valve to ignite the burner when water temperature drops.
✔️ Prevents overheating by shutting off the burner once the target temperature is reached.
✔️ Can be adjusted manually to suit household preferences.
5. Temperature and Pressure Relief (TPR) Valve – Safety First
The TPR valve is a critical safety feature that prevents the tank from overheating or becoming over-pressurized.
✔️ Releases hot water and steam if pressure exceeds safe levels.
✔️ Prevents tank explosions by reducing internal pressure.
✔️ Must be checked and tested regularly to ensure functionality.
6. Flue (for Indoor Models) – Venting Gas Safely
Gas storage hot water systems installed indoors require a flue to safely vent combustion gases (CO₂, water vapour, and nitrogen oxides) outside.
✔️ Essential for removing harmful gases from enclosed spaces.
✔️ Ensures safe indoor operation and prevents carbon monoxide buildup.
✔️ Some modern units use balanced or power-flued venting for enhanced safety.
7. Anode Rod – Preventing Tank Corrosion
Many gas storage tanks include a sacrificial anode rod, which prevents the tank from rusting by attracting corrosive elements.
✔️ Typically made of magnesium or aluminum.
✔️ Protects the inner lining of the tank, extending its lifespan.
✔️ Should be replaced every 5–7 years to maintain effectiveness.
8. Dip Tube – Directing Cold Water into the Tank
The dip tube channels cold water from the mains supply to the bottom of the tank.
✔️ Ensures fresh cold water is heated efficiently by the burner.
✔️ Prevents premature mixing of hot and cold water, maintaining heat retention.
9. Hot Water Outlet – Supplying Hot Water to the Home
The hot water outlet is where heated water exits the storage tank to be used in taps, showers, and appliances.
✔️ Located at the top of the tank, where the hottest water collects.
✔️ Connected to the household plumbing system for distribution.
10. Drain Valve – For Maintenance & Flushing
The drain valve is located near the bottom of the tank, allowing water to be emptied when needed.
✔️ Used for flushing sediment buildup from the bottom of the tank.
✔️ Helps maintain efficiency and prevent premature system failure.
✔️ Essential for regular tank maintenance.
How a Gas Storage Hot Water System Works
1️⃣ Cold water enters the tank via the dip tube.
2️⃣ The burner assembly ignites when the thermostat detects a drop in temperature.
3️⃣ The gas control valve regulates the amount of gas supplied to the burner.
4️⃣ The flame heats the water, and hot water rises to the top of the tank.
5️⃣ Hot water exits the tank through the hot water outlet when a tap or appliance is used.
6️⃣ If pressure or temperature gets too high, the TPR valve releases excess water and steam for safety.
7️⃣ The flue (if applicable) vents combustion gases safely outside.
Maintaining Your Gas Storage Hot Water System
To ensure optimal performance and longevity, follow these maintenance tips:
🔹 Check the TPR valve every 6 months for leaks or blockages.
🔹 Flush the tank once a year to remove sediment buildup.
🔹 Inspect the anode rod every 3–5 years and replace if corroded.
🔹 Schedule professional servicing every 1–2 years to check for efficiency and gas safety.
Final Thoughts
A gas storage hot water system is a cost-effective, reliable solution for providing hot water on demand. Understanding its key components and how they work together helps ensure safe operation, efficiency, and a longer lifespan for your system. Regular maintenance and inspections will keep your hot water system performing at its best for years to come.
